Removal and Installation

Disconnect the accelerator cable at the throttle body.
Squeeze the tabs and remove the accelerator cable from the bracket.

Fig 1: Locating Accelerator Cable
Courtesy of FORD MOTOR CO.

NOTE: Cowl panel removed for clarity.

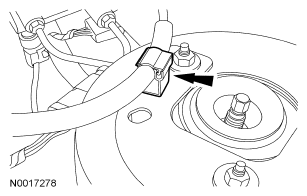

Fig 2: Locating Accelerator Cable Retainer Clip

Courtesy of FORD MOTOR CO.

Remove the accelerator cable from the accelerator cable retainer clip on the LH shock tower.
Remove the accelerator cable plastic retainer from the accelerator pedal.

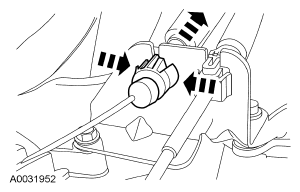

Fig 3: Removing Accelerator Cable Plastic Retainer
Courtesy of FORD MOTOR CO.
Position the accelerator pedal and remove the accelerator cable.

Fig 4: Removing Accelerator Pedal
Courtesy of FORD MOTOR CO.
Using a 16-mm deep thin wall socket, slide it over the accelerator cable end, push the socket toward the dash panel to release the accelerator cable retainers and remove the accelerator cable from the engine compartment.

Fig 5: Removing Accelerator Cable From Engine Compartment Using Wall Socket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
