Starter Motor - CVT: Notes

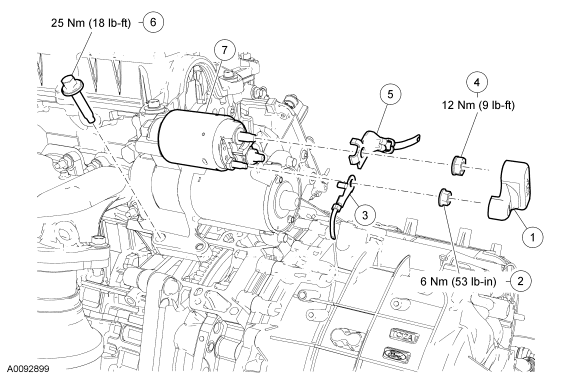

Fig 1: Exploded View Of Starter Motor - CVT With Torque Specifications
GF0017229Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11N087 Starter motor solenoid terminal cover
2 N805320 Starter motor solenoid wire nut
3 14463 Starter motor solenoid wire
4 N805403 Starter motor solenoid battery cable nut
5 14452 Starter motor solenoid battery cable
6 W503297 Starter motor bolt (2 required)
7 11000 Starter motor
