Camshaft Position (CMP) Sensor: Notes

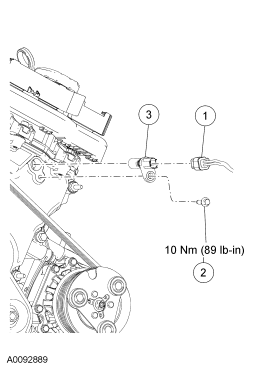

Fig 1: Exploded View Of Camshaft Position CMP Sensor With Torque Specifications
GF0017247Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Camshaft position (CMP) sensor electrical connector
2 W500214 CMP sensor bolt
3 6C315 CMP sensor
