Knock Sensor (KS): Notes

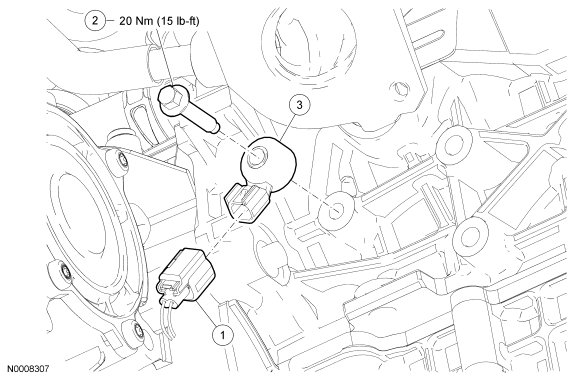

Fig 1: Exploded View Of Knock Sensor KS With Torque Specifications
GF0017255Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Knock sensor (KS) electrical connector
2 W500310 KS bolt
3 12A699 KS
