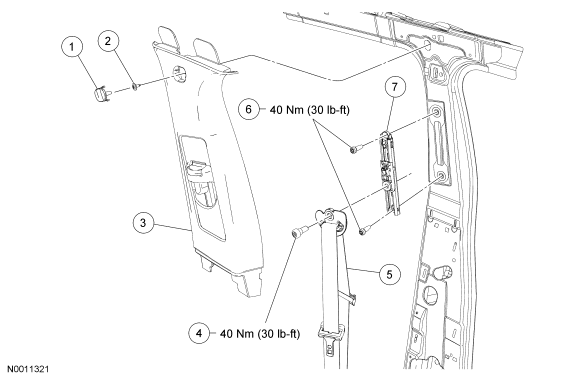

Safety Belt Shoulder Height Adjuster: Notes
NOTE:
RH side shown, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 74672A40 | Upper B-pillar screw cover |
| 2 | 56910-S | Upper B-pillar screw |
| 3 | 7424397/ 7424396 | Upper B-pillar trim panel (LH/RH) |
| 4 | W709344 | Safety belt D-ring bolt |
| 5 | 611B08 | Safety belt and retractor assembly |
| 6 | - | Safety belt shoulder height adjuster bolts (2 required) (part of 602B82) |
| 7 | 602B82 | Safety belt shoulder height adjuster |
