Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

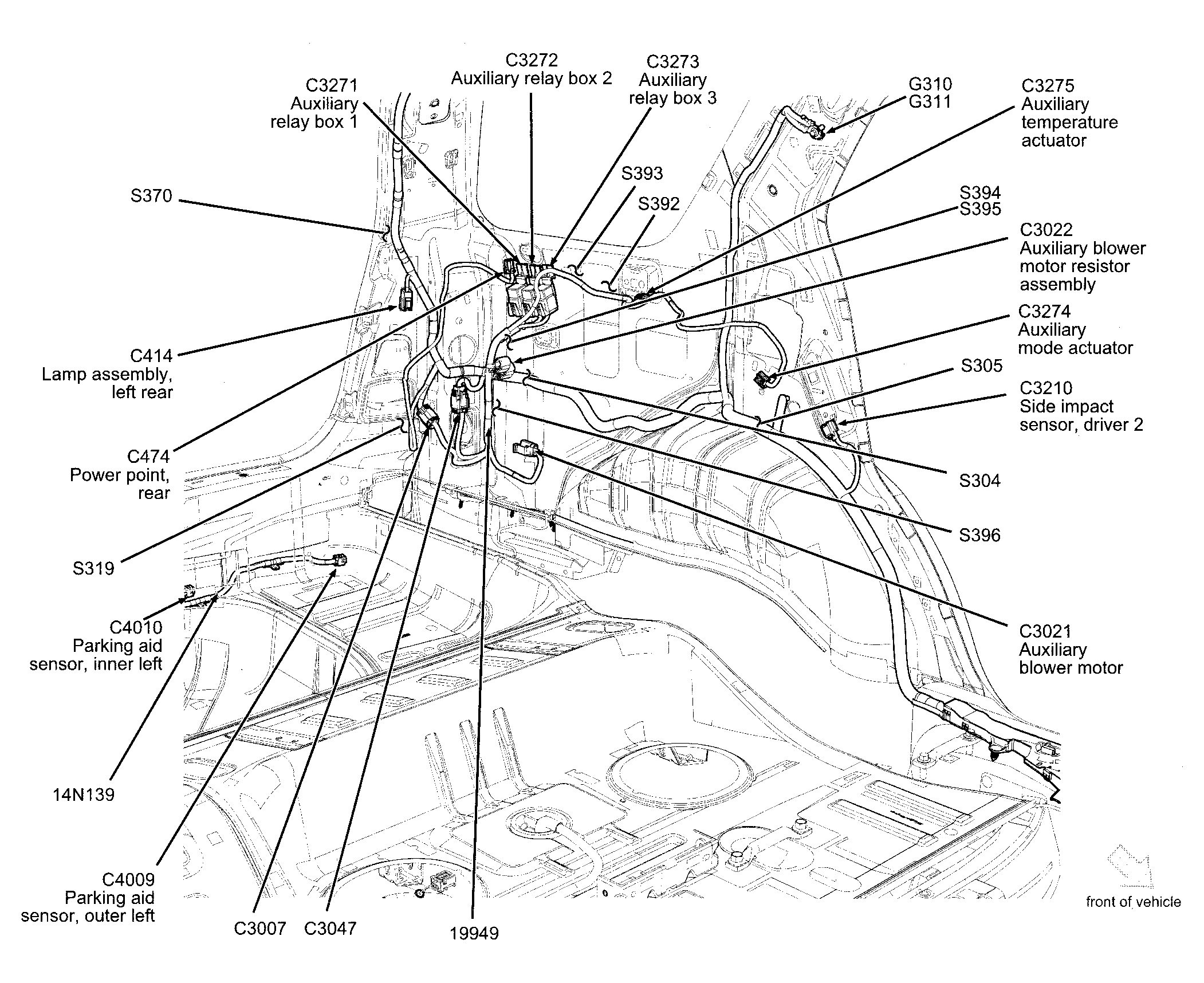

| Auxiliary Relay Box 1 (Freestyle) | Left side of trunk. See Figure. |
| Auxiliary Relay Box 2 (Freestyle) | Left side of trunk. See Figure. |
| Auxiliary Relay Box 3 (Freestyle) | Left side of trunk. See Figure. |

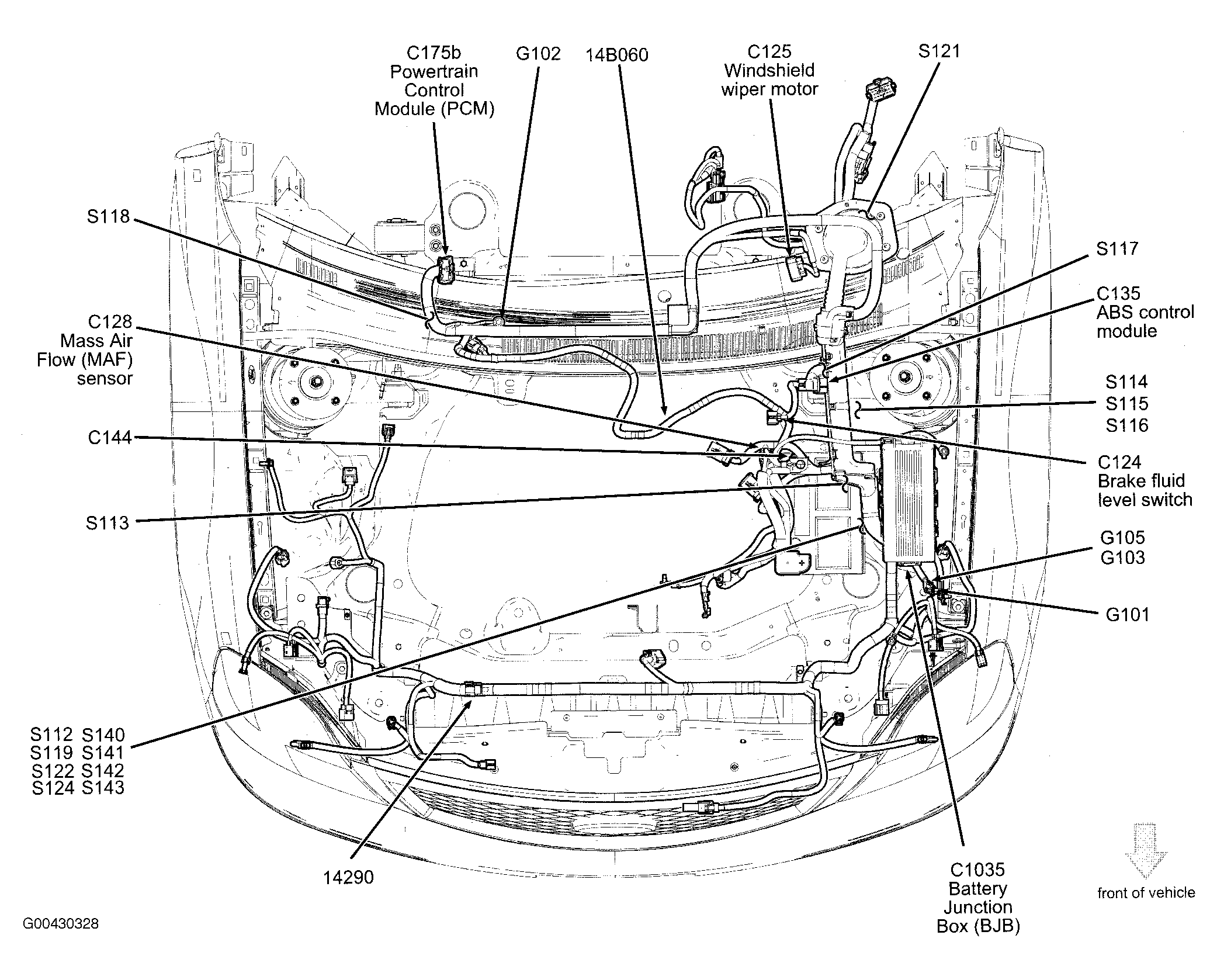

| Battery Junction Box (BJB) | Left front of engine compartment. See Figure. |

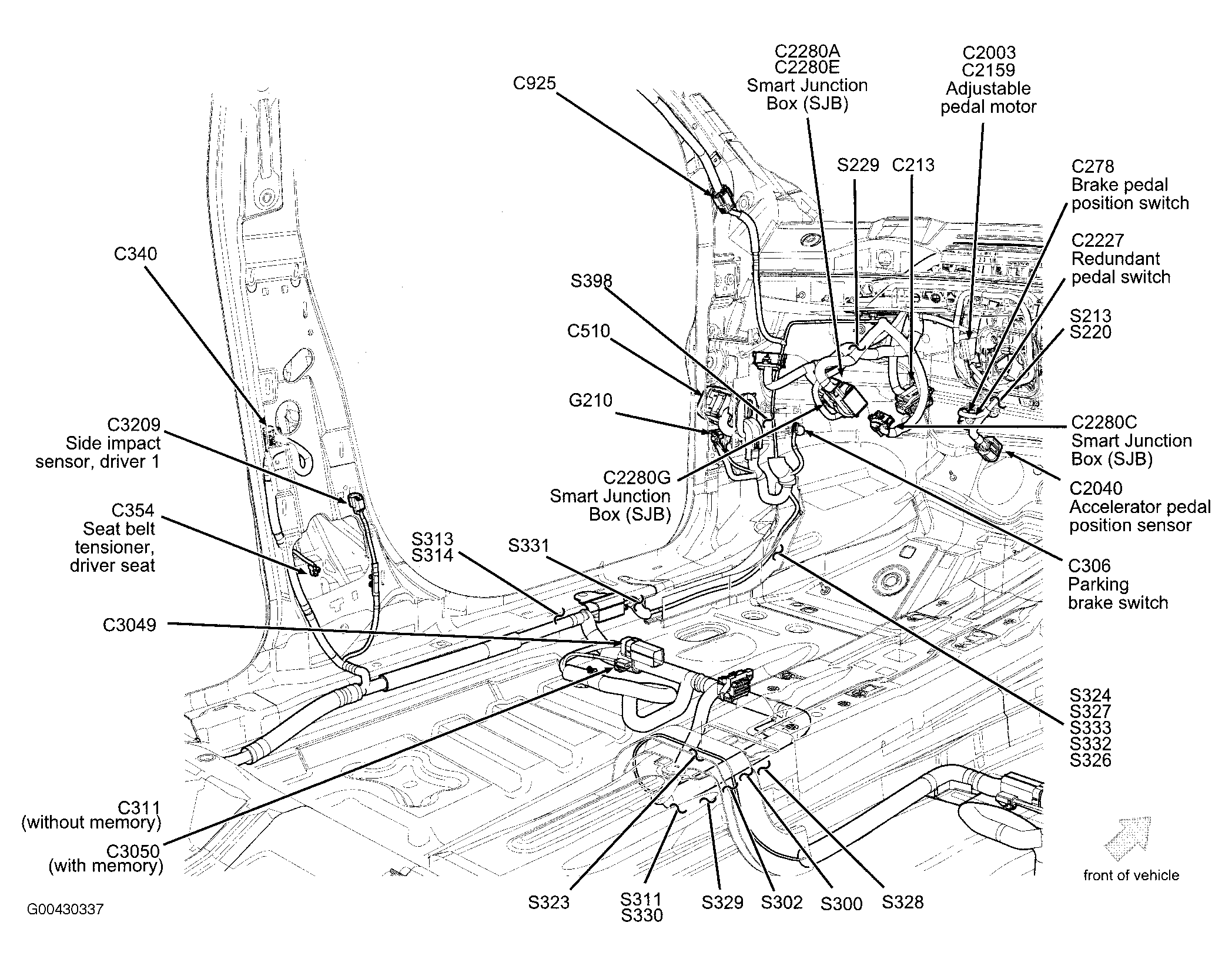

| Smart Junction Box (SJB) (Five Hundred/Montego) | Left side of dash. See Figure. |

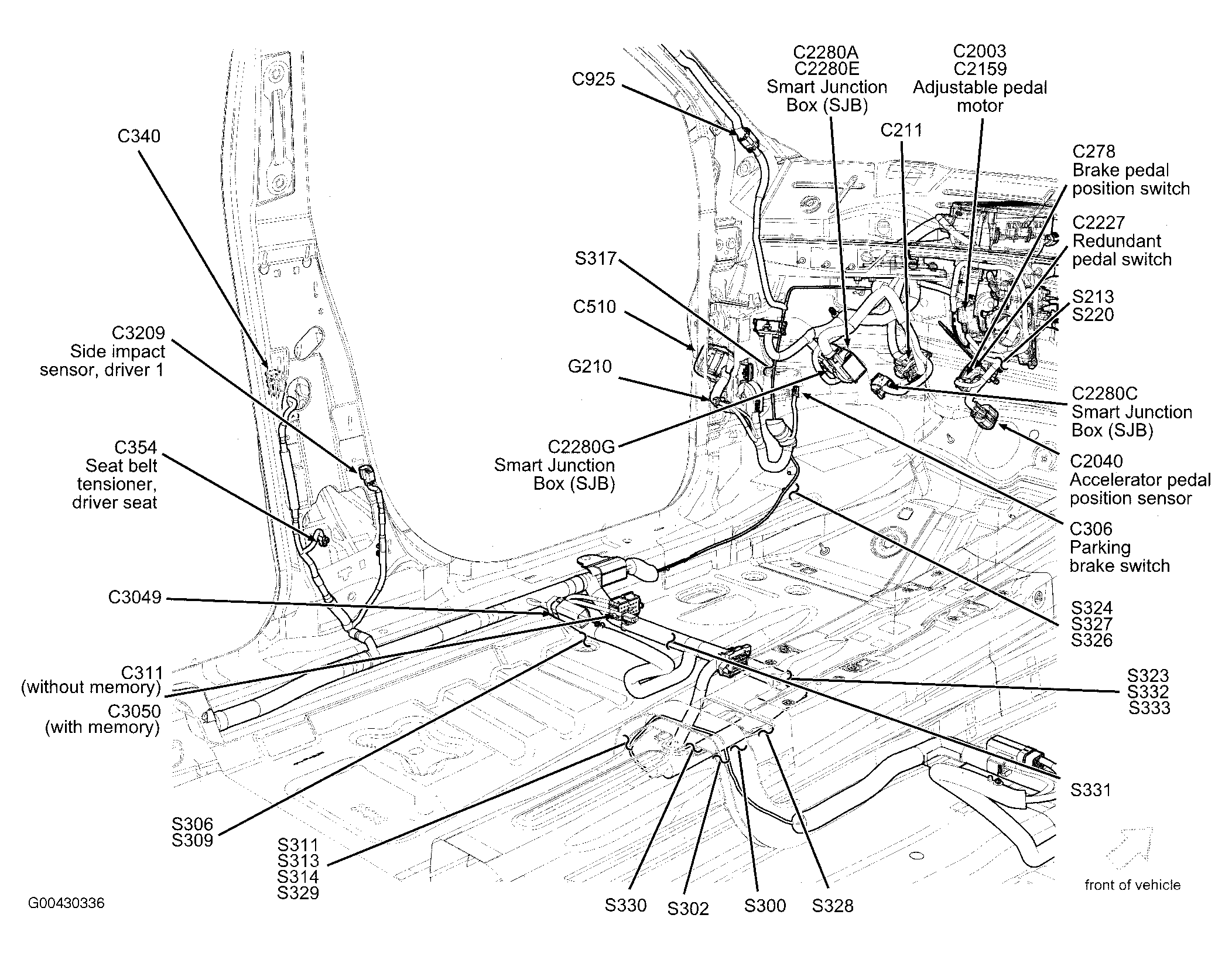

| Smart Junction Box (SJB) (Freestyle) | Left side of dash. See Figure. |
