Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left rear of engine compartment. See Figure. |

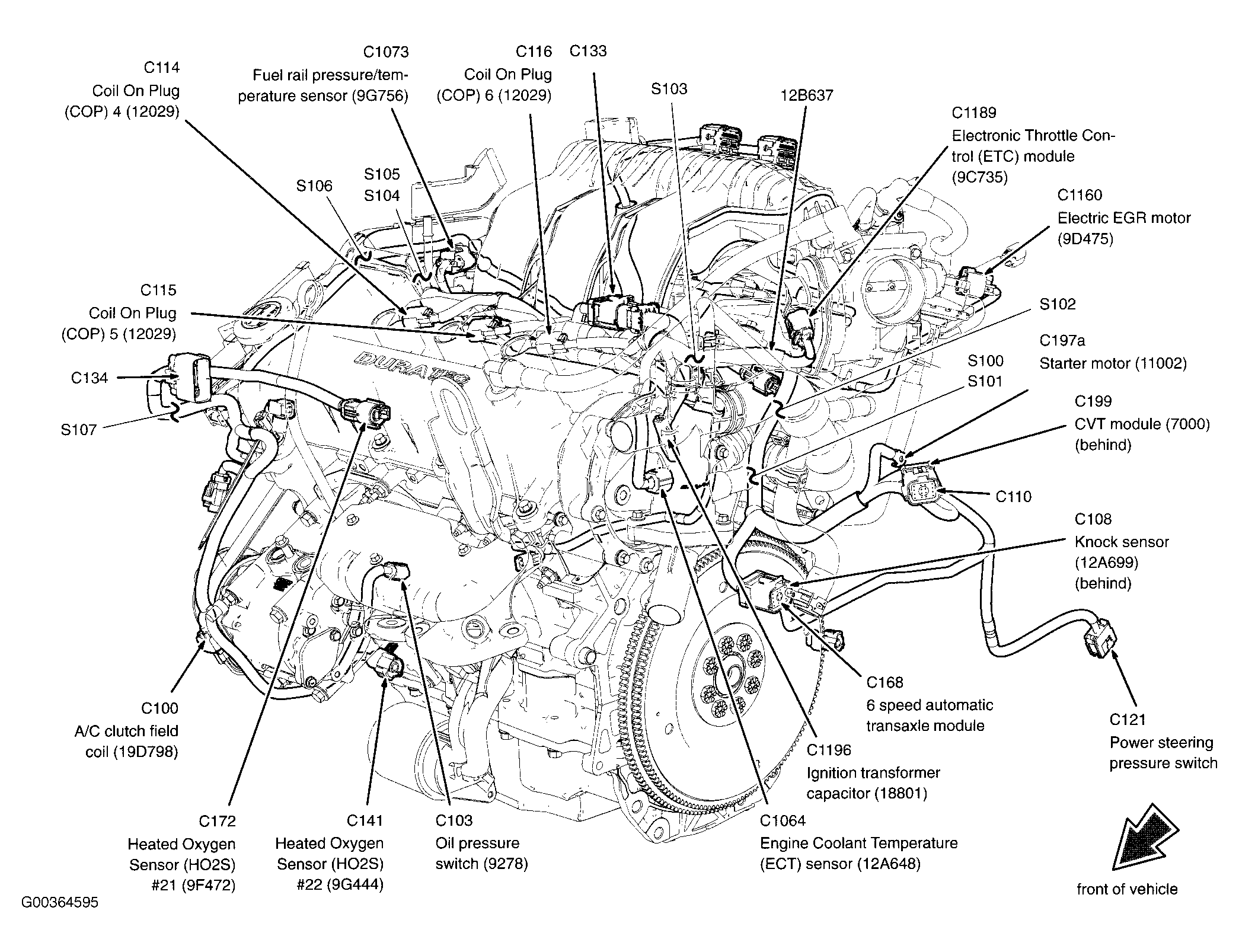

| CVT Module | Rear of engine. See Figure. |

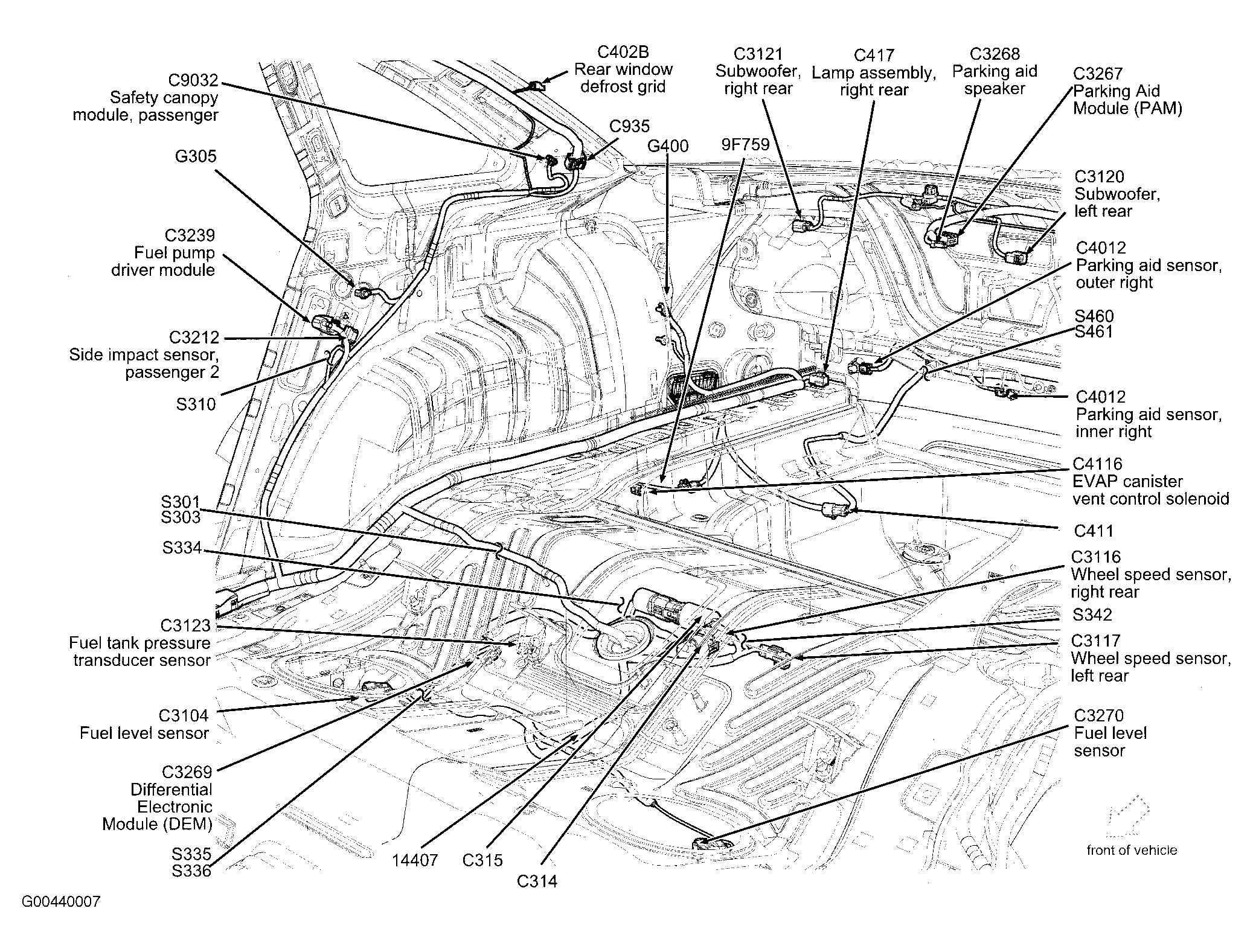

| Differential Electronic Module (DEM) (Five Hundred/Montego) | Near right rear wheel well. See Figure. |

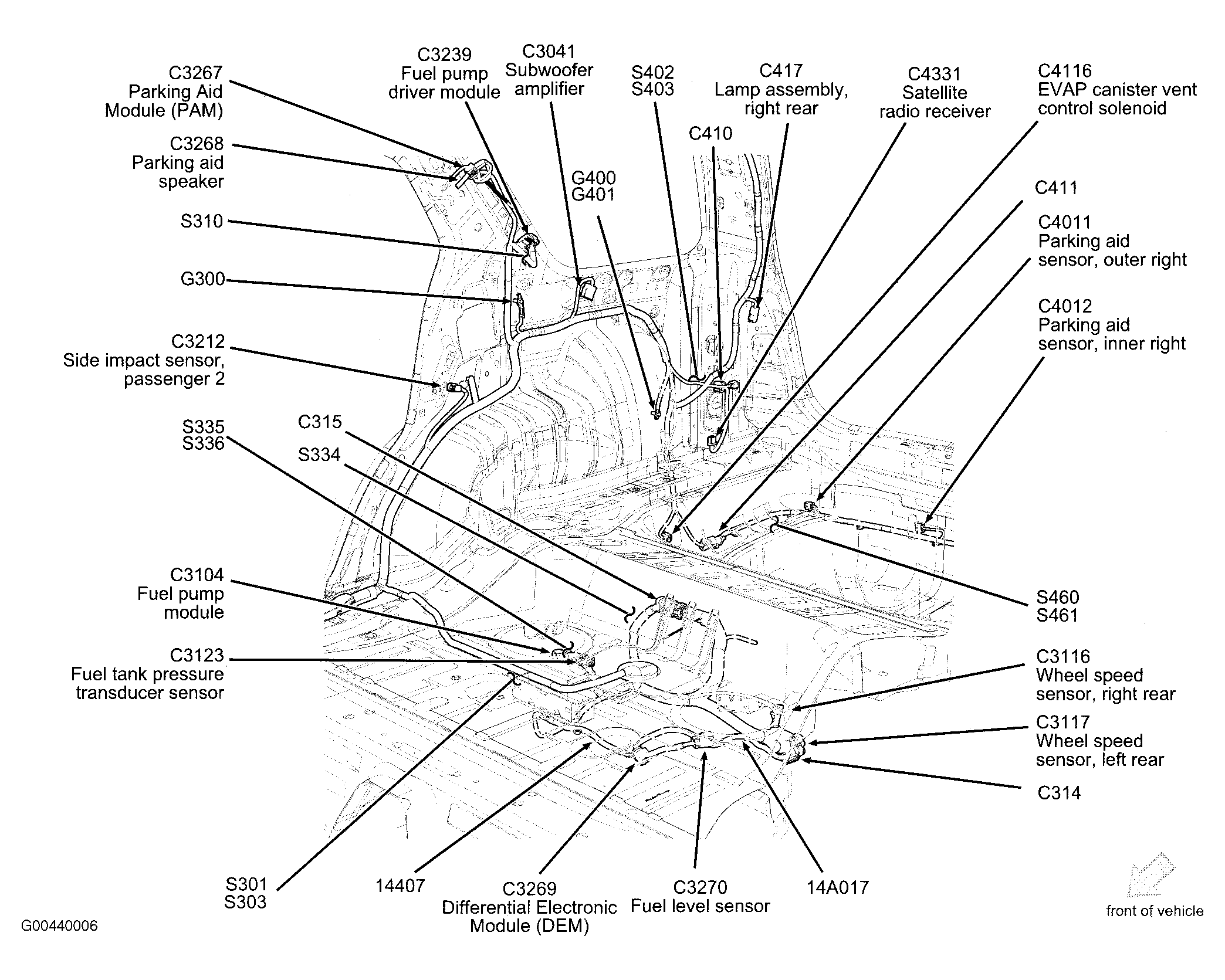

| Differential Electronic Module (DEM) (Freestyle) | Left side of rear axle. See Figure. |

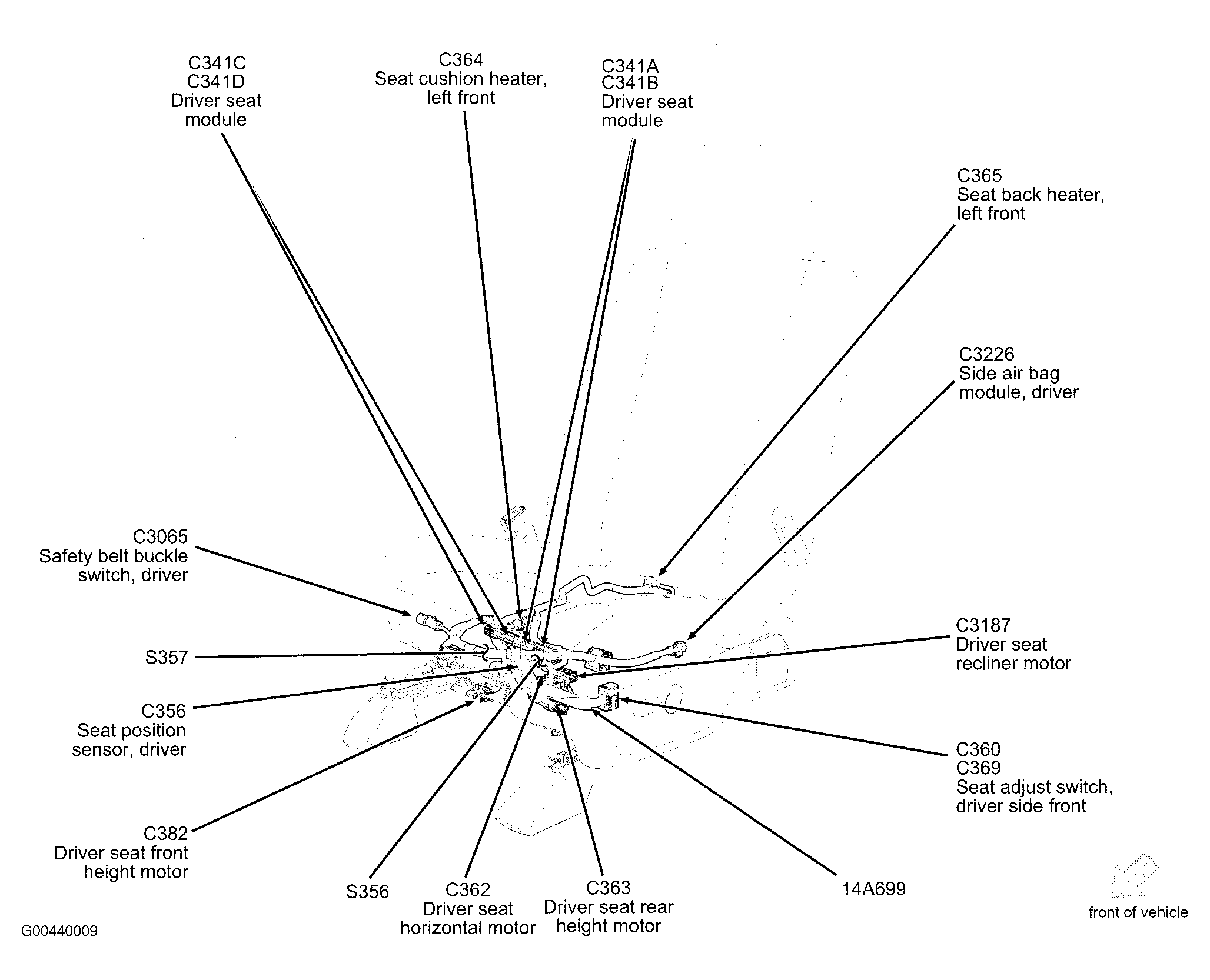

| Driver Seat Module (W/ Memory & Heated Seats) | In driver's seat bottom. See Figure. |

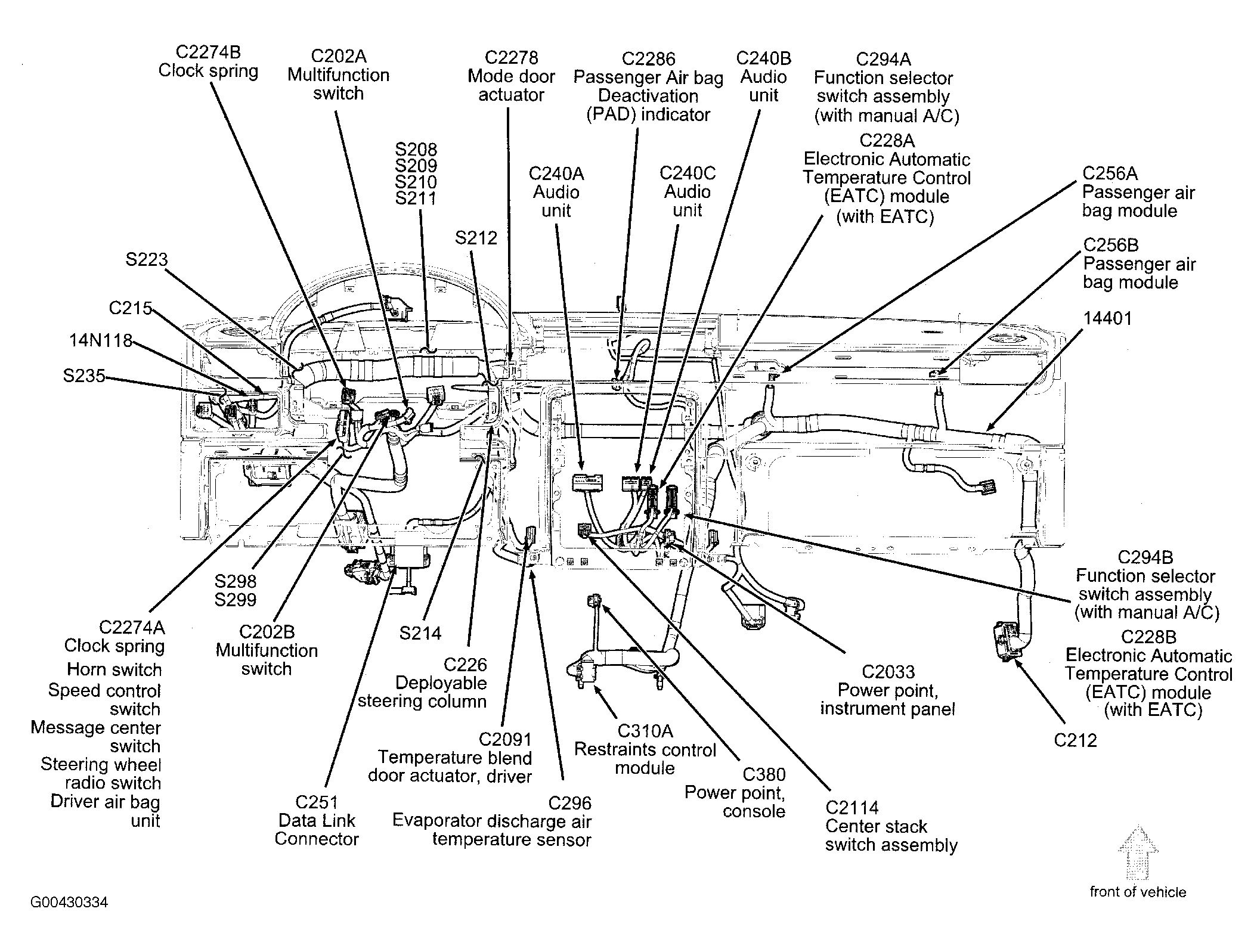

| Electronic Automatic Temperature Control (EATC) Module (Five Hundred/Montego) | Center of dash. See Figure. |

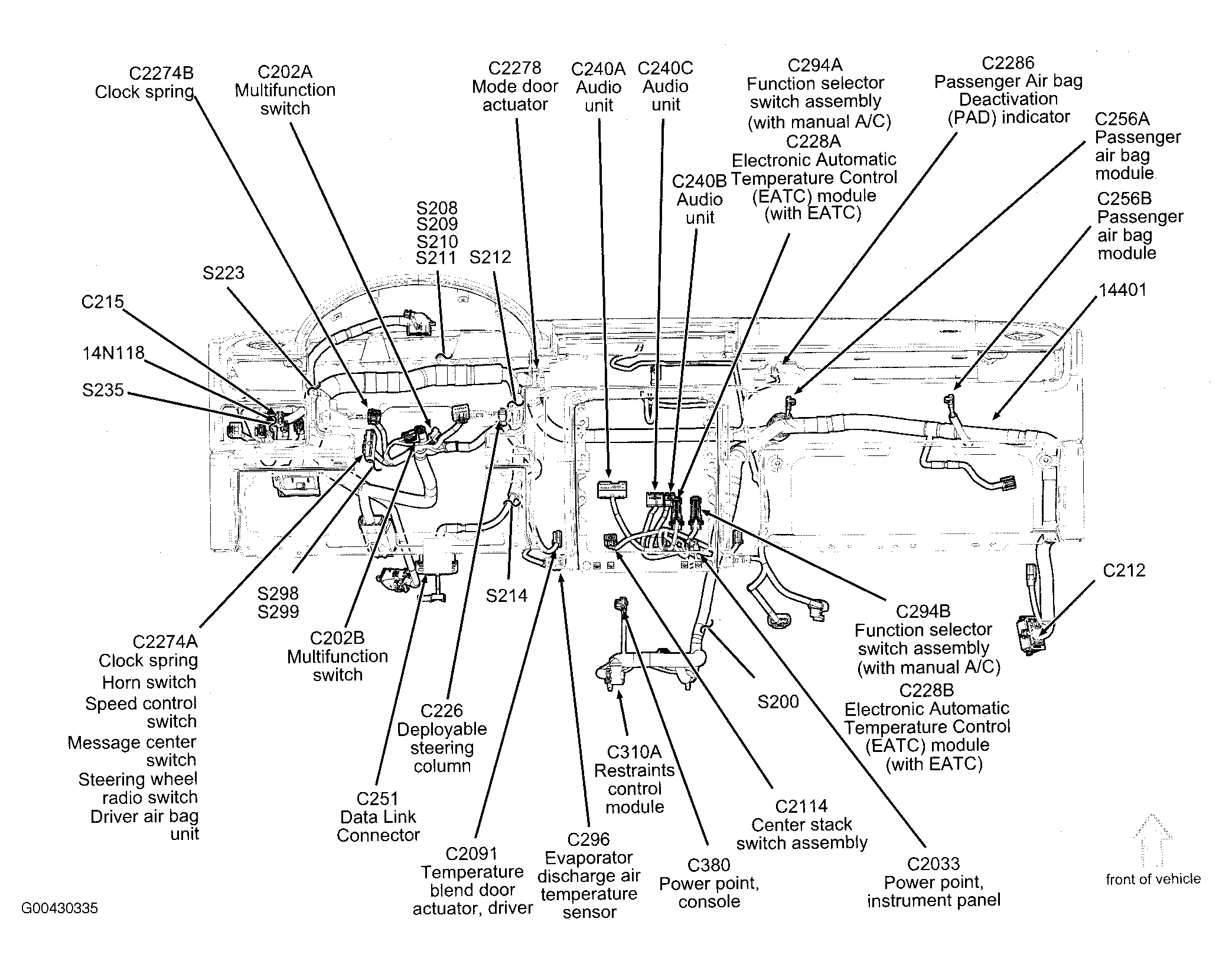

| Electronic Automatic Temperature Control (EATC) Module (Freestyle) | Center of dash. See Figure. |
| Electronic Throttle Control (ECT) Module | Top rear of engine. See Figure. |

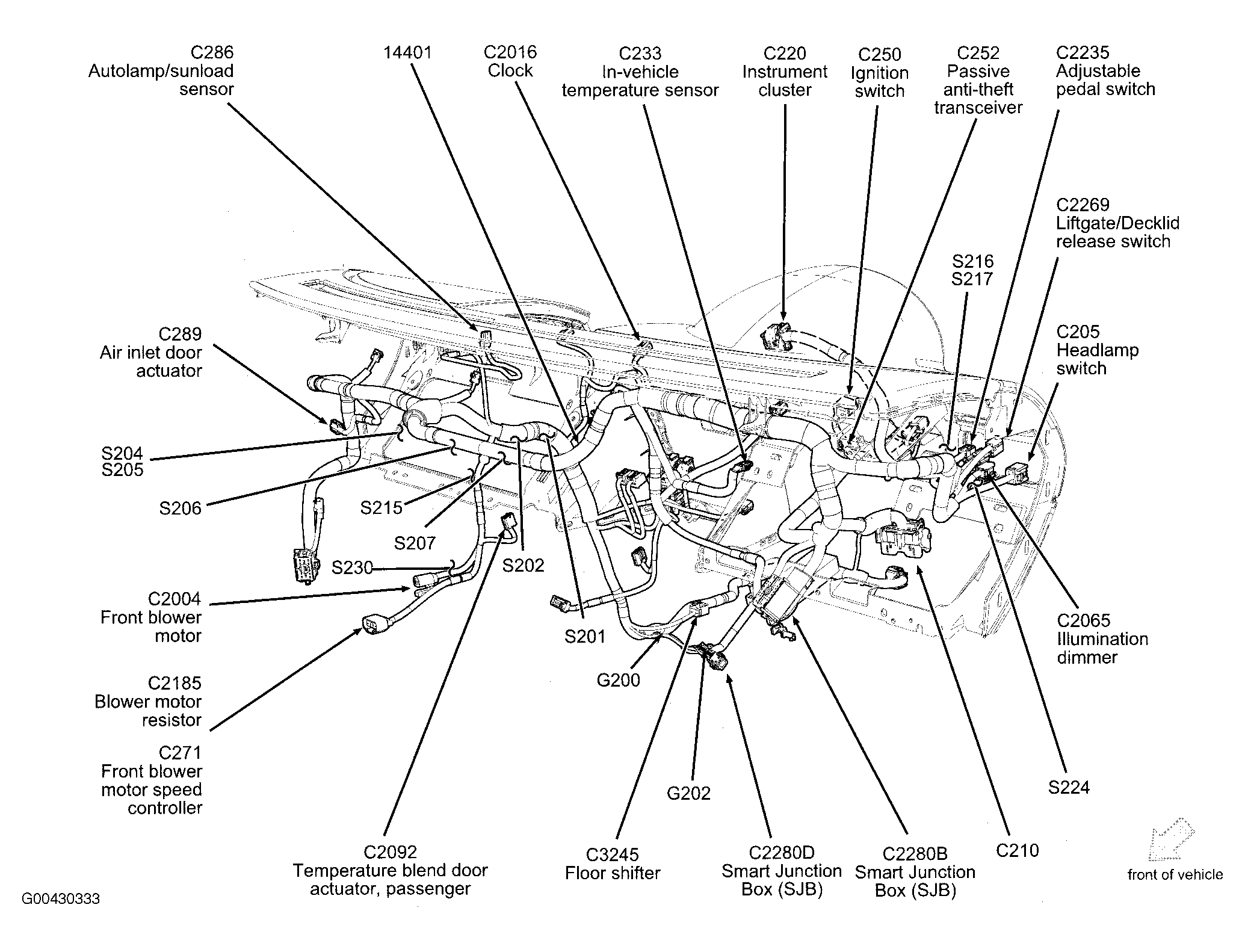

| Front Blower Motor Speed Controller (Freestyle) | Right side of dash. See Figure. |
| Fuel Pump Driver Module (Five Hundred/Montego) | Right "C" pillar. See Figure. |
| Fuel Pump Driver Module (Freestyle) | Right "C" pillar. See Figure. |
| Heated Seat Module, Driver Side Front | In driver seat bottom. See Figure. |

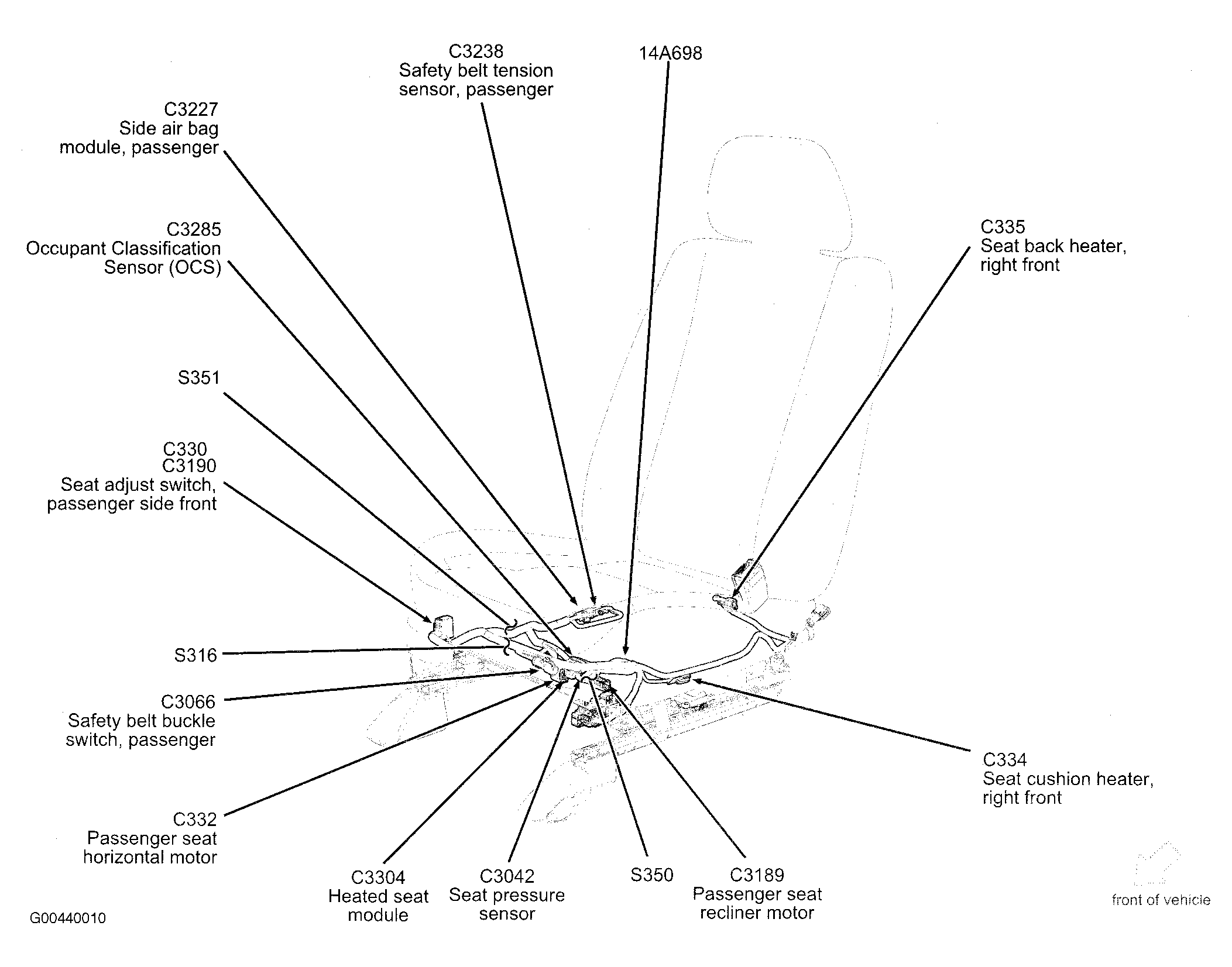

| Heated Seat Module, Passenger Side Front | In bottom of front passenger's seat. See Figure. |
| Parking Aid Module (Freestyle) | Right "C" pillar. See Figure. |

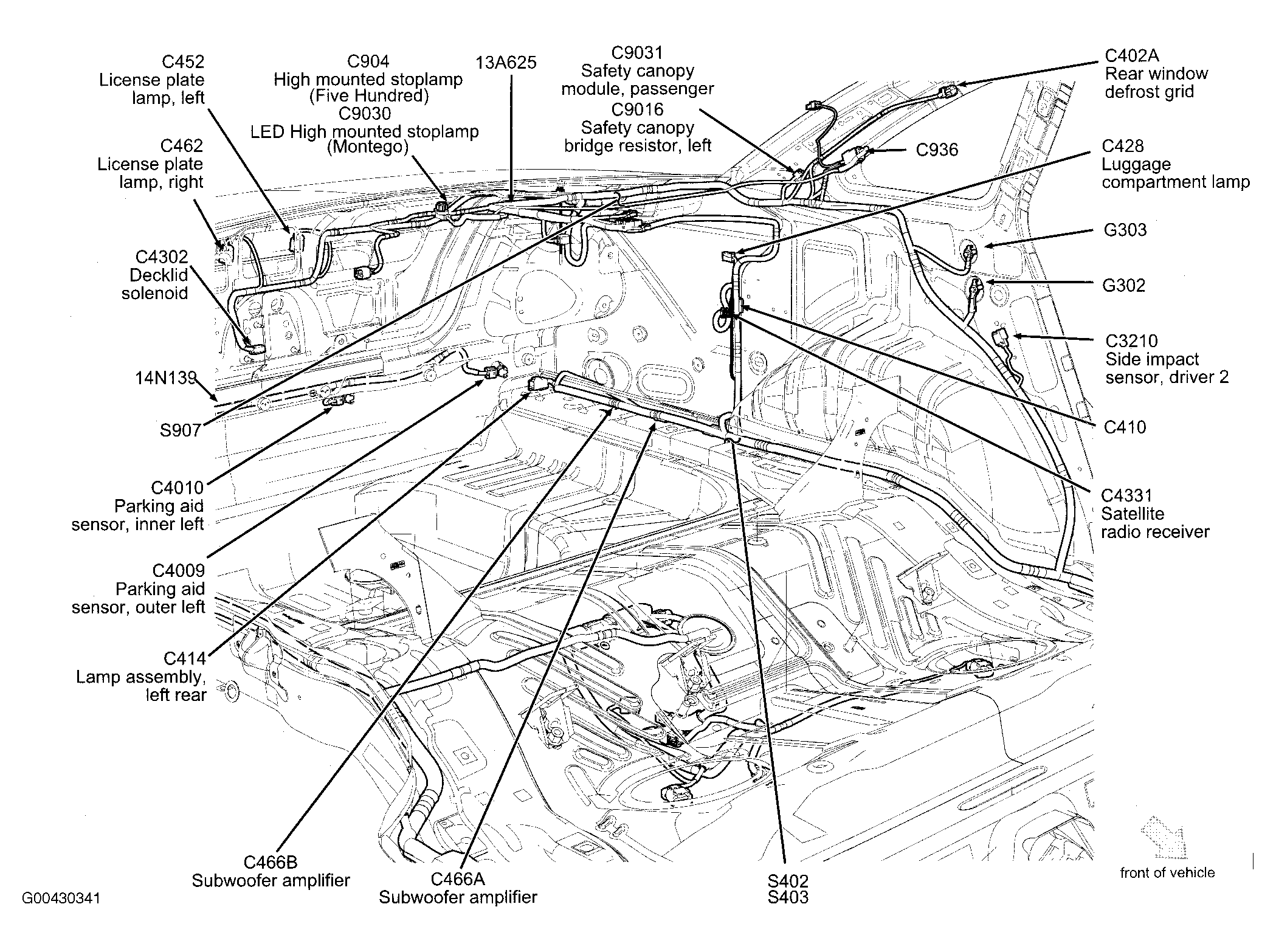

| Parking Aid Module (PAM) (Five Hundred/Montego) | Center front of trunk. See Figure. |

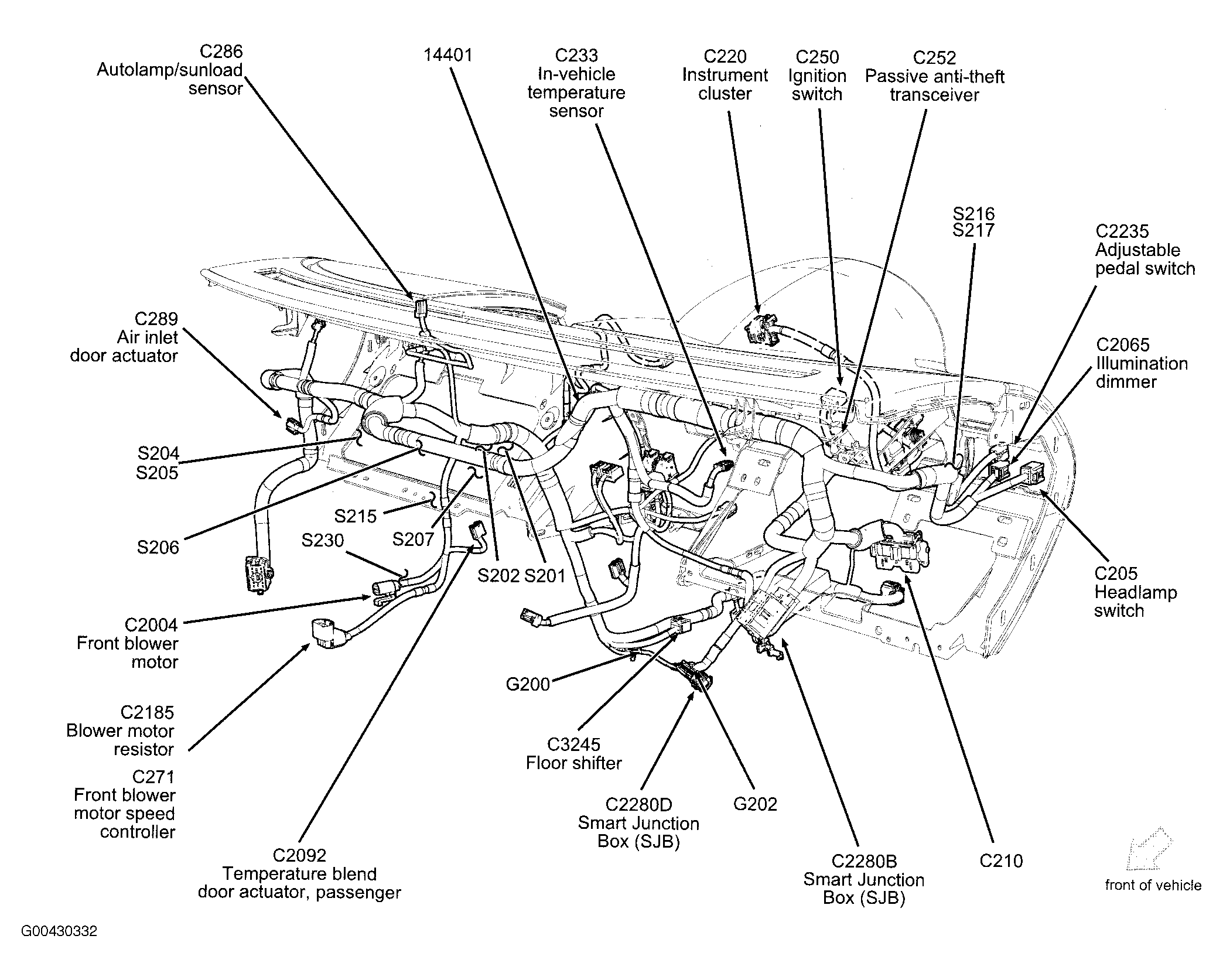

| Passive Anti-Theft Transceiver (Five Hundred/Montego) | Left side of dash. See Figure. |
| Passive Anti-Theft Transceiver (Freestyle) | Left side of dash. See Figure. |
| Powertrain Control Module (PCM) | Right rear of engine compartment. See Figure. |

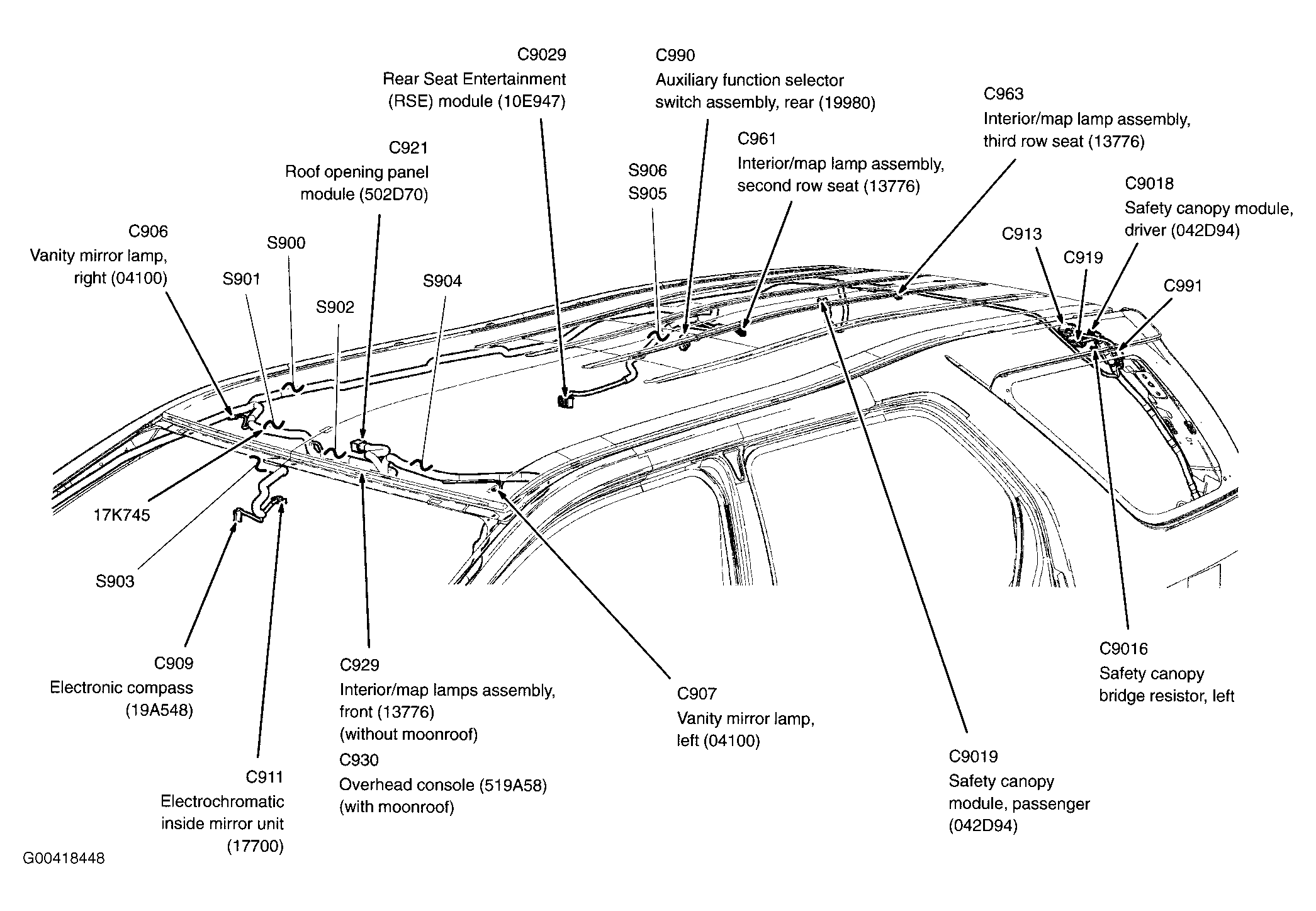

| Rear Seat Entertainment (RSE) Module (Freestyle) | Center of roof. See Figure. |
| Restraints Control Module (Five Hundred/Montego) | Center of dash. See Figure. |
| Restraints Control Module (Freestyle) | Center of dash. See Figure. |

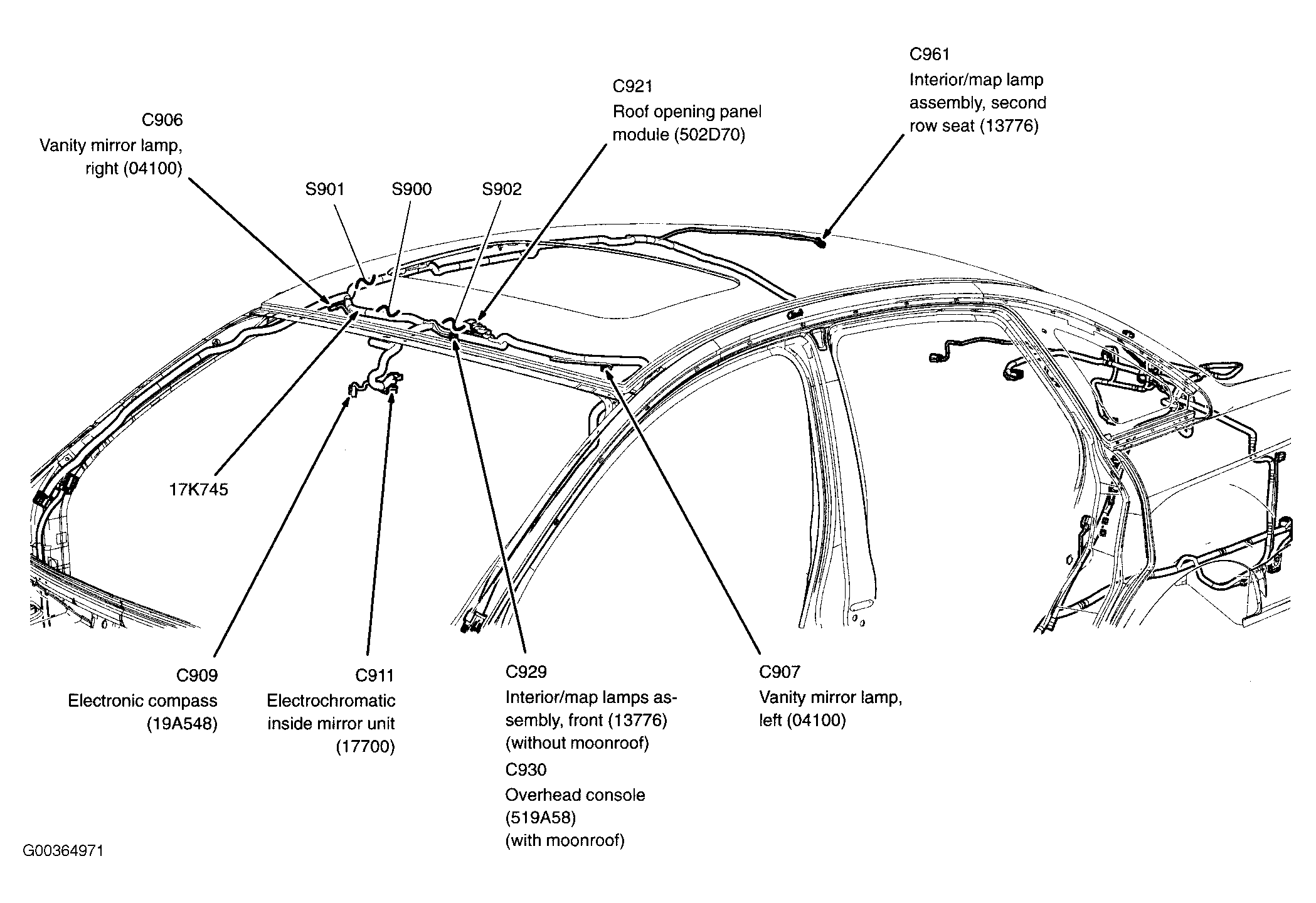

| Roof Opening Panel Module (Five Hundred/Montego) | Behind headliner, above rear view mirror. See Figure. |
| Roof Opening Panel Module (Freestyle) | Behind headliner, above rear view mirror. See Figure. |
| Safety Canopy Module (Driver) (Five Hundred/Montego) | Left "C" pillar. See Figure. |
| Safety Canopy Module, Driver (Freestyle) | Top of left "D" pillar. See Figure. |
| Safety Canopy Module (Passenger) (Five Hundred/Montego) | Right "C" pillar. See Figure. |
| Side Air Bag Module (Driver) | In bottom left of driver seat. See Figure. |

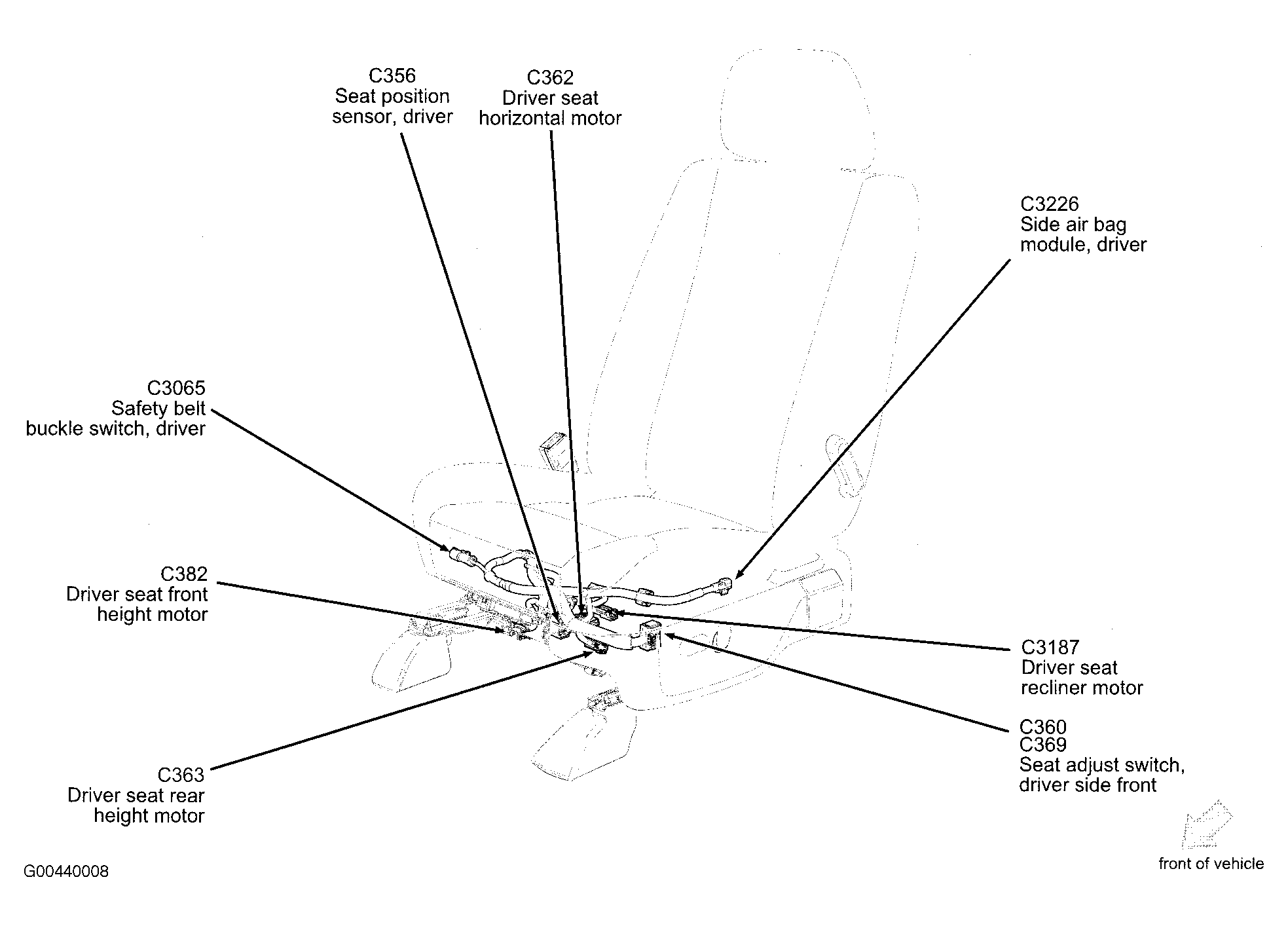

| Side Air Bag Module (Driver) (W/O Memory & Heated Seats) | In left bottom of driver's seat. See Figure. |
| Side Air Bag Module (Passenger) | In front passenger's seat. See Figure. |
| 6 Speed Automatic Transaxle Module | Rear of engine. See Figure. |
