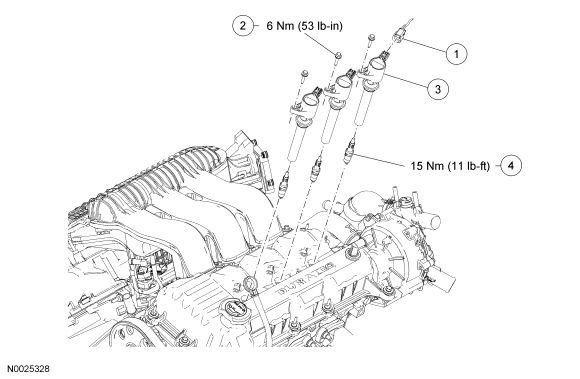

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Ignition coil-on-plug electrical connector (6 required) |
| 2 | W707156 | Ignition coil-on-plug bolt (6 required) |
| 3 | 12029 | Ignition coil-on-plug (6 required) |
| 4 | 12405 | Spark plug (6 required) |
- For additional information, refer to the procedures in this article.
