Powertrain Control Module (PCM): Notes

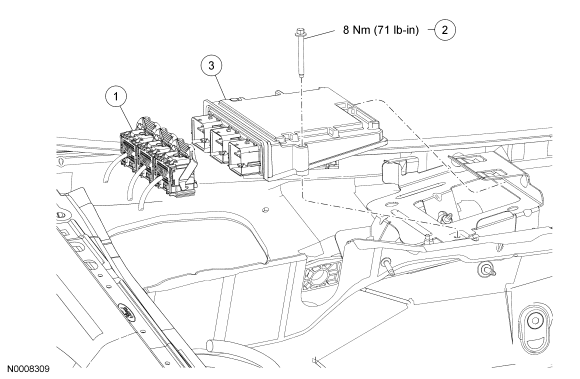

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications
GF0017249Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Powertrain control module (PCM) electrical connector (3 required)
2 W500304 PCM bolt
3 12A659 PCM
