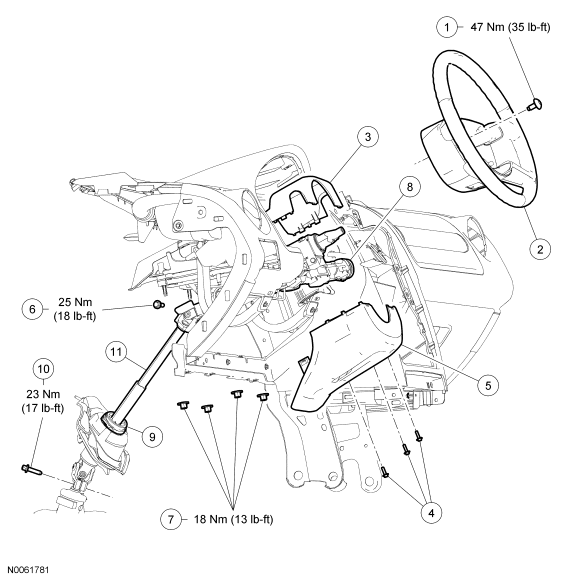

Steering Column - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 043B13 | Steering wheel bolt |
| 2 | 3600 | Steering wheel |
| 3 | 3530 | Upper steering column shroud |
| 4 | W706731 | Lower steering column shroud screw (3 required) |
| 5 | 3K512 | Lower steering column shroud |
| 6 | N808349 | Intermediate shaft-to-steering column bolt |
| 7 | N806432 | Steering column nuts (4 required) |
| 8 | 3C529 | Steering column |
| 9 | 3E735 | Intermediate shaft boot bearing clamp |
| 10 | N808349 | Intermediate shaft-to-steering gear bolt |
| 11 | 3C662 | Intermediate shaft |
- For additional information, refer to the following procedures.
