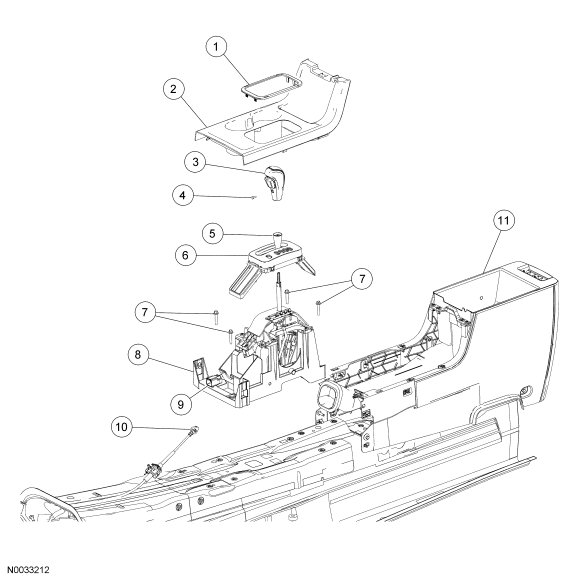

External Controls
| Item | Part Number | Description |
|---|---|---|
| 1 | 61A16 | Upper console bezel |
| 2 | 45A76 | Upper console |
| 3 | 7L010 | Transmission selector lever knob |
| 4 | - | Transmission selector lever knob screw (part of 7L010) |
| 5 | - | Transmission selector lever knob extension (part of 7L010) |
| 6 | 7E034 | PRNDL bezel assembly |
| 7 | W505258-S | Transmission selector lever assembly bolts |
| 8 | 7K004 | Transmission selector lever assembly |
| 9 | - | Transmission selector lever assembly electrical connector |
| 10 | 7E395 | Selector lever cable |
| 11 | - | Center console assembly |
The transaxle shift control linkage consists of:
- a selector lever cable that connects the transaxle range selector lever to the floor shifter assembly.
- a brake shift interlock actuator that is integral to the floor shifter assembly.
The floor shifter assembly:
- locks the transaxle range selector lever in the PARK position when the ignition switch is in the lock position.
- requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the lock position.
