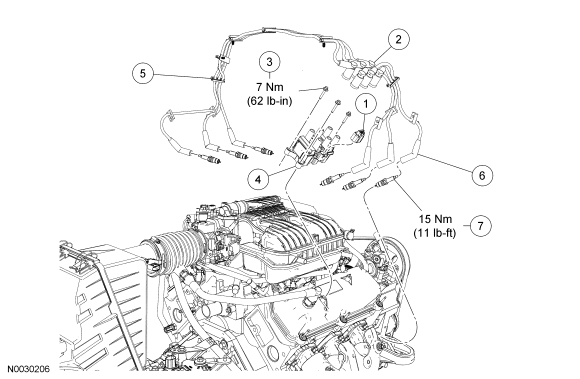

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Ignition coil electrical connector |
| 2 | 12286 | Spark plug wire-to-ignition coil (6 required) |
| 3 | W705995-S | Ignition coil bolt (3 required) |
| 4 | 12029 | Ignition coil |
| 5 | 12297 | Spark plug wire retainer |
| 6 | 12286 | Spark plug wire-to-spark plug (6 required) |
| 7 | 12405 | Spark plug (6 required) |
- For additional information, refer to the following procedures.
