Upper Intake Manifold: Notes

NOTE: Early build shown, late build similar.

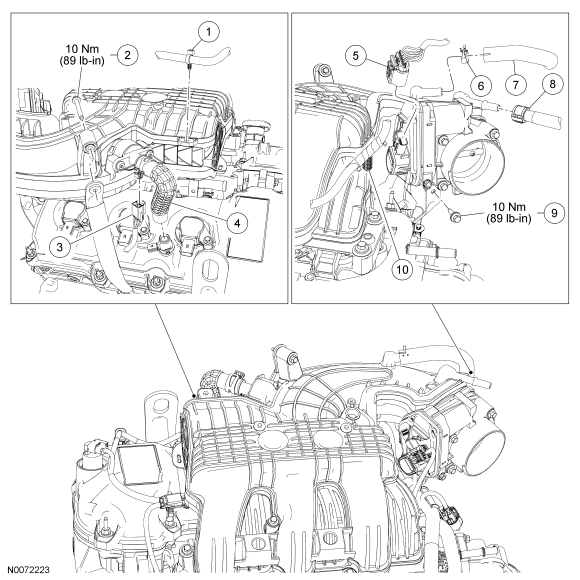

Fig 1: Upper Intake Manifold Components With Torque Specifications (1 Of 2)
GF0045619Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Evaporative emissions (EVAP) tube-to-upper intake manifold pin-type retainer
2 W503274 Upper intake manifold long support bracket bolt (early build engines)
3 14A464 Heated PCV electrical connector (part of 12C508) (early build engines)
4 6K817 PCV hose
5 14A464 Throttle body (TB) electrical connector (part of 12C508)
6 CS16140 Brake booster-to-intake manifold vacuum hose clamp
7 6K817 Brake booster-to-intake manifold vacuum hose
8 9D661 EVAP-to-intake manifold tube
9 W503274 Upper intake manifold short support bracket bolt
10 - Engine control wiring harness retainer (part of 12C508)

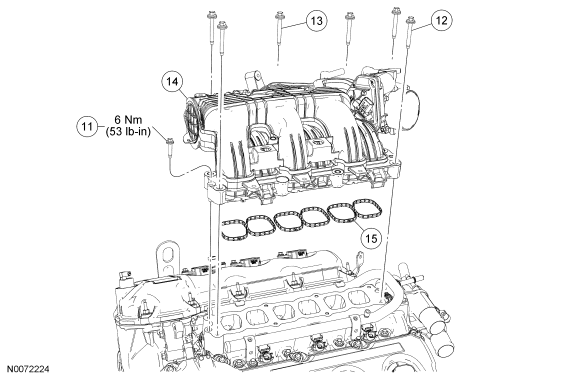

Fig 2: Upper Intake Manifold Components With Torque Specification (2 Of 2)
GF0045620Courtesy of FORD MOTOR CO.
Item Part Number Description
11 - Fuel tube bracket bolt
12 W503282 Upper intake manifold bolt (5 required)
13 W707083 Upper intake manifold bolt
14 9S455 Upper intake manifold
15 9H486 Upper intake manifold gasket (3 required)
