Knock Sensor (KS): Notes

Material

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

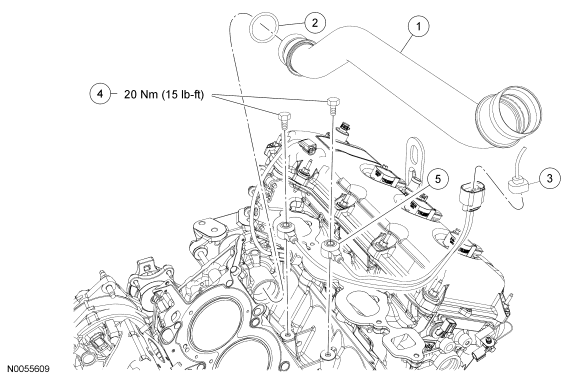

Fig 1: Exploded View Of Knock Sensor (KS) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9N271	Coolant tube
2	8565	O-ring seal
3	14A464	Knock sensor (KS) electrical connector
4	W704749	KS bolts (2 required)
5	12A699	KS
