Anti-Lock Brake System (ABS) Module: Notes

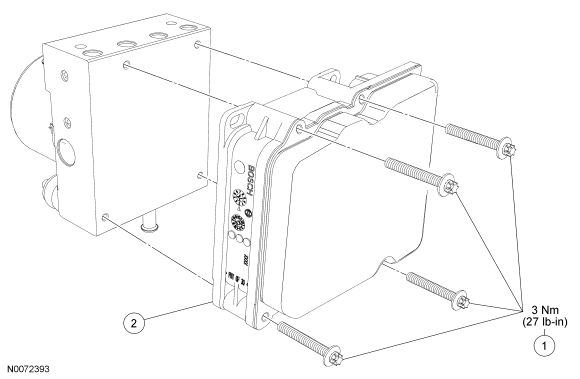

Fig 1: Exploded View Of Anti-Lock Brake System ABS Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13254806	ABS module screws (4 required)
2	2C219	ABS module
