Stability Control Sensor Cluster: Notes

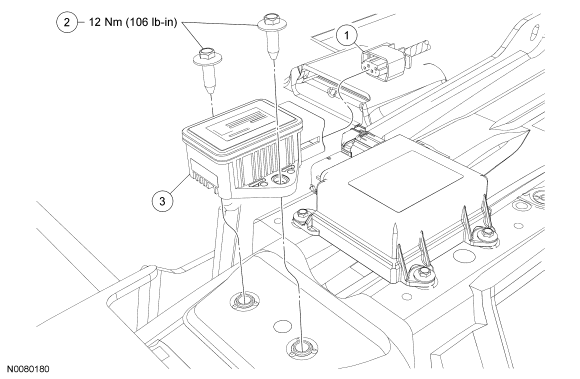

Fig 1: Stability Control Sensor Cluster With Torque Specification
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
2C011
Stability control sensor cluster electrical connector
2
W700101
Stability control sensor cluster bracket bolts (2 required)
3
3C187
Stability control sensor cluster
