Powertrain Control Module (PCM): Notes

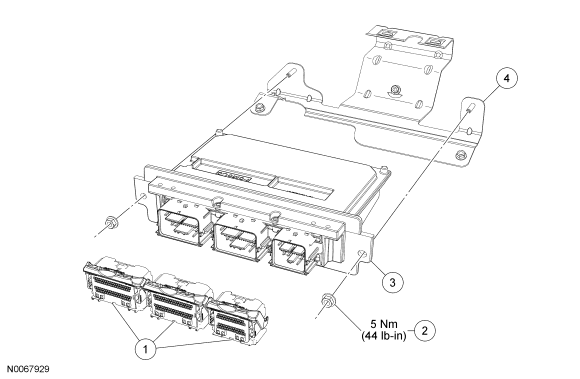

Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specification
GF0045726Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCM electrical connectors (part of 12B637) (3 required)
2 N804795 PCM nut (2 required)
3 12A650 PCM
4 12A659 PCM bracket
