Safety Belt Buckle - Rear, Taurus, Sable: Notes

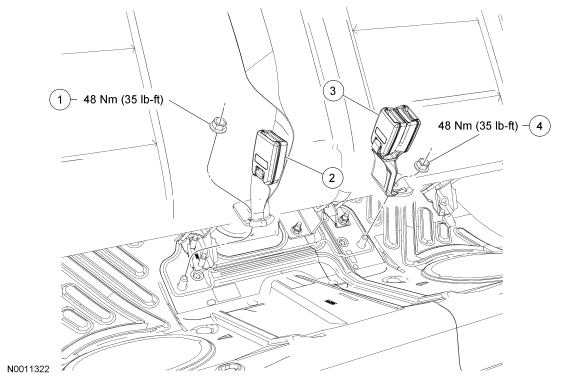

Fig 1: Exploded View Safety Belt Buckle With Torque Specifications - Rear, Taurus, Sable
GF0016706Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N800937 Center safety belt and RH buckle assembly nut
2 - Center safety belt and RH buckle assembly (part of 600A38)
3 60044 LH and center safety belt buckle assembly
4 N800937 LH and center safety belt buckle assembly nut
