Safety Belt Buckle - Second Row, Taurus X: Notes

NOTE: 40 percent shown in illustration, 60 percent similar.

NOTE: RH shown in illustration, LH similar.

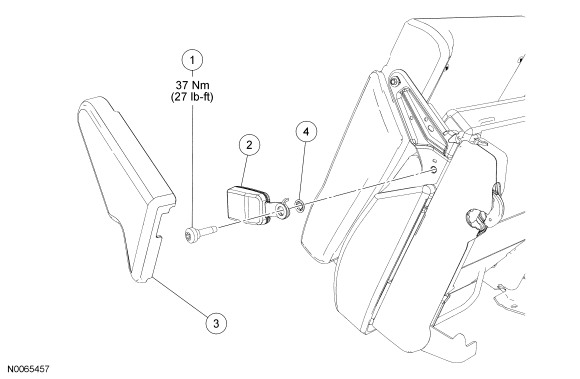

Fig 1: Safety Belt Buckle With Torque Specification - Second Row, Taurus X

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt buckle bolt
2	61203	Safety belt buckle
3	-	Outboard pivot cover
4	-	Lock washer
