Safety Belt Retractor - Second Row, Outboard, Taurus X: Notes

NOTE: LH shown in illustration, RH similar.

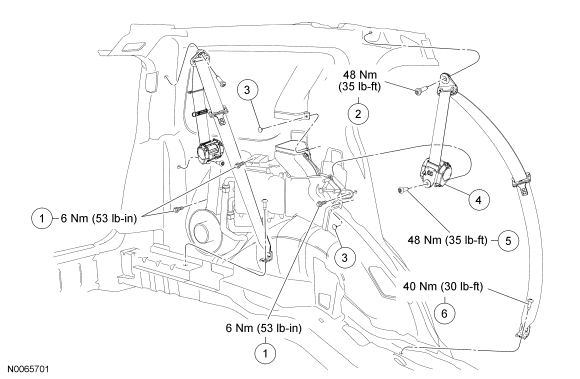

Fig 1: Safety Belt Retractor With Torque Specifications - Second Row, Outboard, Taurus X

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505424	Auxiliary climate control housing bolts (3 required) (if equipped)
2	-	Safety belt D-ring bolt (part of 611B69)
3	N803678	Auxiliary climate control duct pin-type retainers (2 required) (if equipped)
4	611B69	Second row safety belt retractor
5	N807750	Second row safety belt retractor bolt
6	W504775	Second row safety belt anchor bolt
