Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00458958

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment

G00458959

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment (Taurus X)

G00458960

Courtesy of FORD MOTOR CO.

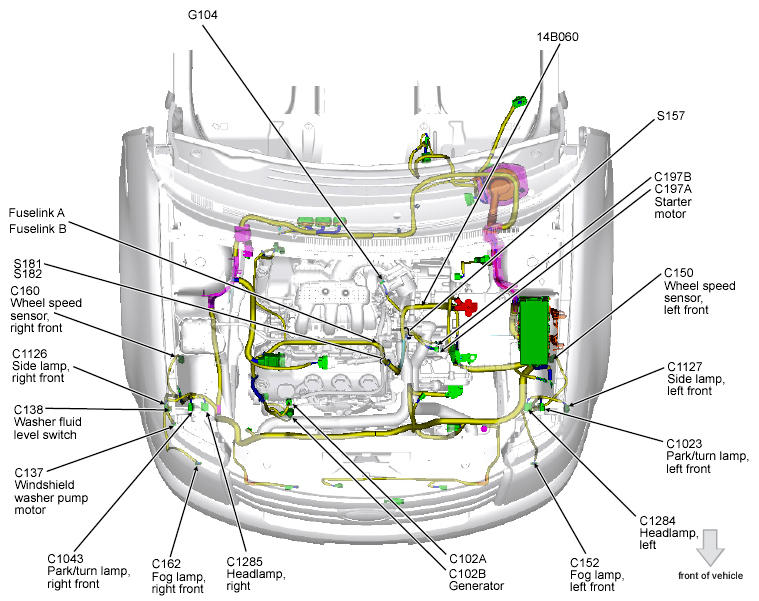

Fig 4: Engine Compartment (Taurus)

G00458961

Courtesy of FORD MOTOR CO.

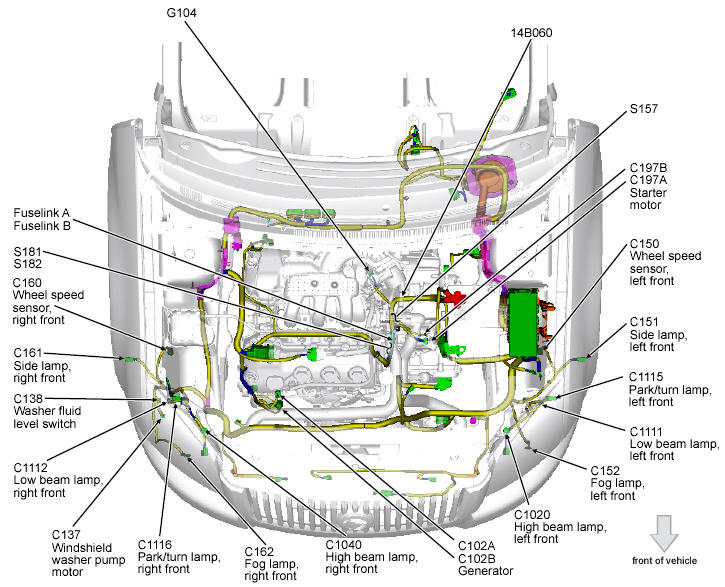

Fig 5: Engine Compartment (Sable)

G00458962

Courtesy of FORD MOTOR CO.

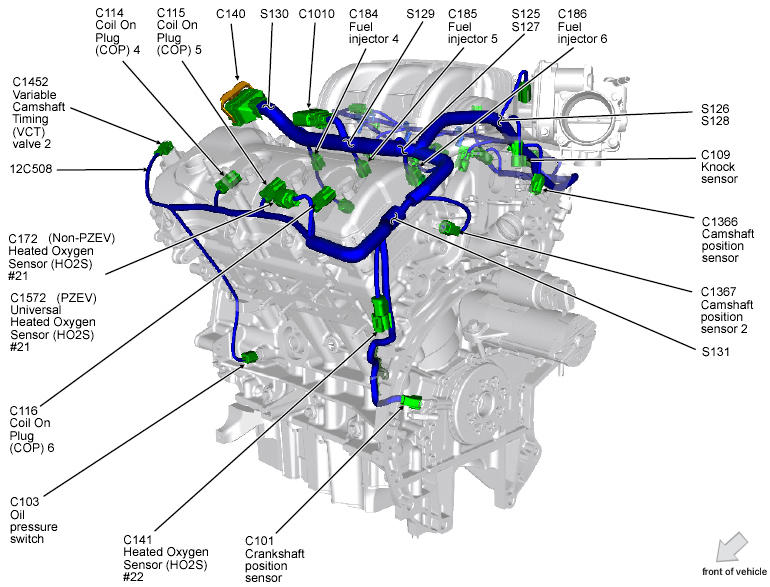

Fig 6: Left Side & Rear Of Engine

G00458963

Courtesy of FORD MOTOR CO.

Fig 7: Right Side & Front Of Engine

G00458964

Courtesy of FORD MOTOR CO.

Fig 8: Automatic Transmission

G00458965

Courtesy of FORD MOTOR CO.

Fig 9: Front Of Dash

G00458966

Courtesy of FORD MOTOR CO.

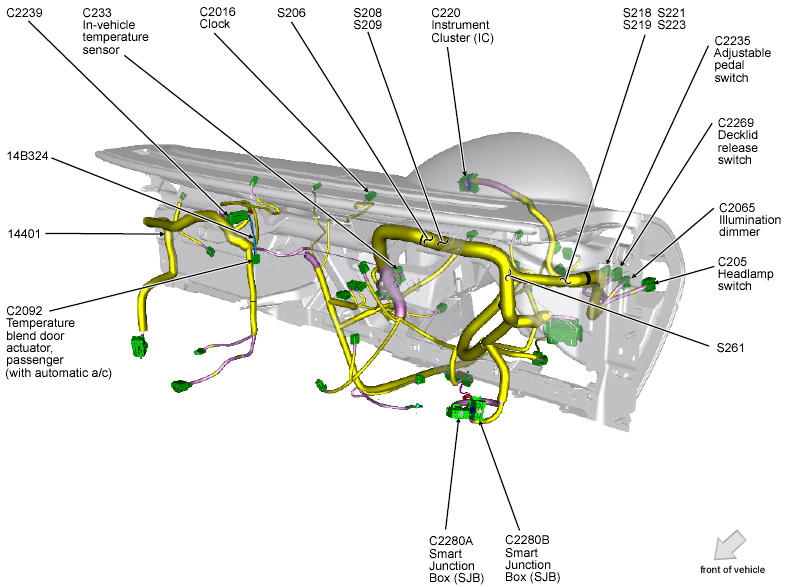

Fig 10: Rear Of Dash

G00458967

Courtesy of FORD MOTOR CO.

Fig 11: HVAC Unit

G00467120

Courtesy of FORD MOTOR CO.

Fig 12: Steering Column

G00458969

Courtesy of FORD MOTOR CO.

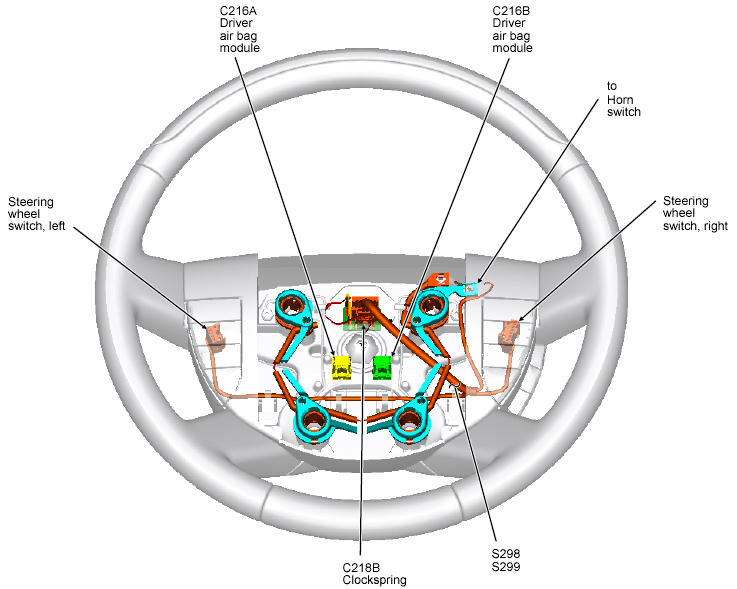

Fig 13: Steering Wheel

G00458970

Courtesy of FORD MOTOR CO.

Fig 14: Center Console

G00458971

Courtesy of FORD MOTOR CO.

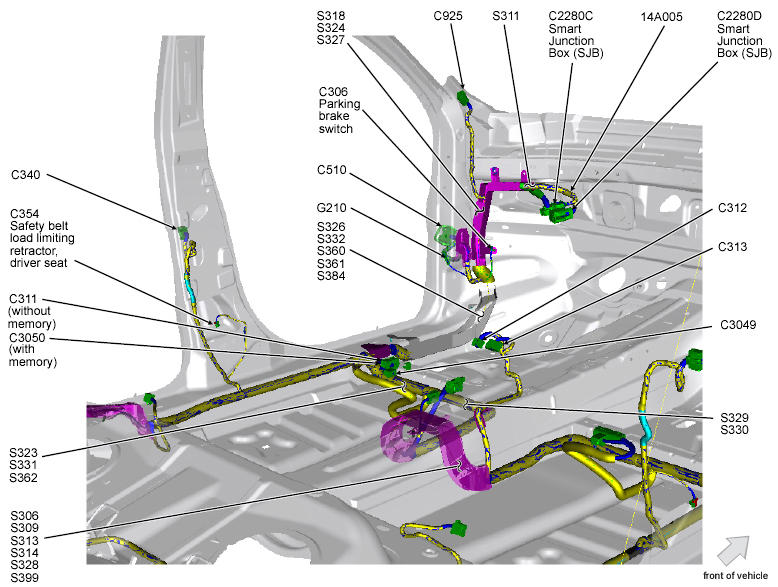

Fig 15: Left Front Interior Of Vehicle (Sable & Taurus)

G00458972

Courtesy of FORD MOTOR CO.

Fig 16: Right Front Interior Of Vehicle

G00458973

Courtesy of FORD MOTOR CO.

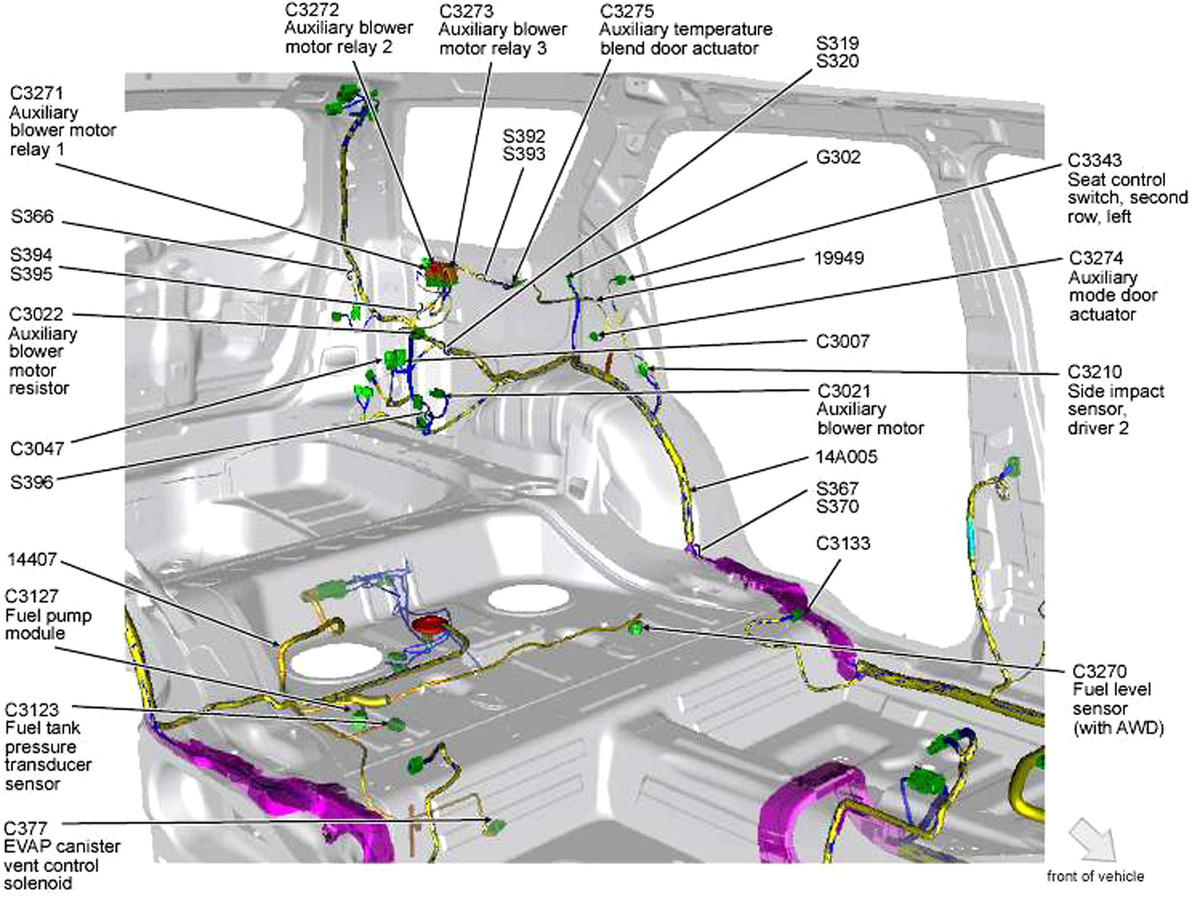

Fig 17: Left Rear Interior Of Vehicle (Taurus X)

G00467121

Courtesy of FORD MOTOR CO.

Fig 18: Right Rear Interior Of Vehicle (Taurus X)

G00467123

Courtesy of FORD MOTOR CO.

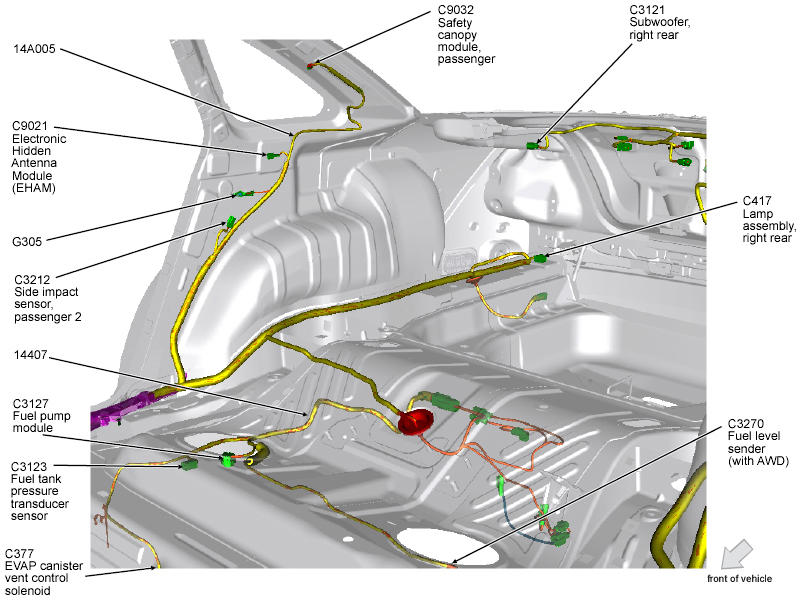

Fig 19: Right Rear Interior Of Vehicle (Sable & Taurus)

G00458977

Courtesy of FORD MOTOR CO.

Fig 20: Rear Of Vehicle (Taurus X)

G00458978

Courtesy of FORD MOTOR CO.

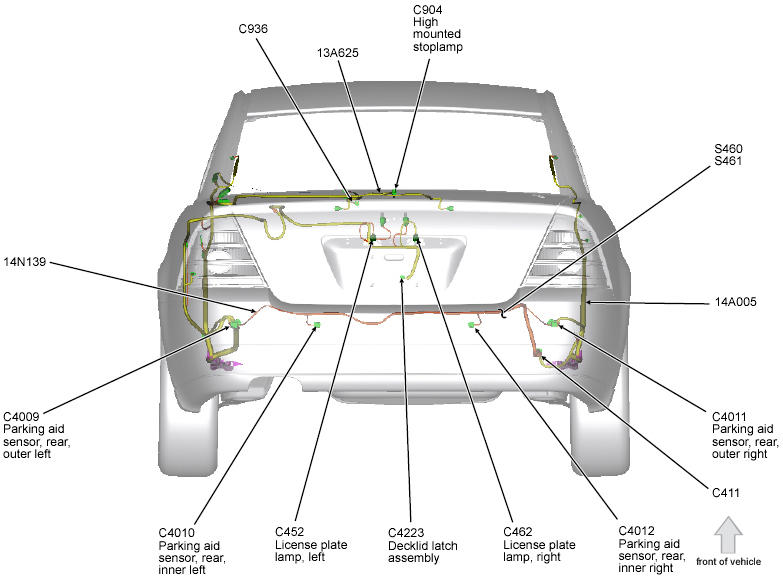

Fig 21: Rear Of Vehicle (Taurus)

G00458979

Courtesy of FORD MOTOR CO.

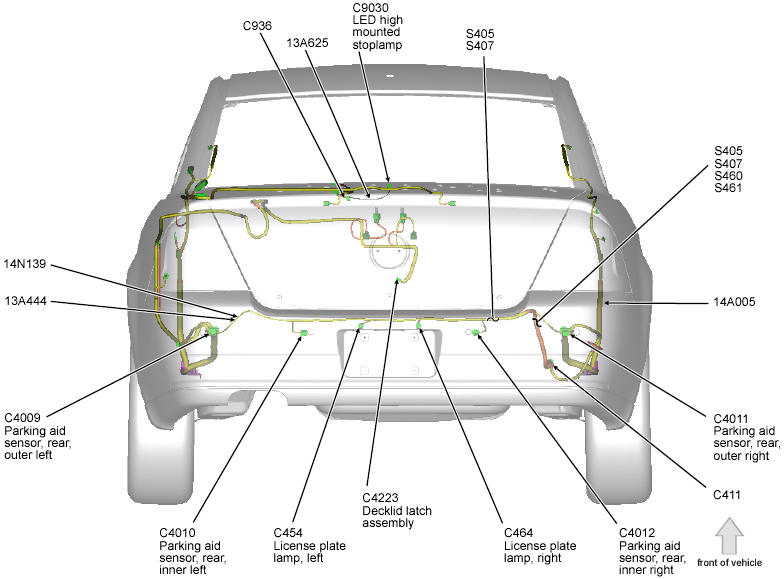

Fig 22: Rear Of Vehicle (Sable)

G00458980

Courtesy of FORD MOTOR CO.

Fig 23: Driver's Seat

G00458981

Courtesy of FORD MOTOR CO.

Fig 24: Front Passenger's Seat

G00458982

Courtesy of FORD MOTOR CO.

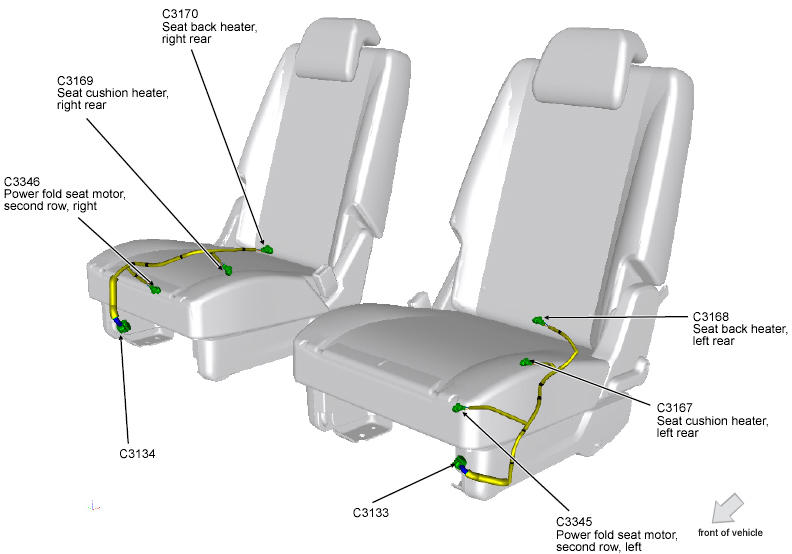

Fig 25: Second Row Seats

G00458983

Courtesy of FORD MOTOR CO.

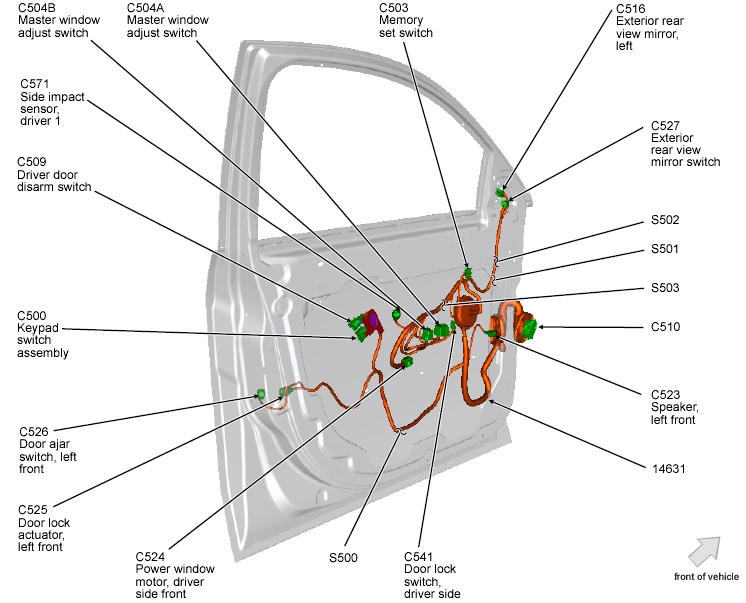

Fig 26: Driver's Door

G00458984

Courtesy of FORD MOTOR CO.

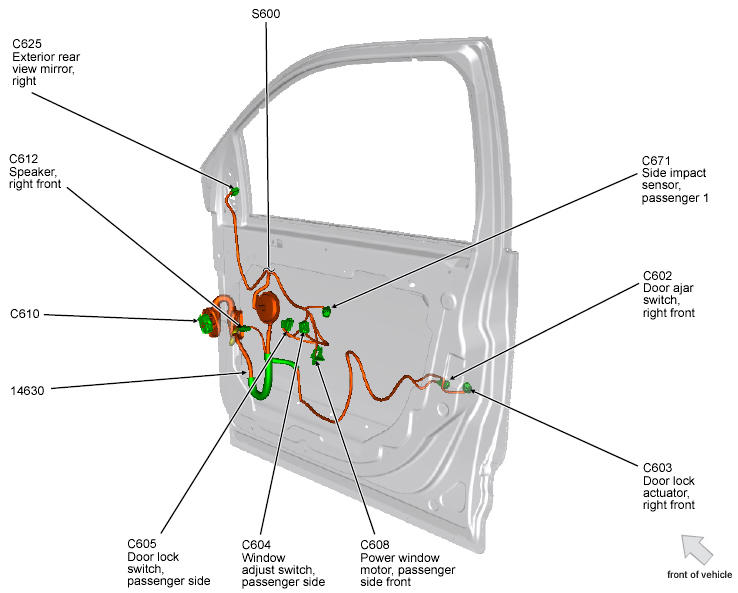

Fig 27: Front Passenger's Door

G00458985

Courtesy of FORD MOTOR CO.

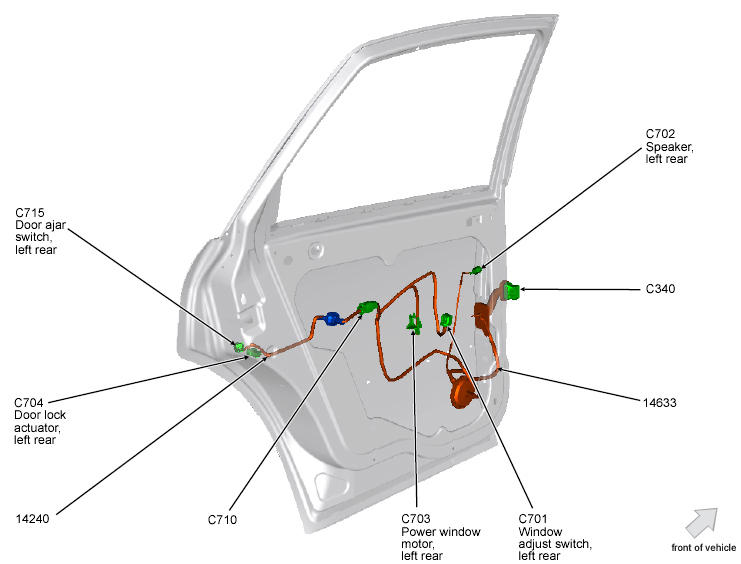

Fig 28: Left Rear Door

G00458986

Courtesy of FORD MOTOR CO.

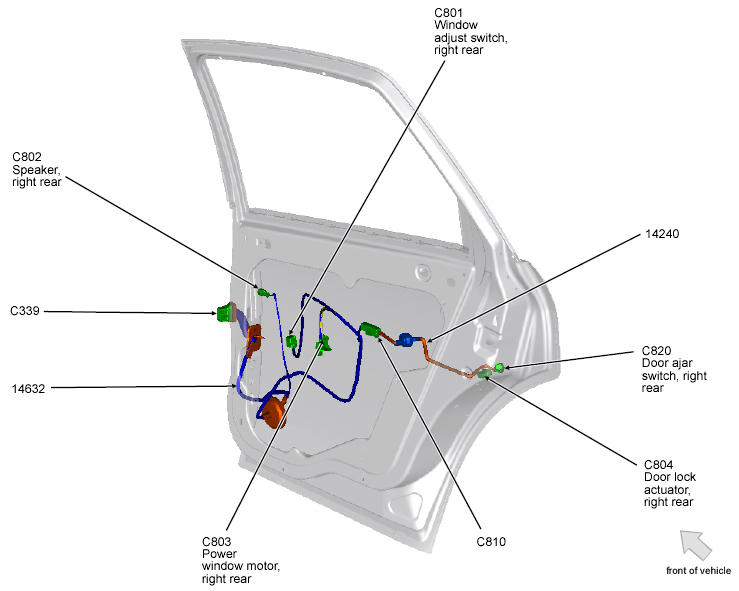

Fig 29: Right Rear Door

G00458987

Courtesy of FORD MOTOR CO.

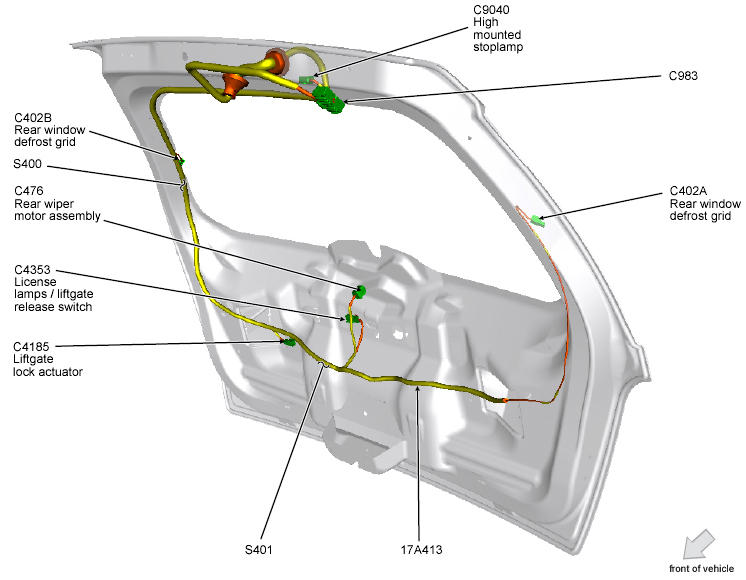

Fig 30: Liftgate (Except Power)

G00458988

Courtesy of FORD MOTOR CO.

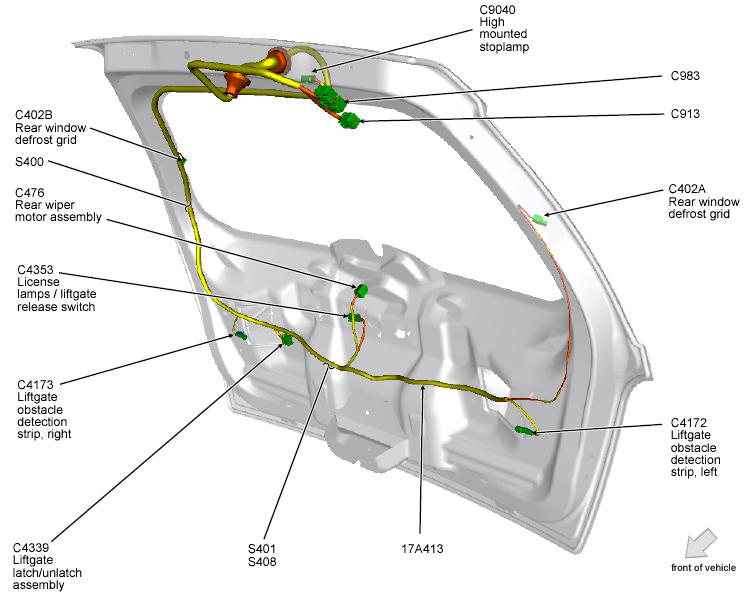

Fig 31: Power Liftgate

G00458989

Courtesy of FORD MOTOR CO.

Fig 32: Roof (Taurus X)

G00458990

Courtesy of FORD MOTOR CO.

Fig 33: Roof (Sable & Taurus)

G00458991

Courtesy of FORD MOTOR CO.

Fig 34: Battery Junction Box (BJB)

G00467119

Courtesy of FORD MOTOR CO.

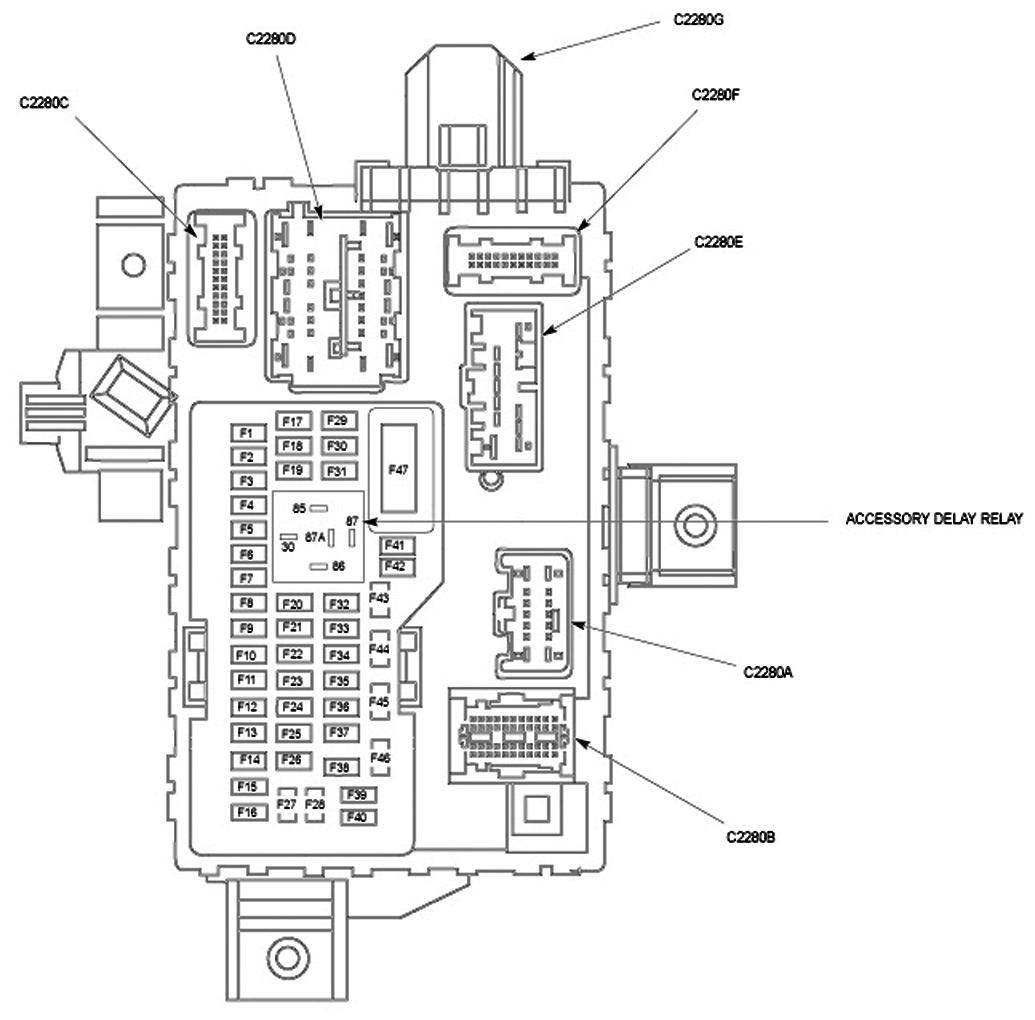

Fig 35: Smart Junction Box (SJB)

G00458993

Courtesy of FORD MOTOR CO.

Fig 36: Left Rear Interior Of Vehicle (Sable & Taurus)

G00467122

Courtesy of FORD MOTOR CO.
