Steering Column - Exploded View

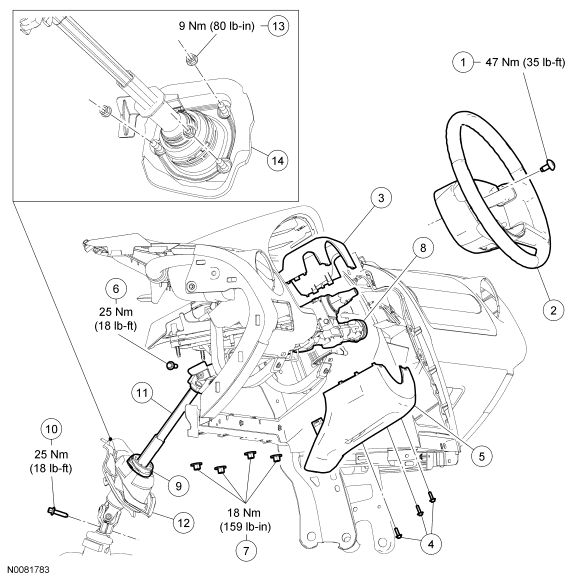

Fig 1: Steering Column Components - Exploded View With Torque Specifications
GF0045937Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708887 Steering wheel bolt
2 3600 Steering wheel
3 3530 Upper steering column shroud
4 W706731 Lower steering column shroud screws (3 required)
5 3K512 Lower steering column shroud
6 W712961 Steering column shaft-to-steering column bolt
7 N806432 Steering column nuts (4 required)
8 3C529 Steering column
9 - Steering column shaft boot bearing clamp (early build only)
10 W712961 Steering column shaft-to-steering gear bolt
11 3B676 Intermediate shaft
12 3C611 Steering column shaft boot (early build only)
13 W705460 Steering column shaft boot nut (3 required) (late build only)
14 3C611 Steering column shaft boot (late build only)
  1. For additional information, refer to the appropriate procedures.
