Transaxle Support Insulator: Notes

SPECIAL TOOLS

Illustration Tool Name Tool Number
GF0029121Courtesy of FORD MOTOR CO.
 Oil Pan Holding Fixture 303-1295

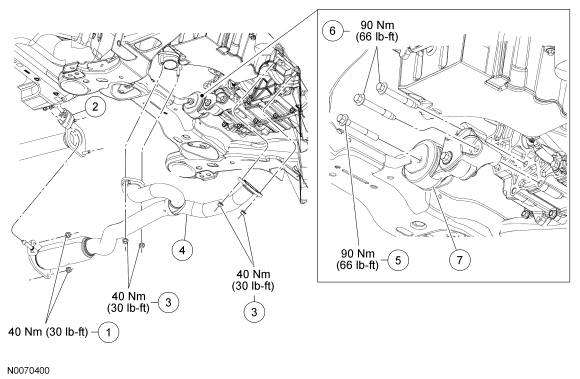

Fig 1: Transaxle Support Insulator Components With Torque Specifications (1 Of 2)
GF0045815Courtesy of FORD MOTOR CO.
Fig 2: Transaxle Support Insulator Components With Torque Specifications (2 Of 2)
GF0045816Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705443 Y-pipe nuts
2 5F262 Y-pipe hanger
3 W705443 Y-pipe-to-catalytic converter nuts
4 5G274 Y-pipe assembly
5 W706674 Roll restrictor-to-subframe through bolt
6 W713156 Roll restrictor bracket bolts
7 6P082 Roll restrictor assembly
8 14A464 Electrical connector - Mass Air Flow (MAF) sensor
9 6758 Tube assembly - crankcase vent
10 N606678 Bolt - Air Cleaner (ACL) bracket
11 9C632 Clamp - ACL outlet pipe
12 9C662 ACL assembly
13 13A506 Fasteners - wiring harness
14 W503924 Bolts - battery tray
15 10723 Battery tray
16 W711873 Through bolt - transaxle support insulator
17 W711872 Flagnut - transaxle support insulator through bolt
18 W712334 Nuts - transaxle support insulator bracket
19 6B033 Bracket - transaxle support insulator
20 W709234 Bolts - transaxle support insulator
21 6F020 Transaxle support insulator
