Mercury
>>
2011
>>
Milan FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Interior Lighting Module
>>
C2301 Interior Lighting Control Module (ILCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

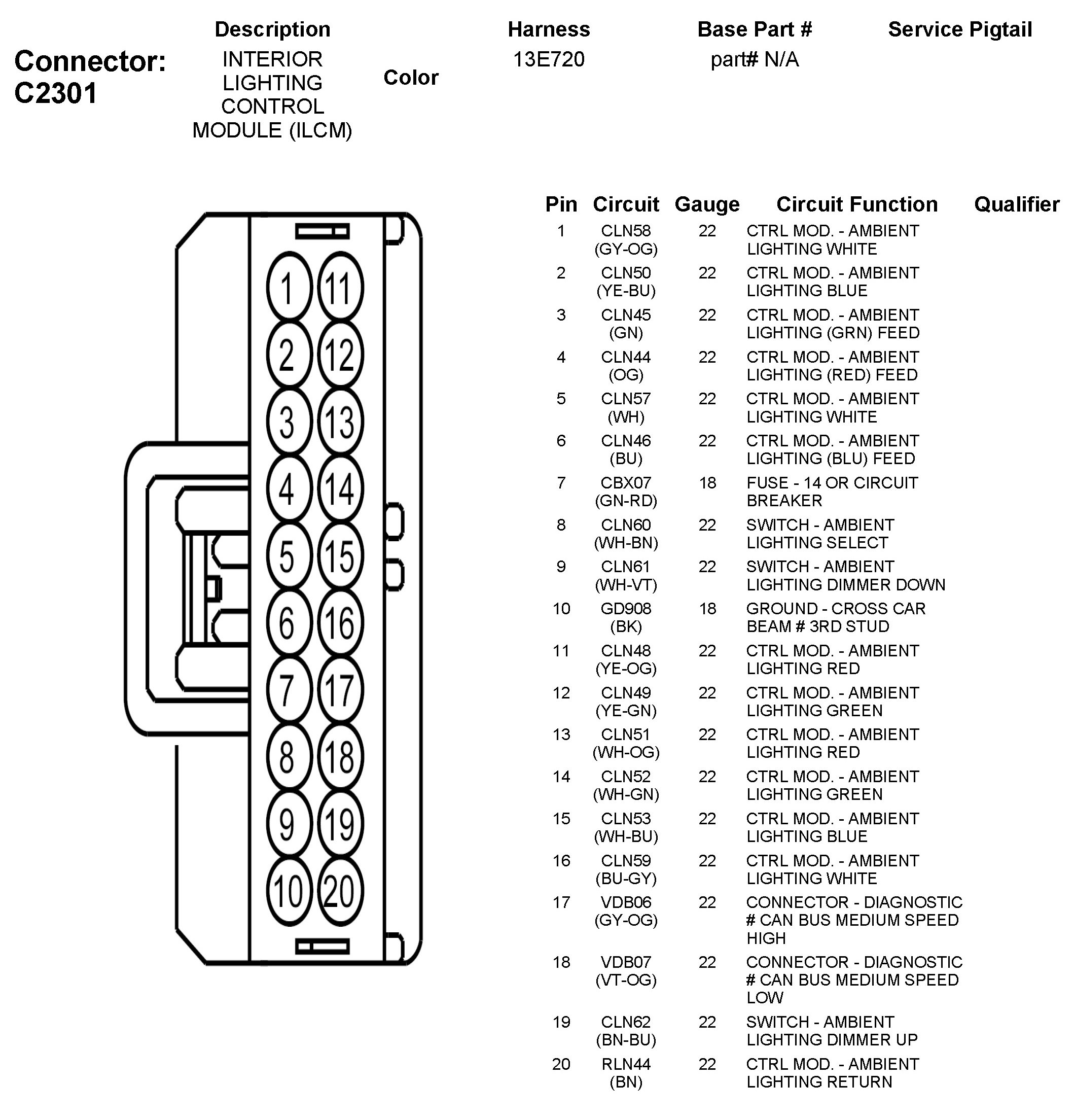

C2301 Interior Lighting Control Module (ILCM)
