Pulse Damper

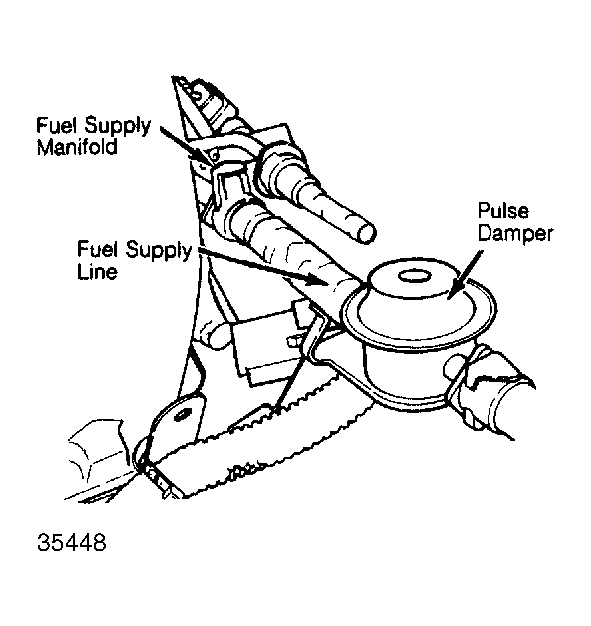

The opening and closing of the fuel injectors generates pulses in the fuel supply manifold. These "pulses" (pressure variations) are smoothed by the pulse damper. The damper is mounted on a bracket behind the upper intake manifold between the fuel supply line and the fuel supply manifold. See Fig 1 .
