Fuel Pressure Regulator Test

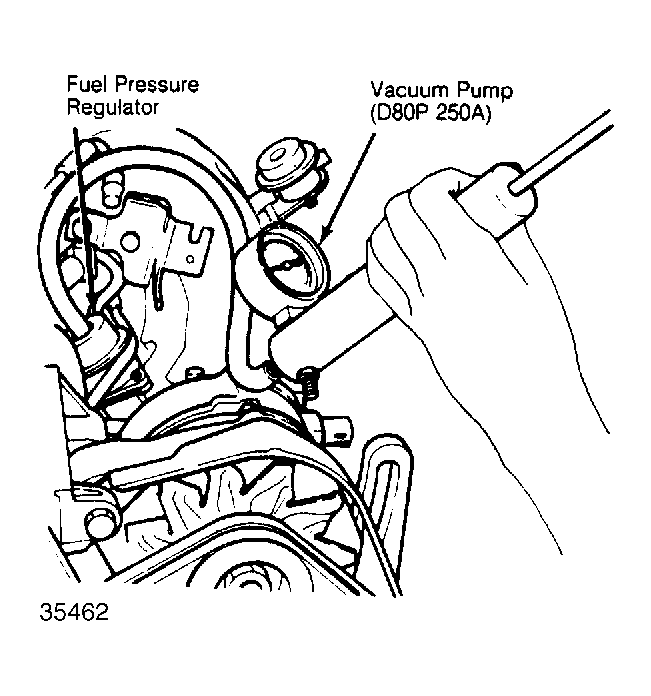

Disconnect vacuum line at the pressure regulator. Connect a hand-operated vacuum pump to the regulator fitting and apply 18 in. Hg vacuum. If the reading does not remain at 18 in. Hg vacuum the regulator diaphragm is leaking. Replace the pressure regulator, if necessary. See Fig 1 .
