Fuel Pump Relay Test
NOTE:
The fuel pump relay is located in the circuit protection panel which is in the cowl near the left rear corner of the engine compartment. See Figure
.
- Remove fuel pump relay from the circuit protection panel. Connect an ohmmeter between terminals 85 and 86 on the face of the relay. If the meter reads more or less than 85 ohms, replace the relay.

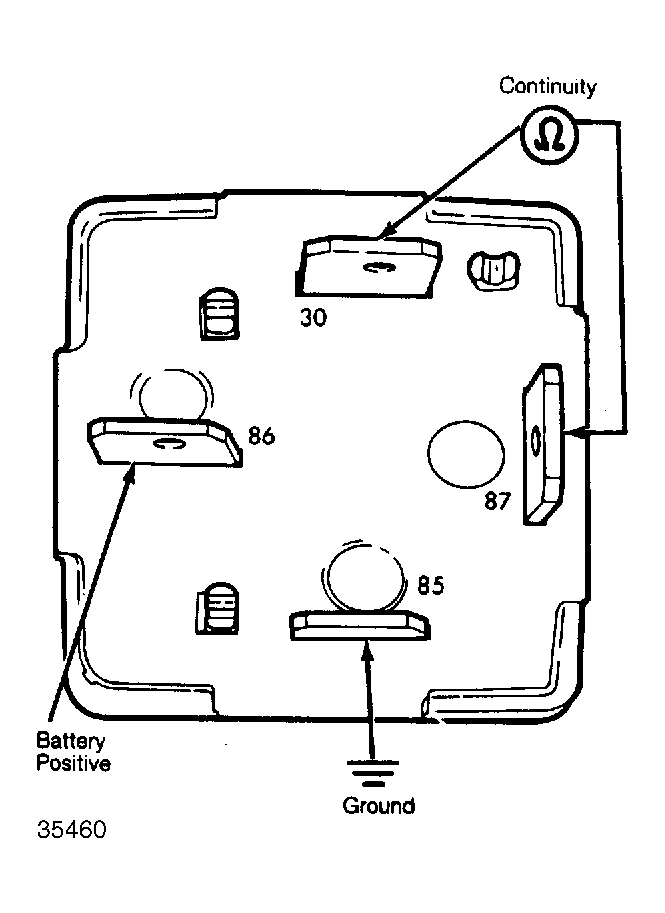

- Connect a jumper wire from the alternator output terminal to relay terminal 86 and another jumper wire from relay terminal 85 to a clean chassis ground. When the ground connection is made, the relay should click. Ohmmeter should show continuity between relay terminals 85 and 30. If the relay does not show continuity, it must be replaced. See Figure .
