In-Line Fuse Test
- Disconnect battery negative cable and remove cover from circuit protection panel in cowl area near left rear corner of engine compartment. Carefully spread sides of panel box to disengage lock tabs and pull panel out of box.

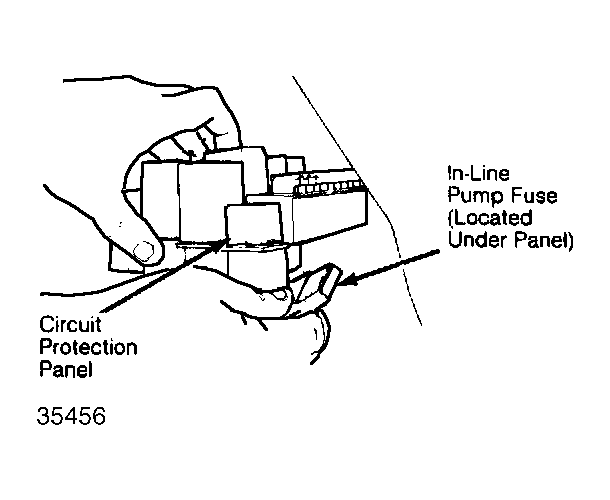

- Locate fuse holder under panel and check if fuse is blown. If fuse is blown, replace fuse. See Fig 1 .
