Low Pressure Pump Feed Circuit Test

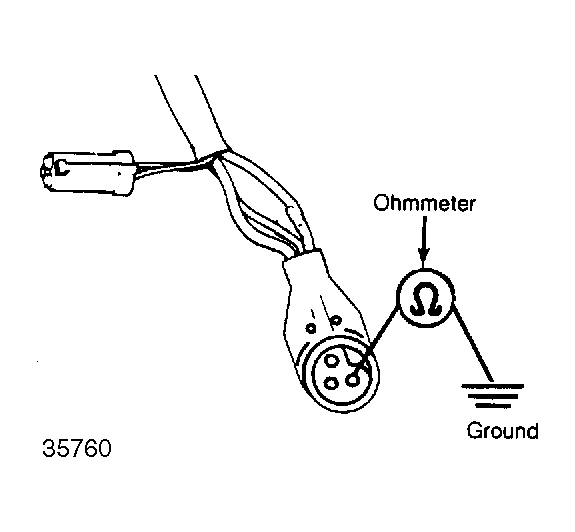

- Lower fuel tank. Disconnect fuel pump wiring connector and connect test light from ground to Black/Red wire in harness side of wiring connector. Turn ignition switch to "RUN" position and watch test light.
- If light comes on for about one second, feed circuit is okay. If light does not come on, repair open in feed circuit. See Fig 1 .
