Service Point Locations

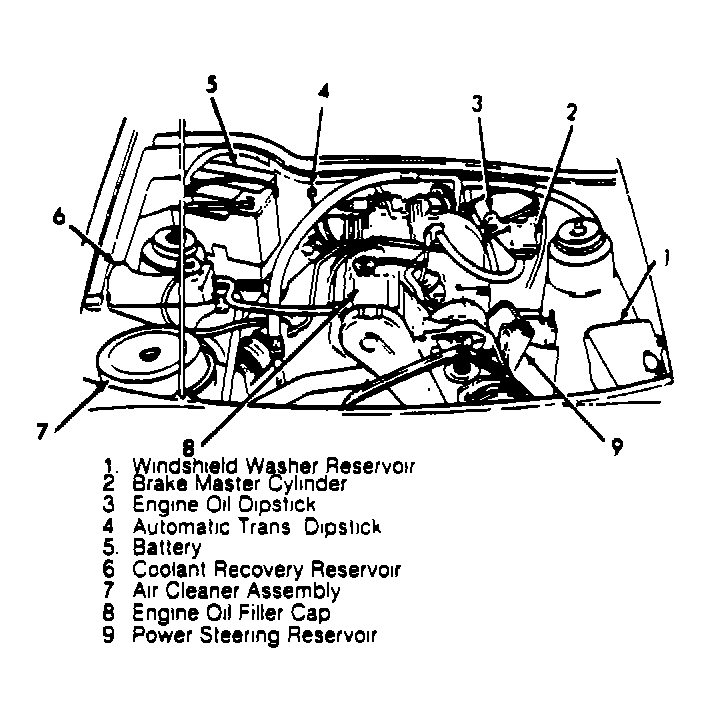

Fig 1: Service Point Locations (2.3L Turbo Engine)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
