Wiring Diagrams

NOTE: Tracer Wiring Diagram applies only to vehicles built before 11/2/87.

Fig 1: Merkur EEC-IV Wiring Diagram

G94507

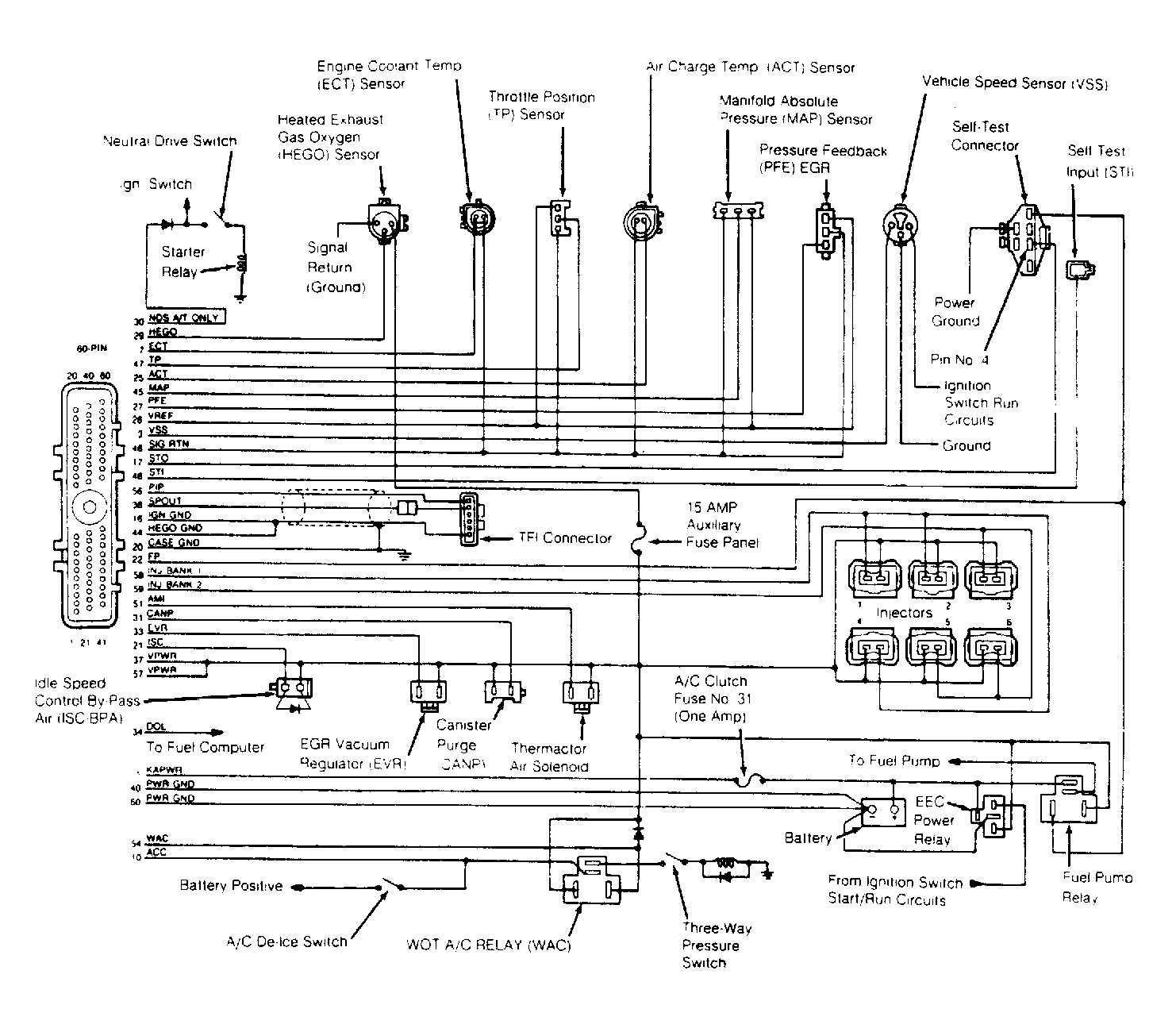

Fig 2: Scorpio EEC-IV Wiring Diagram

G94509

Courtesy of FORD MOTOR CO.

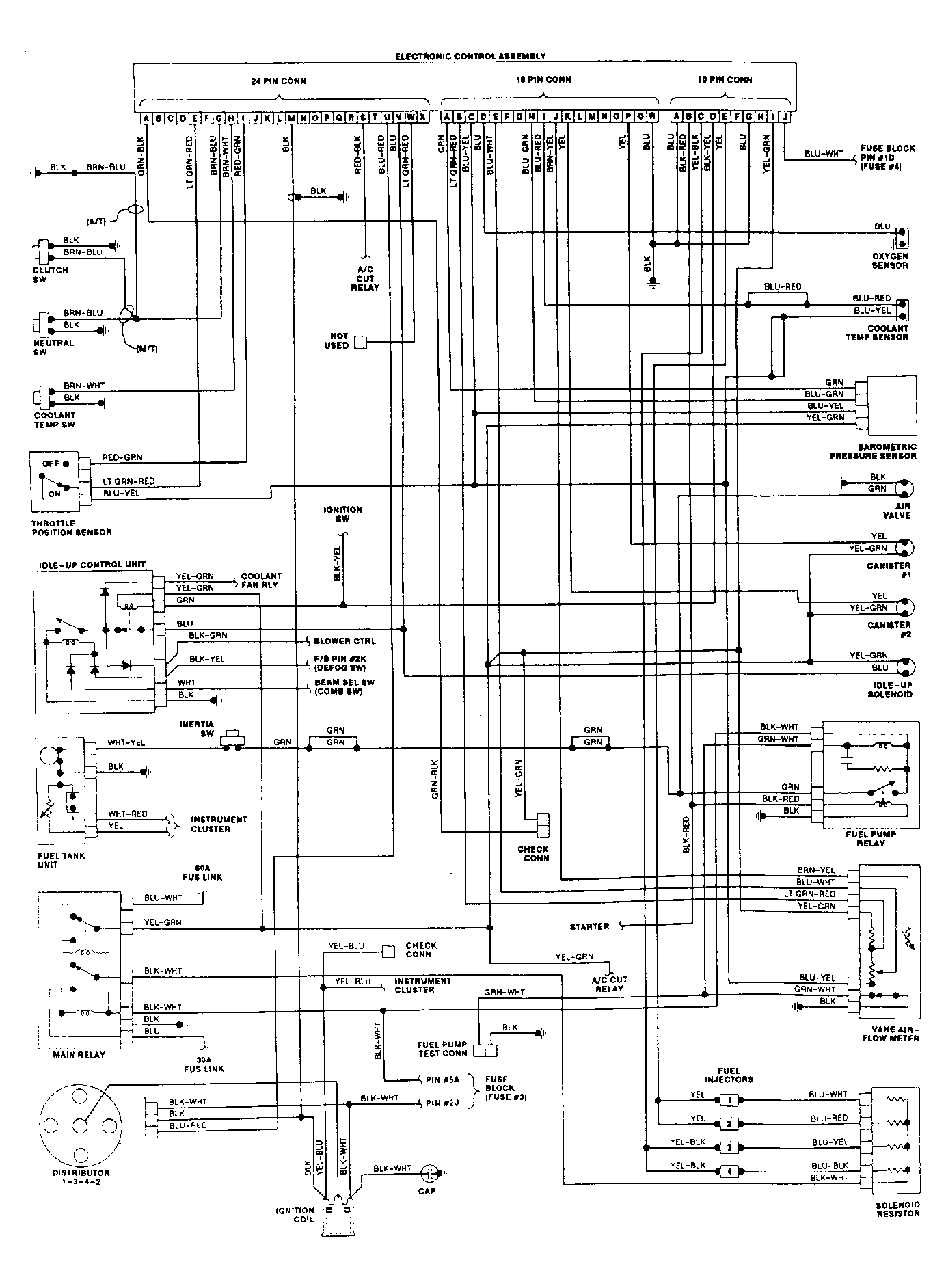

Fig 3: Tracer EEC System Wiring Diagram (Prior to 11-02-87)

G103189
