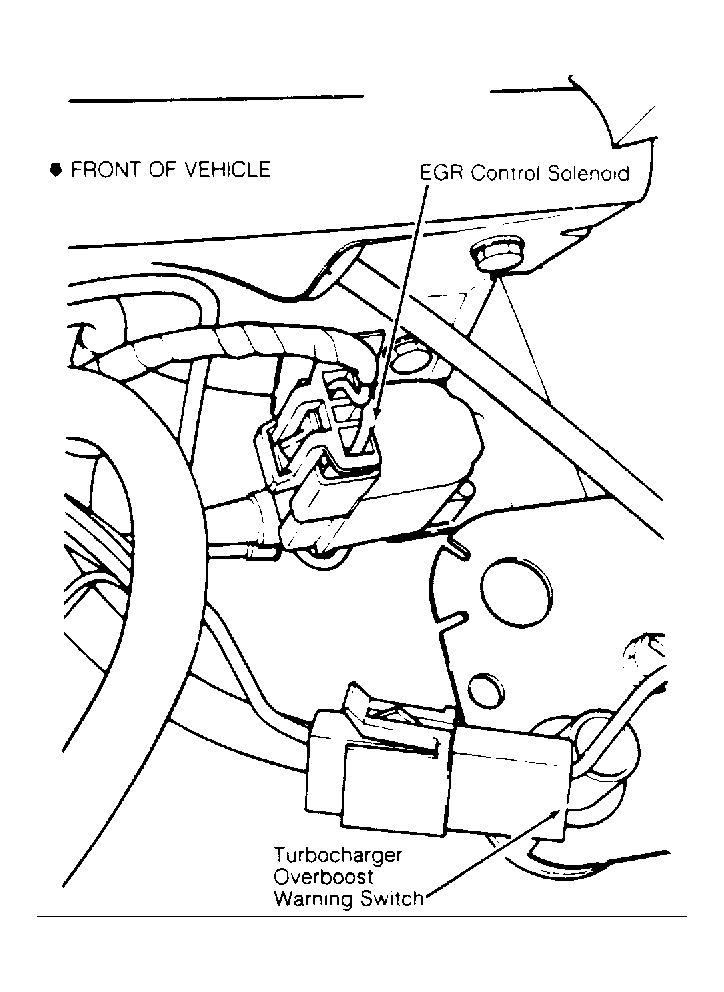

EGR Control Solenoid
- Using ohmmeter, check resistance of EGR control solenoid windings. Resistance should be 68-78 ohms. If reading is not correct, replace EGR control solenoid.
- Apply battery voltage to EGR control solenoid and ensure that air will flow through valve. If air does not flow through valve, replace EGR control solenoid.
