DWA Led

The DWA LED located on the wiper stalk flashes to provide information about DWA status.

The LED had 4 flash patterns:

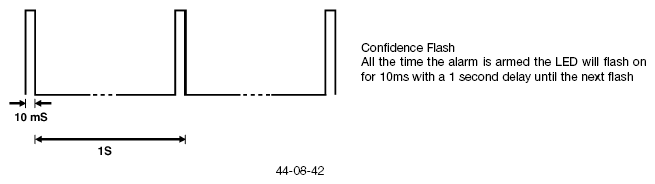

Fig 1: DWA LED Confidence Flash Patterns

Courtesy of BMW OF NORTH AMERICA, INC.

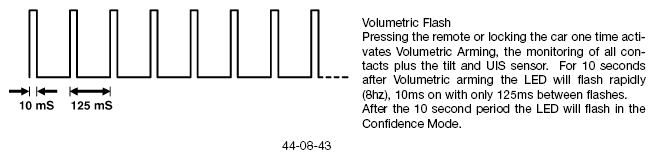

Fig 2: DWA LED Volumetric Flash Patterns

Courtesy of BMW OF NORTH AMERICA, INC.

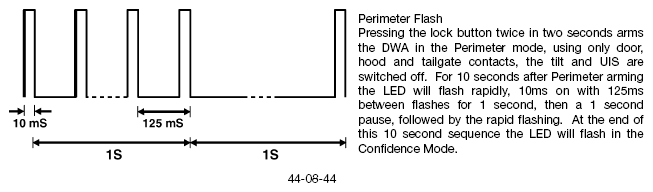

Fig 3: DWA LED Perimeter Flash Patterns

Courtesy of BMW OF NORTH AMERICA, INC.

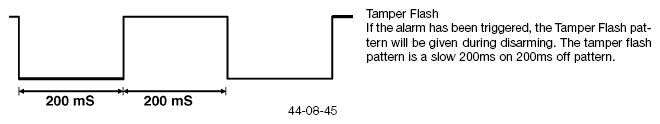

Fig 4: DWA LED Tamper Flash Patterns

Courtesy of BMW OF NORTH AMERICA, INC.
