Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Behind Right Footwell

G00270192

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Right Rear Of Engine Compartment

G00270193

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Center Tunnel, Under Carpet

G00270194

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Right Side Of Luggage Compartment

G00270195

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Below Passenger's Seat

G00270196

Courtesy of BMW OF NORTH AMERICA, INC.

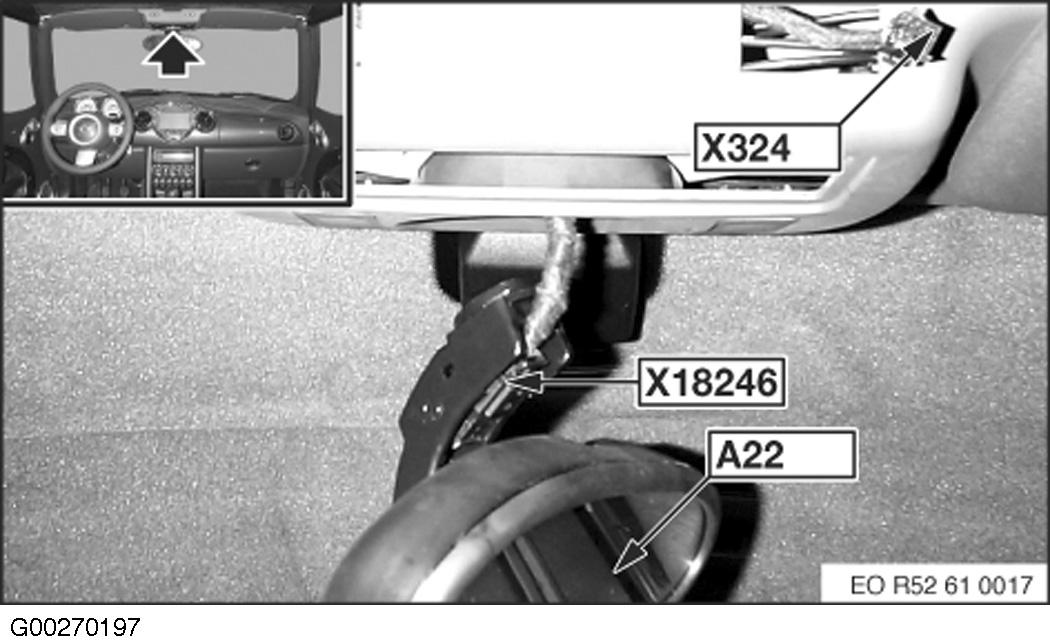

Fig 6: Under Front Headliner

G00270197

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Under Front Headliner

G00270198

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Behind Right Side Of Glove Box

G00270199

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Right Rear Of Engine Compartment

G00270200

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Right Rear Side Of Luggage Compartment

G00270201

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Right Rear Of Passenger Compartment

G00270202

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Left Rear Of Passenger Compartment

G00270203

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Under Right Front Seat

G00270204

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Under Left Front Seat

G00270205

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Center Of Dash

G00270206

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Inside Headliner

G00270207

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Under Front Headliner

G00270208

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Left Side Of Left Footwell

G00270209

Courtesy of BMW OF NORTH AMERICA, INC.

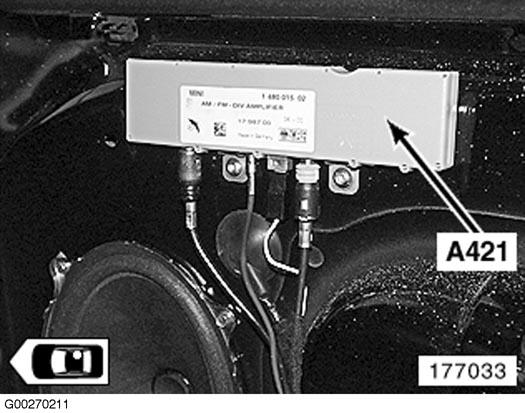

Fig 19: Right Rear Of Passenger Compartment

G00270211

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Left Side Of Dash

G00270213

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Left Side Of Engine Compartment

G00270215

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Left Side Of Engine Compartment

G00270216

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Left Side Of Left Footwell

G00270217

Courtesy of BMW OF NORTH AMERICA, INC.

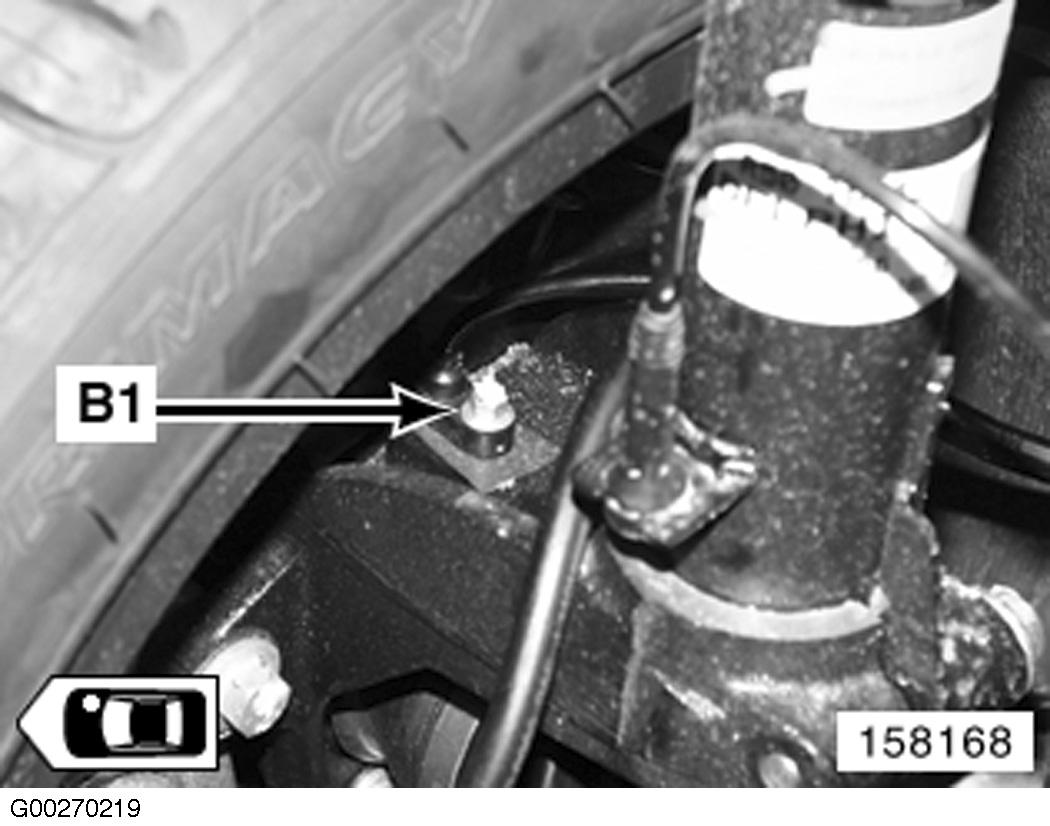

Fig 24: Right Front Wheel Hub

G00270219

Courtesy of BMW OF NORTH AMERICA, INC.

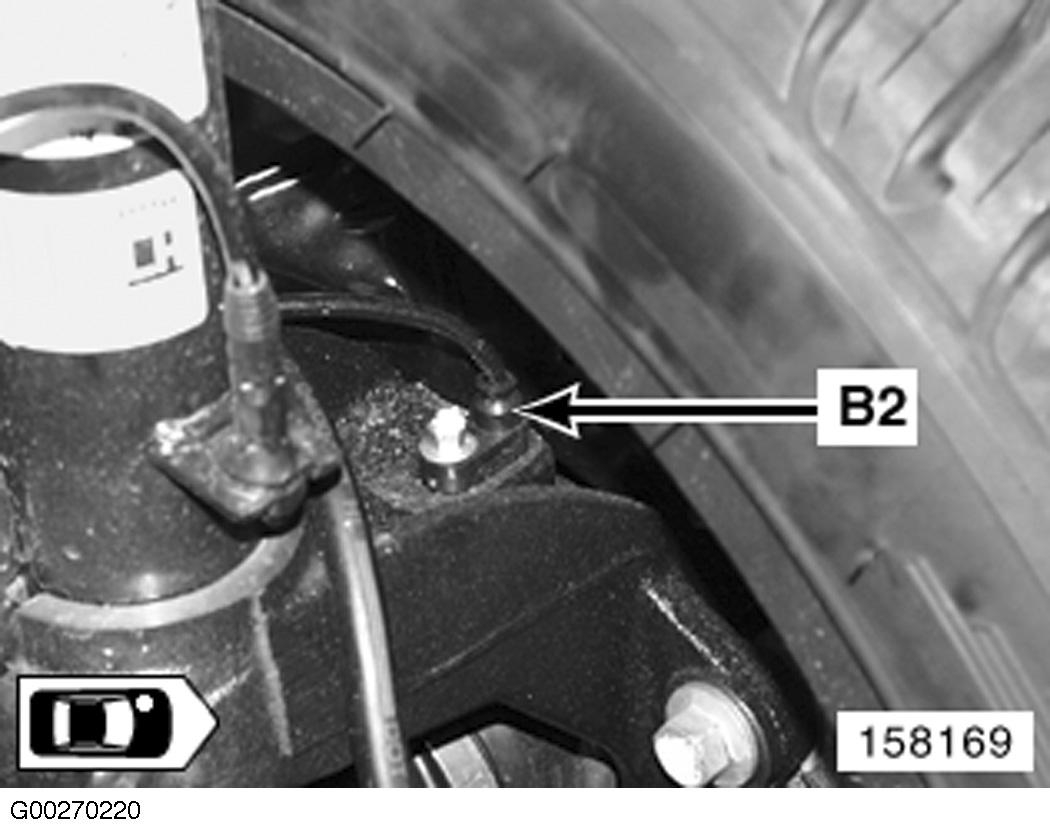

Fig 25: Left Front Wheel Hub

G00270220

Courtesy of BMW OF NORTH AMERICA, INC.

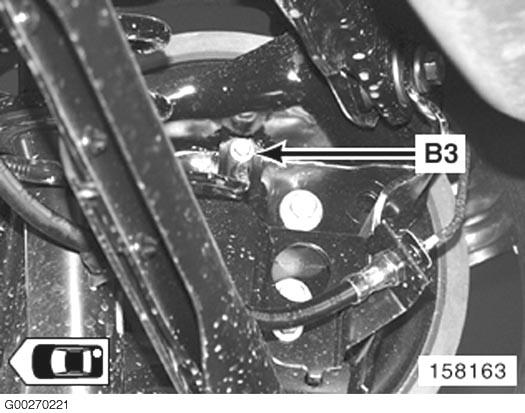

Fig 26: Right Rear Wheel Hub

G00270221

Courtesy of BMW OF NORTH AMERICA, INC.

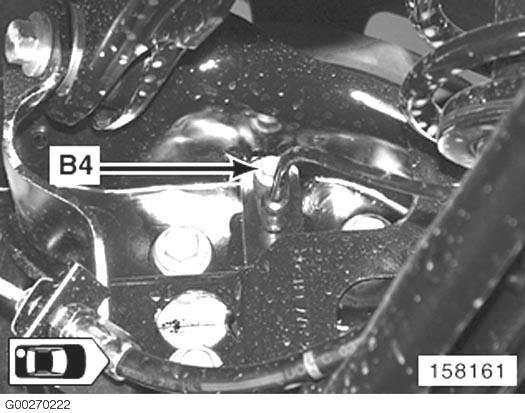

Fig 27: Left Rear Wheel Hub

G00270222

Courtesy of BMW OF NORTH AMERICA, INC.

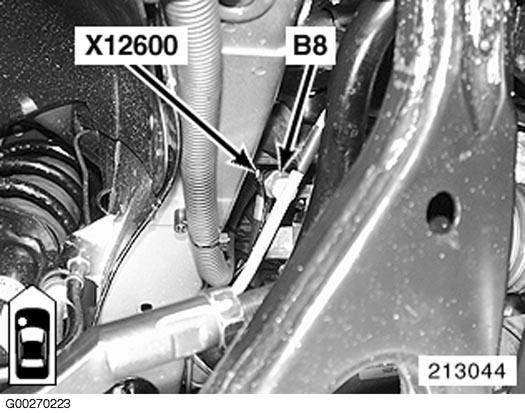

Fig 28: Lower Left Side Of Engine

G00270223

Courtesy of BMW OF NORTH AMERICA, INC.

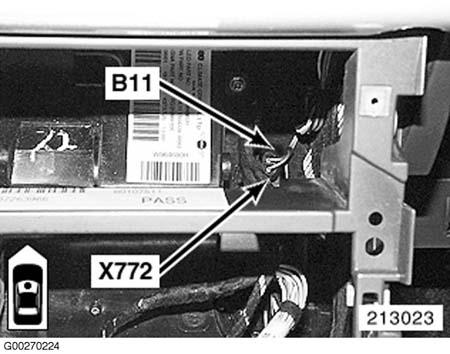

Fig 29: Behind Center Of Dash

G00270224

Courtesy of BMW OF NORTH AMERICA, INC.

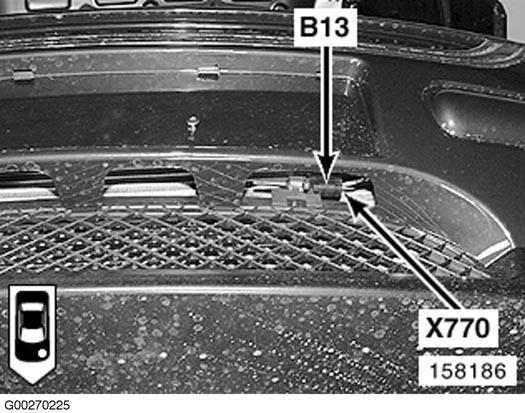

Fig 30: Left Front Fender

G00270225

Courtesy of BMW OF NORTH AMERICA, INC.

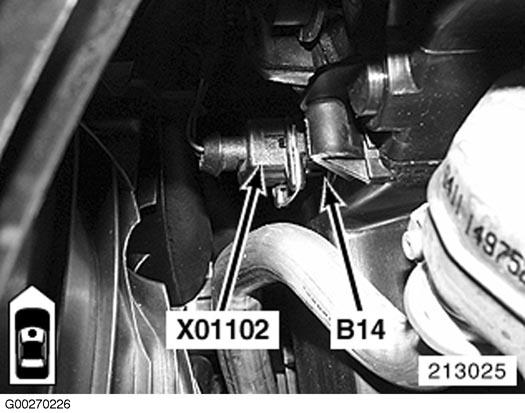

Fig 31: Under Left Side Of Center Console

G00270226

Courtesy of BMW OF NORTH AMERICA, INC.

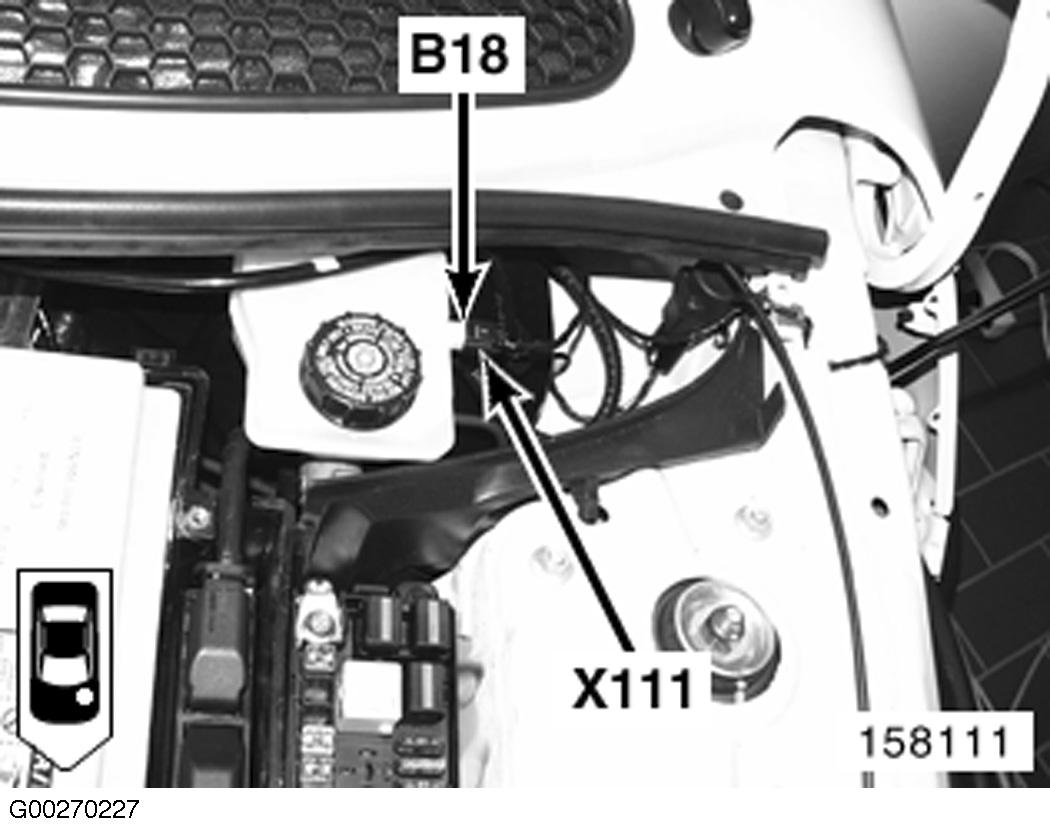

Fig 32: Left Side Of Engine Compartment

G00270227

Courtesy of BMW OF NORTH AMERICA, INC.

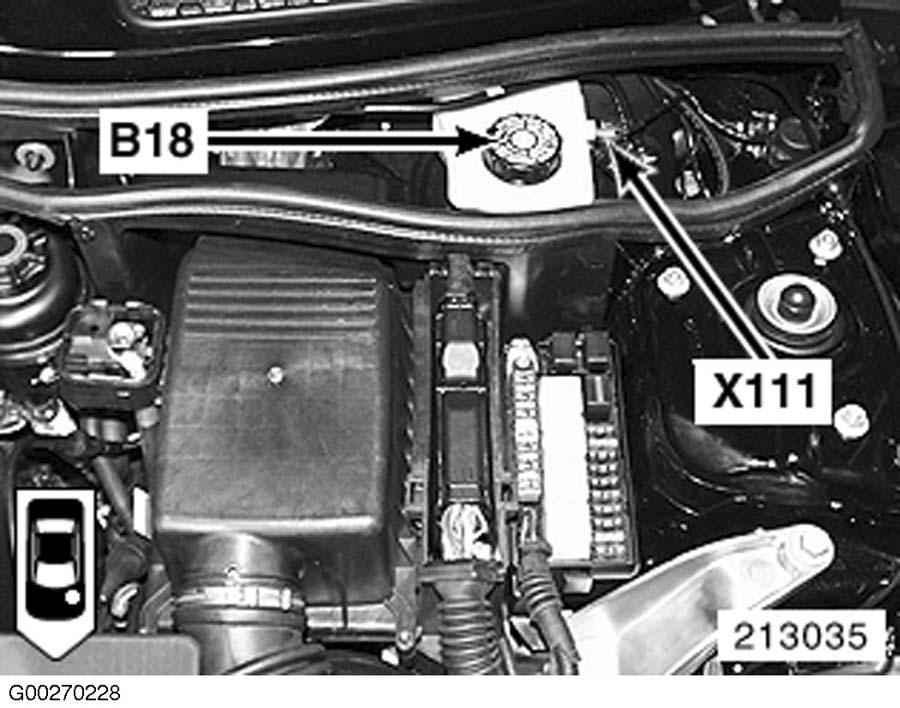

Fig 33: Left Side Of Engine Compartment

G00270228

Courtesy of BMW OF NORTH AMERICA, INC.

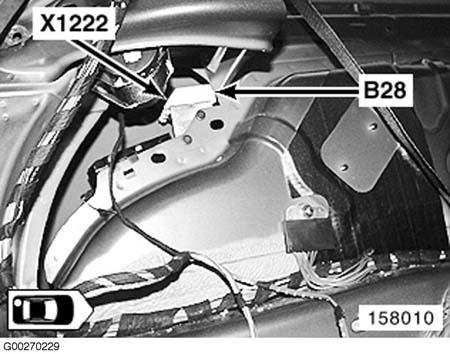

Fig 34: Left Rear Side Of Luggage Compartment

G00270229

Courtesy of BMW OF NORTH AMERICA, INC.

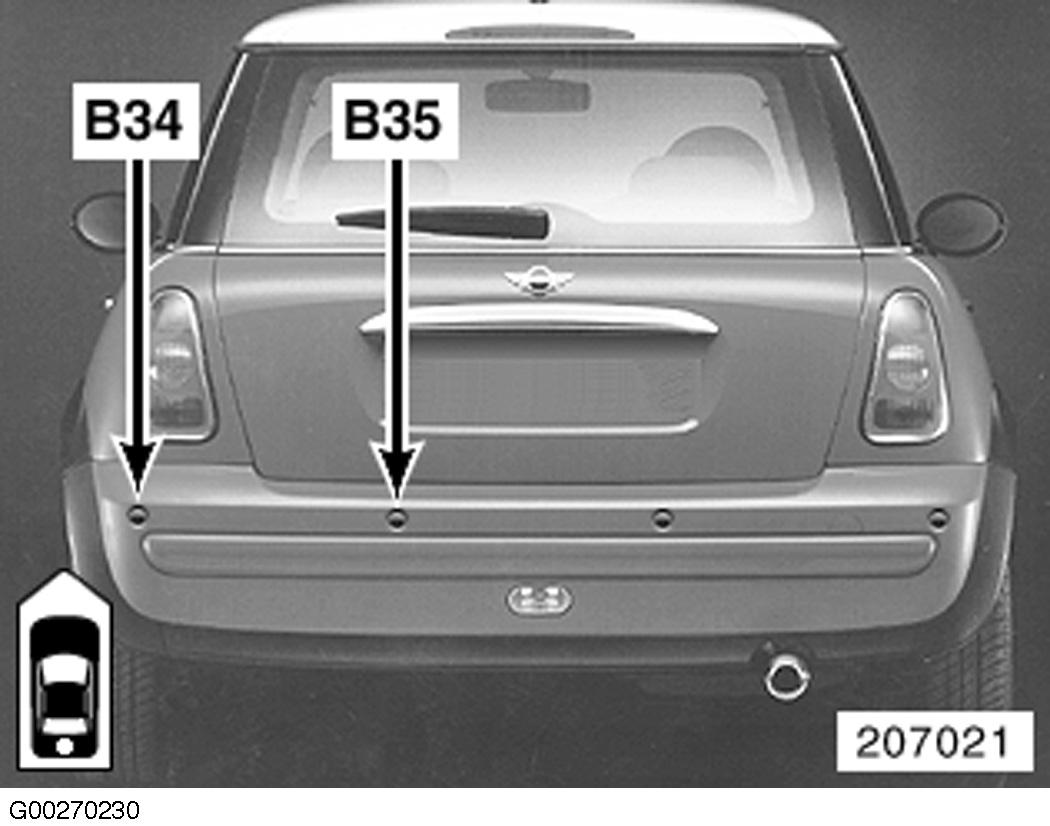

Fig 35: Rear Bumper

G00270230

Courtesy of BMW OF NORTH AMERICA, INC.

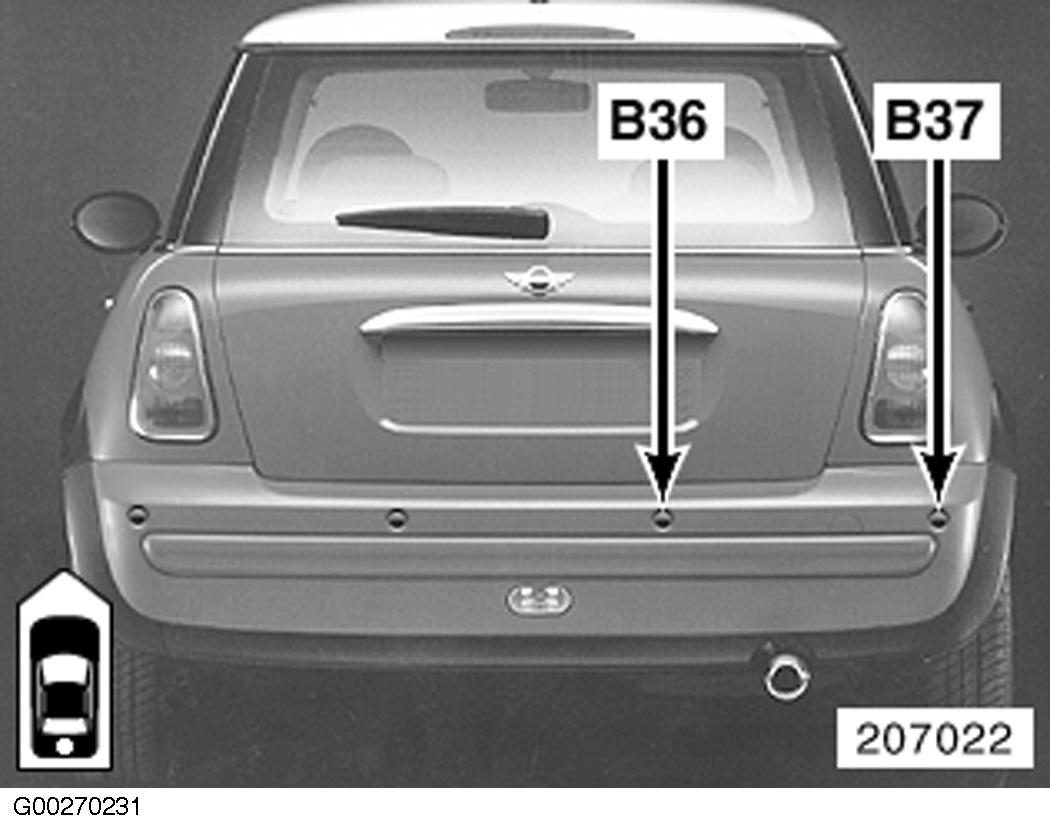

Fig 36: Rear Bumper

G00270231

Courtesy of BMW OF NORTH AMERICA, INC.

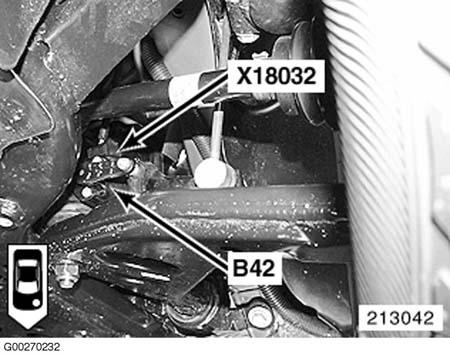

Fig 37: Front Left Axle Carrier

G00270232

Courtesy of BMW OF NORTH AMERICA, INC.

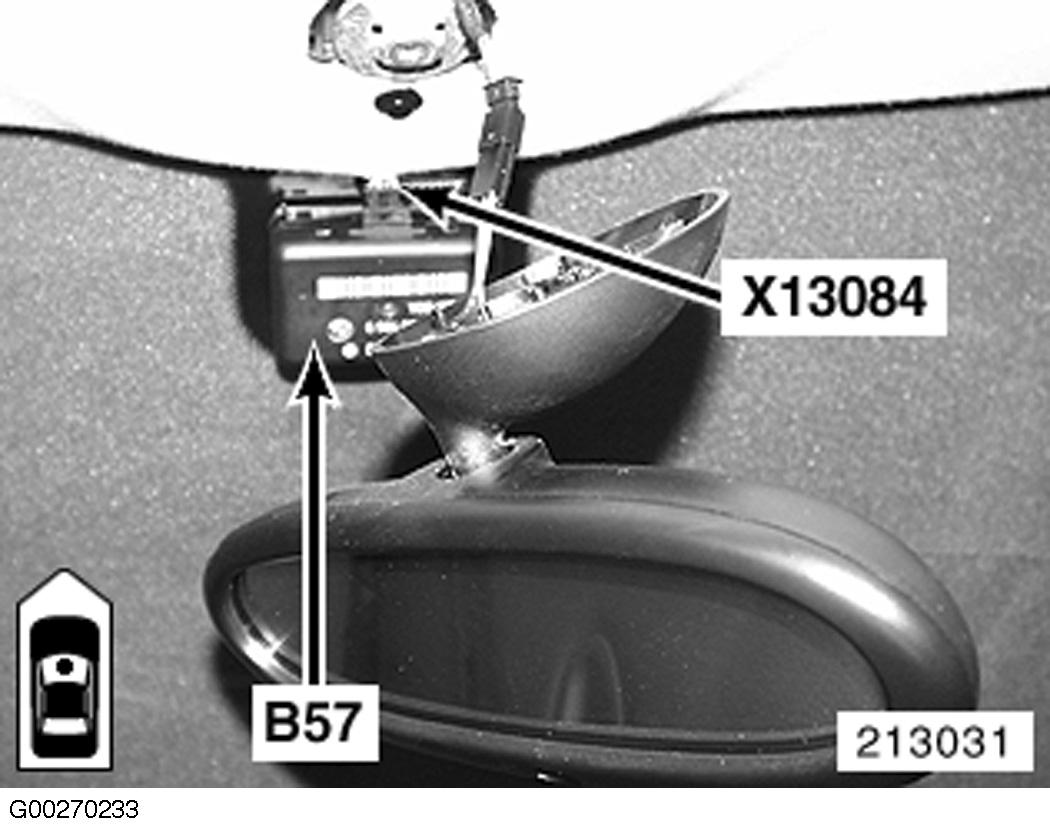

Fig 38: Windshield Top

G00270233

Courtesy of BMW OF NORTH AMERICA, INC.

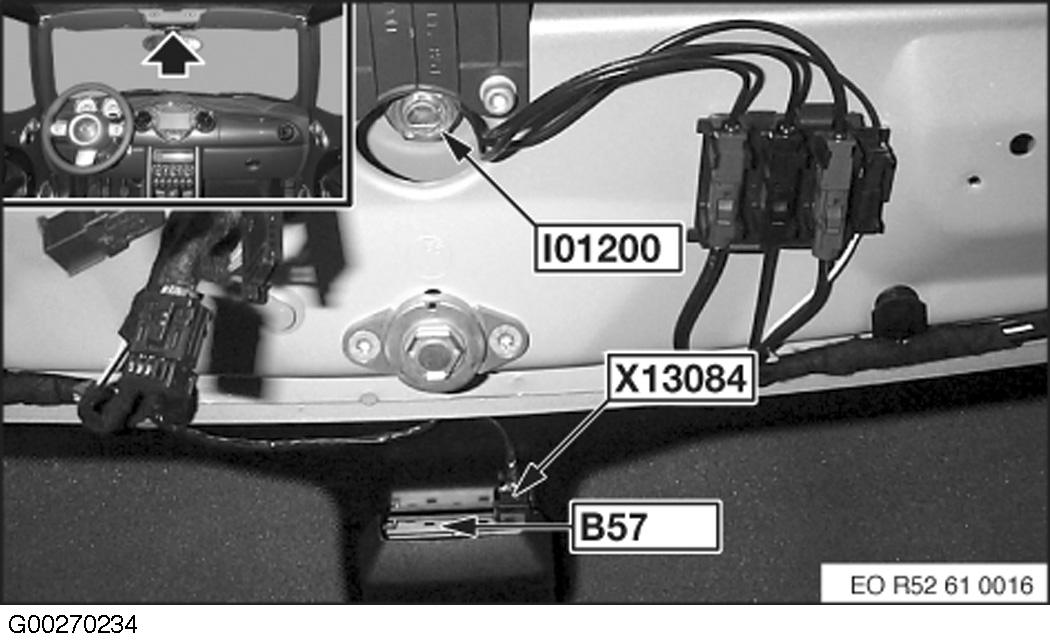

Fig 39: Windshield Top

G00270234

Courtesy of BMW OF NORTH AMERICA, INC.

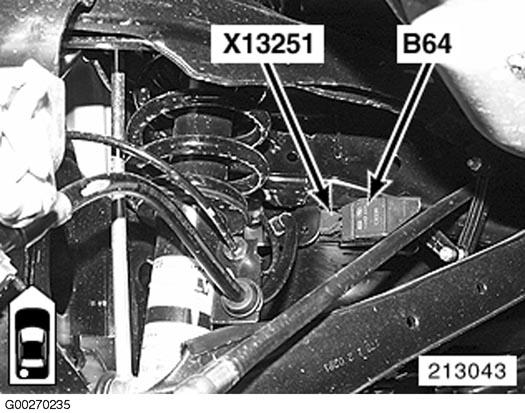

Fig 40: Left Rear Axle Carrier

G00270235

Courtesy of BMW OF NORTH AMERICA, INC.

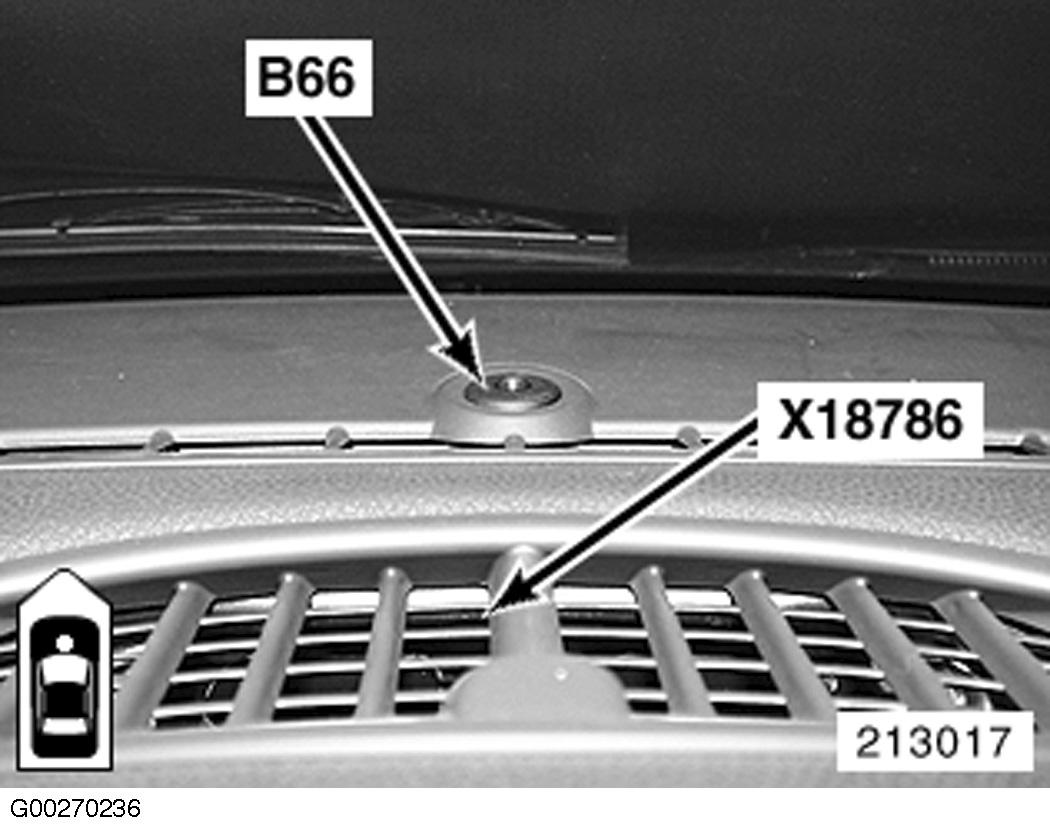

Fig 41: Top Of Dash

G00270236

Courtesy of BMW OF NORTH AMERICA, INC.

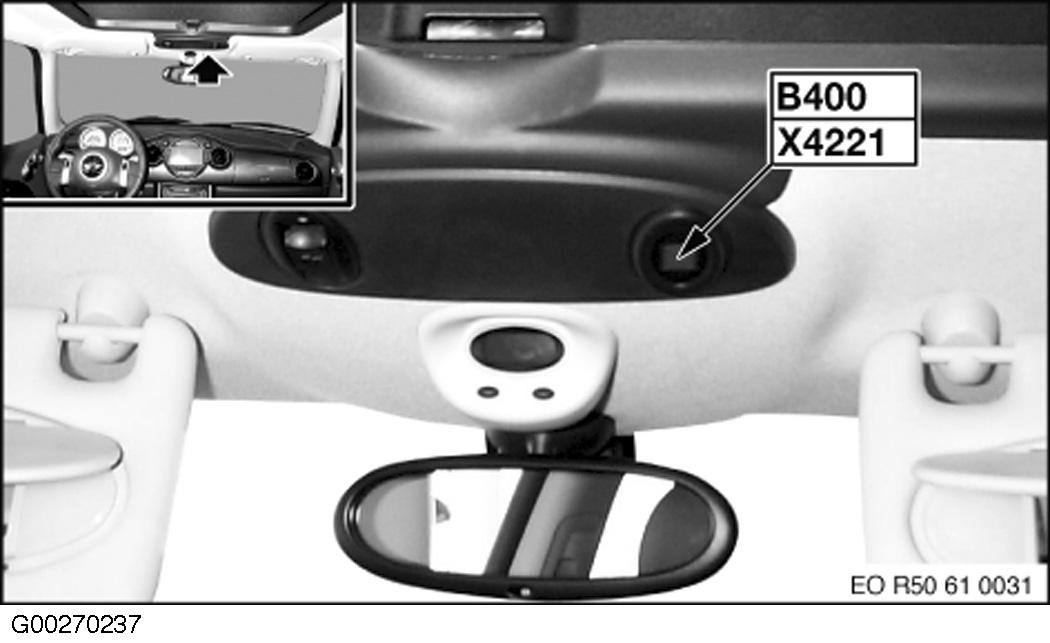

Fig 42: Roof

G00270237

Courtesy of BMW OF NORTH AMERICA, INC.

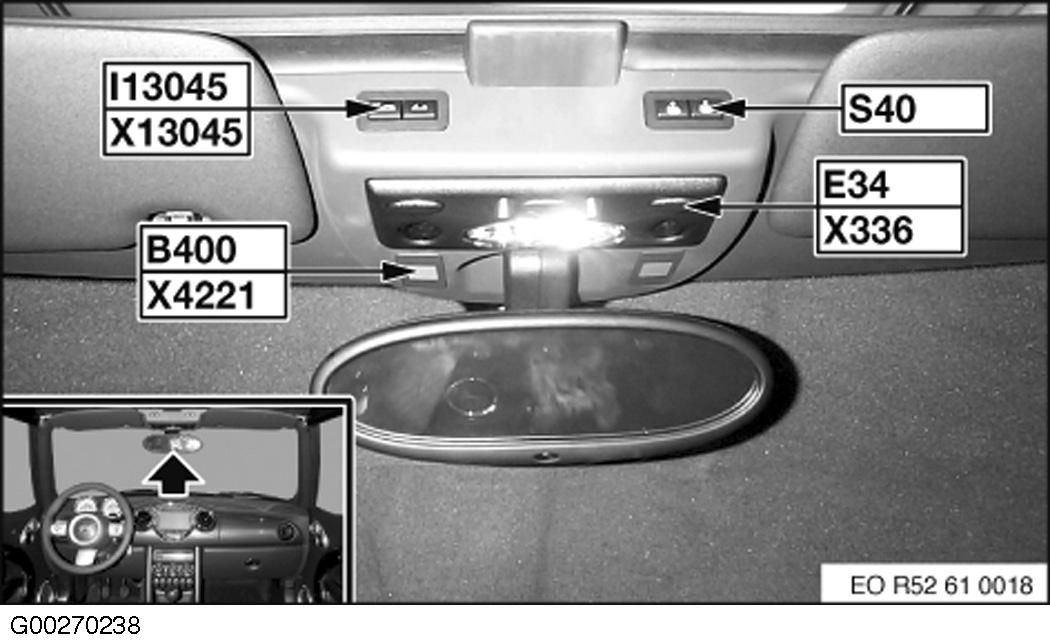

Fig 43: Roof

G00270238

Courtesy of BMW OF NORTH AMERICA, INC.

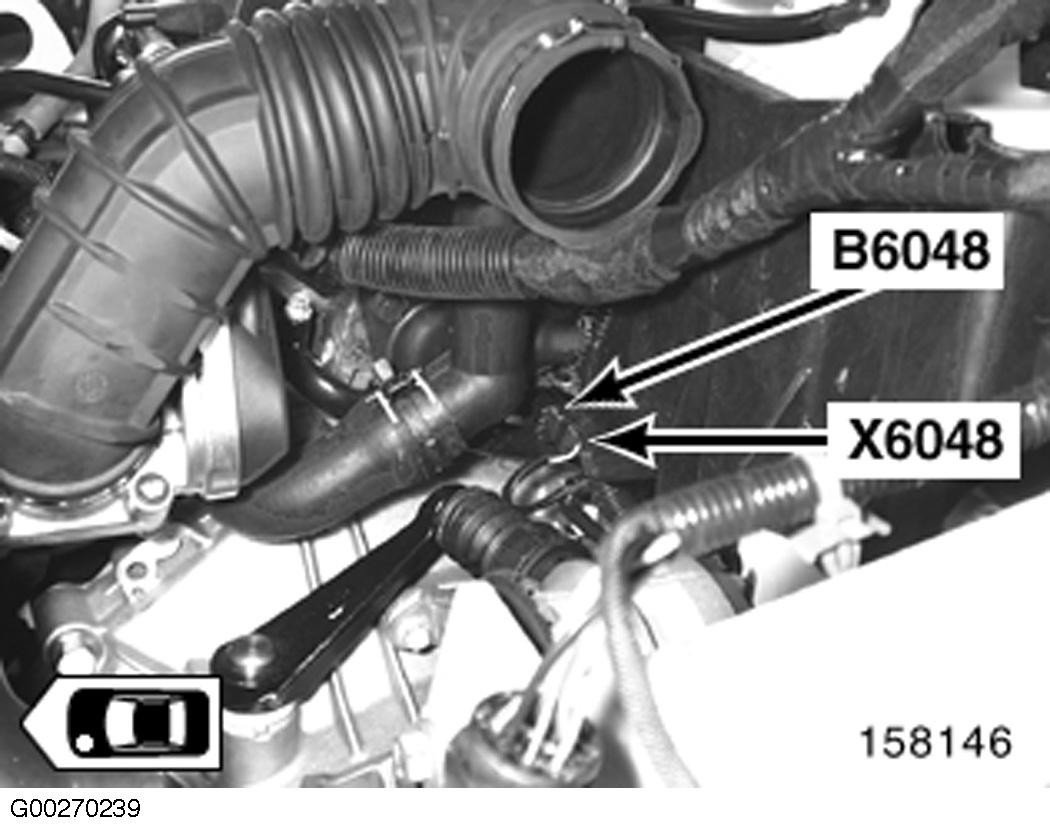

Fig 44: Rear Of Engine

G00270239

Courtesy of BMW OF NORTH AMERICA, INC.

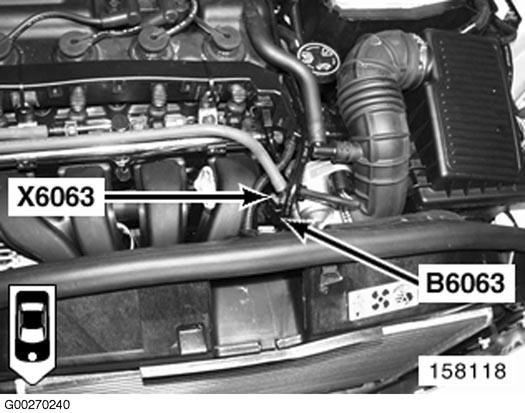

Fig 45: Front Of Engine Compartment

G00270240

Courtesy of BMW OF NORTH AMERICA, INC.

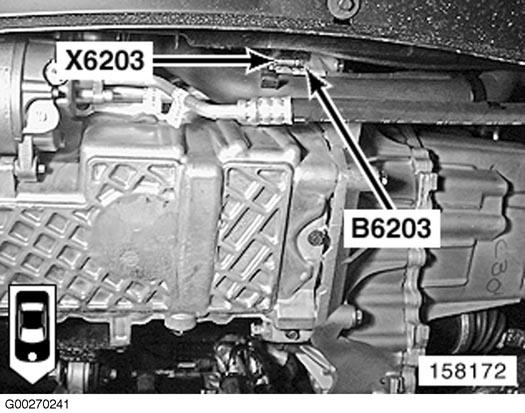

Fig 46: Bottom Of Engine

G00270241

Courtesy of BMW OF NORTH AMERICA, INC.

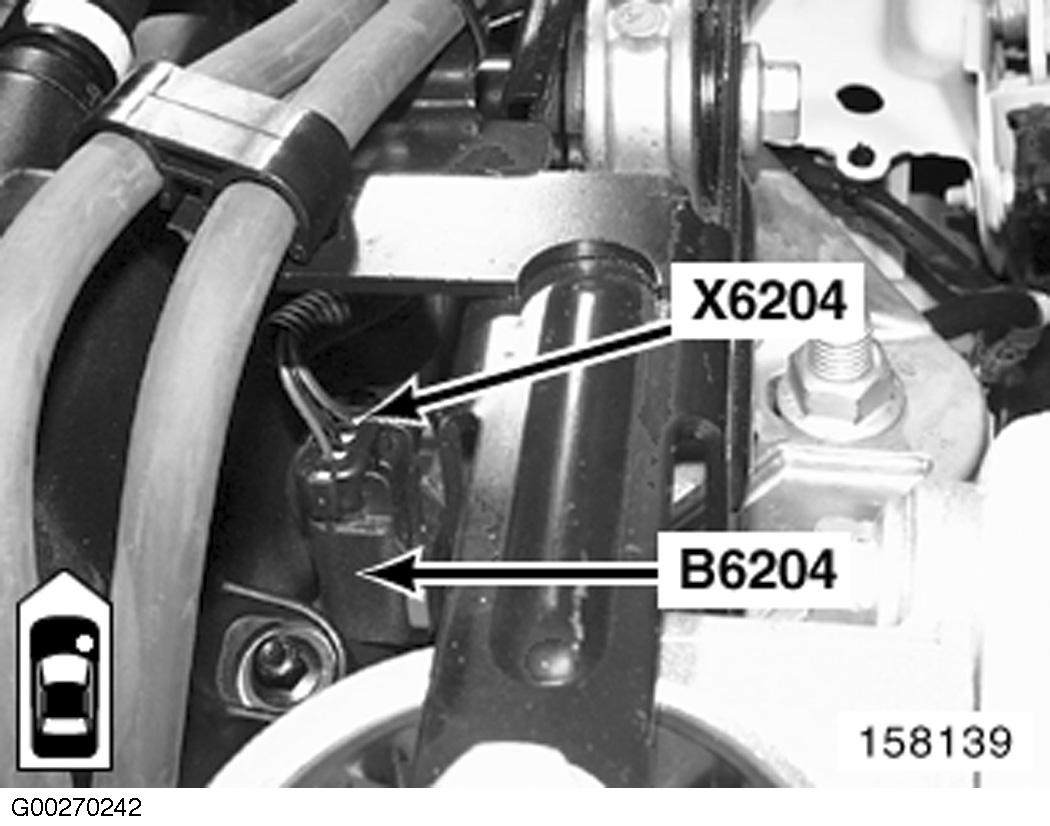

Fig 47: Right Front Side Of Engine

G00270242

Courtesy of BMW OF NORTH AMERICA, INC.

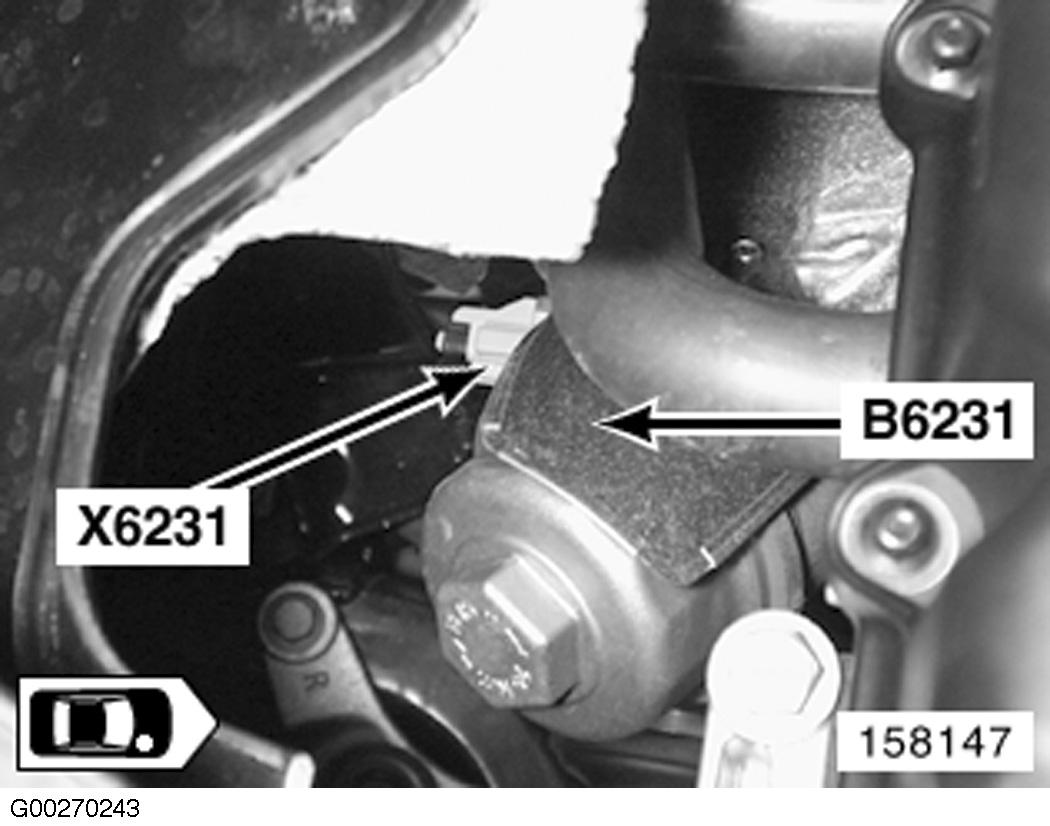

Fig 48: Right Front Of Engine

G00270243

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 49: Right Front Side Of Engine

G00270244

Courtesy of BMW OF NORTH AMERICA, INC.

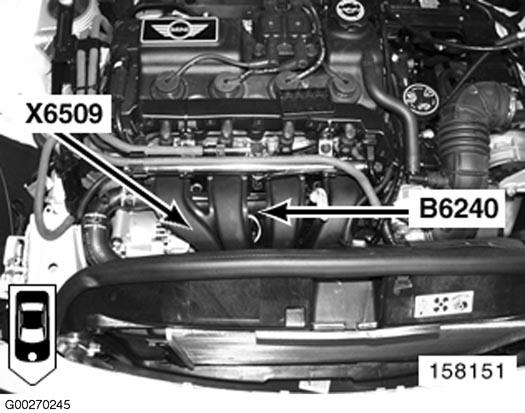

Fig 50: Left Side Of Engine

G00270245

Courtesy of BMW OF NORTH AMERICA, INC.

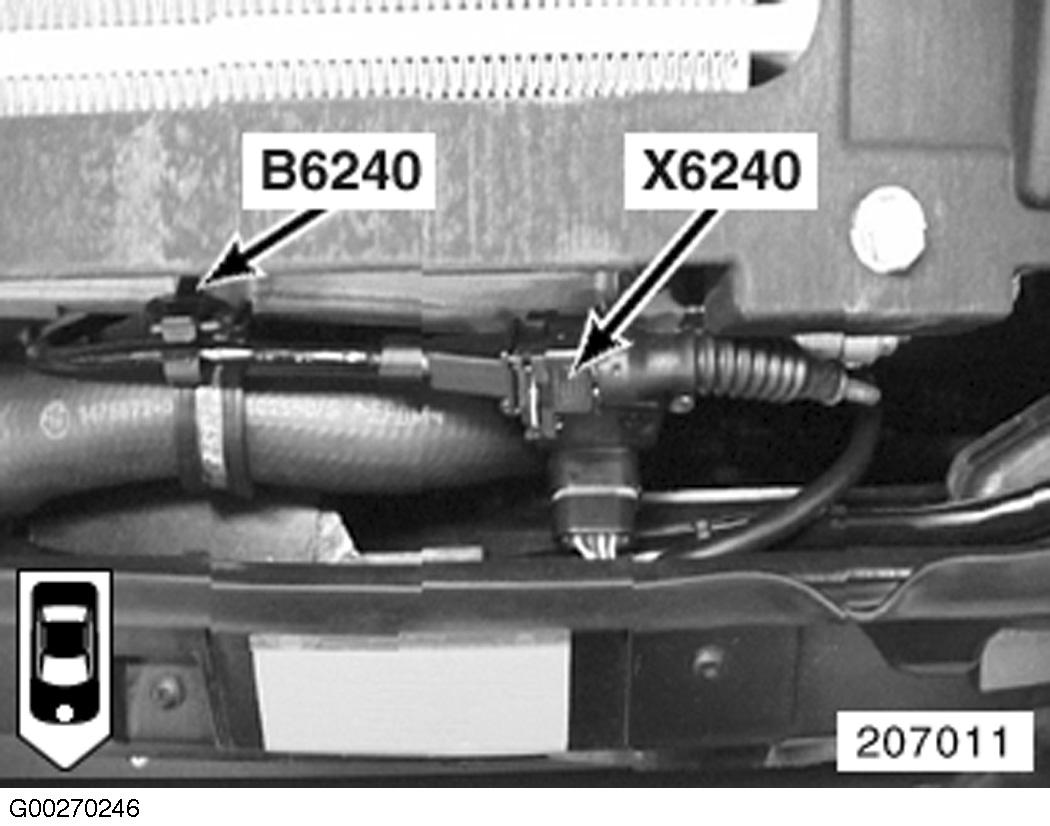

Fig 51: Left Side Of Engine

G00270246

Courtesy of BMW OF NORTH AMERICA, INC.

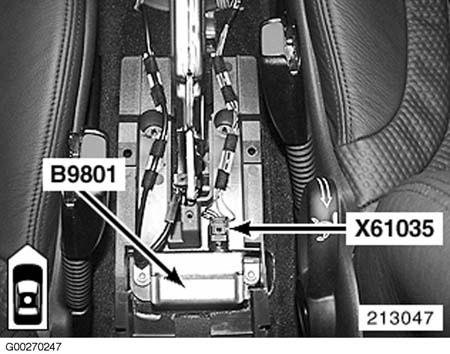

Fig 52: Under Lever Cover

G00270247

Courtesy of BMW OF NORTH AMERICA, INC.

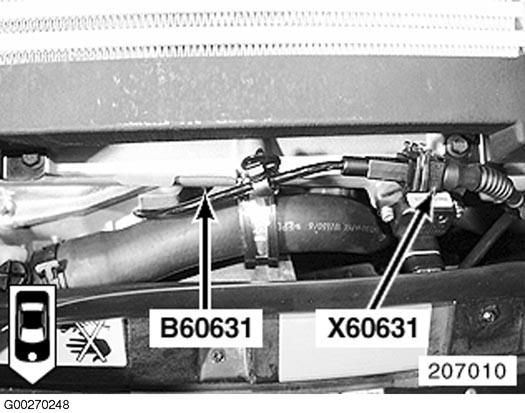

Fig 53: Left Side Of Engine, Beneath Charge Air Cooler

G00270248

Courtesy of BMW OF NORTH AMERICA, INC.

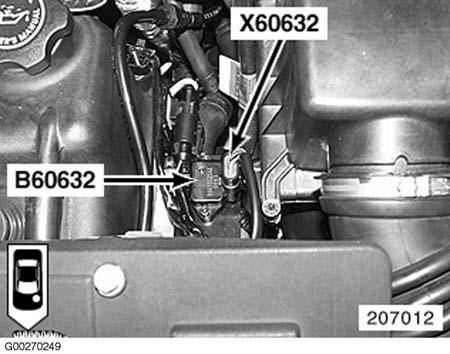

Fig 54: Rear Of Engine

G00270249

Courtesy of BMW OF NORTH AMERICA, INC.

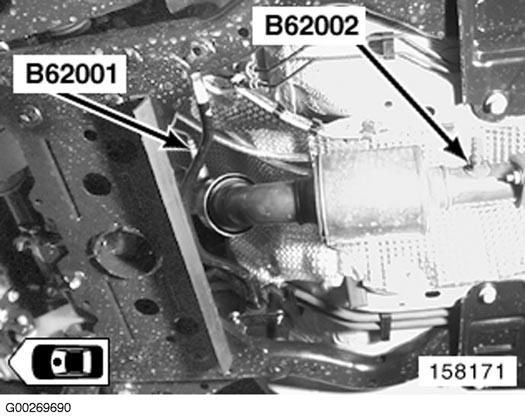

Fig 55: Front Exhaust Pipe

G00269690

Courtesy of BMW OF NORTH AMERICA, INC.

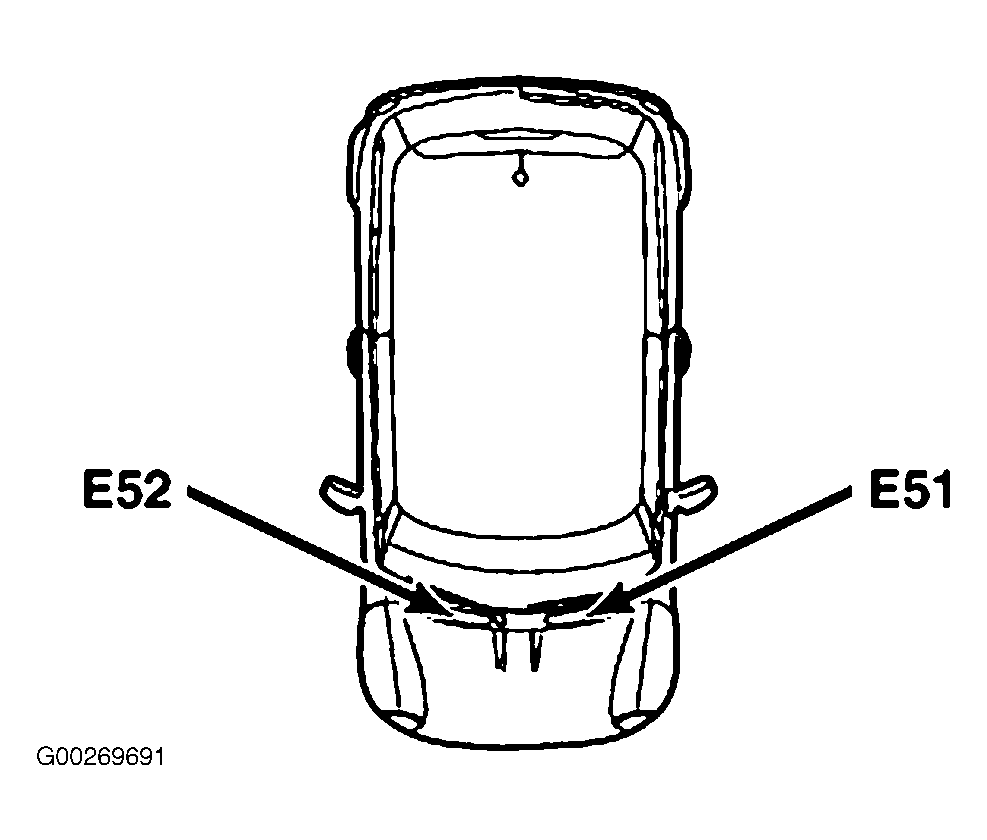

Fig 56: Engine Hood

G00269691

Courtesy of BMW OF NORTH AMERICA, INC.

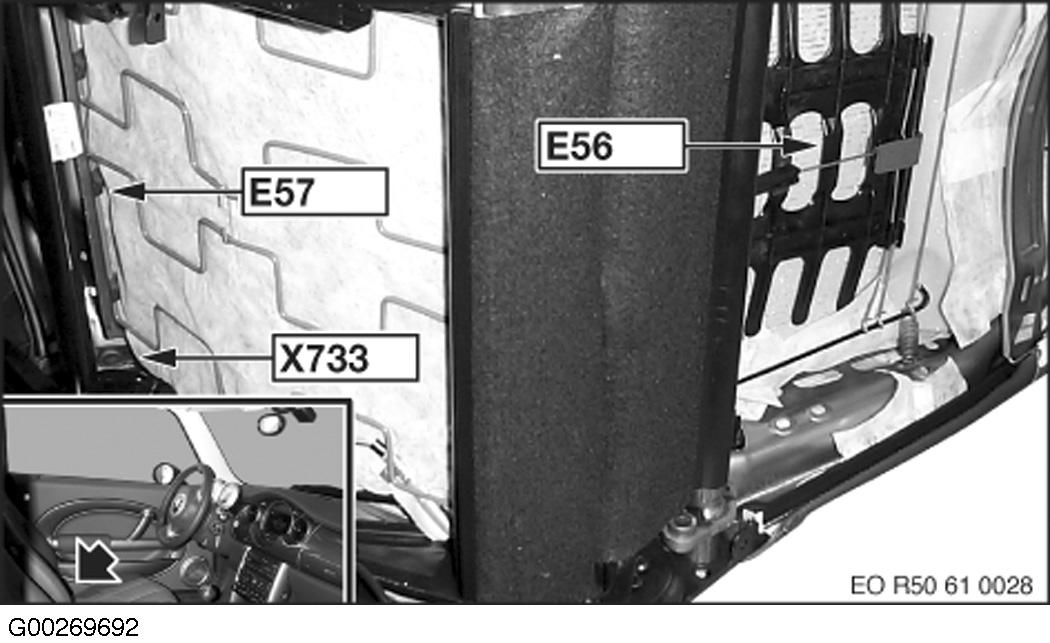

Fig 57: Driver's Seat

G00269692

Courtesy of BMW OF NORTH AMERICA, INC.

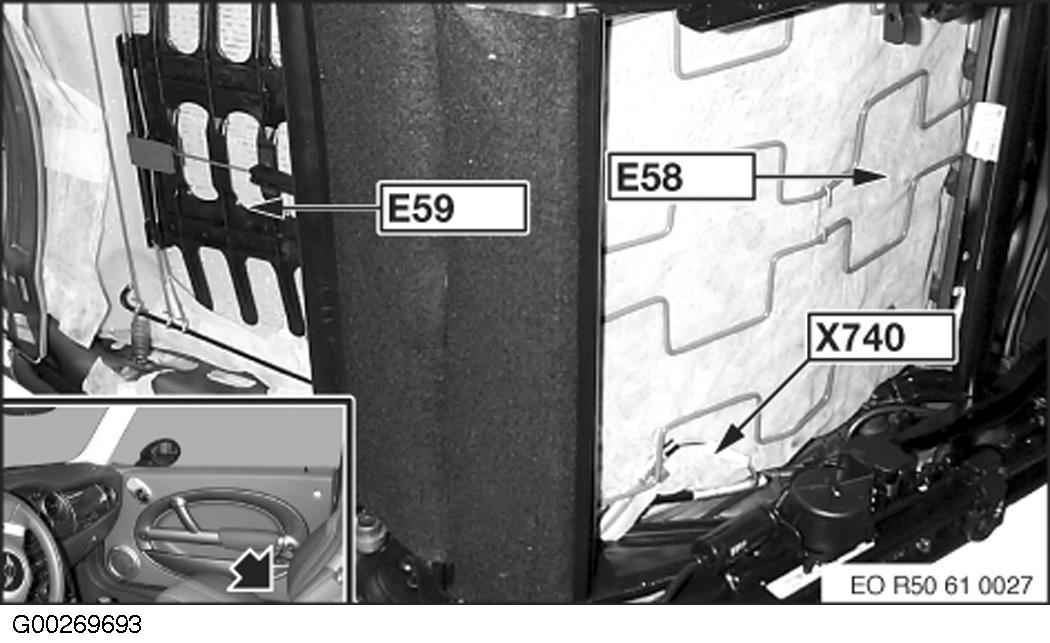

Fig 58: Passenger's Seat

G00269693

Courtesy of BMW OF NORTH AMERICA, INC.

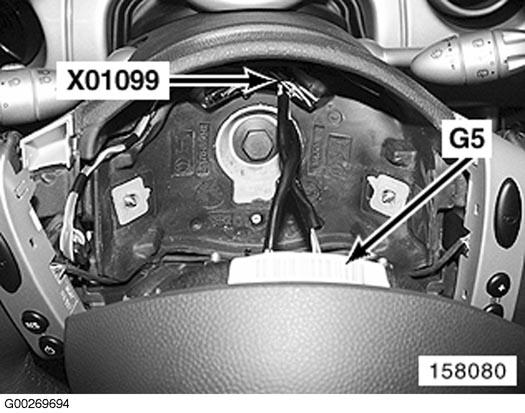

Fig 59: Steering Wheel

G00269694

Courtesy of BMW OF NORTH AMERICA, INC.

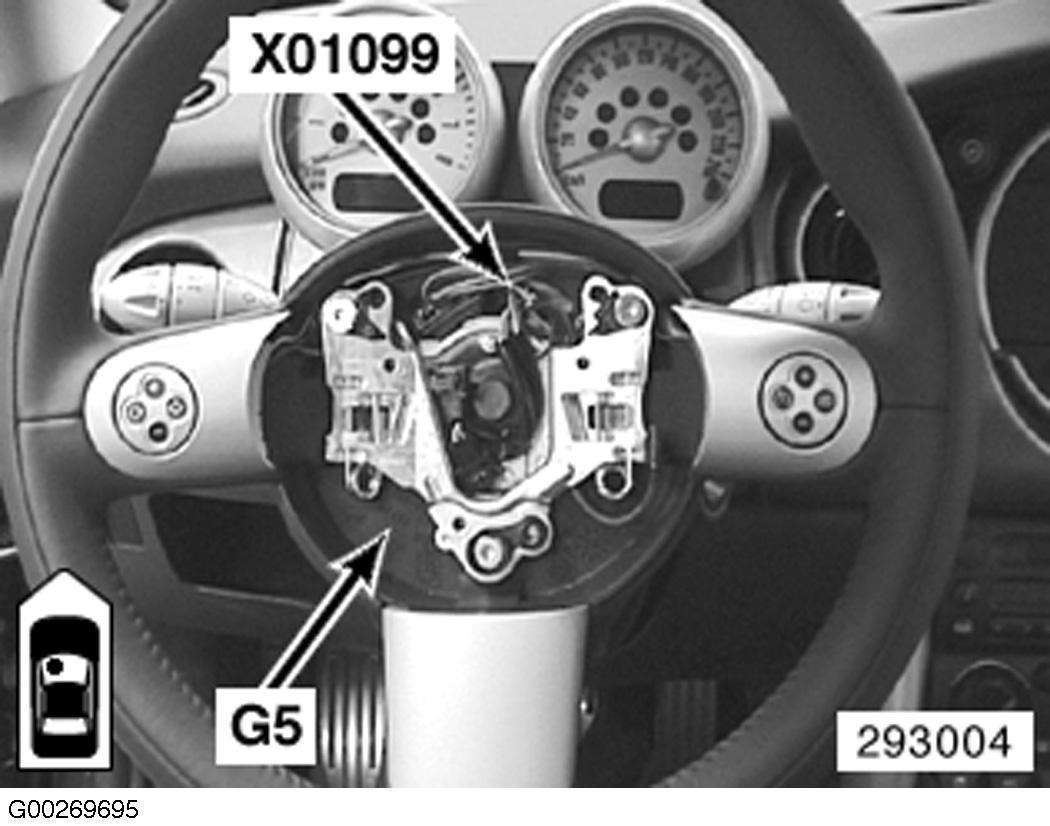

Fig 60: Steering Wheel

G00269695

Courtesy of BMW OF NORTH AMERICA, INC.

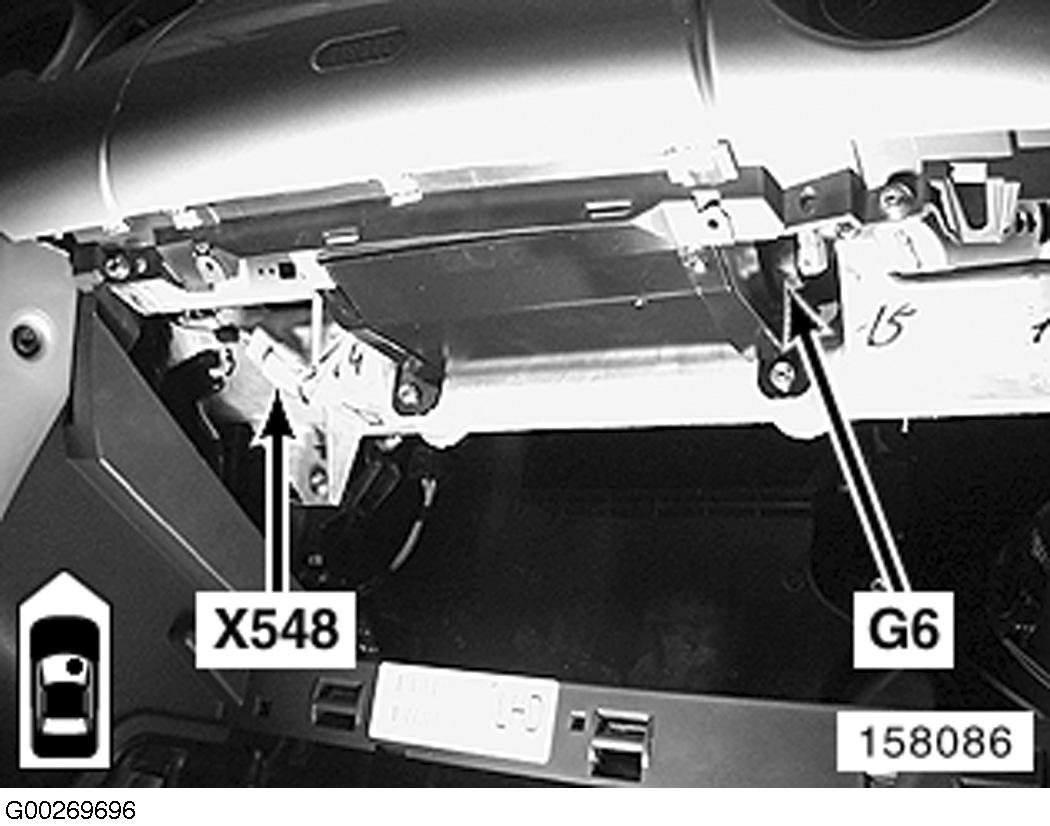

Fig 61: Right Side Of Dash

G00269696

Courtesy of BMW OF NORTH AMERICA, INC.

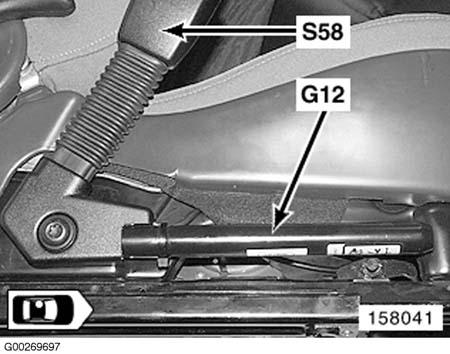

Fig 62: Driver's Seat

G00269697

Courtesy of BMW OF NORTH AMERICA, INC.

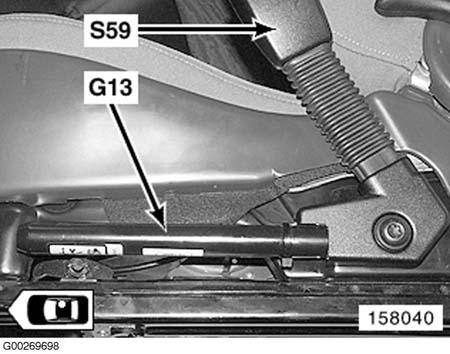

Fig 63: Passenger's Seat

G00269698

Courtesy of BMW OF NORTH AMERICA, INC.

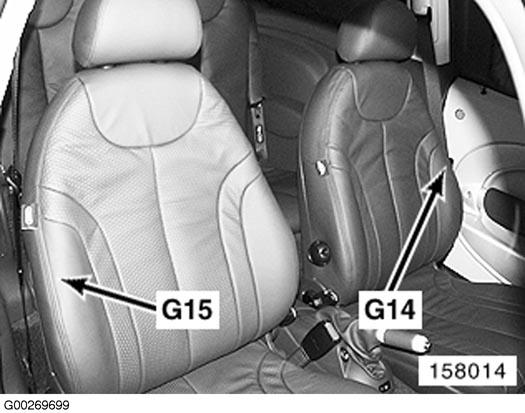

Fig 64: Seat

G00269699

Courtesy of BMW OF NORTH AMERICA, INC.

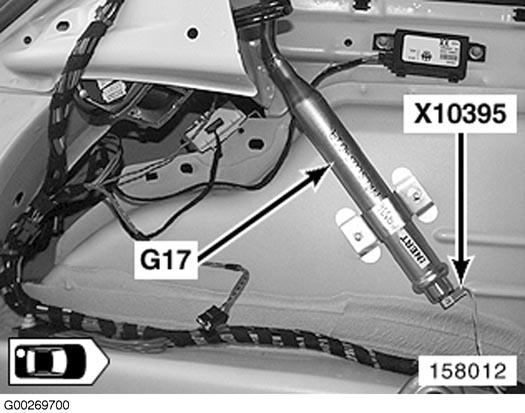

Fig 65: Left Rear Side Of Luggage Compartment

G00269700

Courtesy of BMW OF NORTH AMERICA, INC.

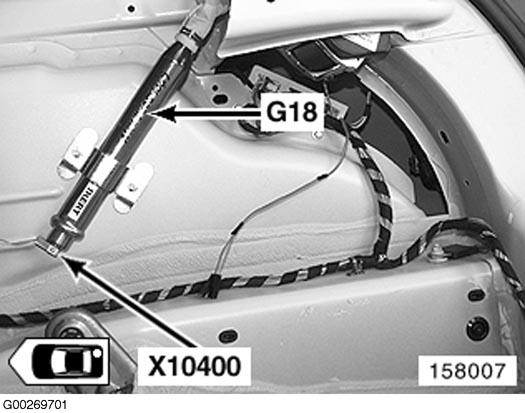

Fig 66: Right Rear Side Of Luggage Compartment

G00269701

Courtesy of BMW OF NORTH AMERICA, INC.

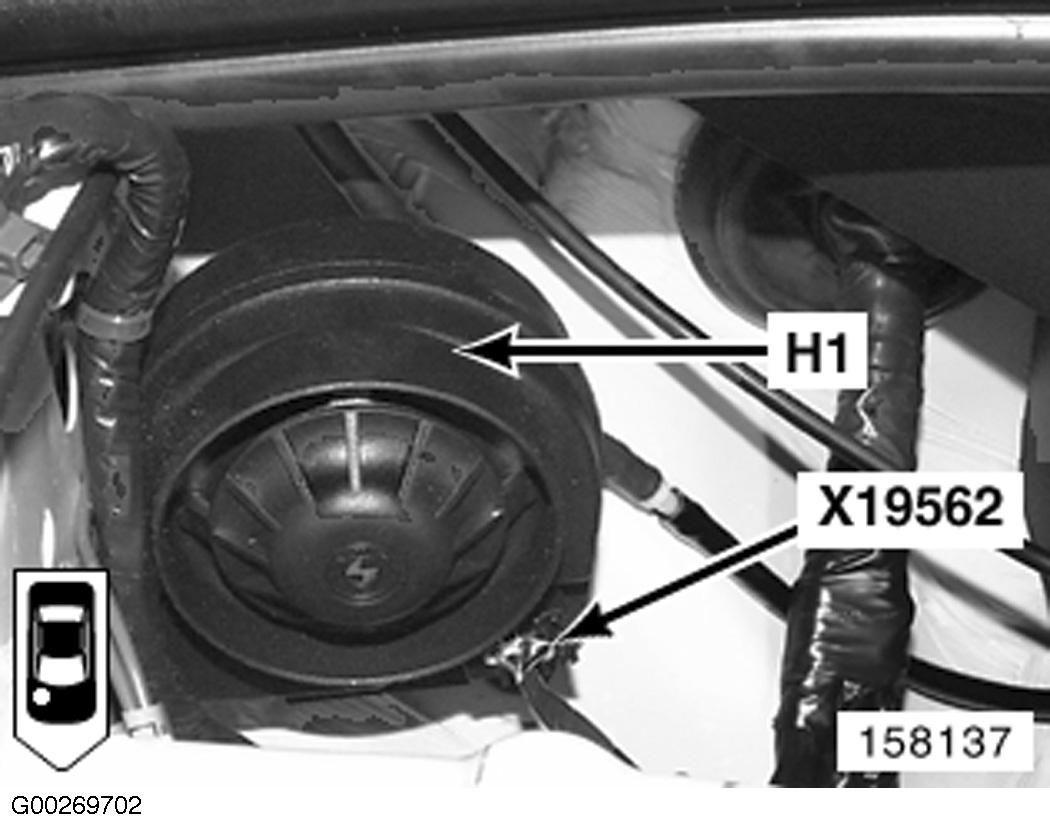

Fig 67: Right Rear Of Engine Compartment

G00269702

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 68: Left Front Fender

G00269703

Courtesy of BMW OF NORTH AMERICA, INC.

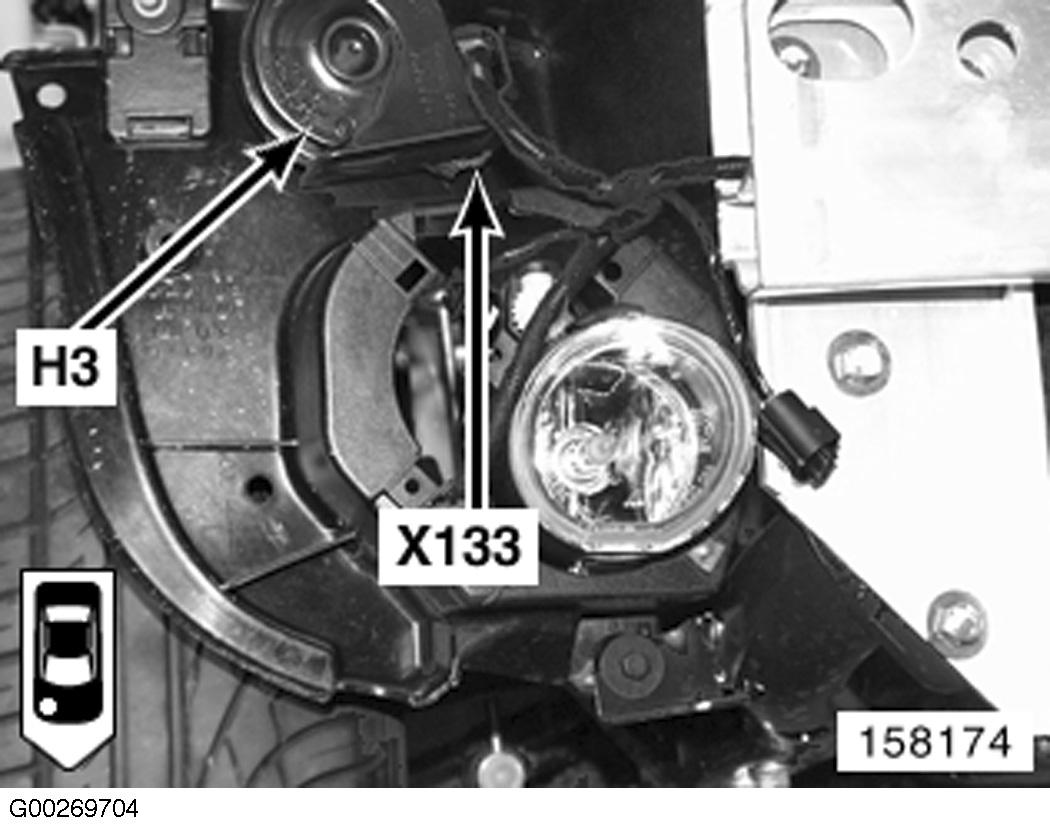

Fig 69: Right Front Fender

G00269704

Courtesy of BMW OF NORTH AMERICA, INC.

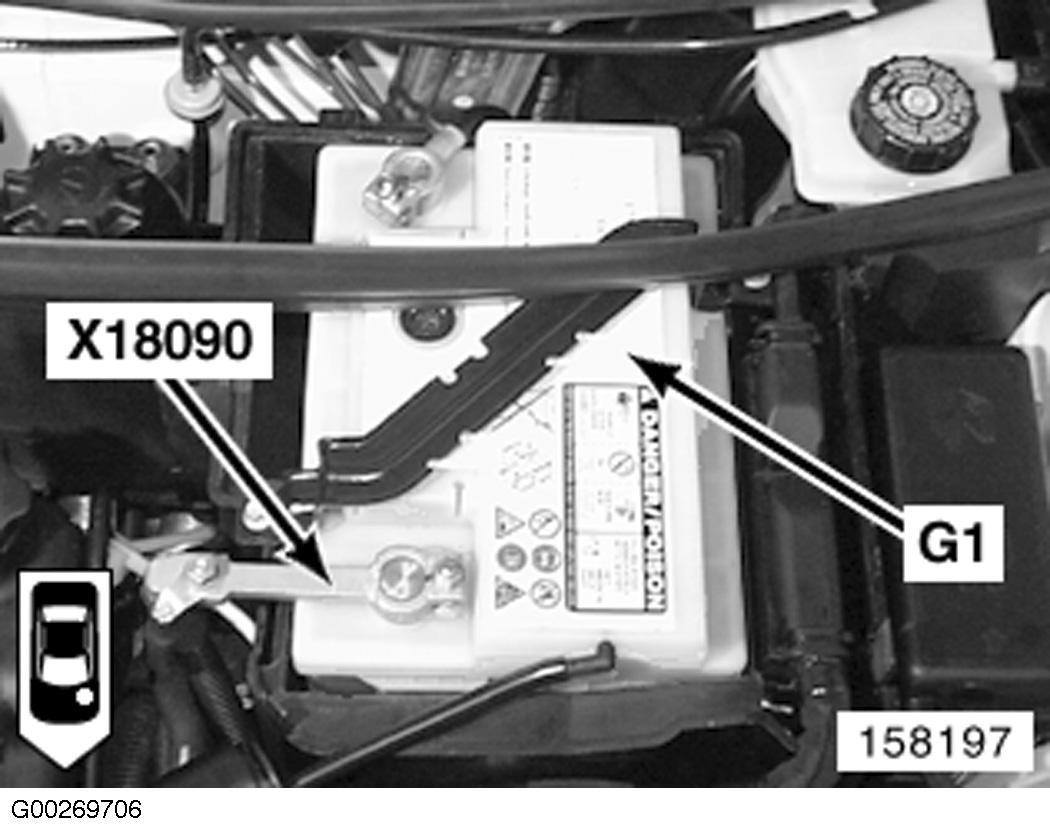

Fig 70: Left Rear Of Engine Compartment

G00269706

Courtesy of BMW OF NORTH AMERICA, INC.

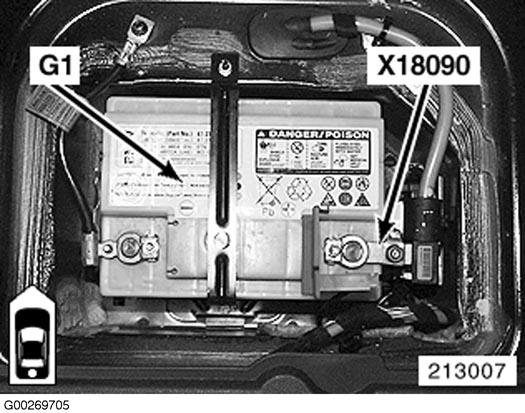

Fig 71: Bottom Of Luggage Compartment

G00269705

Courtesy of BMW OF NORTH AMERICA, INC.

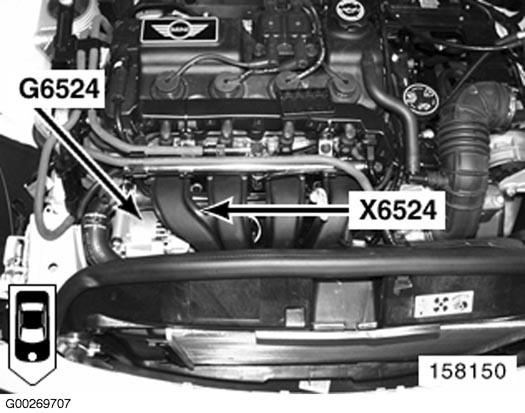

Fig 72: Left Front Of Engine

G00269707

Courtesy of BMW OF NORTH AMERICA, INC.

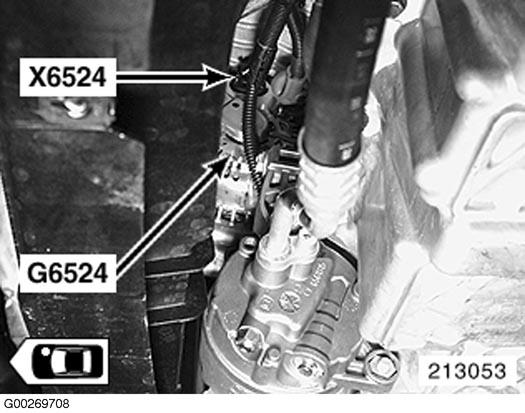

Fig 73: Lower Front Of Engine

G00269708

Courtesy of BMW OF NORTH AMERICA, INC.

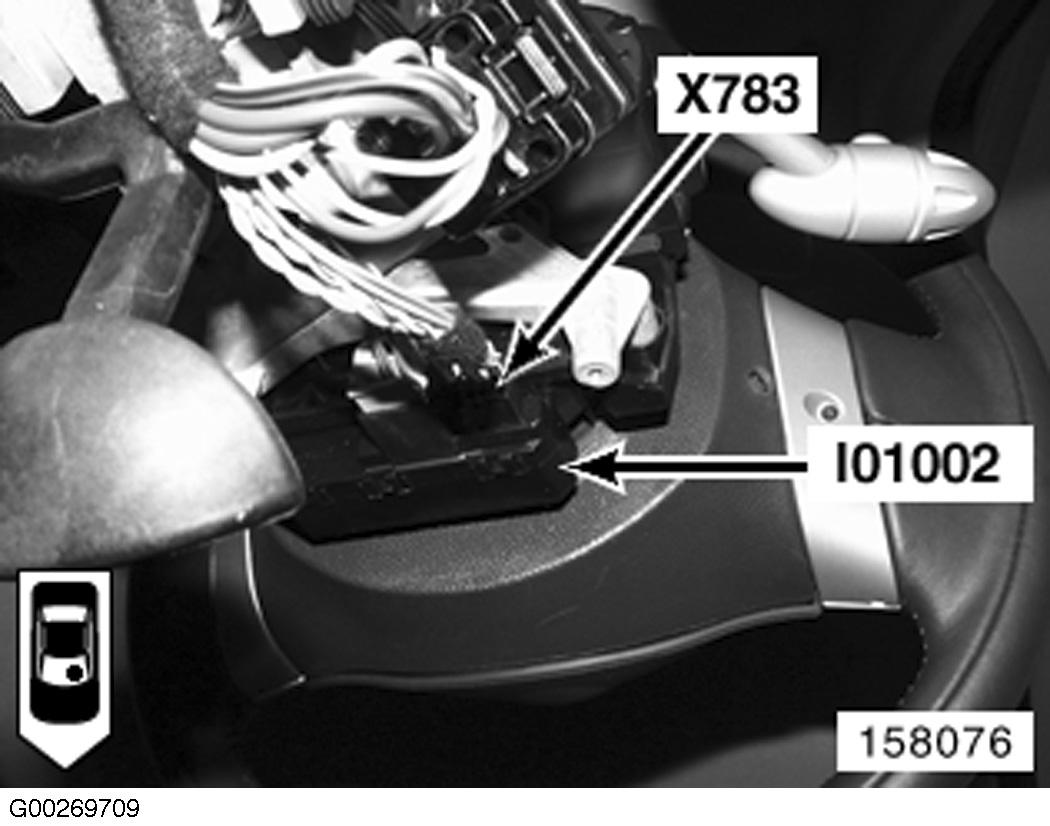

Fig 74: Behind Steering Wheel

G00269709

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 75: Left Rear Window

G00269710

Courtesy of BMW OF NORTH AMERICA, INC.

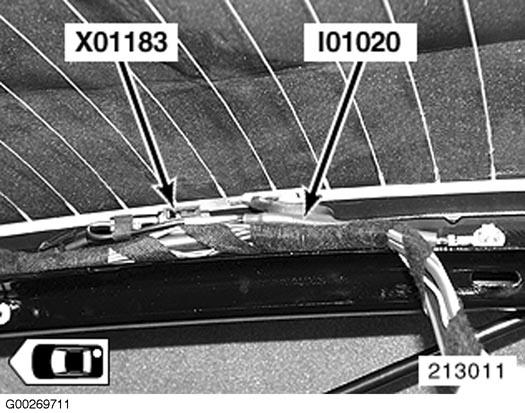

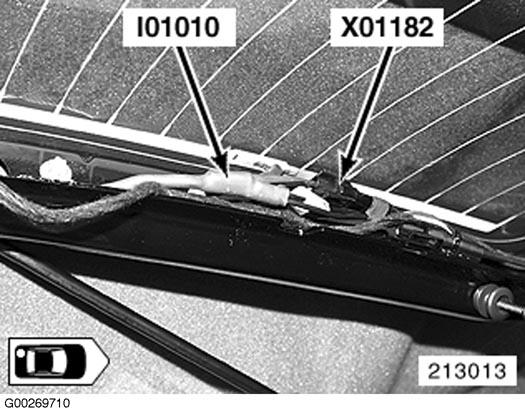

Fig 76: Right Rear Window

G00269711

Courtesy of BMW OF NORTH AMERICA, INC.

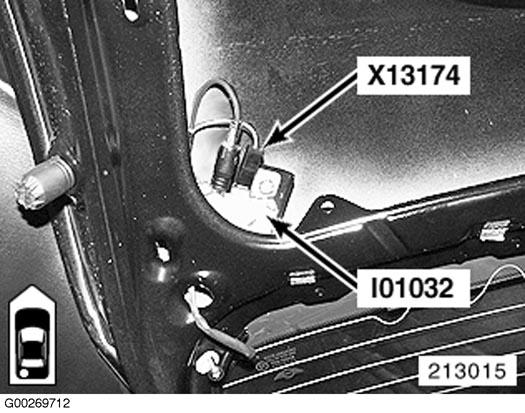

Fig 77: Left Rear Lid

G00269712

Courtesy of BMW OF NORTH AMERICA, INC.

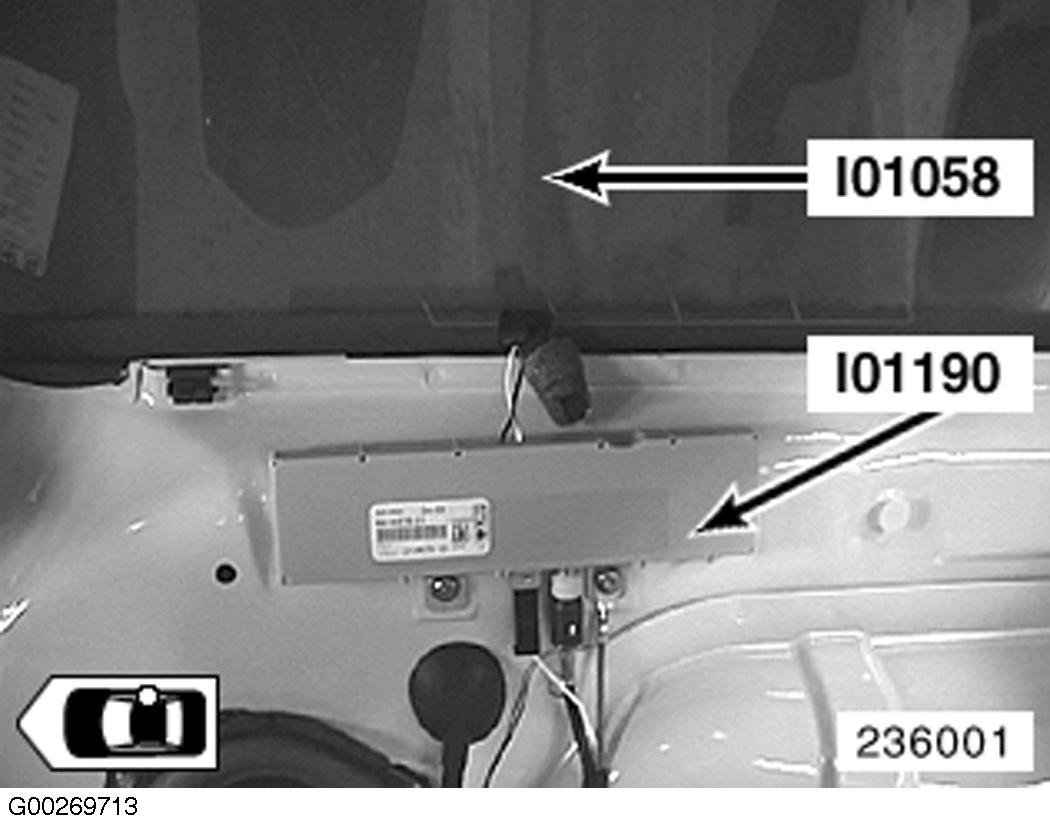

Fig 78: Behind Right Side Trim Panel

G00269713

Courtesy of BMW OF NORTH AMERICA, INC.

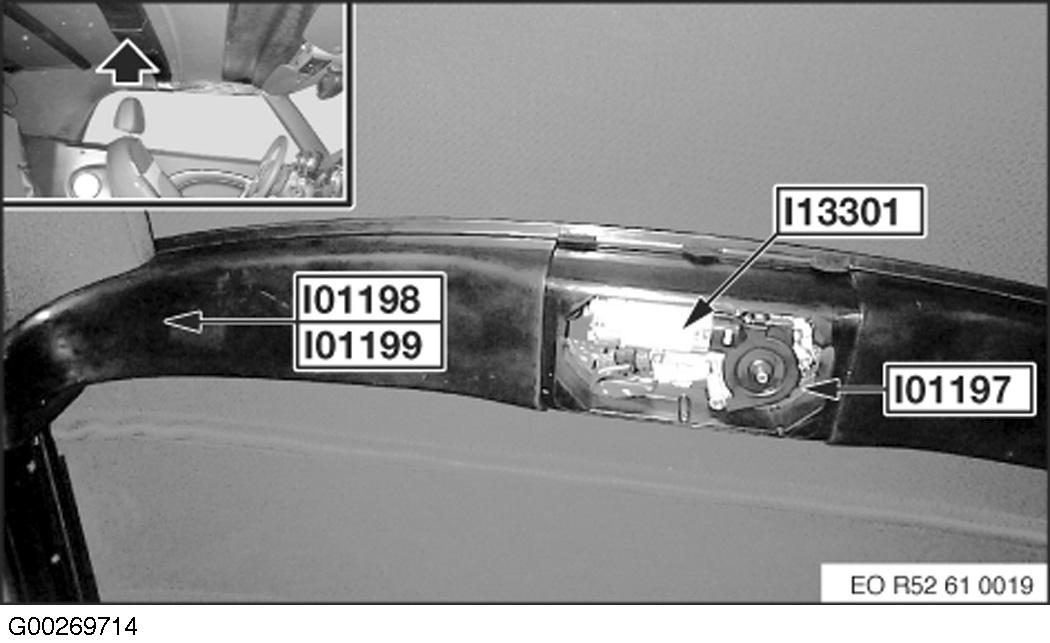

Fig 79: Center Of Roof

G00269714

Courtesy of BMW OF NORTH AMERICA, INC.

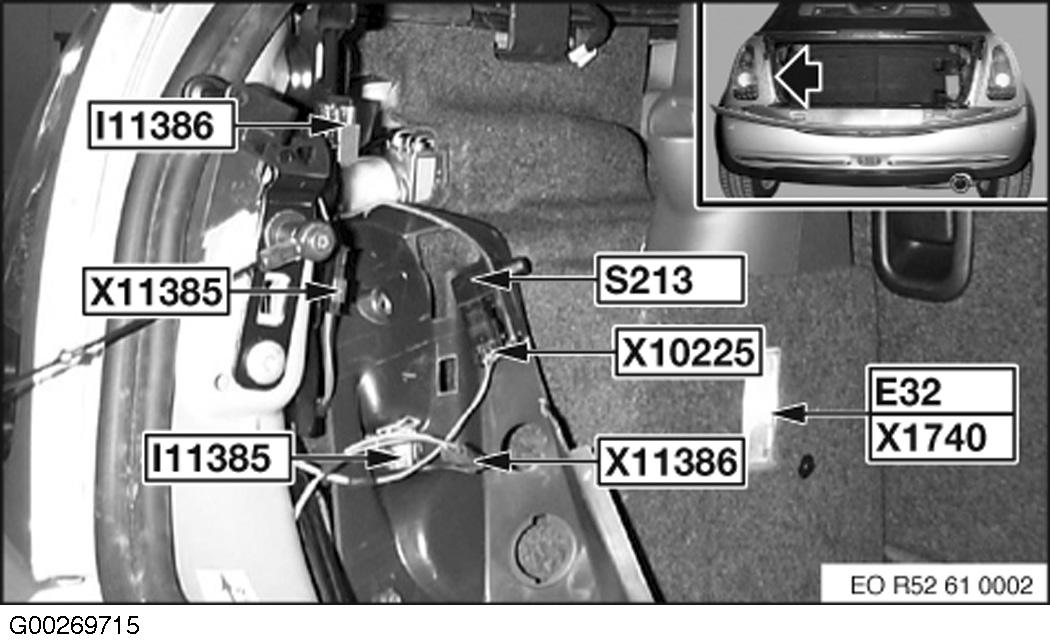

Fig 80: Rear Parcel Shelf

G00269715

Courtesy of BMW OF NORTH AMERICA, INC.

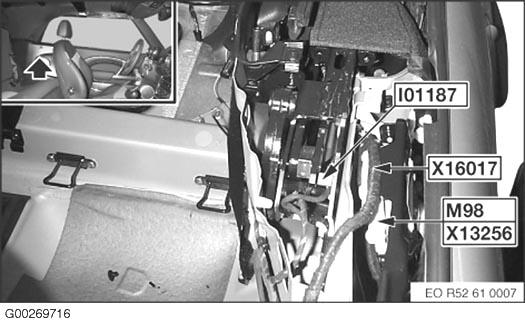

Fig 81: Behind Left Side Trim Panel

G00269716

Courtesy of BMW OF NORTH AMERICA, INC.

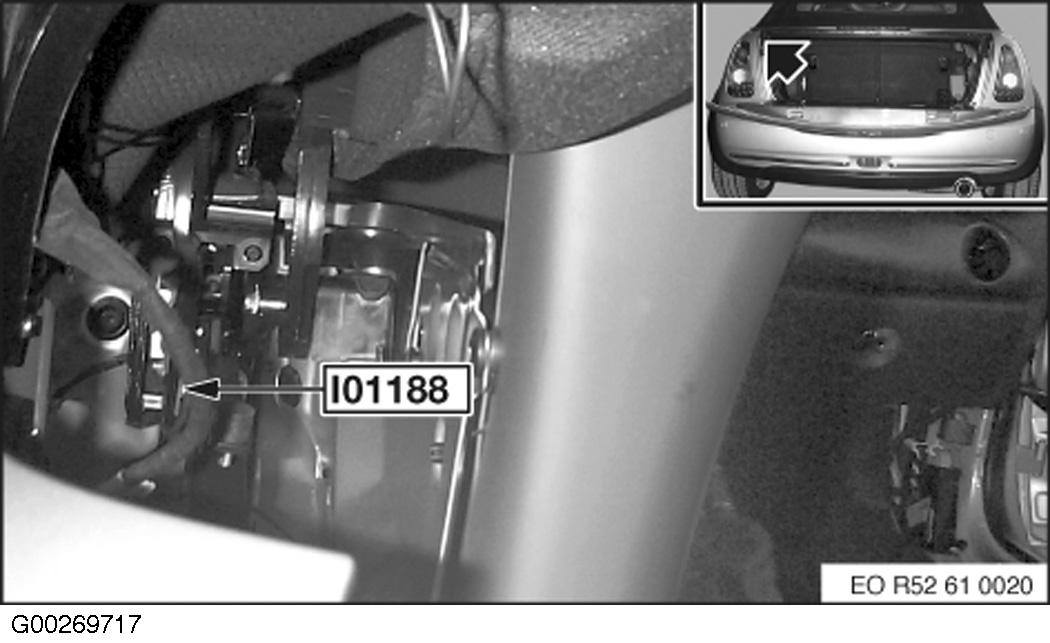

Fig 82: Left Rear Parcel Shelf

G00269717

Courtesy of BMW OF NORTH AMERICA, INC.

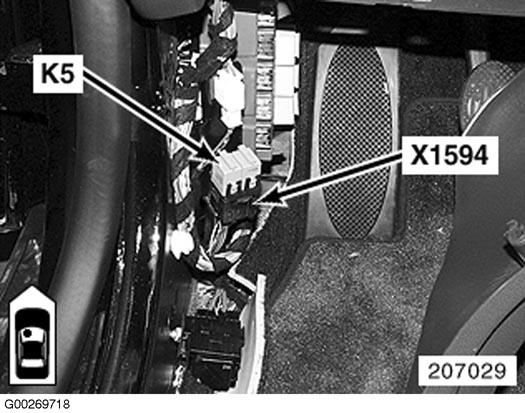

Fig 83: Left Side Of Left Footwell

G00269718

Courtesy of BMW OF NORTH AMERICA, INC.

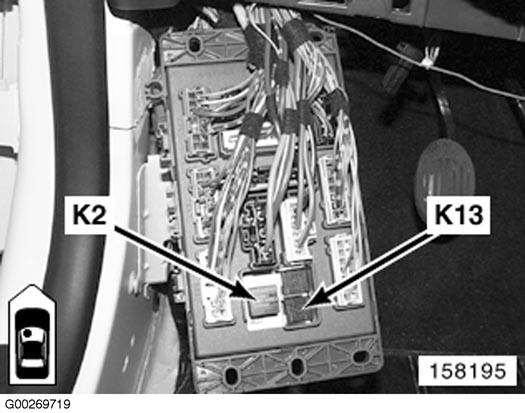

Fig 84: Behind Left Footwell Trim

G00269719

Courtesy of BMW OF NORTH AMERICA, INC.

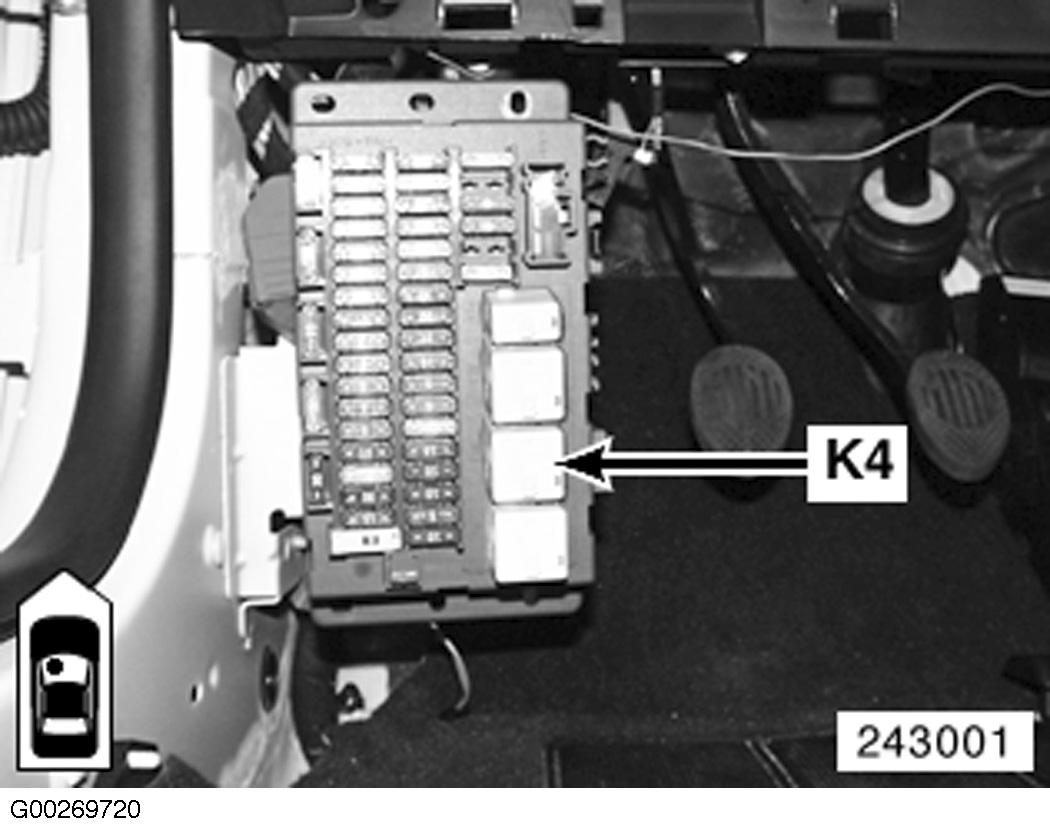

Fig 85: Left Side Of Left Footwell

G00269720

Courtesy of BMW OF NORTH AMERICA, INC.

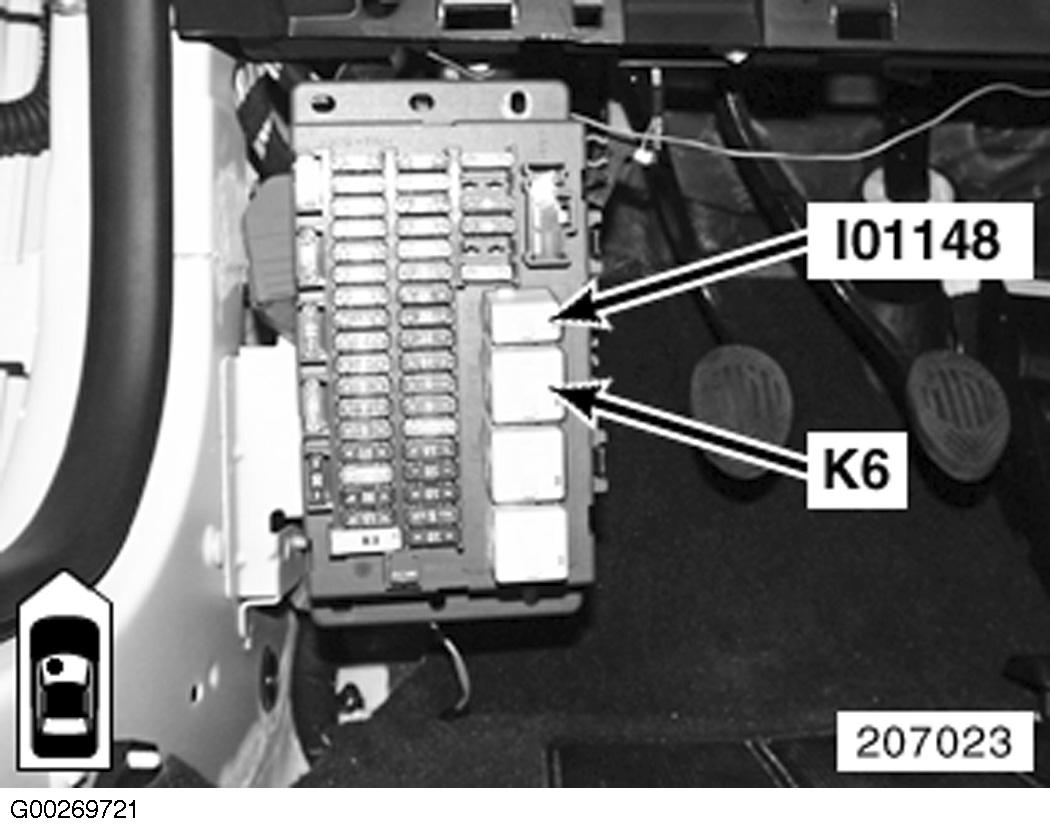

Fig 86: Left Side Of Left Footwell

G00269721

Courtesy of BMW OF NORTH AMERICA, INC.

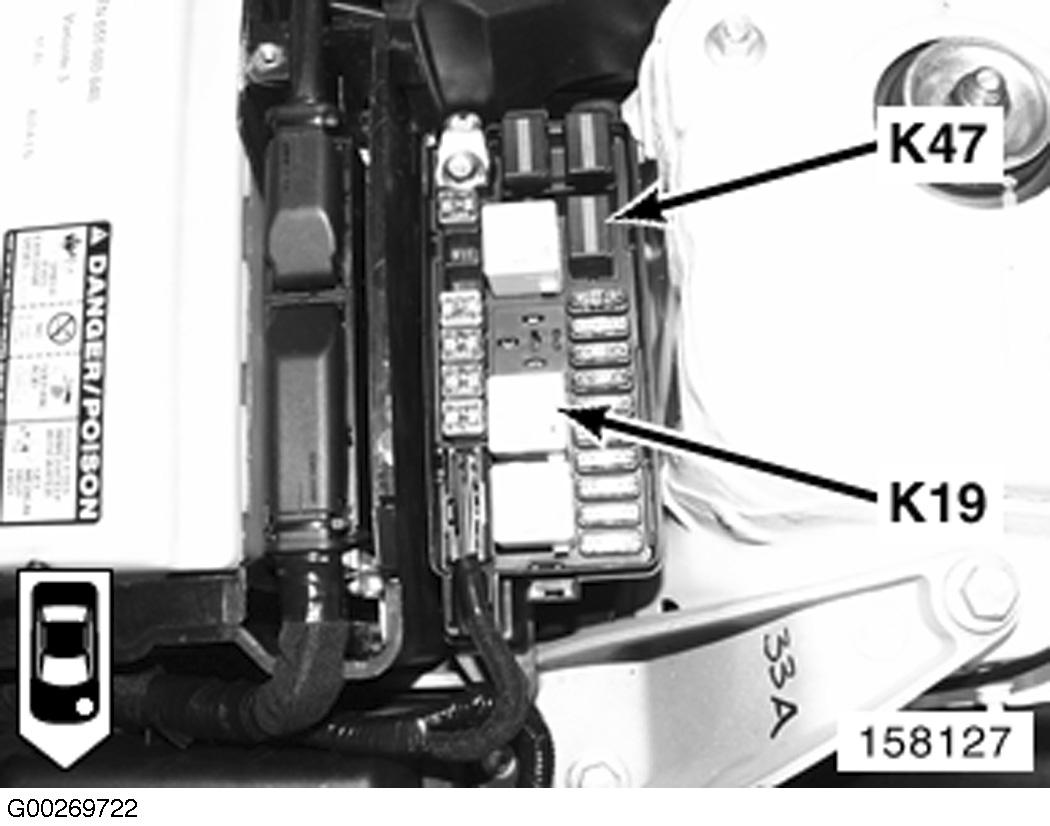

Fig 87: Left Side Of Engine Compartment

G00269722

Courtesy of BMW OF NORTH AMERICA, INC.

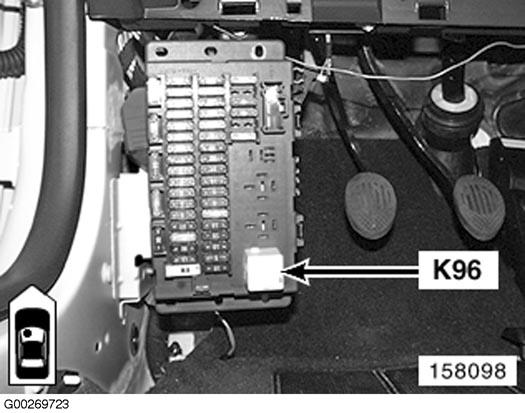

Fig 88: Left Side Of Left Footwell

G00269723

Courtesy of BMW OF NORTH AMERICA, INC.

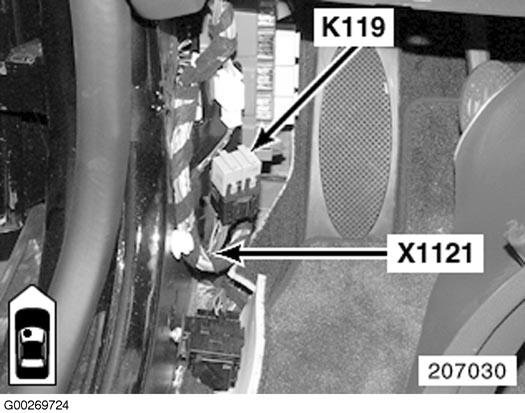

Fig 89: Left Side Of Left Footwell

G00269724

Courtesy of BMW OF NORTH AMERICA, INC.

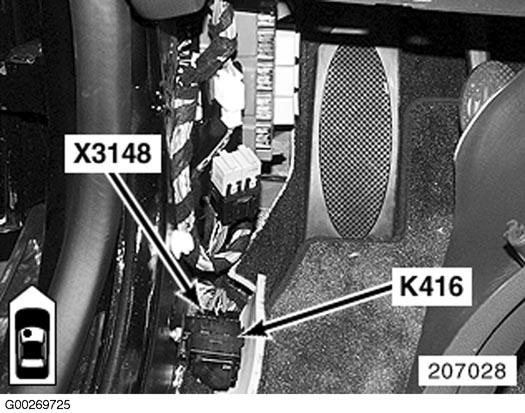

Fig 90: Left Side Of Left Footwell

G00269725

Courtesy of BMW OF NORTH AMERICA, INC.

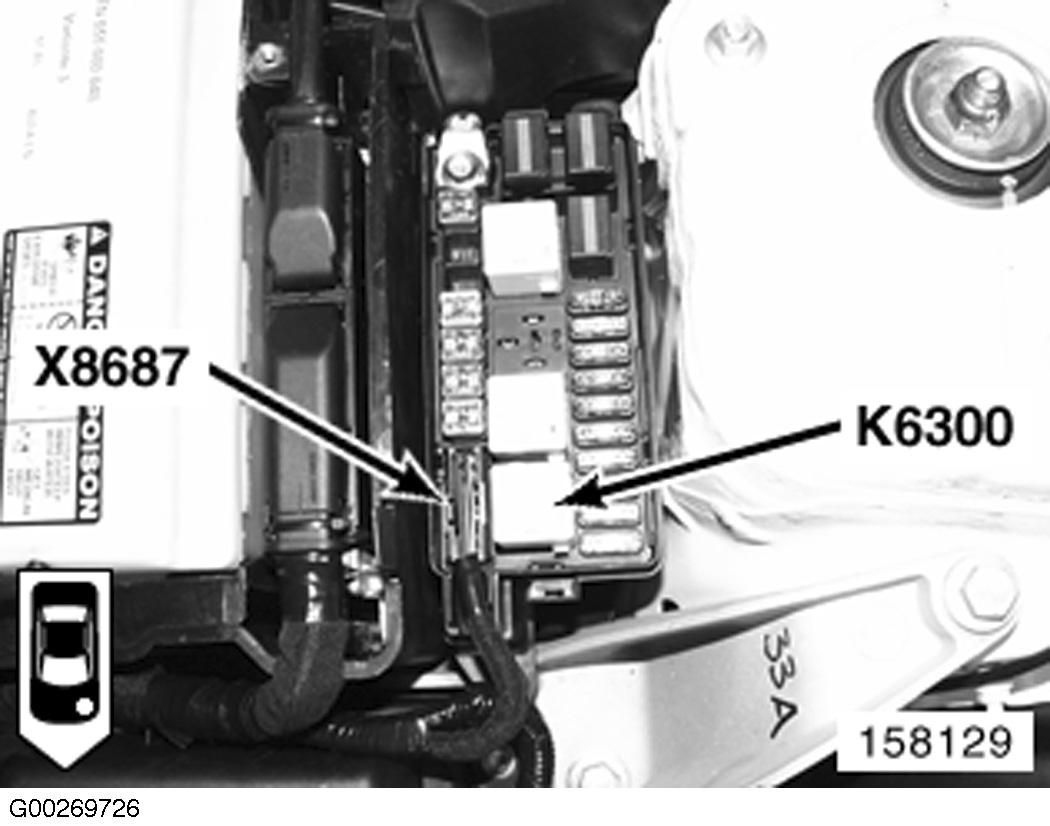

Fig 91: Left Side Of Engine Compartment

G00269726

Courtesy of BMW OF NORTH AMERICA, INC.

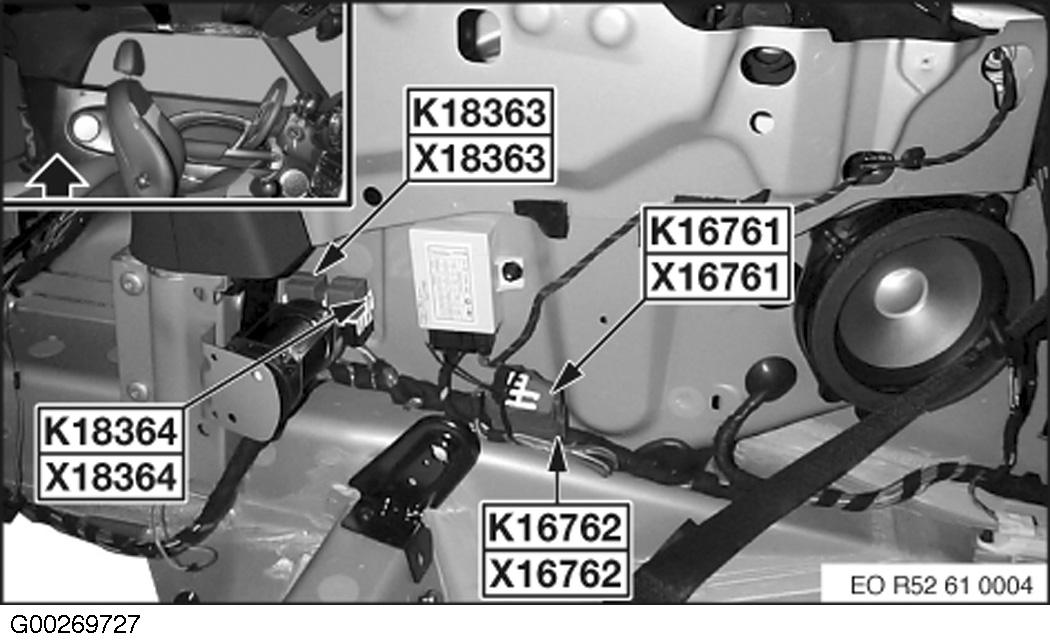

Fig 92: Behind Left Side Trim Panel

G00269727

Courtesy of BMW OF NORTH AMERICA, INC.

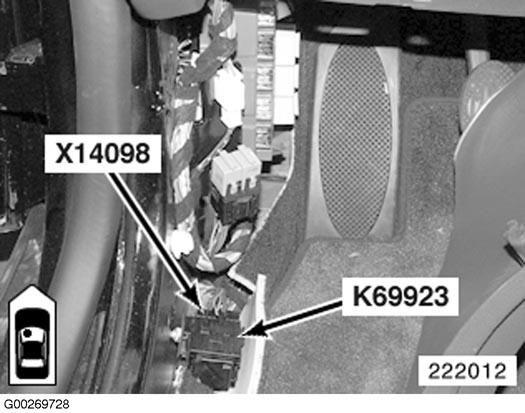

Fig 93: Left Side Of Left Footwell

G00269728

Courtesy of BMW OF NORTH AMERICA, INC.

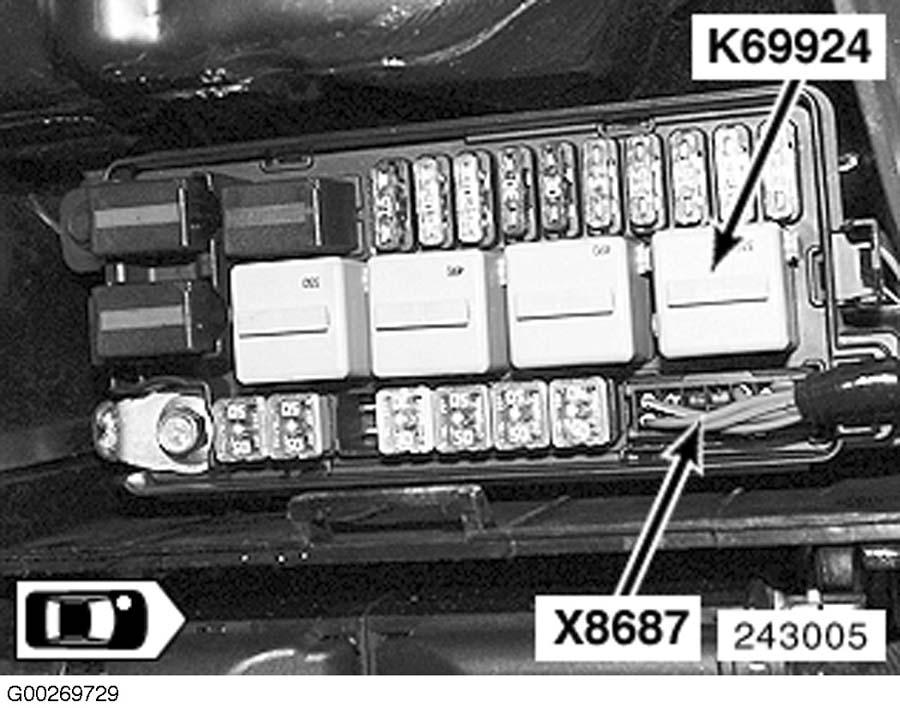

Fig 94: Left Side Of Engine Compartment

G00269729

Courtesy of BMW OF NORTH AMERICA, INC.

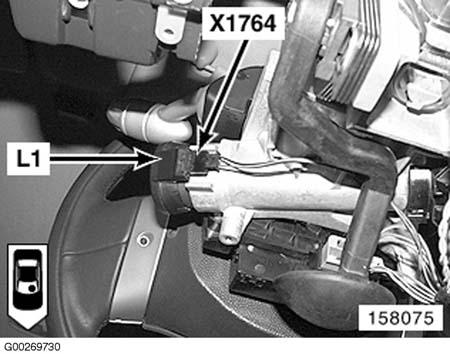

Fig 95: Behind Steering Wheel

G00269730

Courtesy of BMW OF NORTH AMERICA, INC.

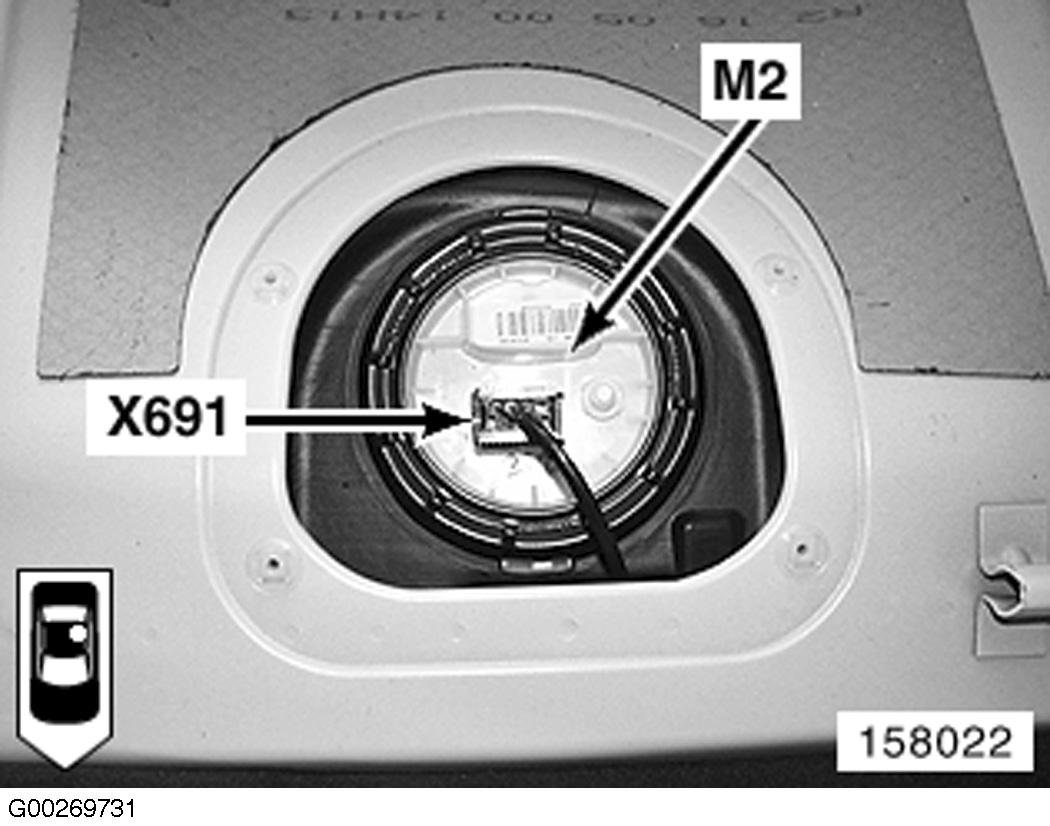

Fig 96: Under Left Side Of Rear Seat

G00269731

Courtesy of BMW OF NORTH AMERICA, INC.

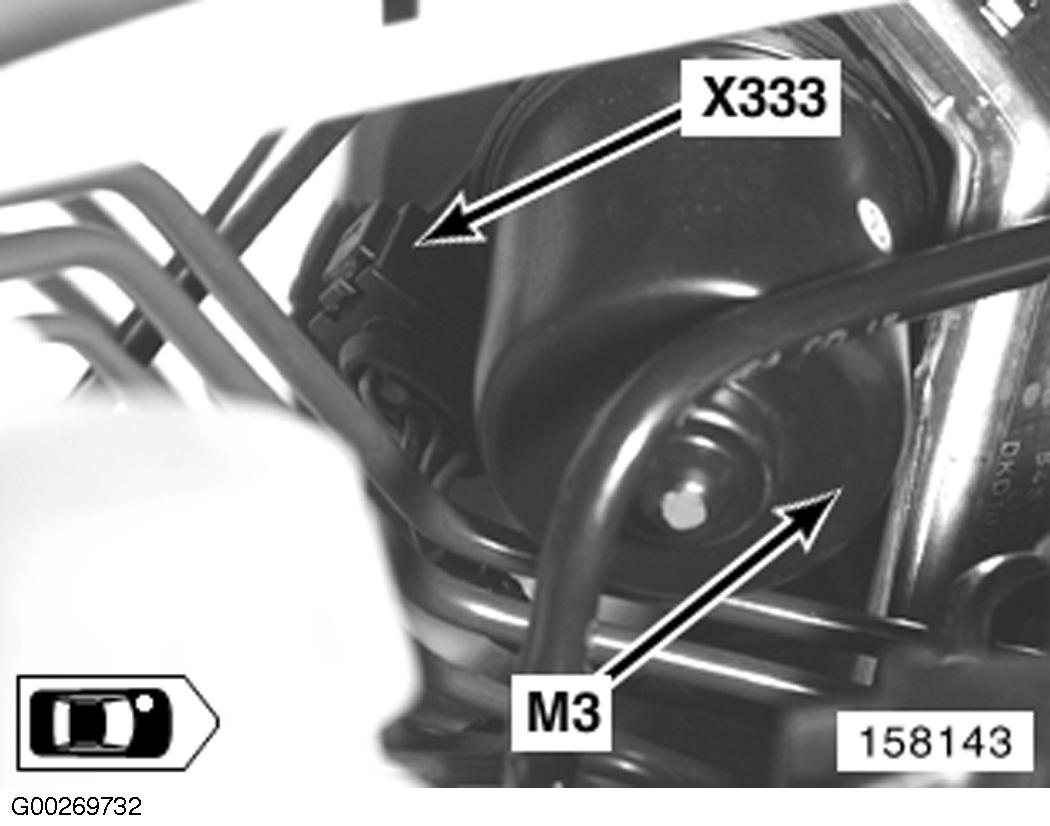

Fig 97: Rear Left Side Of Engine Compartment

G00269732

Courtesy of BMW OF NORTH AMERICA, INC.

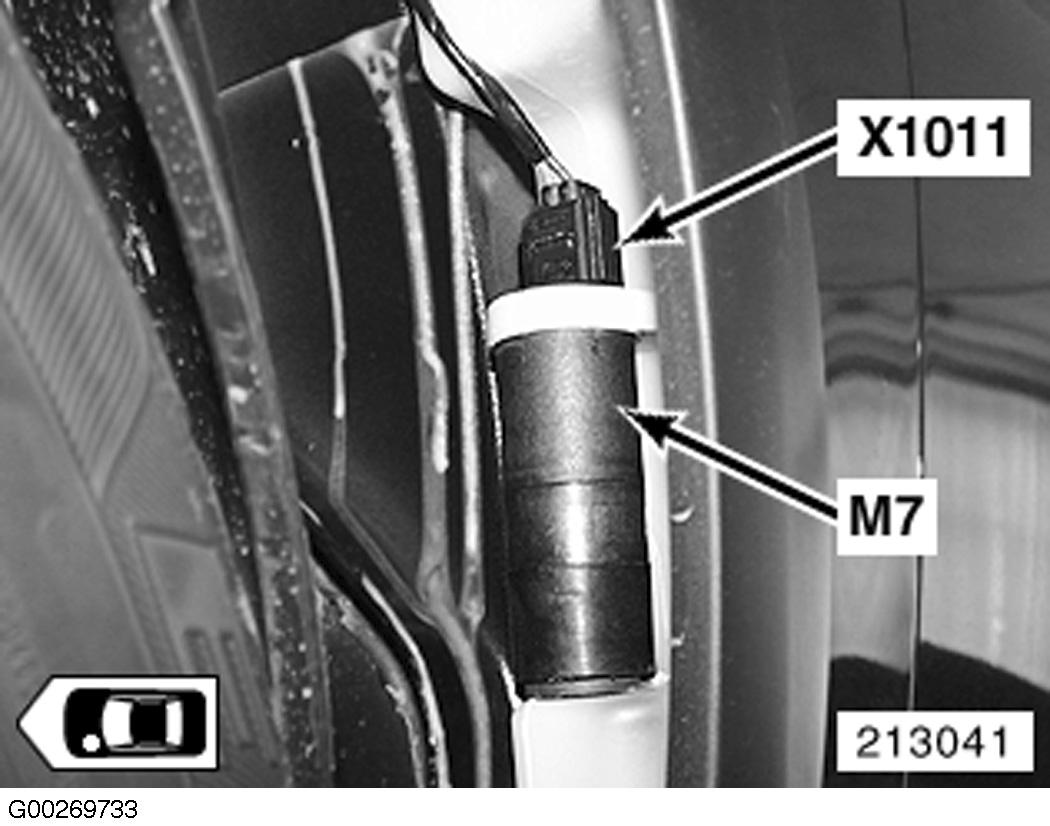

Fig 98: Left Front Wheelwell

G00269733

Courtesy of BMW OF NORTH AMERICA, INC.

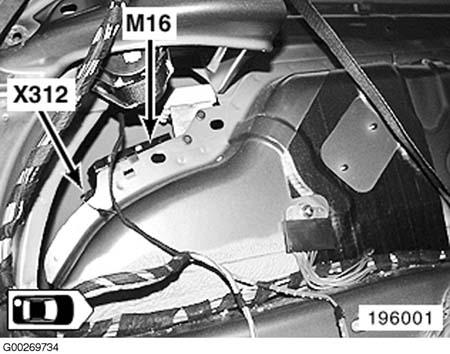

Fig 99: Left Rear Side Of Luggage Compartment

G00269734

Courtesy of BMW OF NORTH AMERICA, INC.

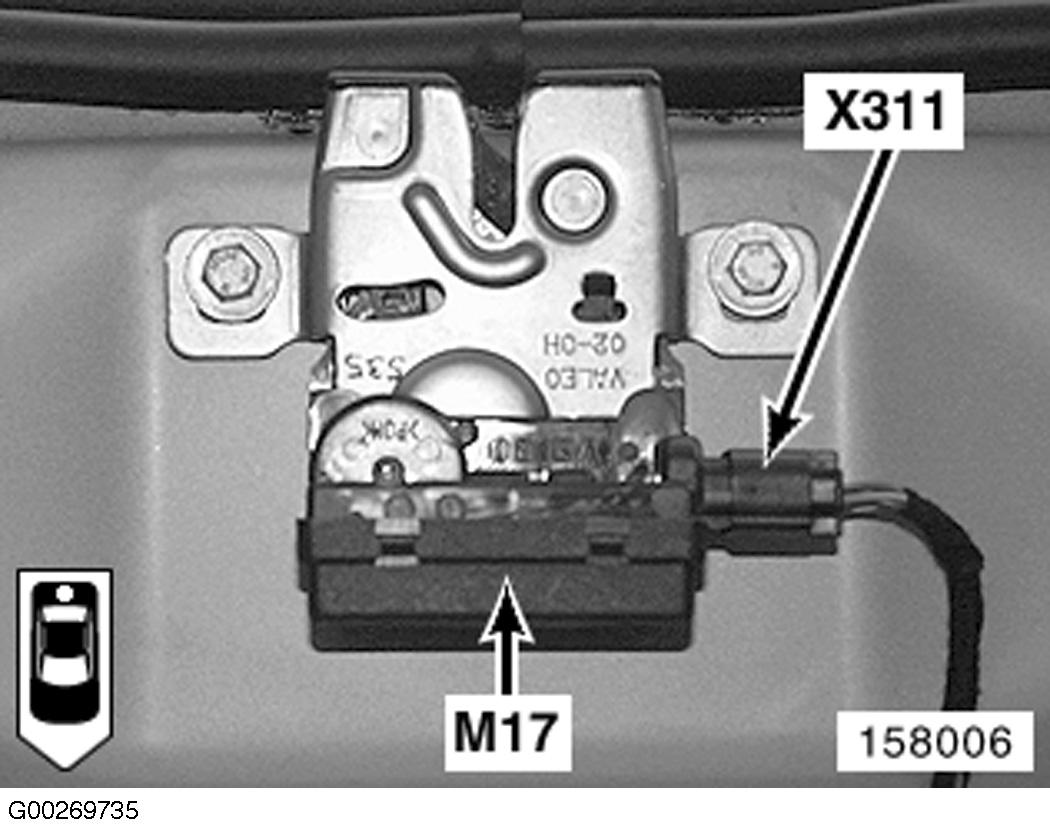

Fig 100: Rear Apron

G00269735

Courtesy of BMW OF NORTH AMERICA, INC.

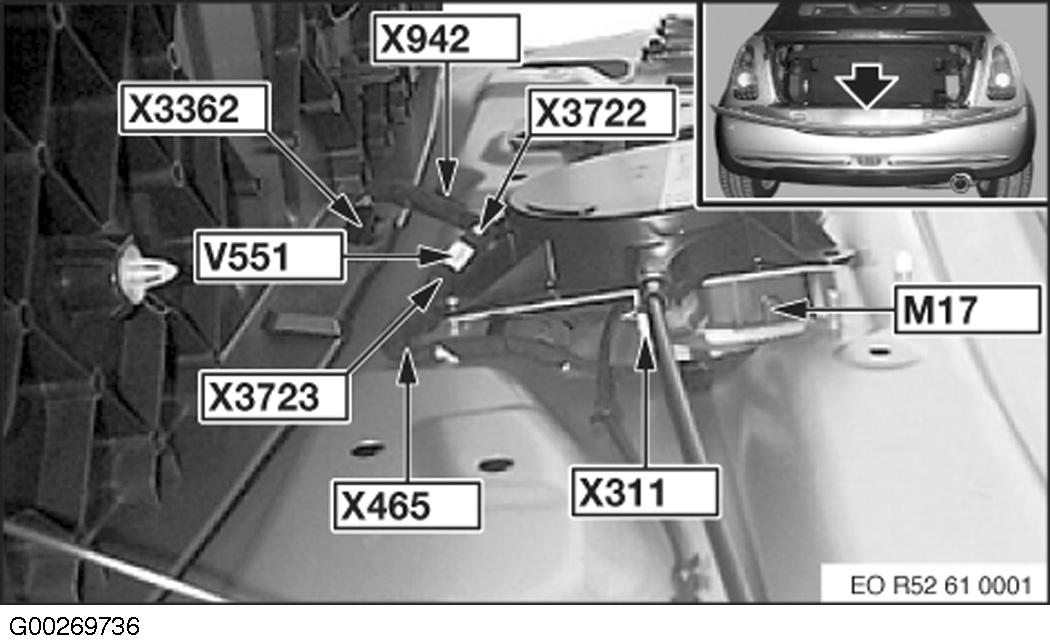

Fig 101: Center Rear Of Trunk

G00269736

Courtesy of BMW OF NORTH AMERICA, INC.

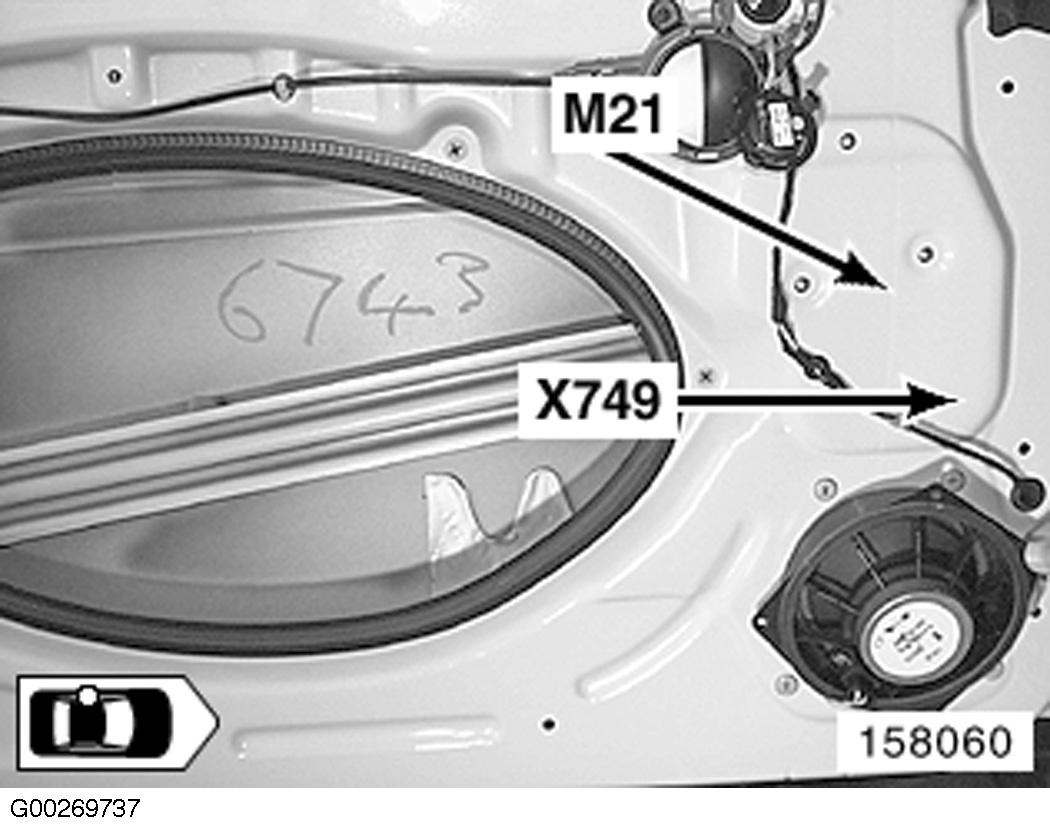

Fig 102: Driver's Door

G00269737

Courtesy of BMW OF NORTH AMERICA, INC.

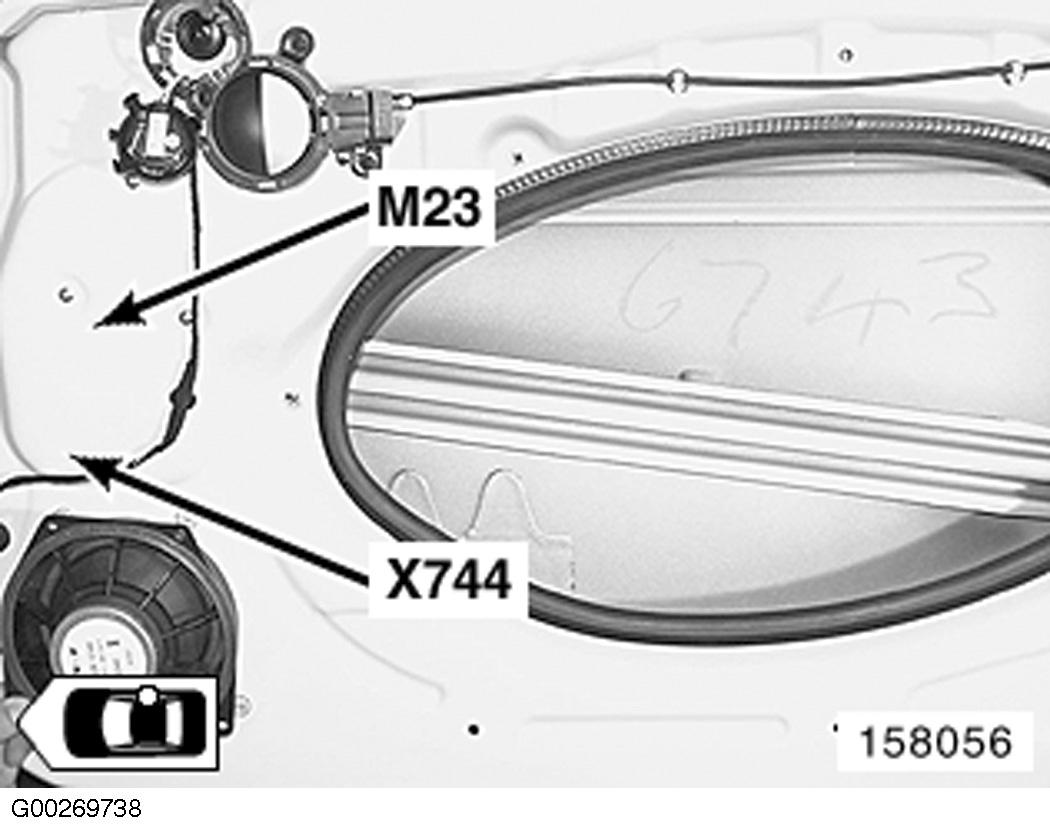

Fig 103: Passenger's Door

G00269738

Courtesy of BMW OF NORTH AMERICA, INC.

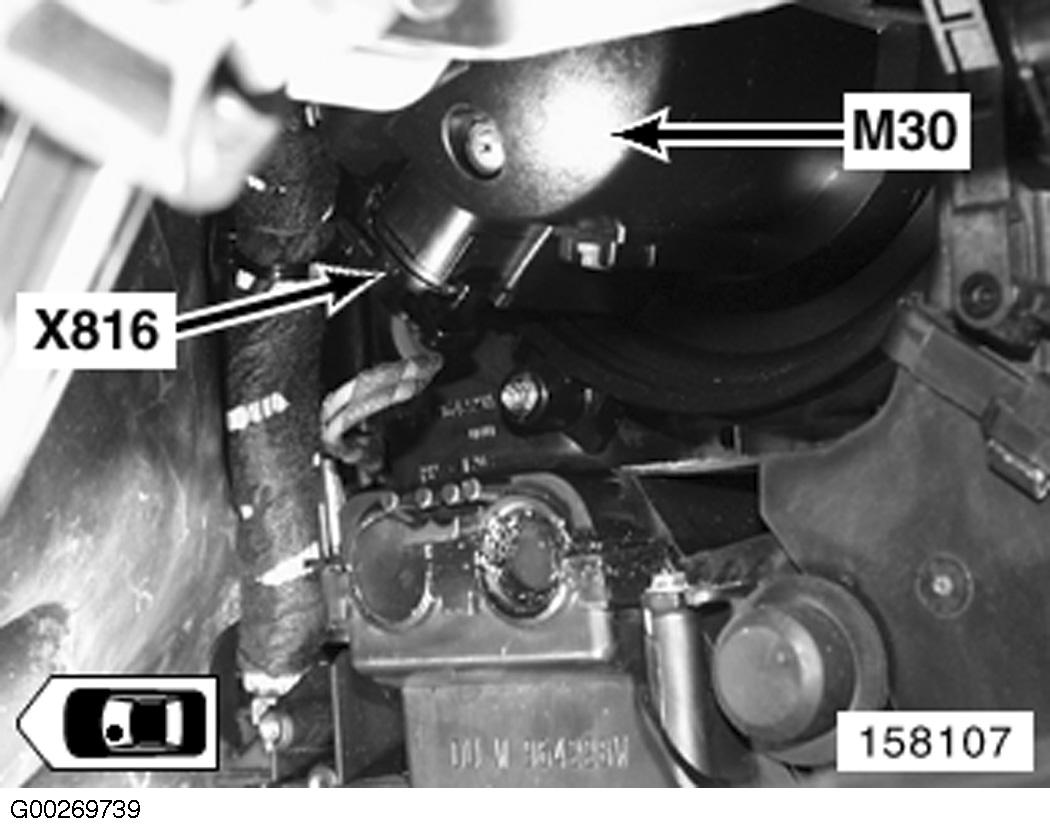

Fig 104: Behind Center Of Dash

G00269739

Courtesy of BMW OF NORTH AMERICA, INC.

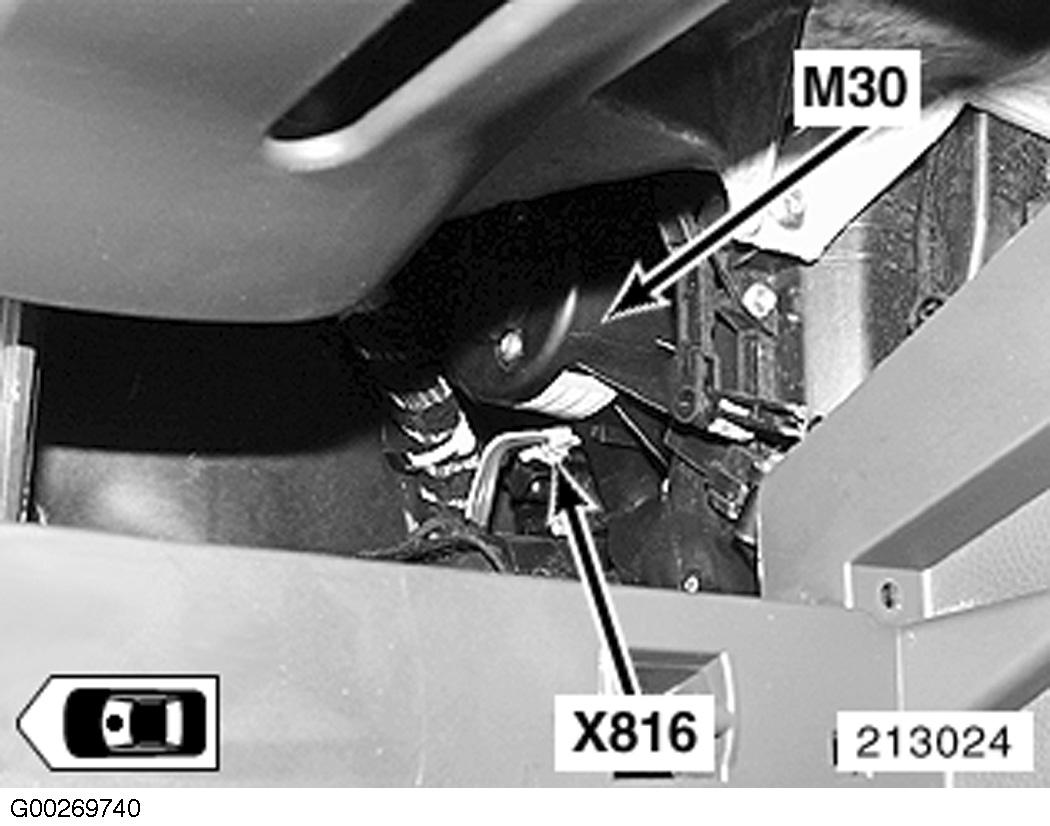

Fig 105: Behind Center Of Dash

G00269740

Courtesy of BMW OF NORTH AMERICA, INC.

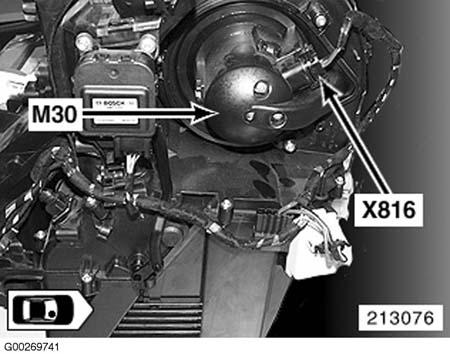

Fig 106: Behind Right Side Of Center Console

G00269741

Courtesy of BMW OF NORTH AMERICA, INC.

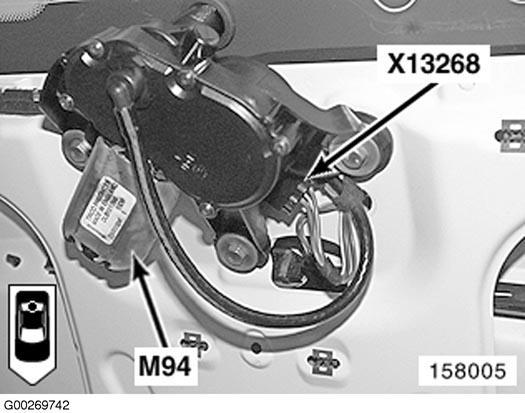

Fig 107: On Lift Gate

G00269742

Courtesy of BMW OF NORTH AMERICA, INC.

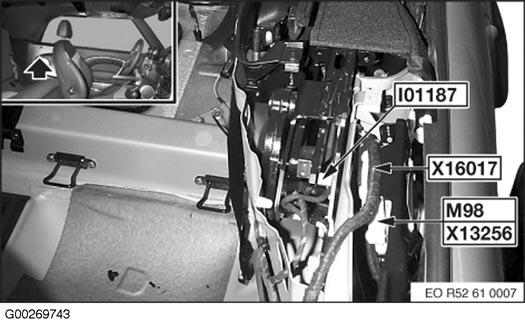

Fig 108: Left Rear Of Passenger Compartment

G00269743

Courtesy of BMW OF NORTH AMERICA, INC.

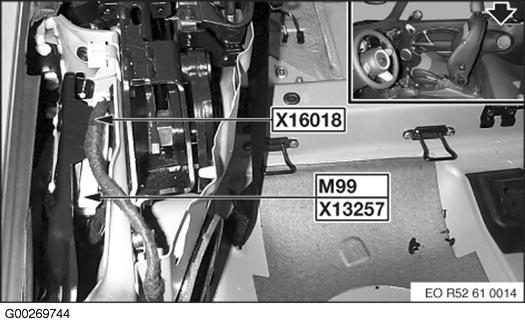

Fig 109: Right Rear Of Passenger Compartment

G00269744

Courtesy of BMW OF NORTH AMERICA, INC.

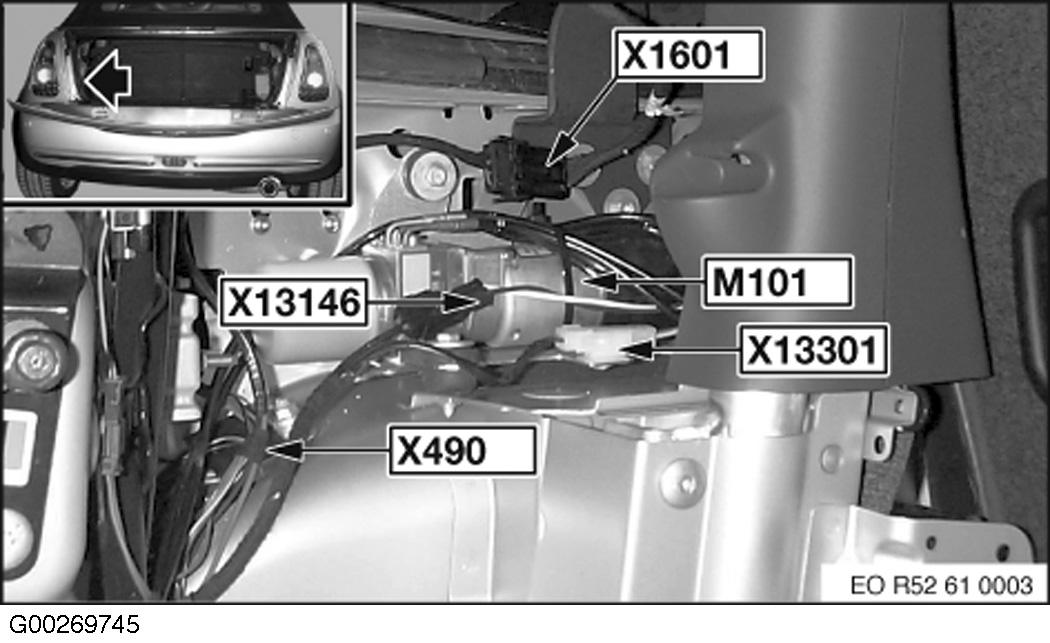

Fig 110: Left Rear Of Trunk

G00269745

Courtesy of BMW OF NORTH AMERICA, INC.

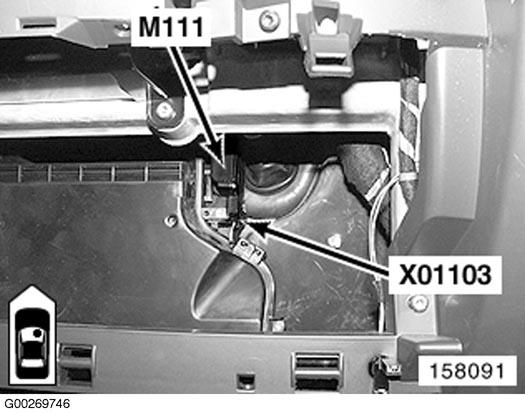

Fig 111: Behind Glove Box

G00269746

Courtesy of BMW OF NORTH AMERICA, INC.

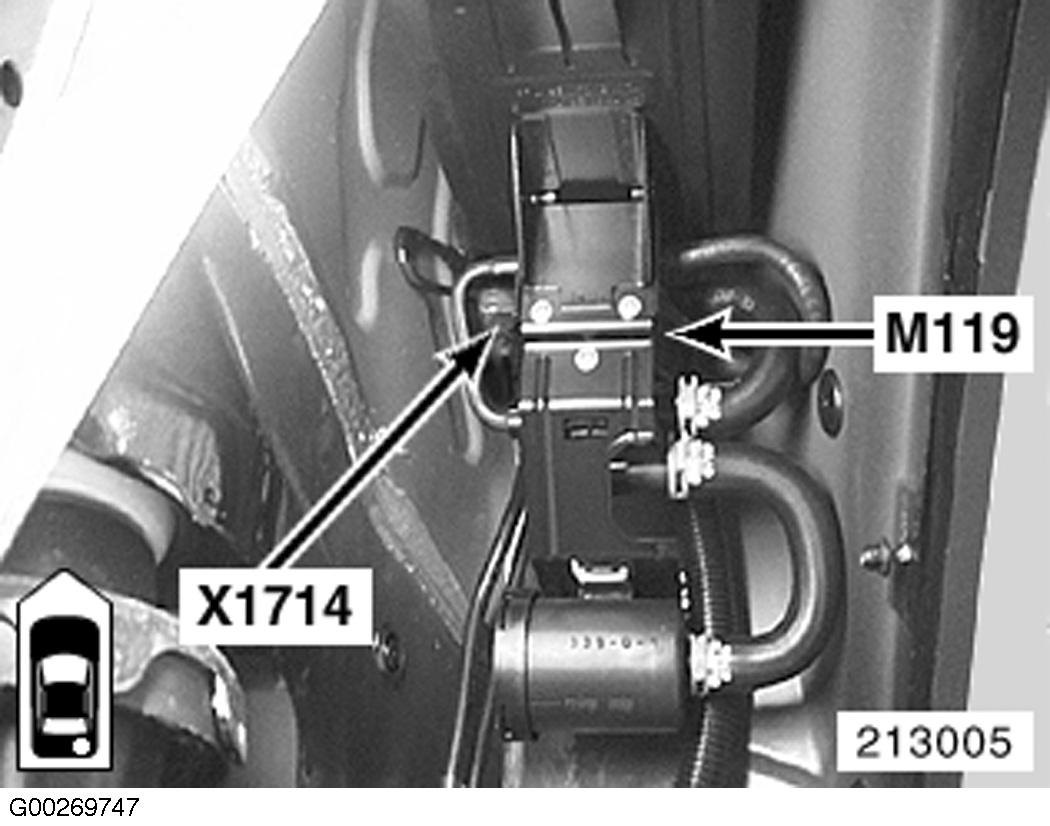

Fig 112: Right Rear Wheelwell

G00269747

Courtesy of BMW OF NORTH AMERICA, INC.

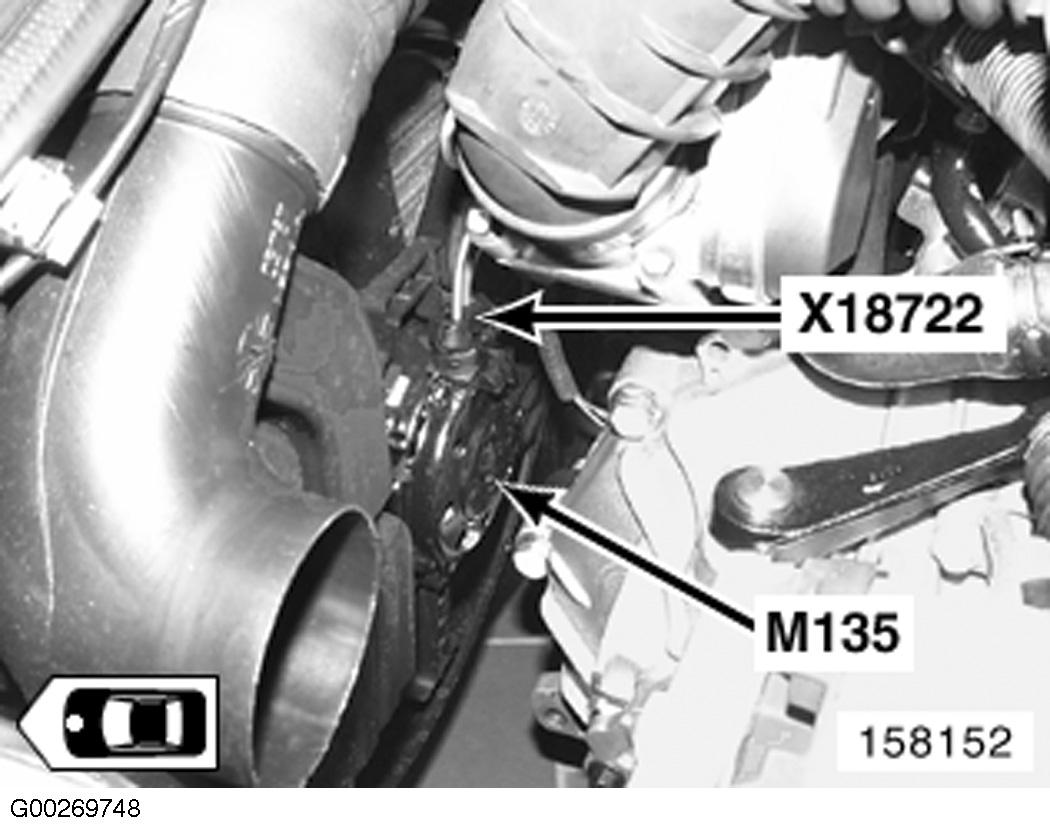

Fig 113: Front Of Engine Compartment

G00269748

Courtesy of BMW OF NORTH AMERICA, INC.

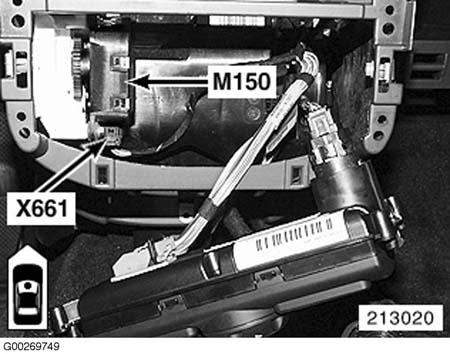

Fig 114: Center Console

G00269749

Courtesy of BMW OF NORTH AMERICA, INC.

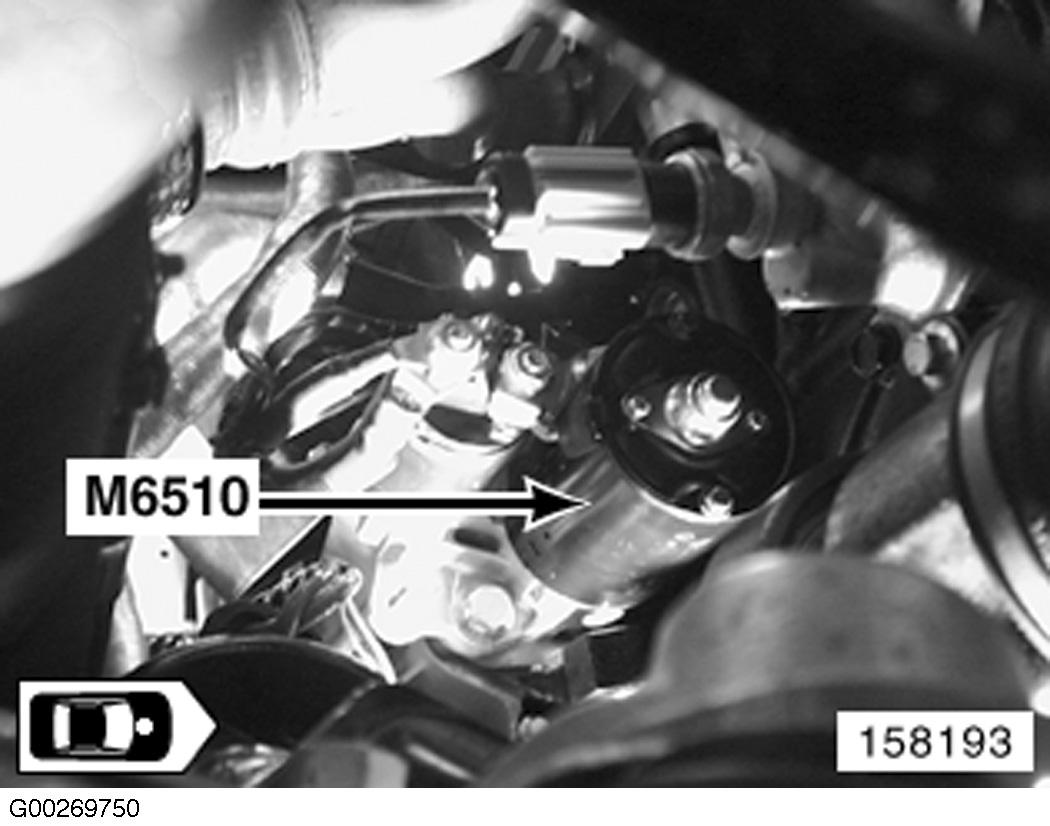

Fig 115: Bottom Rear Of Engine Compartment

G00269750

Courtesy of BMW OF NORTH AMERICA, INC.

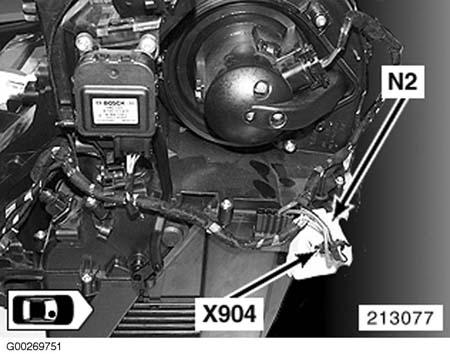

Fig 116: Center Of Dash

G00269751

Courtesy of BMW OF NORTH AMERICA, INC.

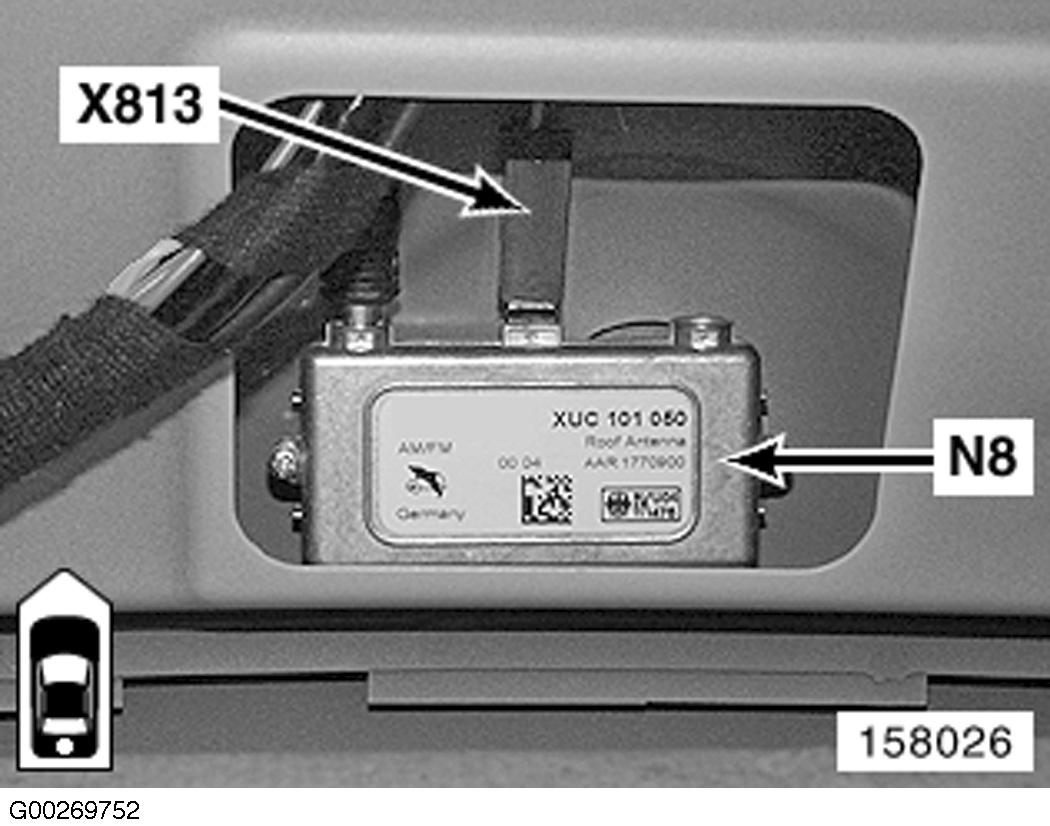

Fig 117: Headliner

G00269752

Courtesy of BMW OF NORTH AMERICA, INC.

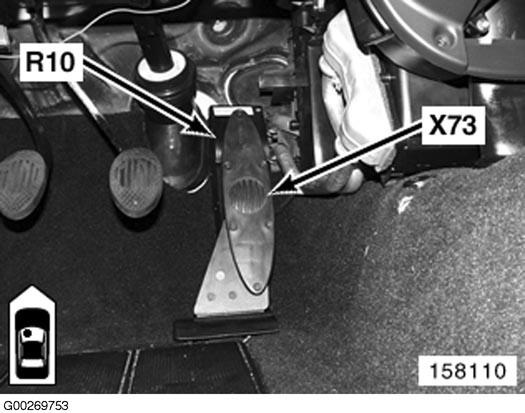

Fig 118: Right Side Of Left Footwell

G00269753

Courtesy of BMW OF NORTH AMERICA, INC.

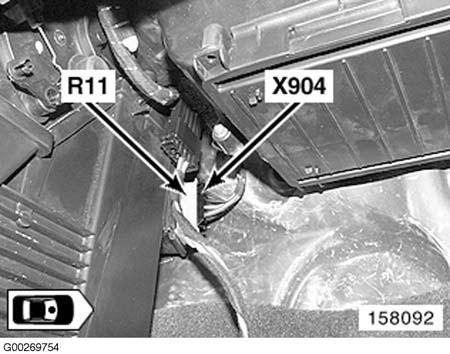

Fig 119: Behind Left Side Of Glove Box

G00269754

Courtesy of BMW OF NORTH AMERICA, INC.

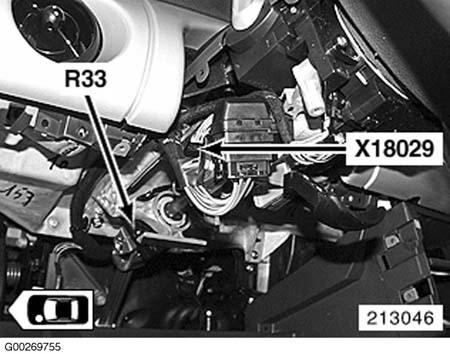

Fig 120: Lower Steering Column

G00269755

Courtesy of BMW OF NORTH AMERICA, INC.

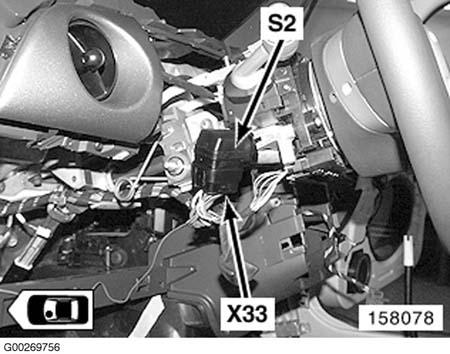

Fig 121: Behind Left Side Of Steering Wheel

G00269756

Courtesy of BMW OF NORTH AMERICA, INC.

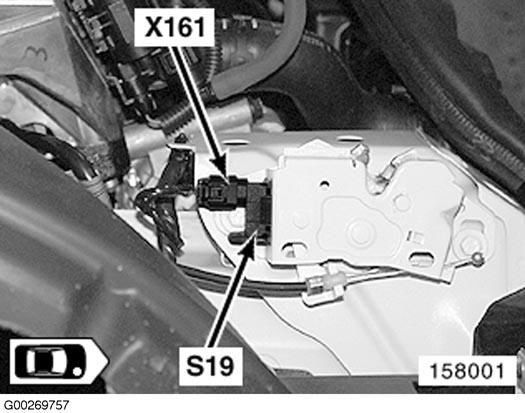

Fig 122: Right Front Side Of Engine Compartment

G00269757

Courtesy of BMW OF NORTH AMERICA, INC.

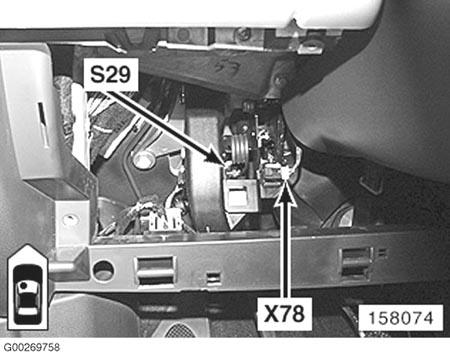

Fig 123: Left Side Of Left Footwell

G00269758

Courtesy of BMW OF NORTH AMERICA, INC.

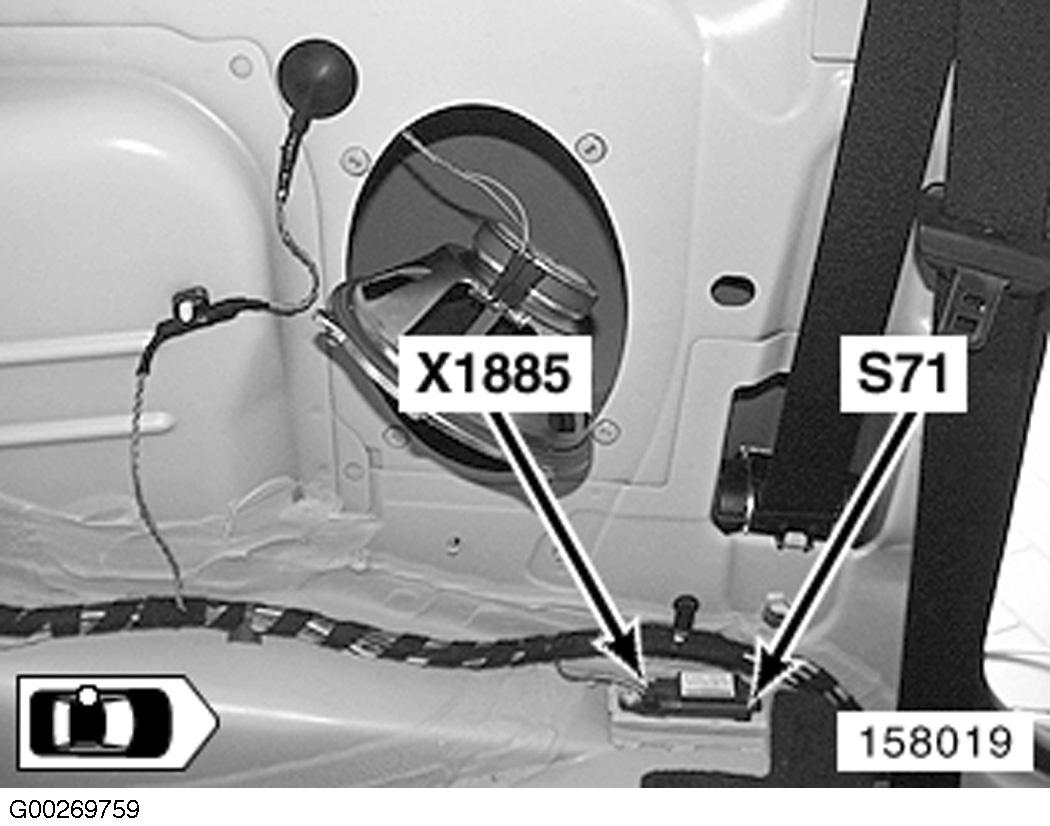

Fig 124: Behind Left Side Of Rear Seat

G00269759

Courtesy of BMW OF NORTH AMERICA, INC.

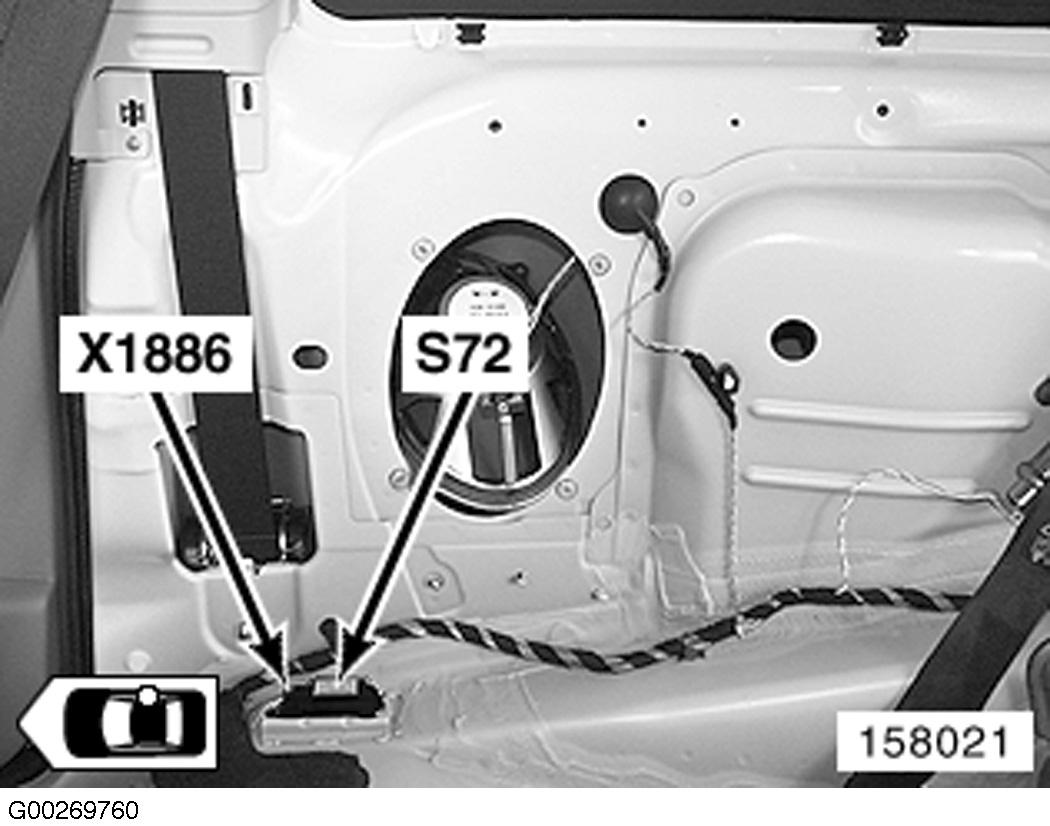

Fig 125: Behind Right Side Of Rear Seat

G00269760

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 126: Left Rear Of Trunk

G00269761

Courtesy of BMW OF NORTH AMERICA, INC.

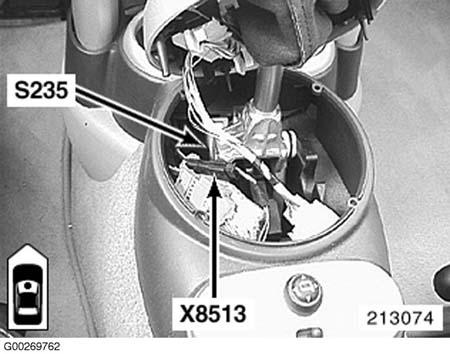

Fig 127: Center Console

G00269762

Courtesy of BMW OF NORTH AMERICA, INC.

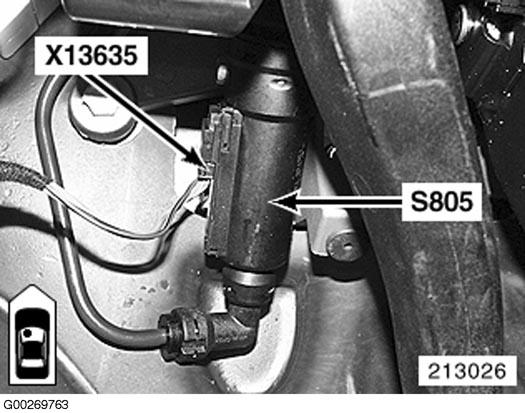

Fig 128: Left Side Of Left Footwell

G00269763

Courtesy of BMW OF NORTH AMERICA, INC.

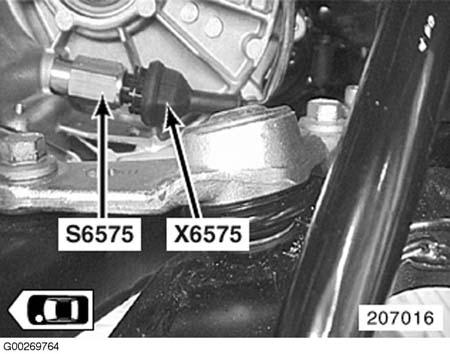

Fig 129: Lower Left Side Of Transmission

G00269764

Courtesy of BMW OF NORTH AMERICA, INC.

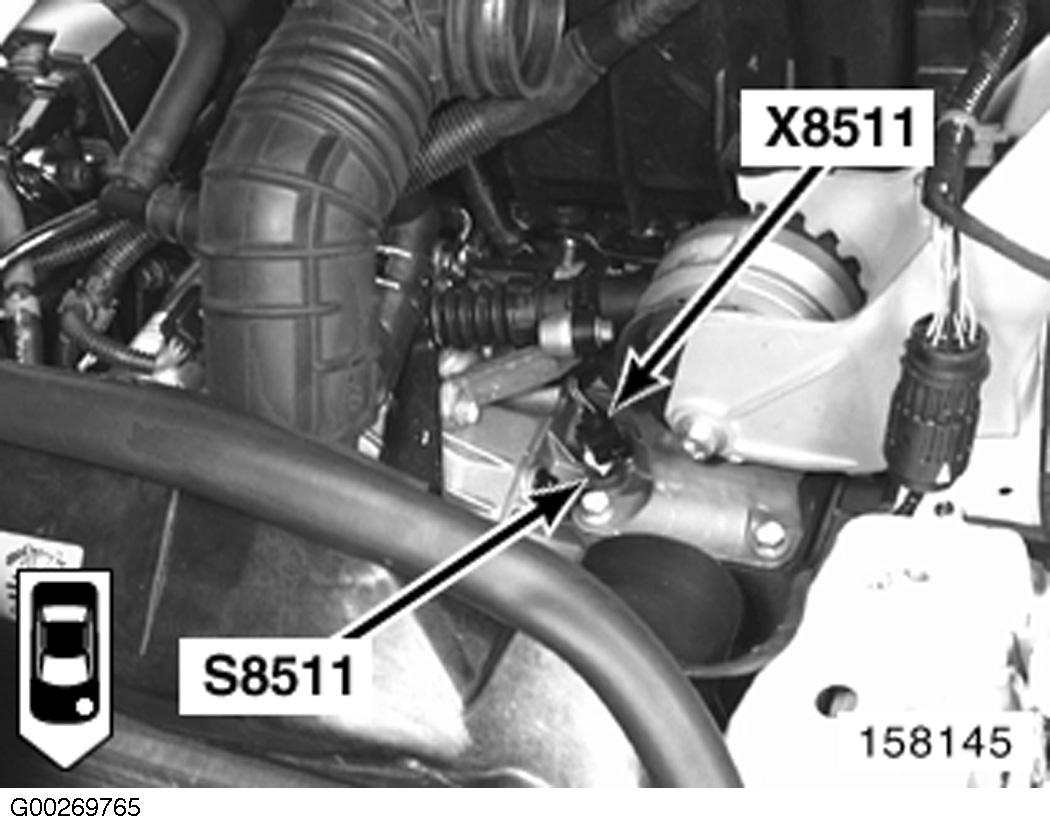

Fig 130: Top Left Of Transmission

G00269765

Courtesy of BMW OF NORTH AMERICA, INC.

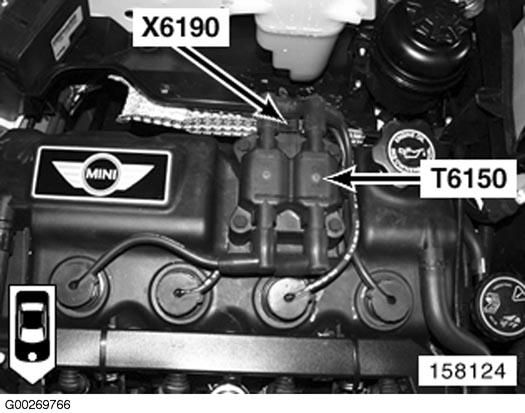

Fig 131: Top Rear Of Engine

G00269766

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 132: Left Side Of Left Footwell

G00269768

Courtesy of BMW OF NORTH AMERICA, INC.

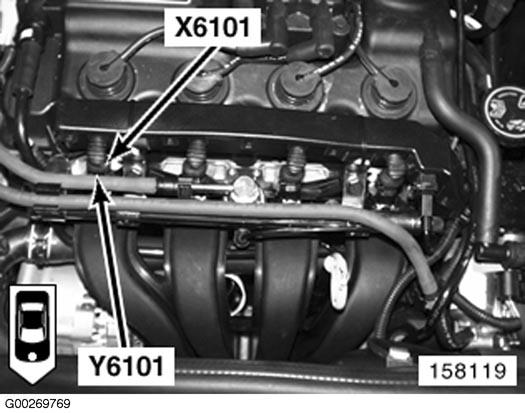

Fig 133: Front Of Engine Compartment

G00269769

Courtesy of BMW OF NORTH AMERICA, INC.

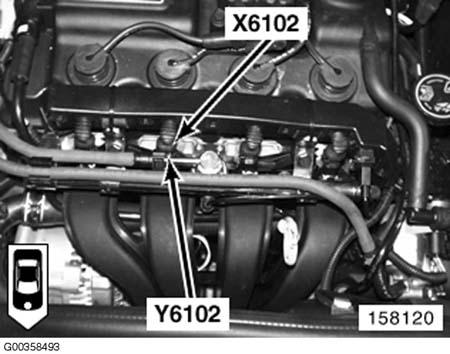

Fig 134: Front Of Engine Compartment

G00358493

Courtesy of BMW OF NORTH AMERICA, INC.

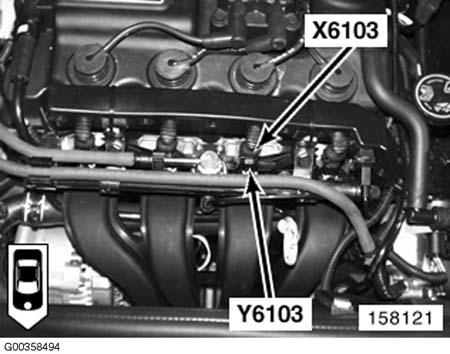

Fig 135: Front Of Engine Compartment

G00358494

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 136: Front Of Engine Compartment

G00358495

Courtesy of BMW OF NORTH AMERICA, INC.

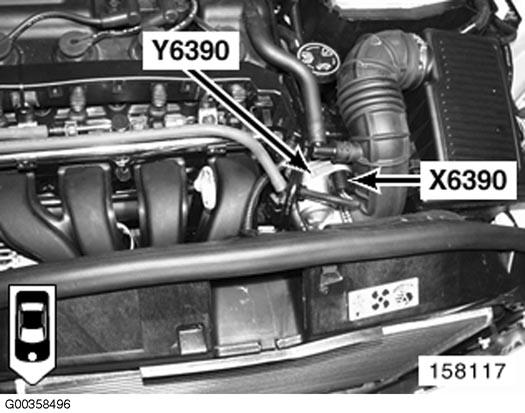

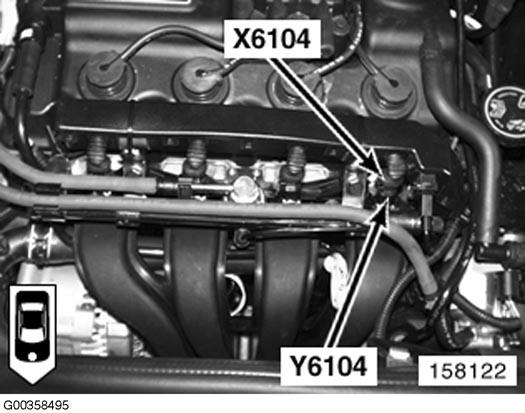

Fig 137: Front Of Engine Compartment

G00358496

Courtesy of BMW OF NORTH AMERICA, INC.

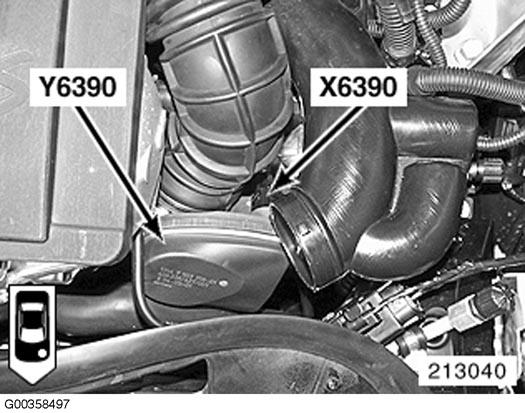

Fig 138: Front Of Engine Compartment

G00358497

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 139: Left Side Of Engine

G00358498

Courtesy of BMW OF NORTH AMERICA, INC.

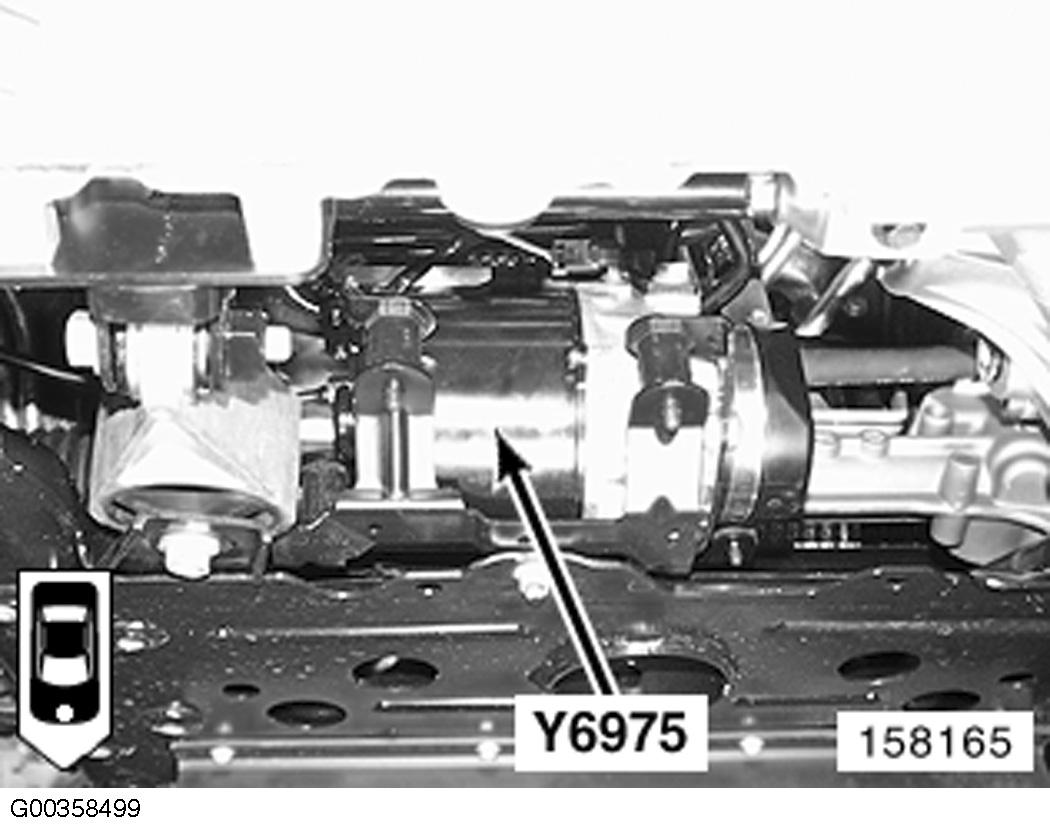

Fig 140: Lower Left Side Of Engine

G00358499

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 141: Lower Front Of Engine

G00358500

Courtesy of BMW OF NORTH AMERICA, INC.

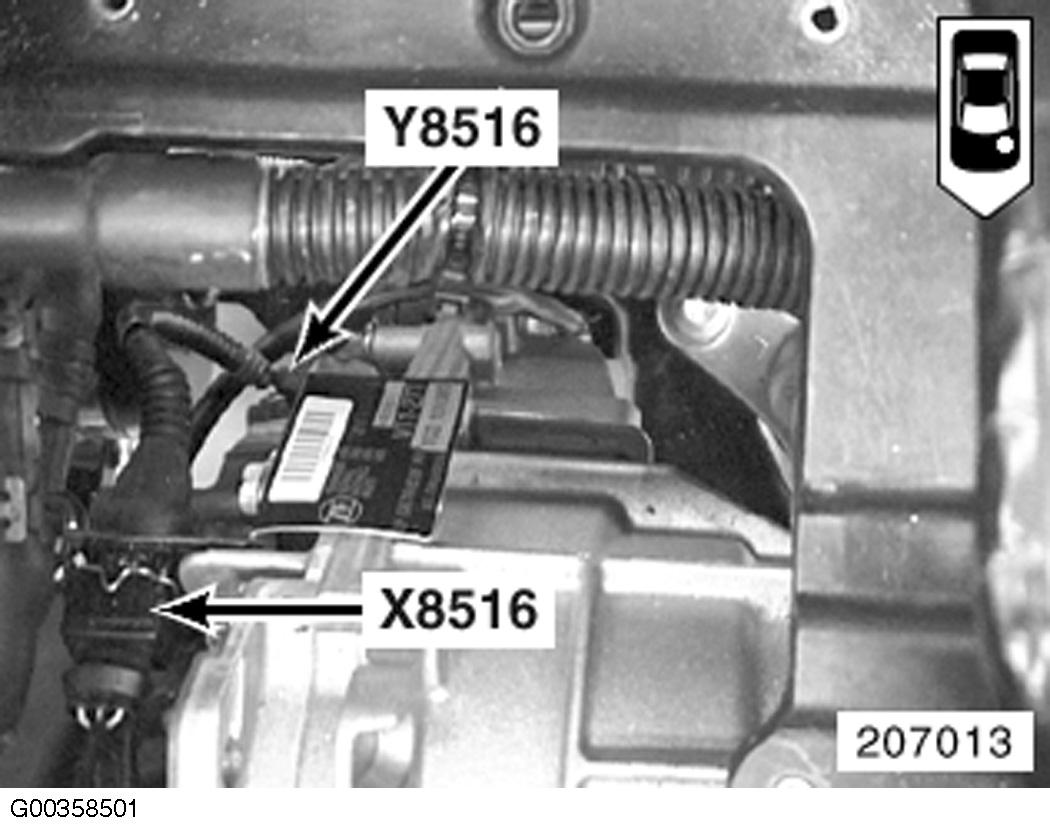

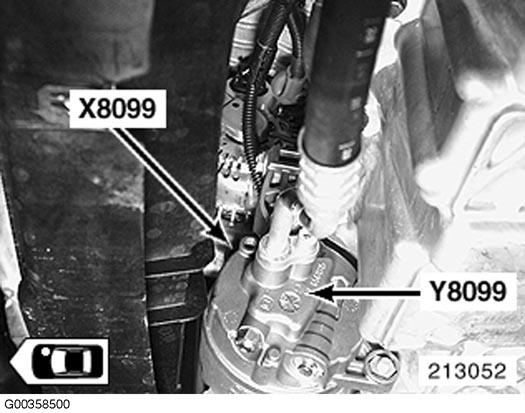

Fig 142: Left Side Of Transmission

G00358501

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 143: Right Side Of Right Footwell

G00358502

Courtesy of BMW OF NORTH AMERICA, INC.

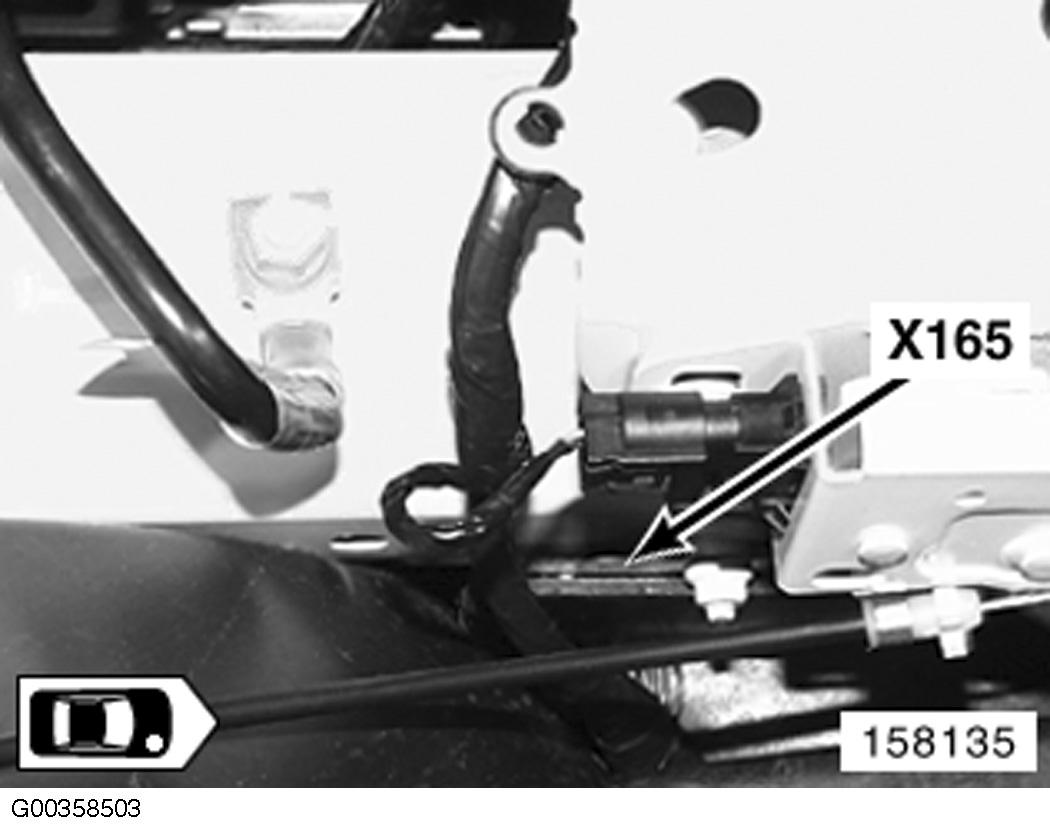

Fig 144: Right Side Of Engine Compartment

G00358503

Courtesy of BMW OF NORTH AMERICA, INC.

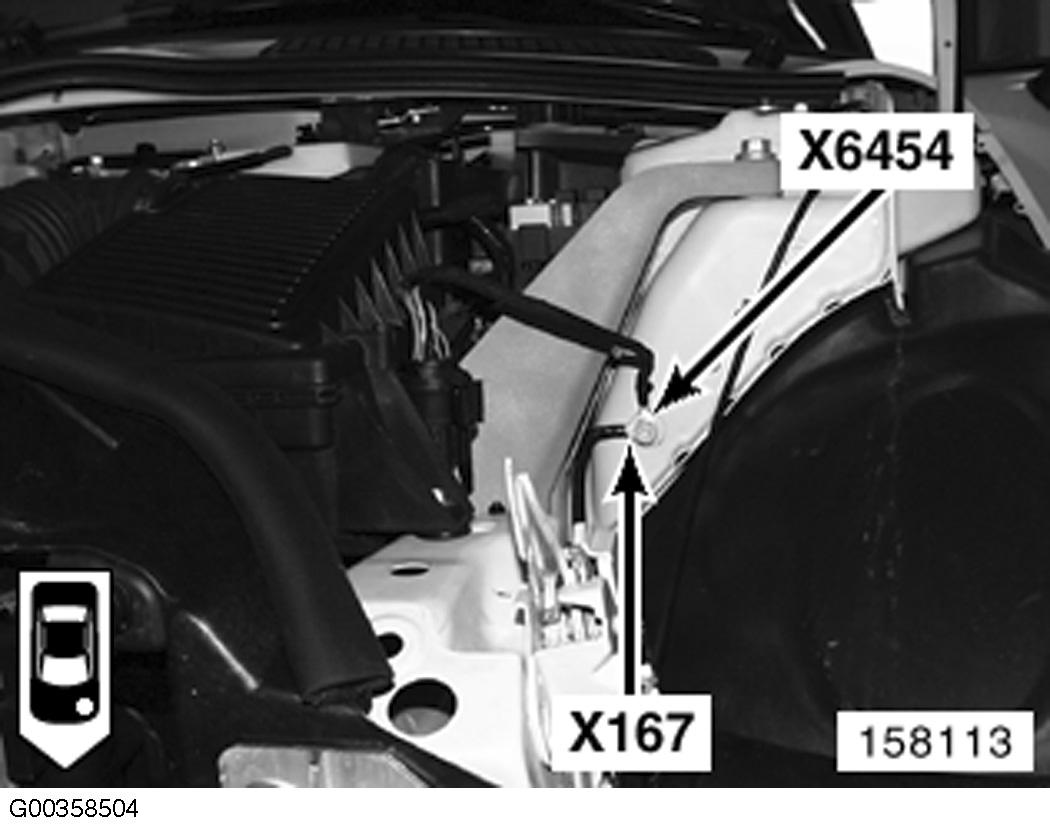

Fig 145: Left Side Of Engine Compartment

G00358504

Courtesy of BMW OF NORTH AMERICA, INC.

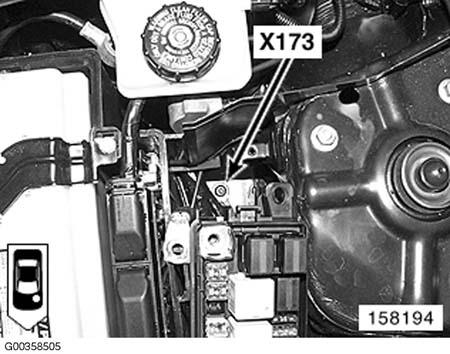

Fig 146: Behind Battery

G00358505

Courtesy of BMW OF NORTH AMERICA, INC.

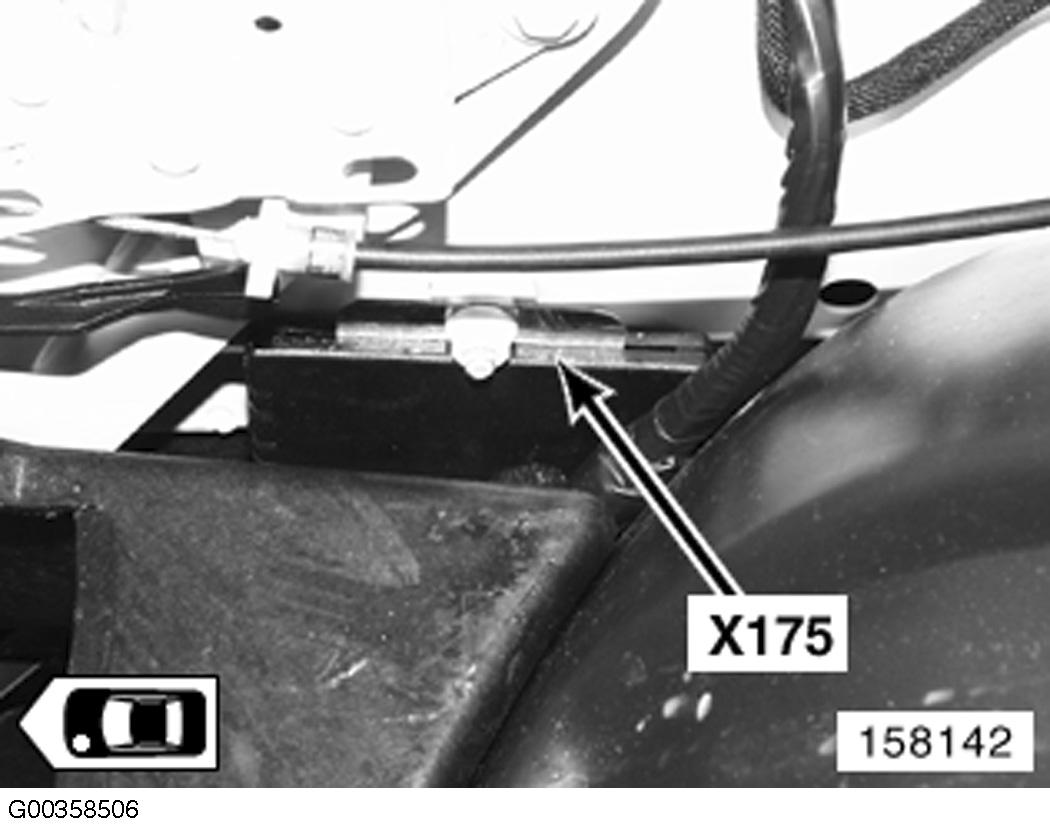

Fig 147: Left Side Of Engine Compartment

G00358506

Courtesy of BMW OF NORTH AMERICA, INC.

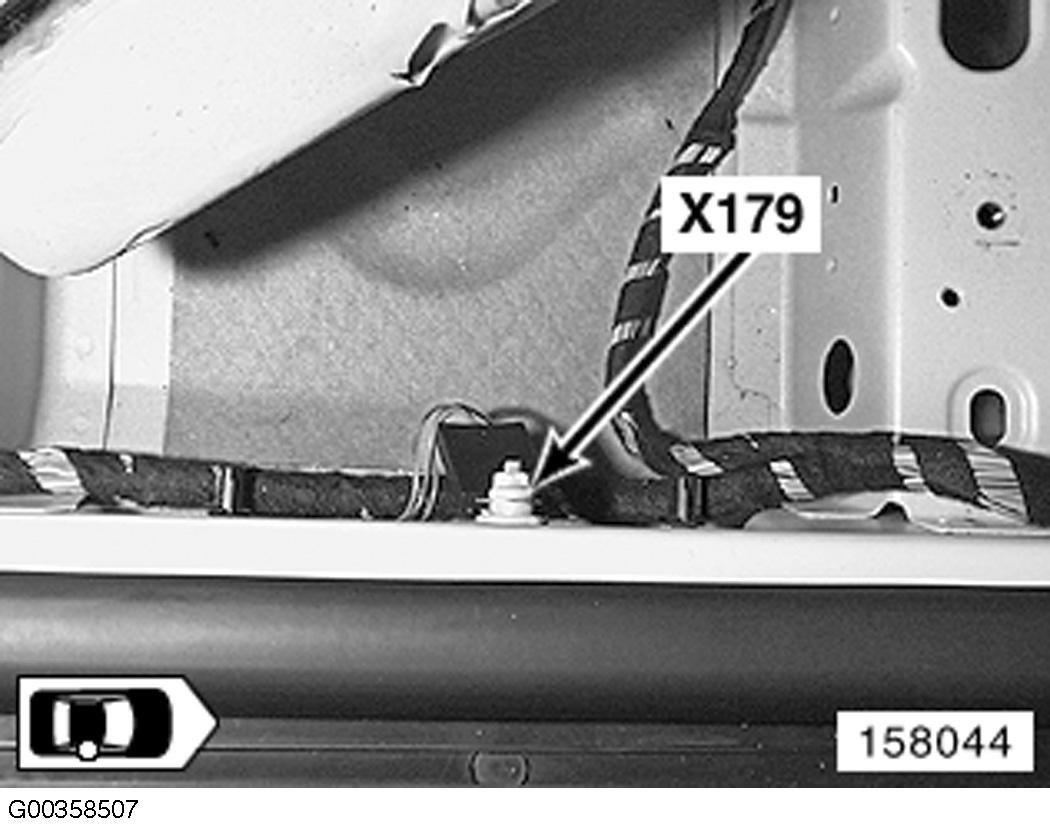

Fig 148: Right Door

G00358507

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 149: Below Right Rear Seat

G00358508

Courtesy of BMW OF NORTH AMERICA, INC.

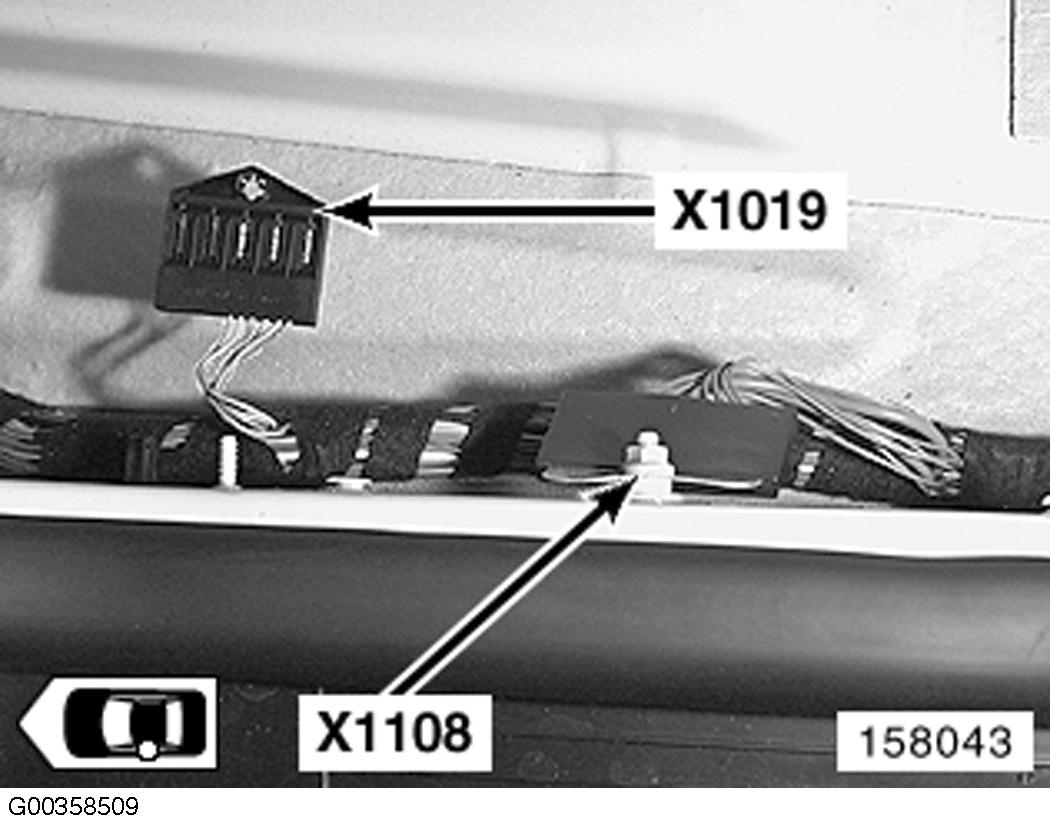

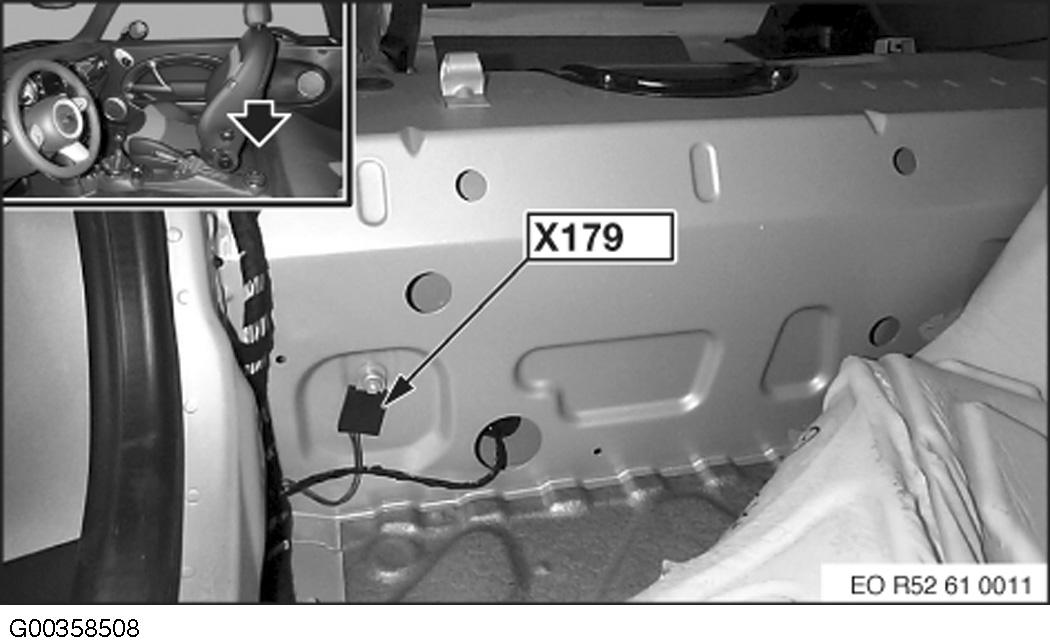

Fig 150: Left Door

G00358509

Courtesy of BMW OF NORTH AMERICA, INC.

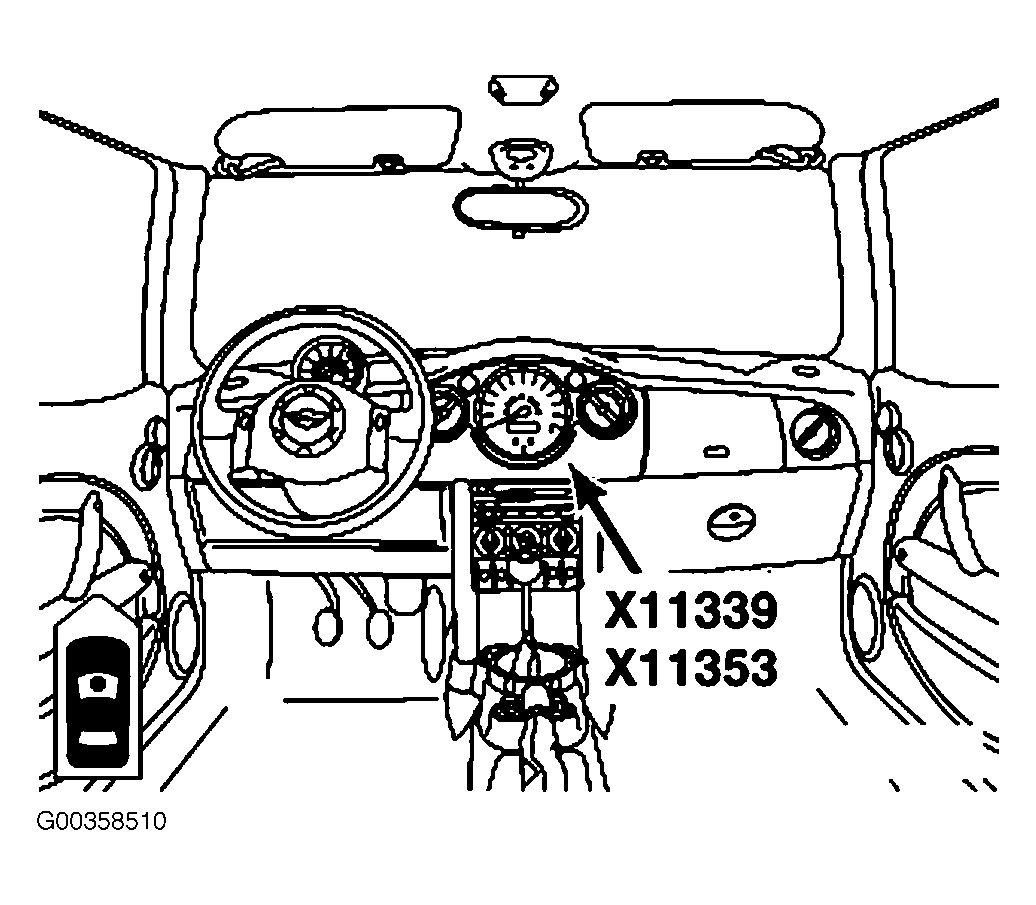

Fig 151: Behind Center Of Dash

G00358510

Courtesy of BMW OF NORTH AMERICA, INC.

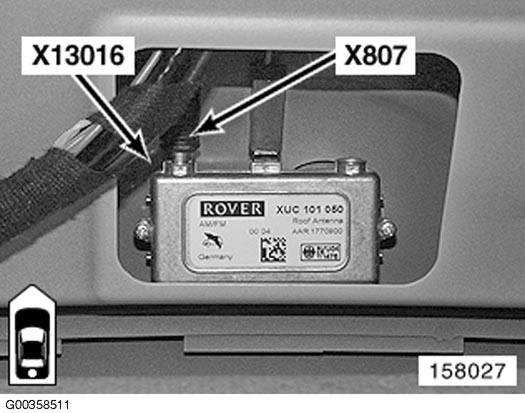

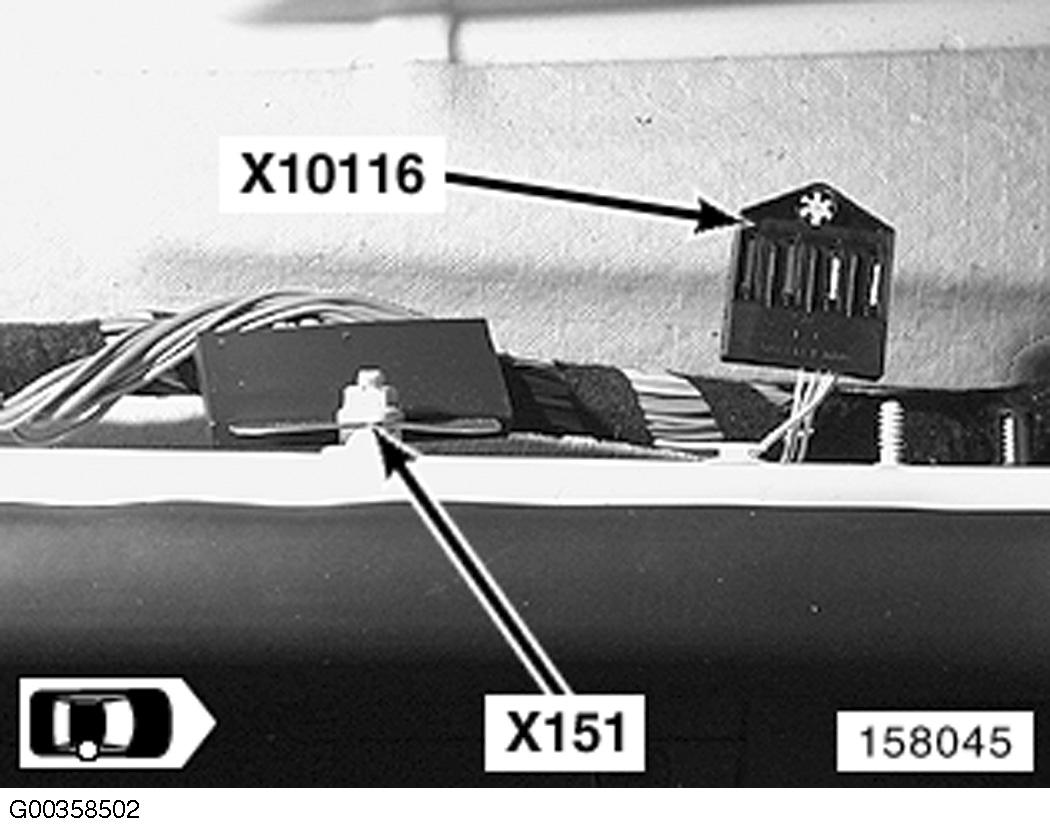

Fig 152: Headliner

G00358511

Courtesy of BMW OF NORTH AMERICA, INC.

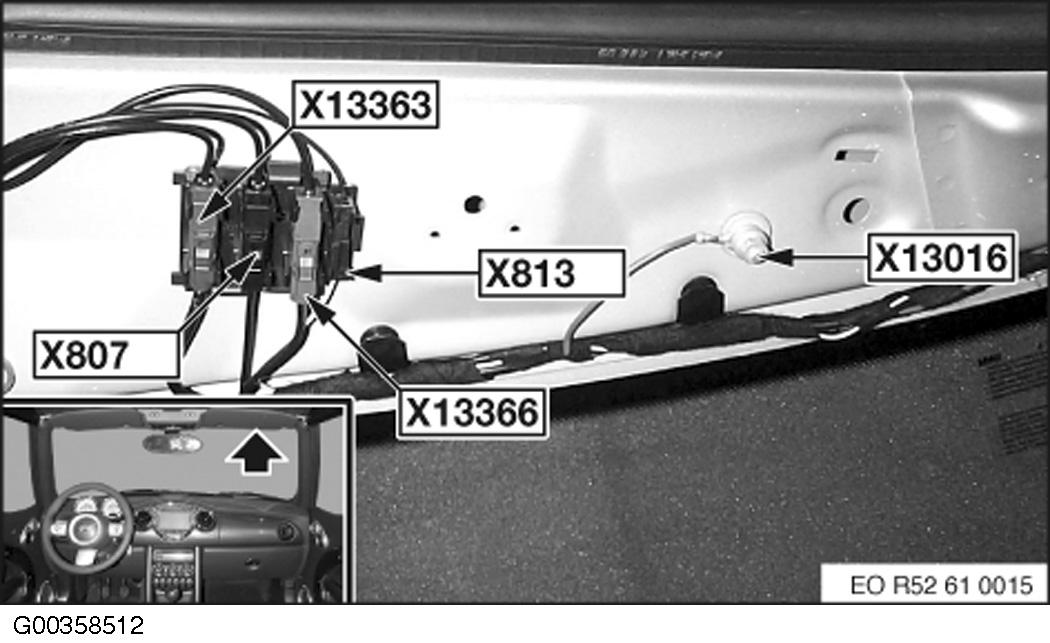

Fig 153: Right Front Headliner

G00358512

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 154: Left Door

G00358513

Courtesy of BMW OF NORTH AMERICA, INC.

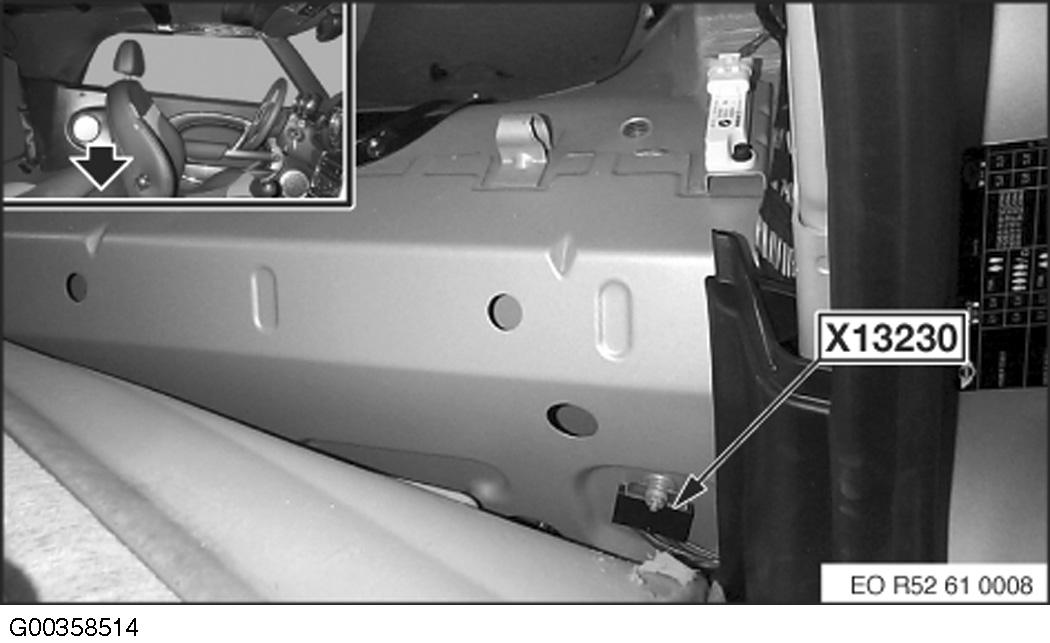

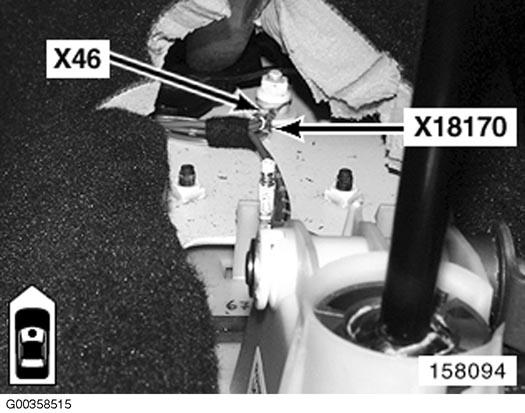

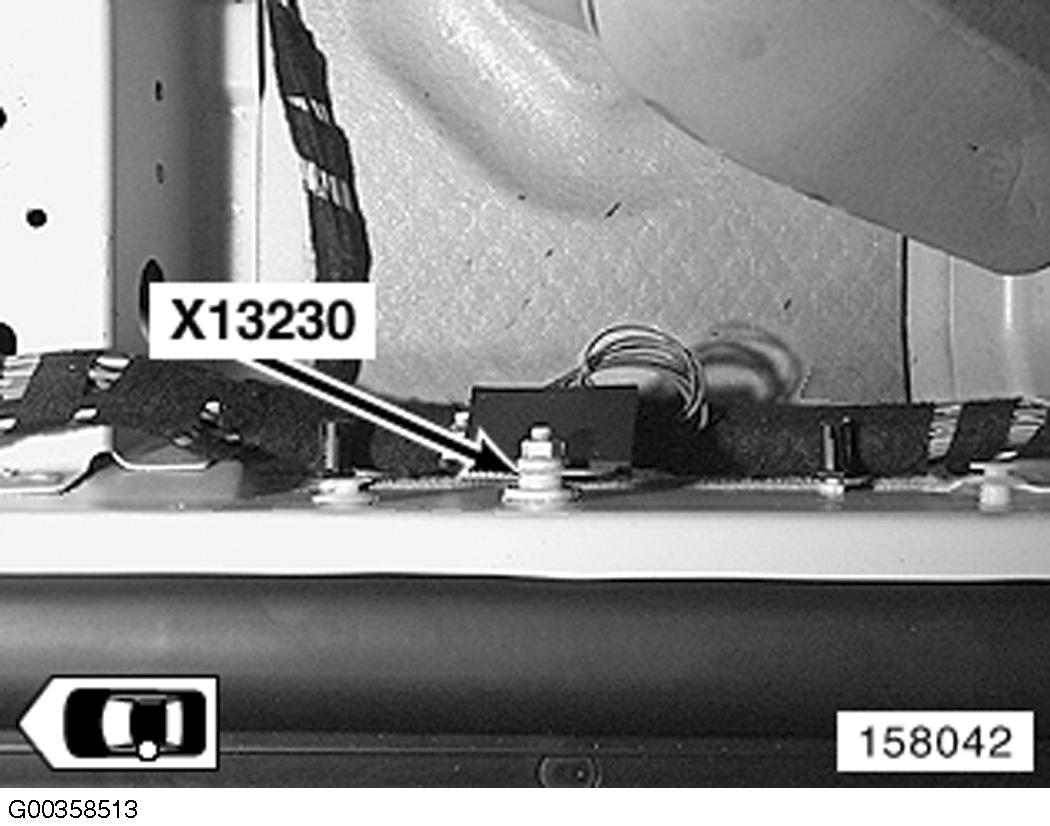

Fig 155: Under Left Rear Seat

G00358514

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 156: Under Center Console

G00358515

Courtesy of BMW OF NORTH AMERICA, INC.

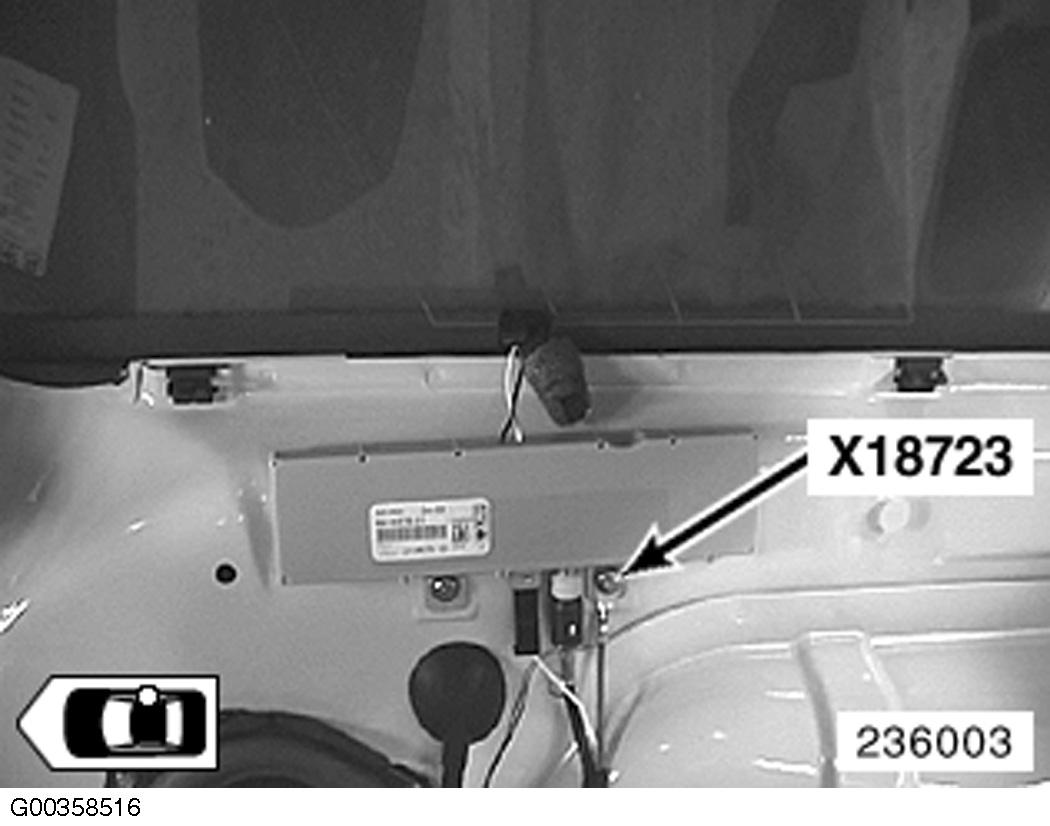

Fig 157: Behind Right Side Trim Panel

G00358516

Courtesy of BMW OF NORTH AMERICA, INC.

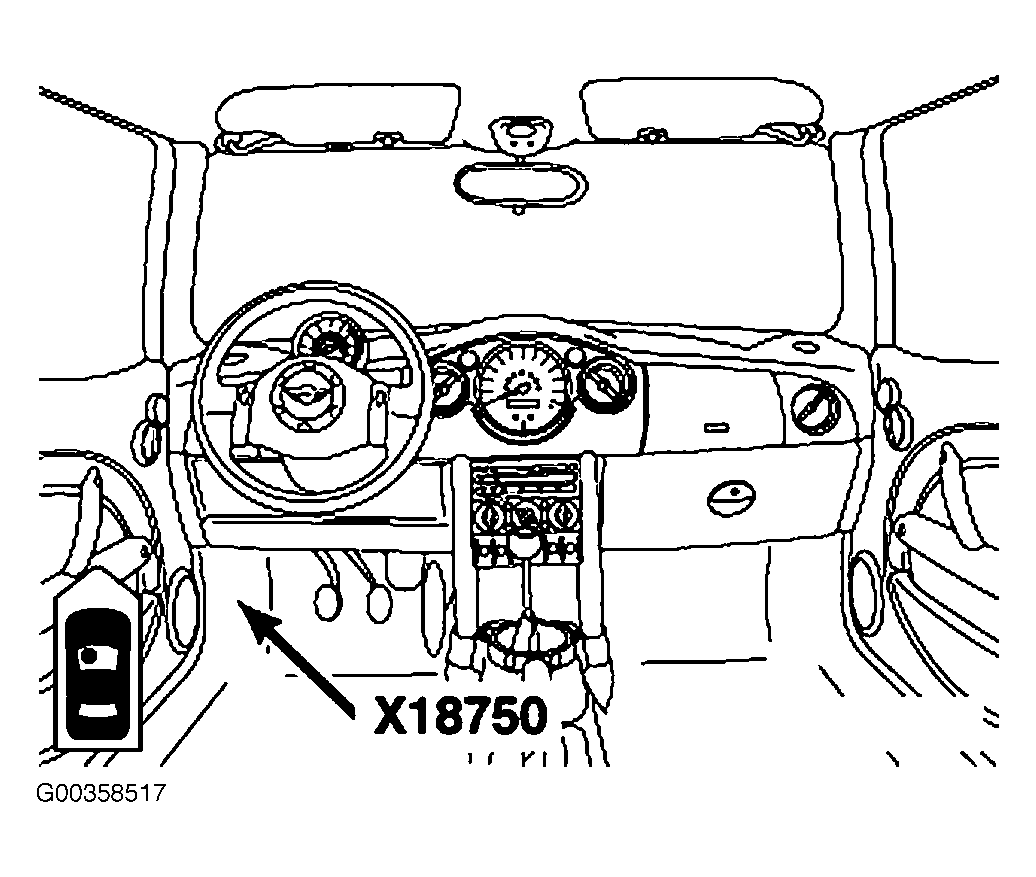

Fig 158: Left Side Of Left Footwell

G00358517

Courtesy of BMW OF NORTH AMERICA, INC.

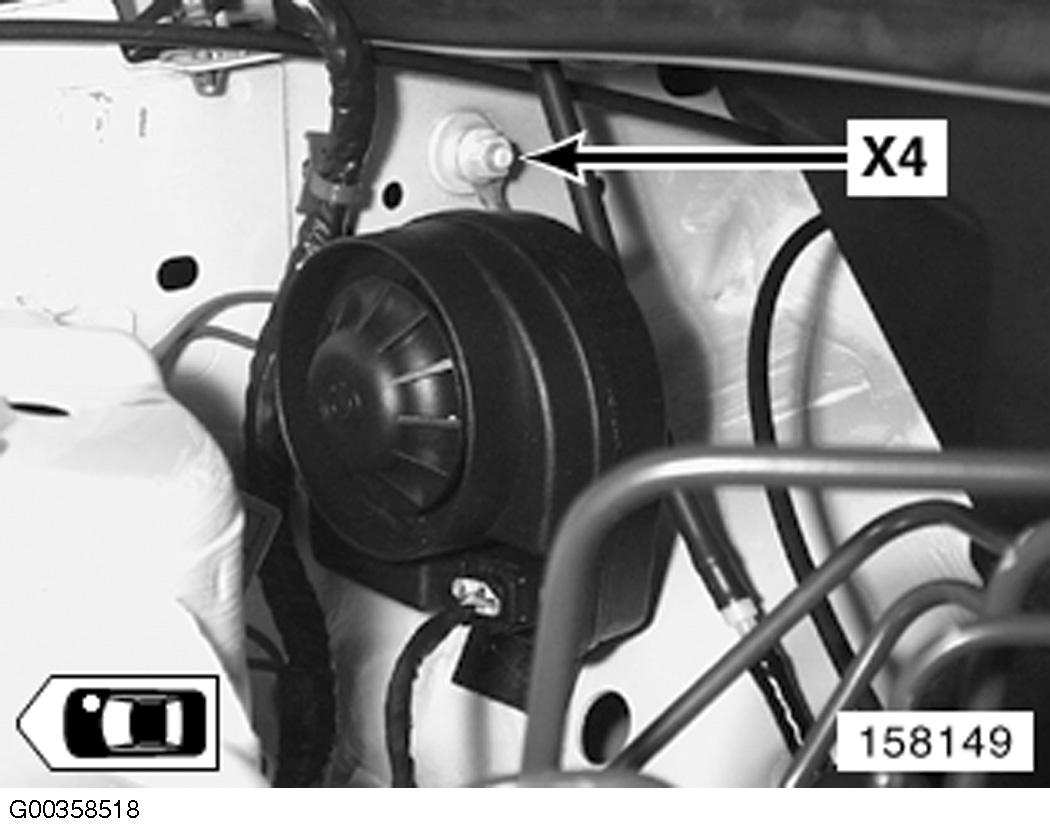

Fig 159: Right Rear Of Engine Compartment

G00358518

Courtesy of BMW OF NORTH AMERICA, INC.

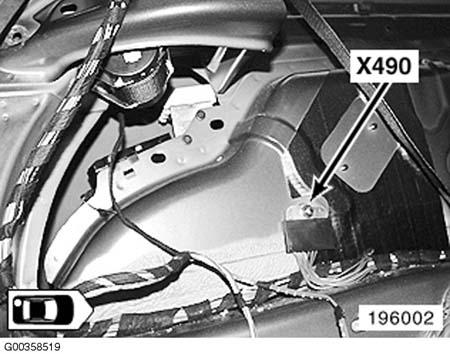

Fig 160: Left Rear Side Of Luggage Compartment

G00358519

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 161: Left Rear Of Trunk

G00358520

Courtesy of BMW OF NORTH AMERICA, INC.

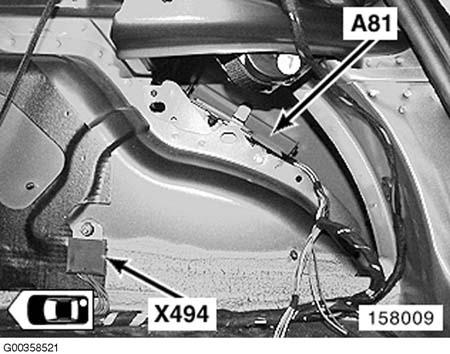

Fig 162: Right Rear Side Of Luggage Compartment

G00358521

Courtesy of BMW OF NORTH AMERICA, INC.

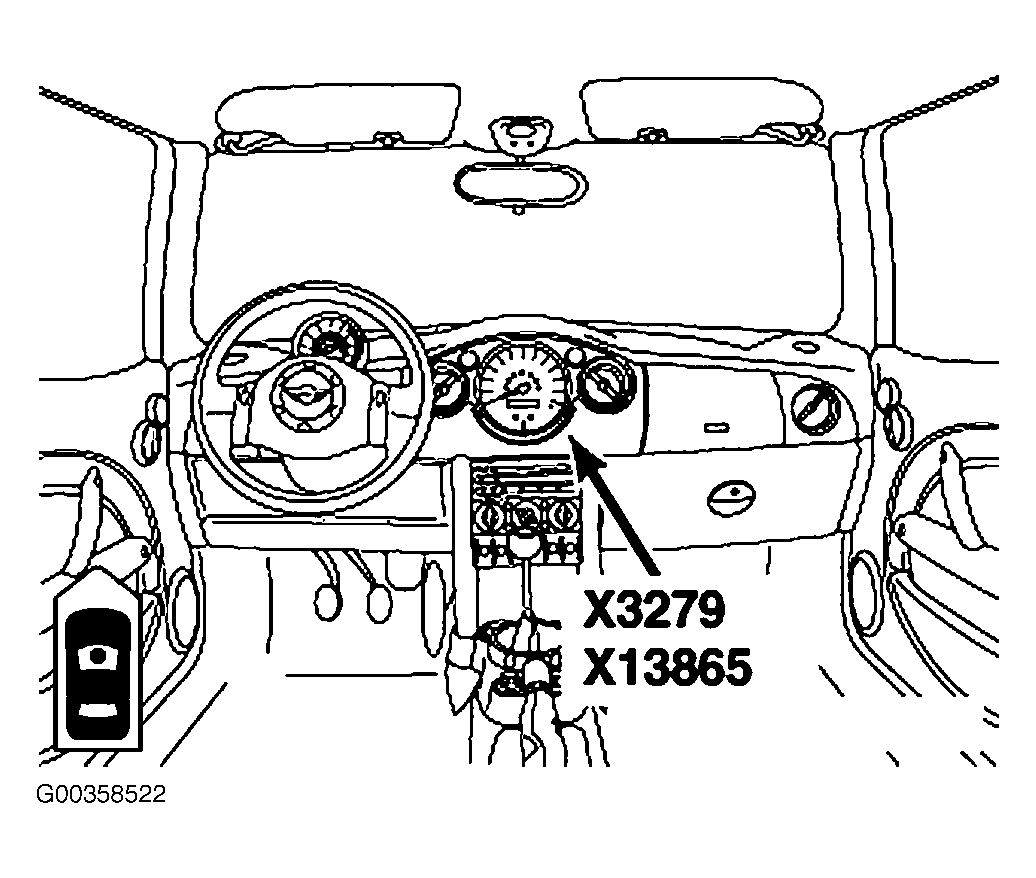

Fig 163: Center Of Dash

G00358522

Courtesy of BMW OF NORTH AMERICA, INC.

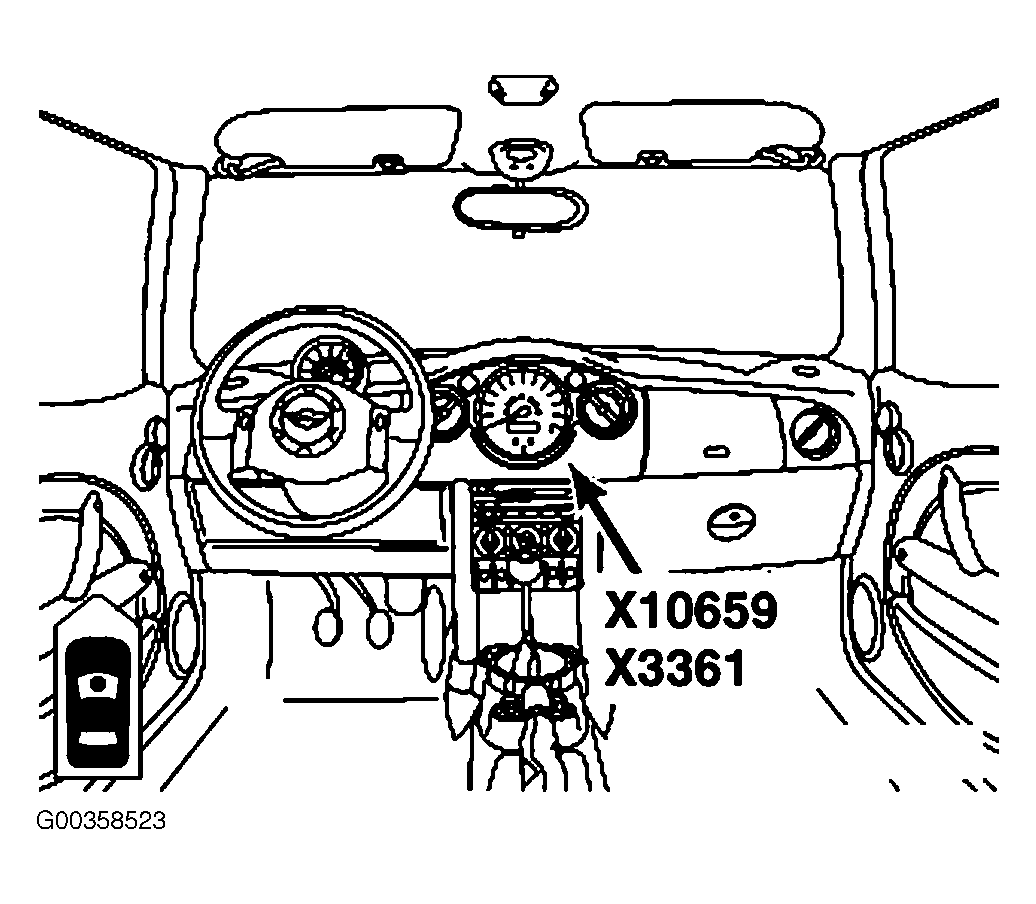

Fig 164: Center Of Dash

G00358523

Courtesy of BMW OF NORTH AMERICA, INC.

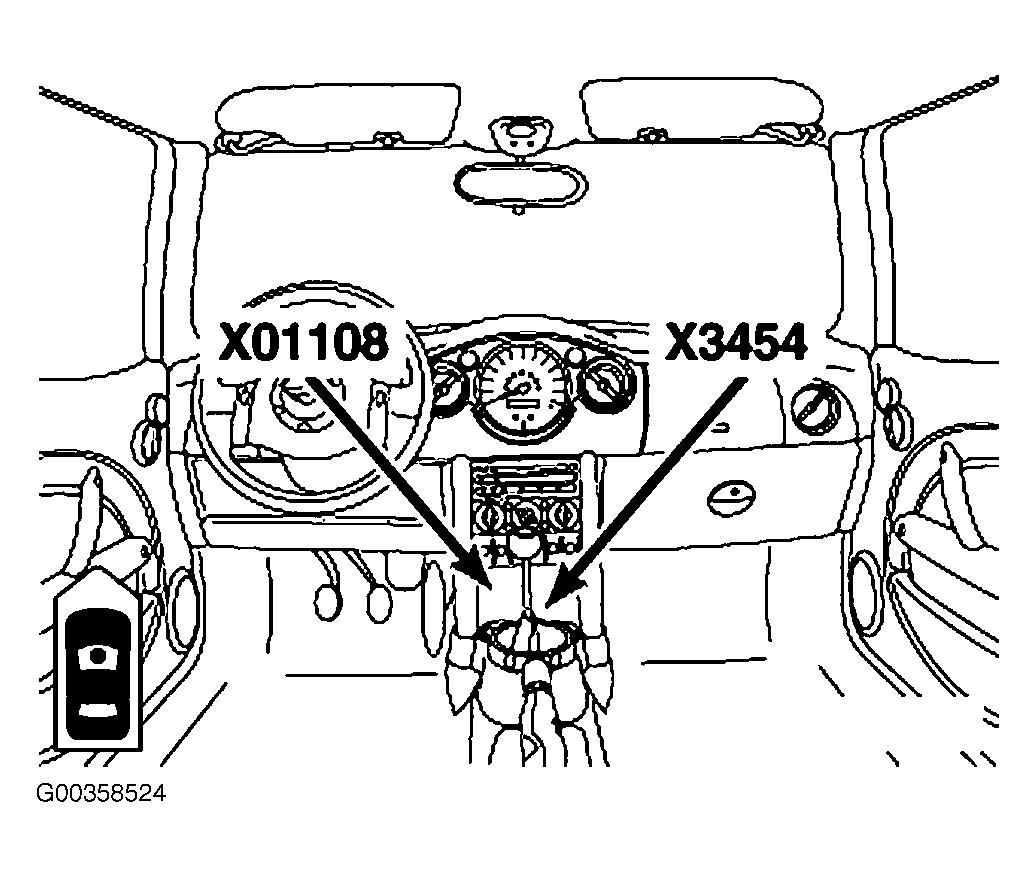

Fig 165: Behind Center Console

G00358524

Courtesy of BMW OF NORTH AMERICA, INC.

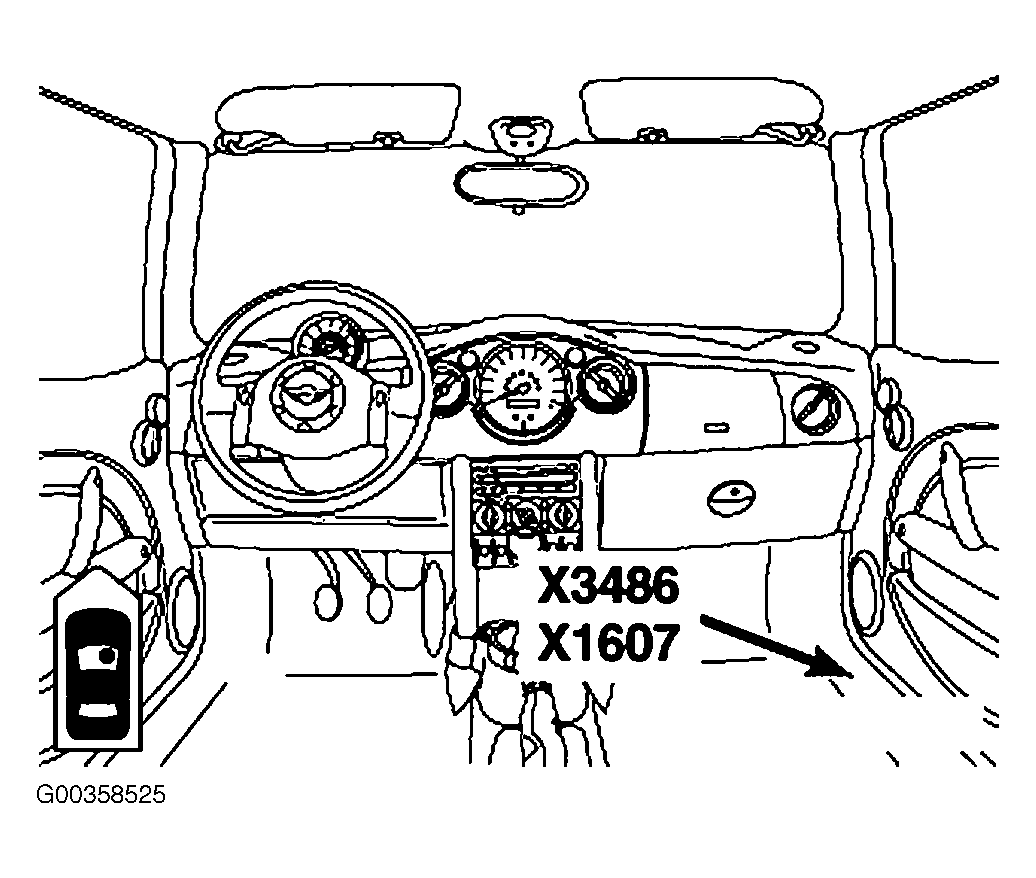

Fig 166: Right Side Of Right Footwell

G00358525

Courtesy of BMW OF NORTH AMERICA, INC.

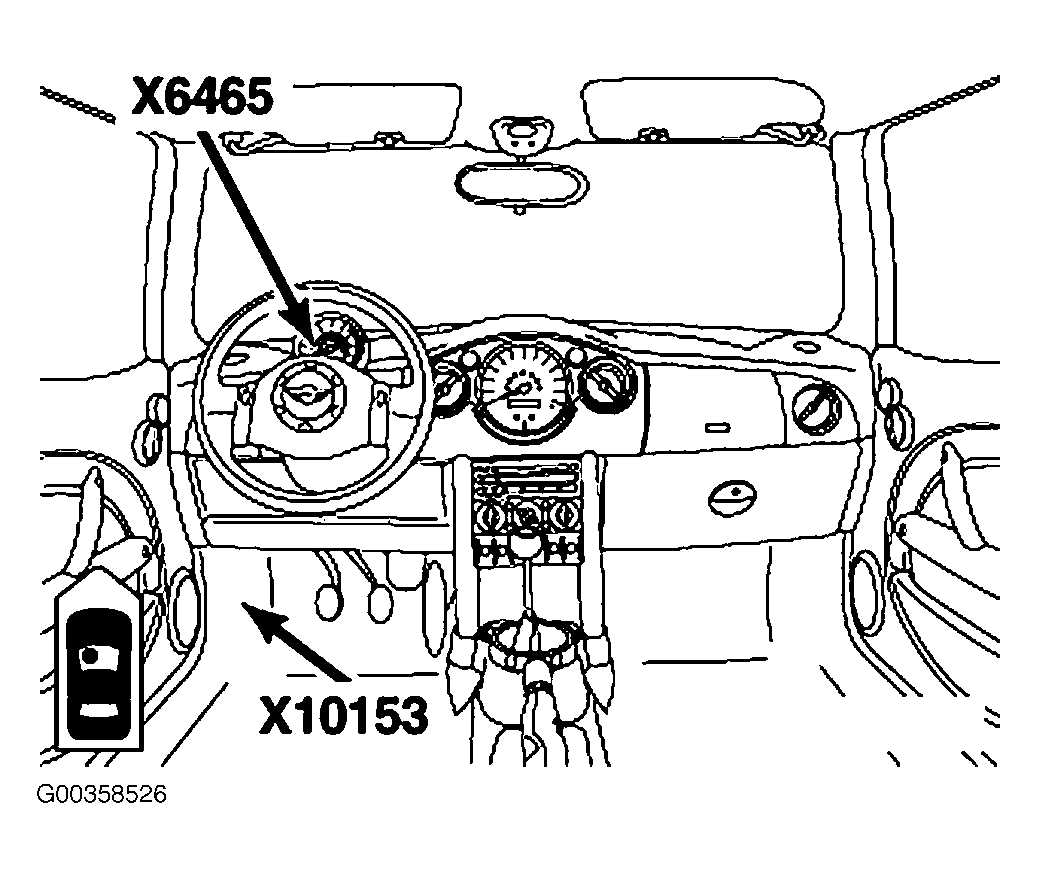

Fig 167: Left Side Of Dash

G00358526

Courtesy of BMW OF NORTH AMERICA, INC.

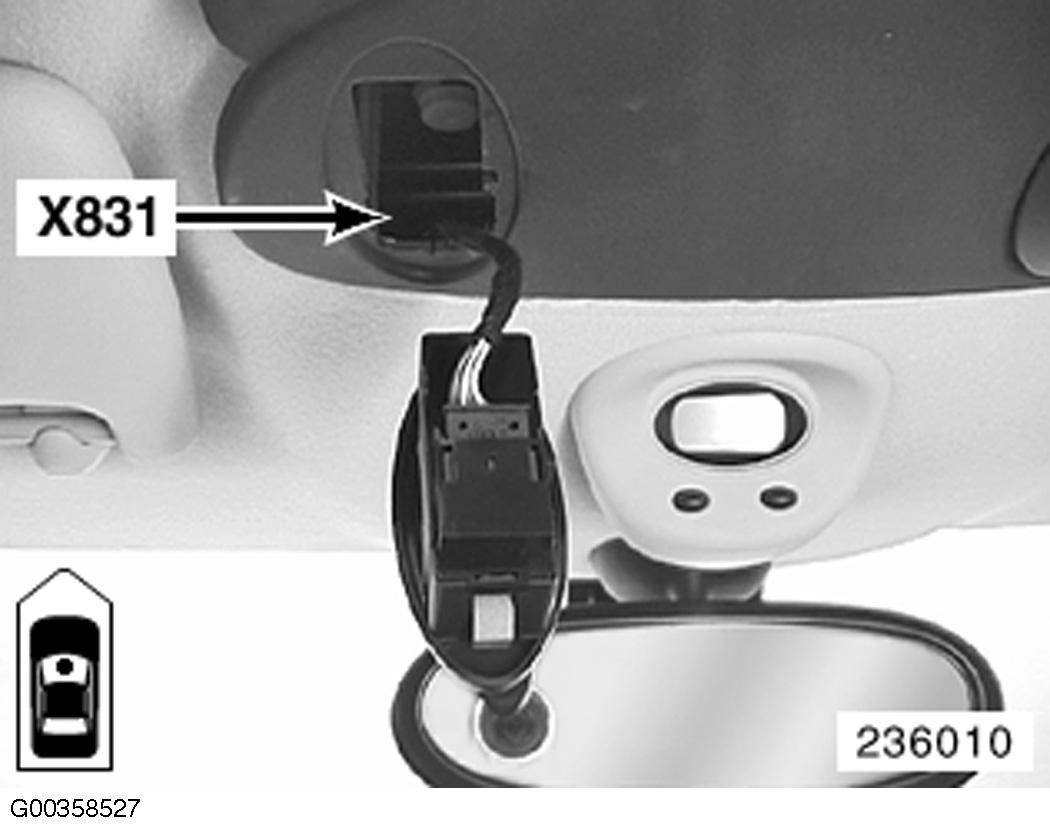

Fig 168: Headliner

G00358527

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 169: Right Rear Side Of Luggage Compartment

G00358529

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 170: Top Center Of Dash

G00358530

Courtesy of BMW OF NORTH AMERICA, INC.

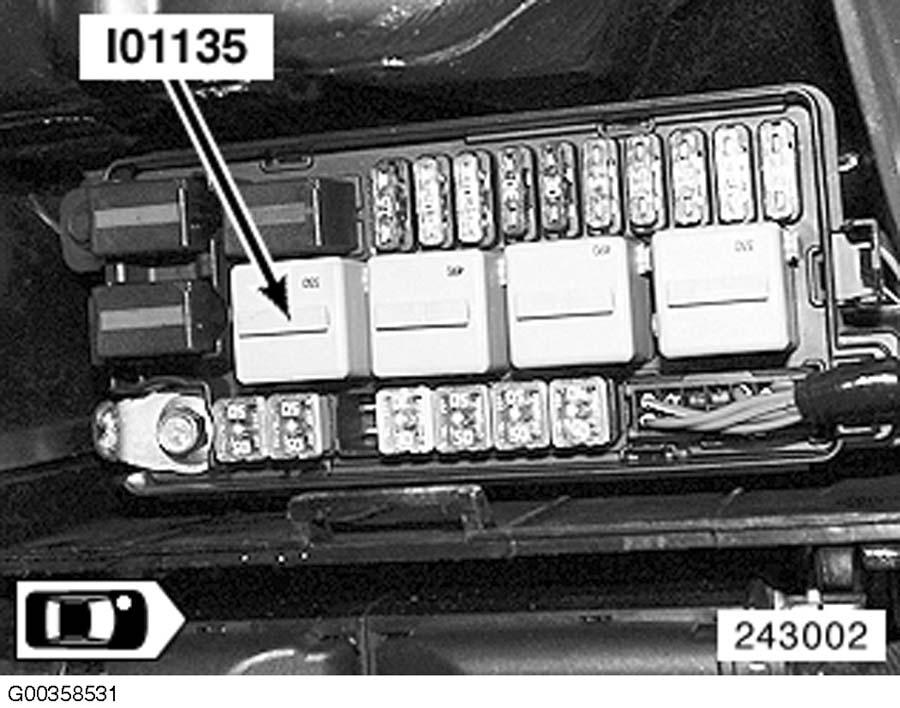

Fig 171: Left Side Of Engine Compartment

G00358531

Courtesy of BMW OF NORTH AMERICA, INC.

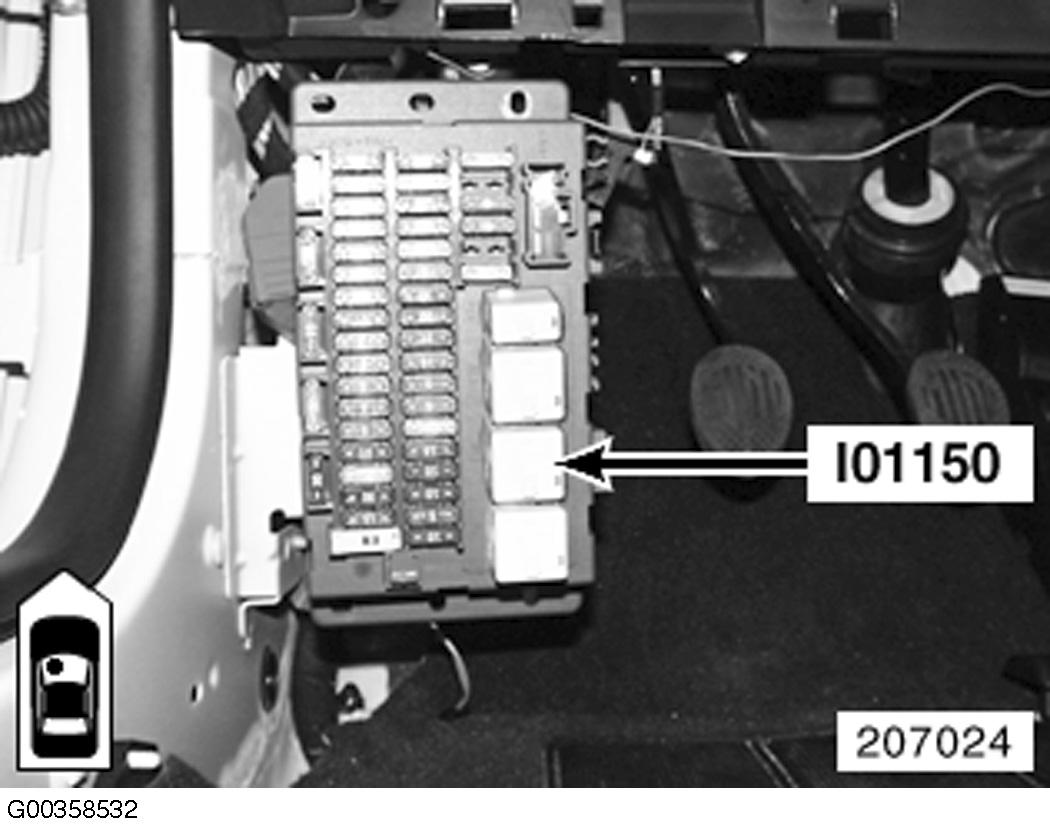

Fig 172: Left Side Of Left Footwell

G00358532

Courtesy of BMW OF NORTH AMERICA, INC.

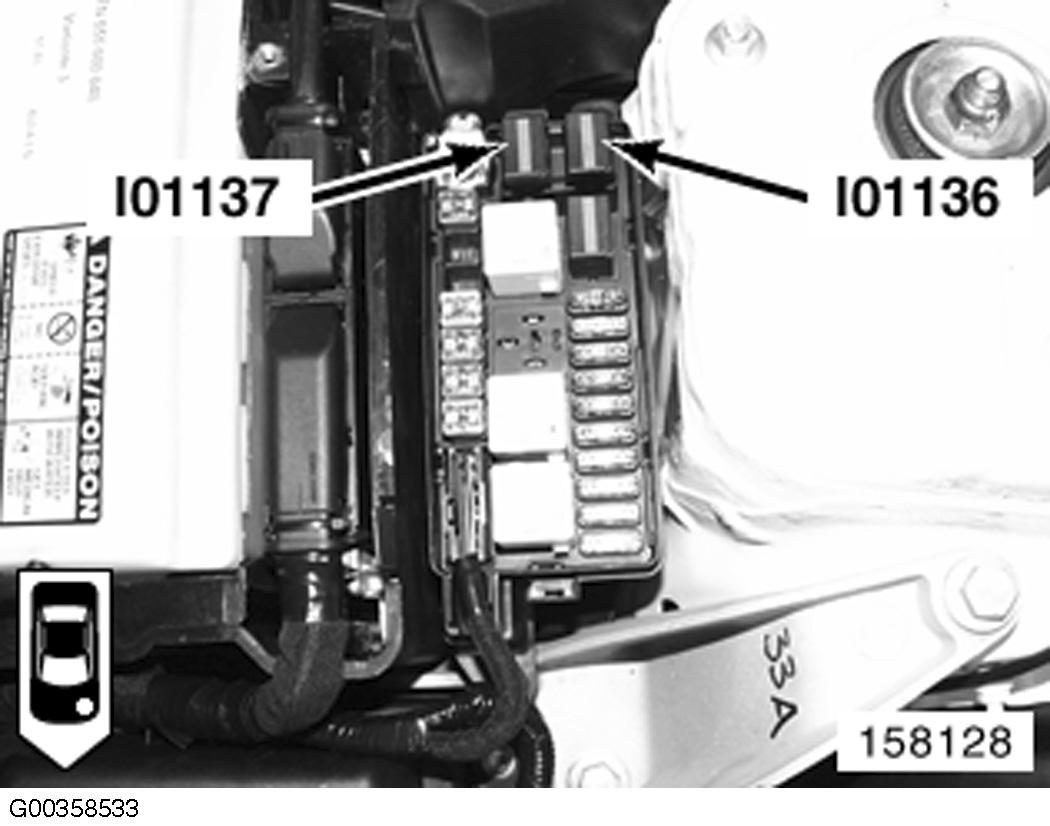

Fig 173: Left Side Of Engine Compartment

G00358533

Courtesy of BMW OF NORTH AMERICA, INC.

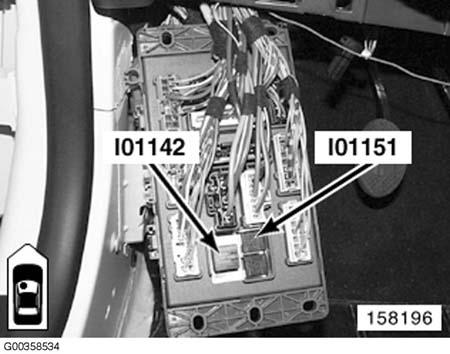

Fig 174: Behind Left Footwell

G00358534

Courtesy of BMW OF NORTH AMERICA, INC.

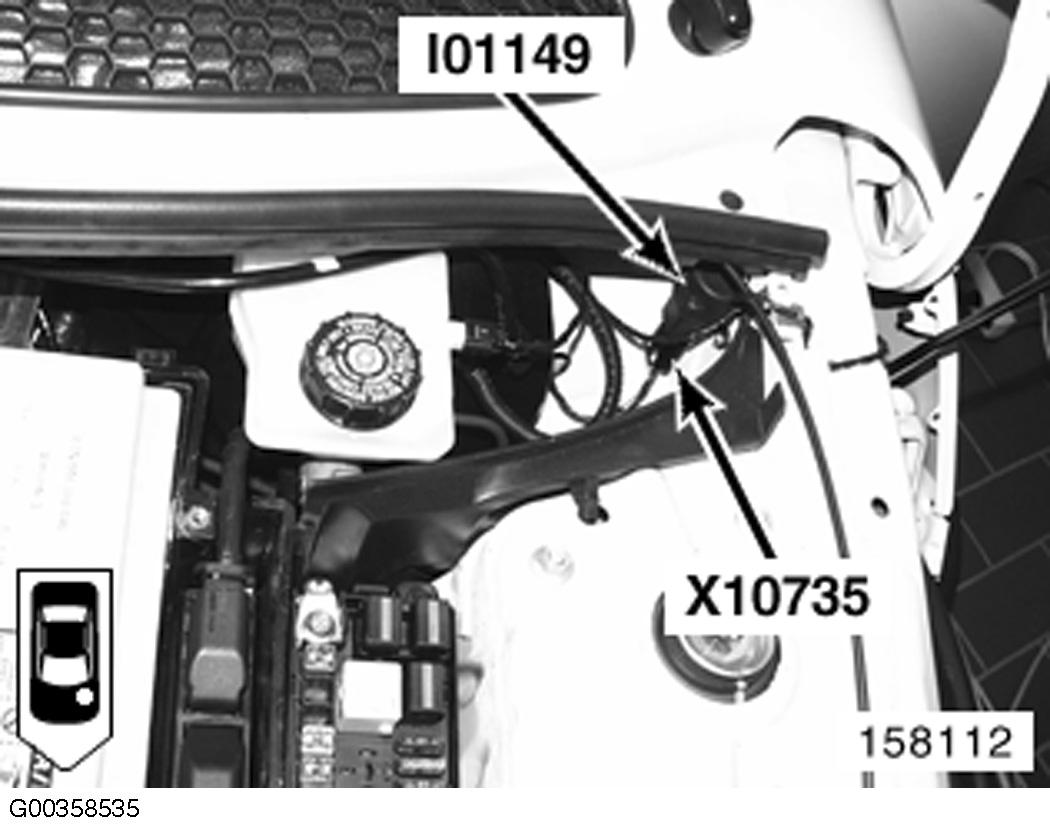

Fig 175: Left Side Of Engine Compartment

G00358535

Courtesy of BMW OF NORTH AMERICA, INC.

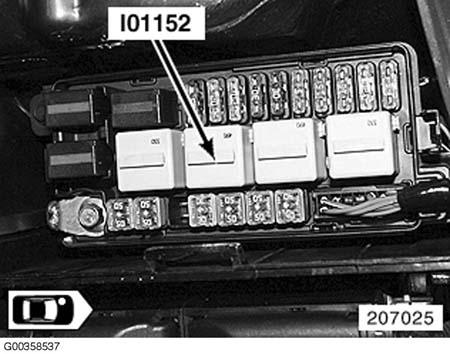

Fig 176: Left Side Of Engine Compartment

G00358537

Courtesy of BMW OF NORTH AMERICA, INC.

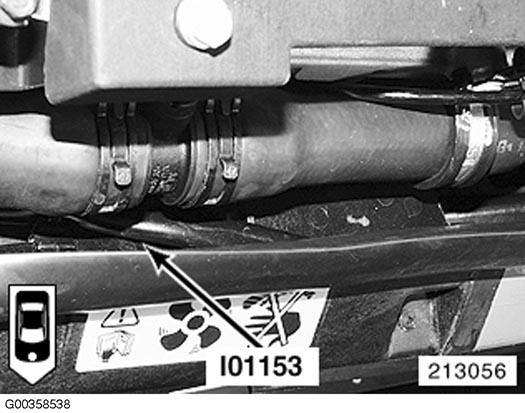

Fig 177: Lower Front Of Engine Compartment

G00358538

Courtesy of BMW OF NORTH AMERICA, INC.

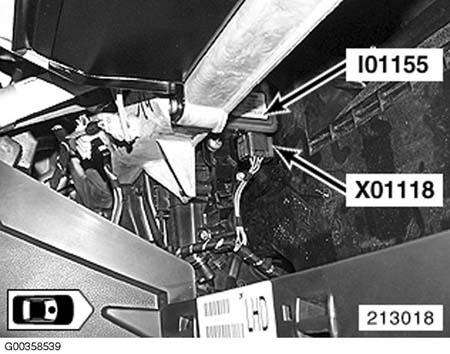

Fig 178: Center Of Dash

G00358539

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 179: Lower Engine Compartment, Near Oil Pan

G00358541

Courtesy of BMW OF NORTH AMERICA, INC.

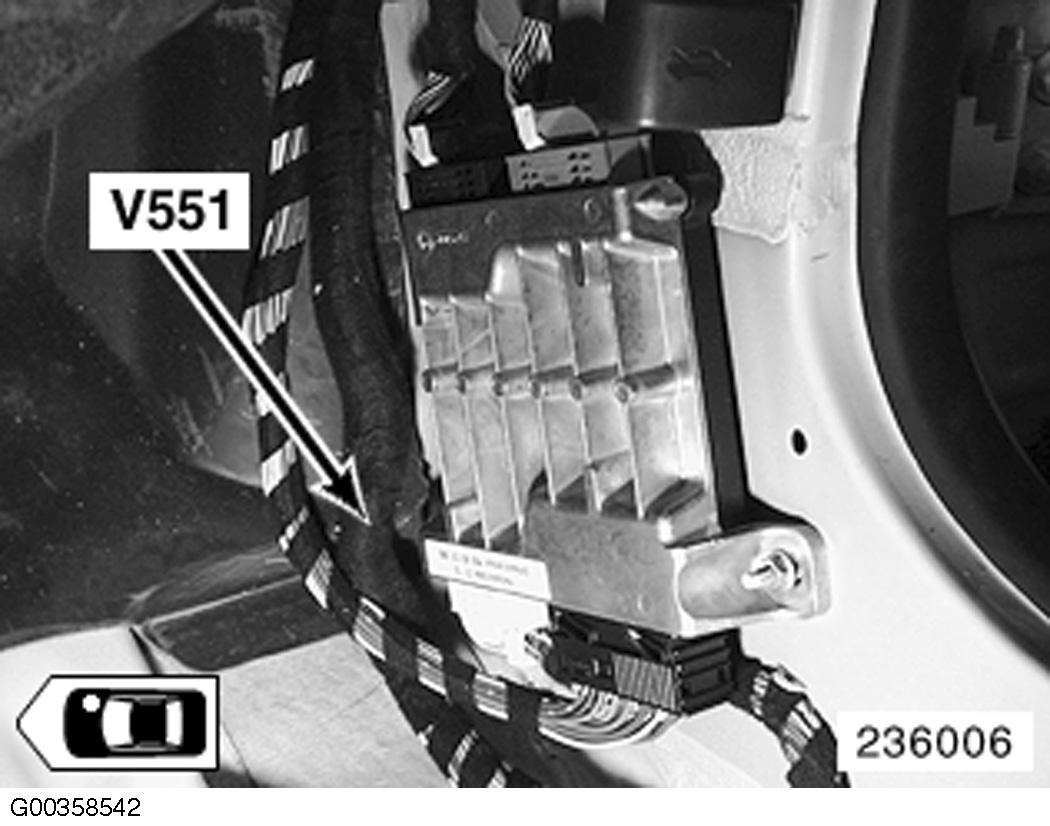

Fig 180: Right Kick Panel

G00358542

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 181: Left Rear Of Trunk

G00358543

Courtesy of BMW OF NORTH AMERICA, INC.
