Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

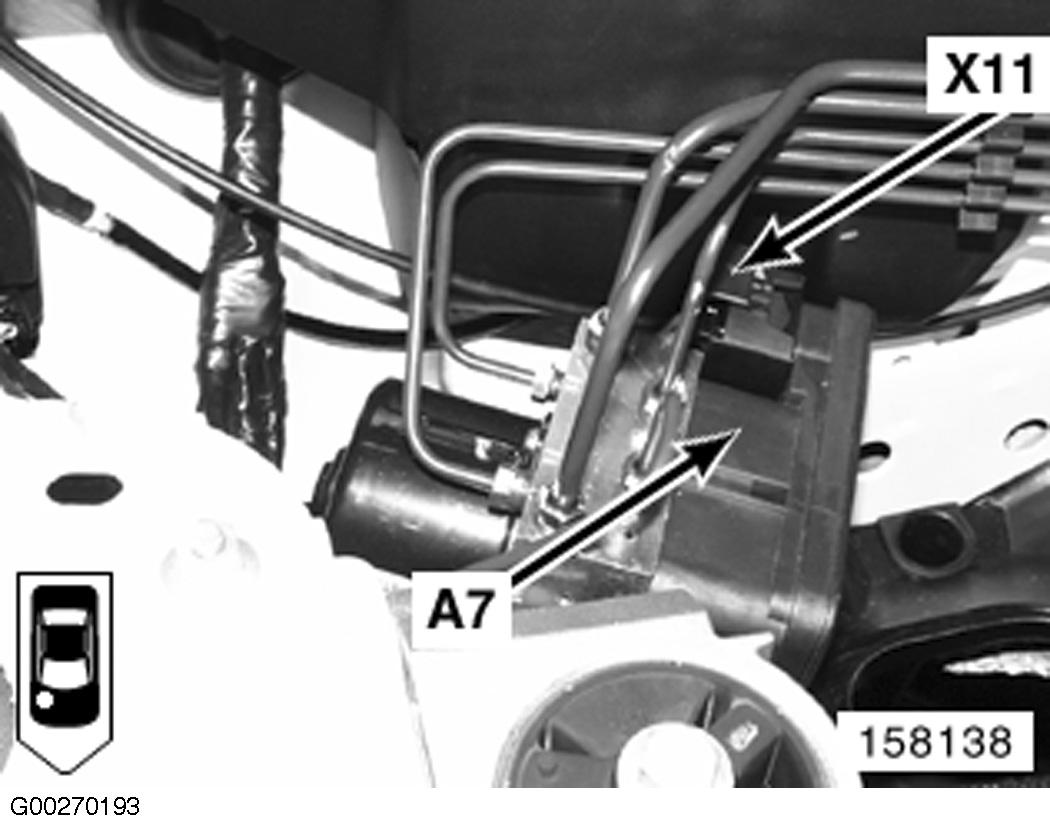

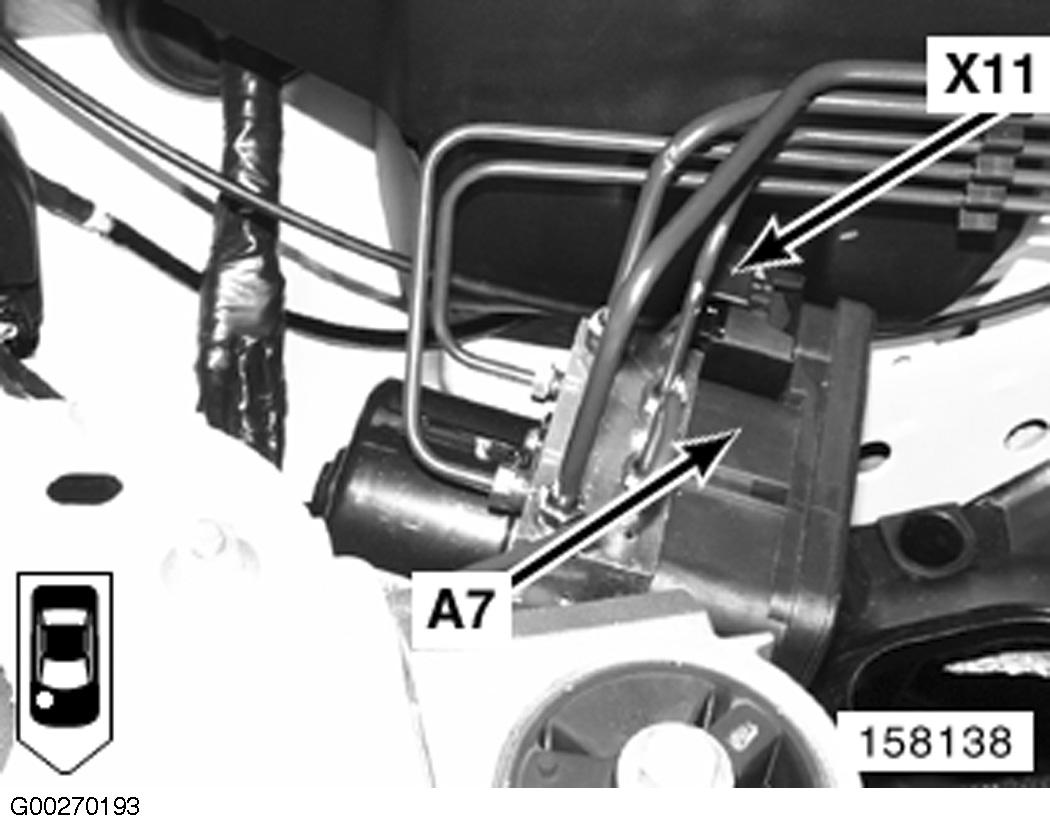

| ABS Control Module (A7) | Right rear of engine compartment. See Figure . |

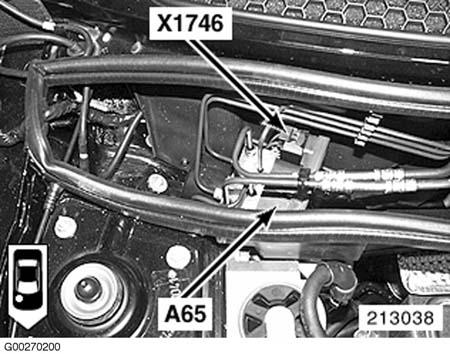

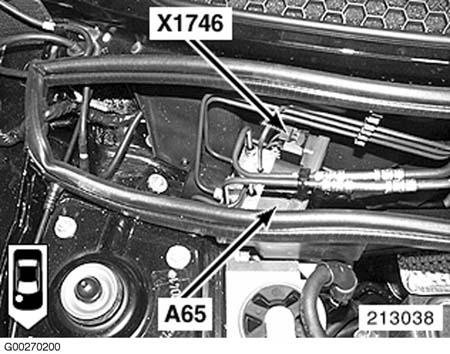

| ABS/DSC Unit (A65) | Right rear of engine compartment. See Figure . |

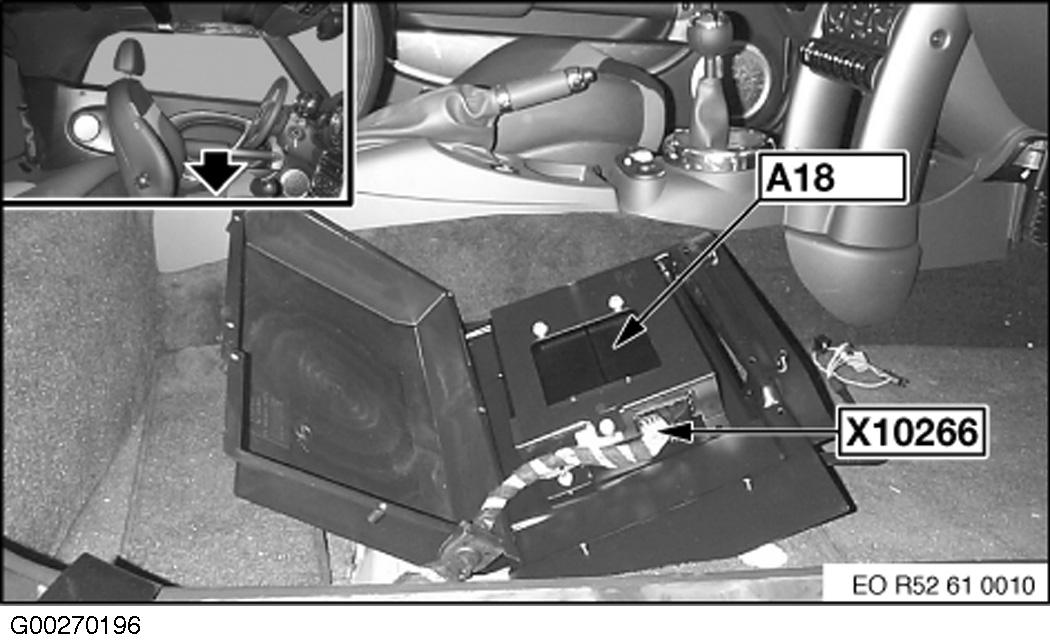

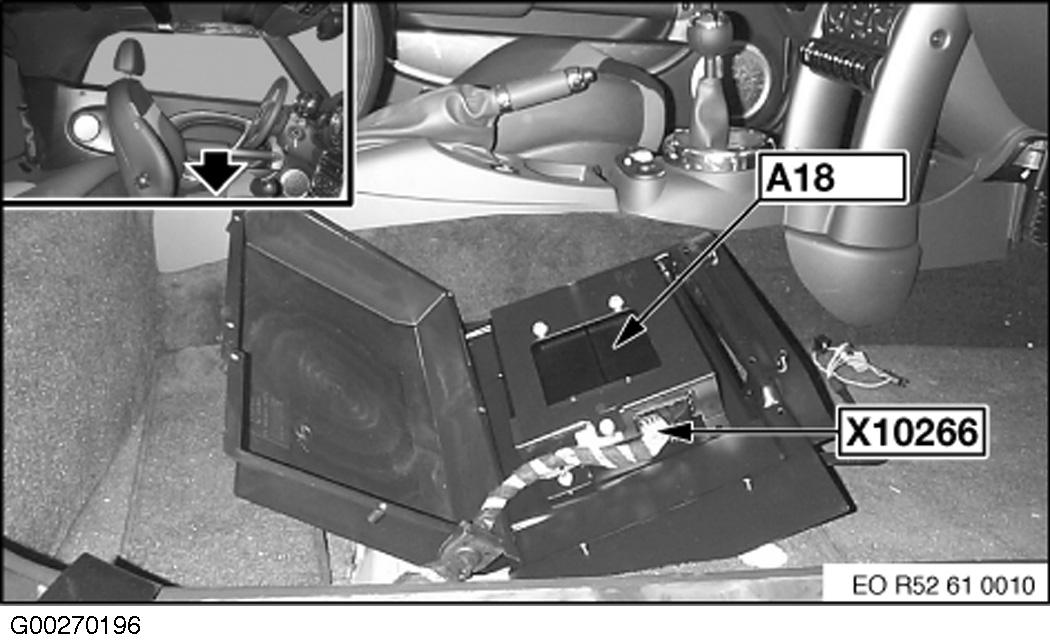

| Amplifier (A18) (Convertible) | Below Passenger's Seat. See Figure . |

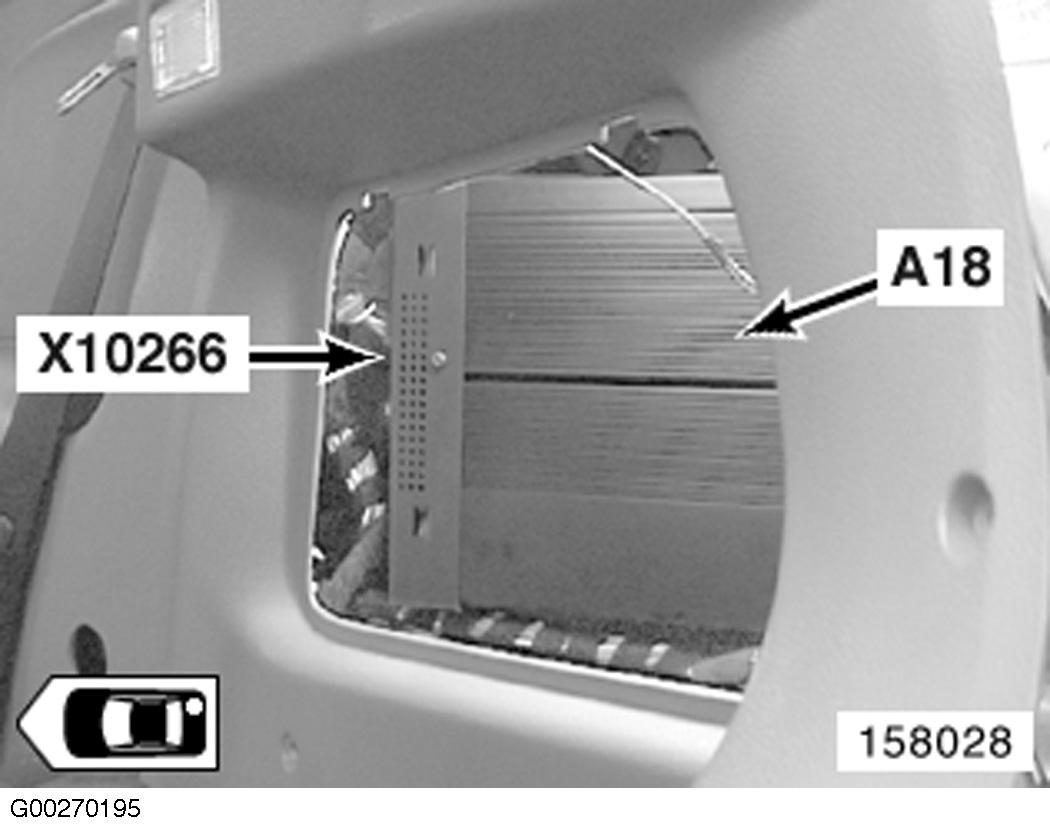

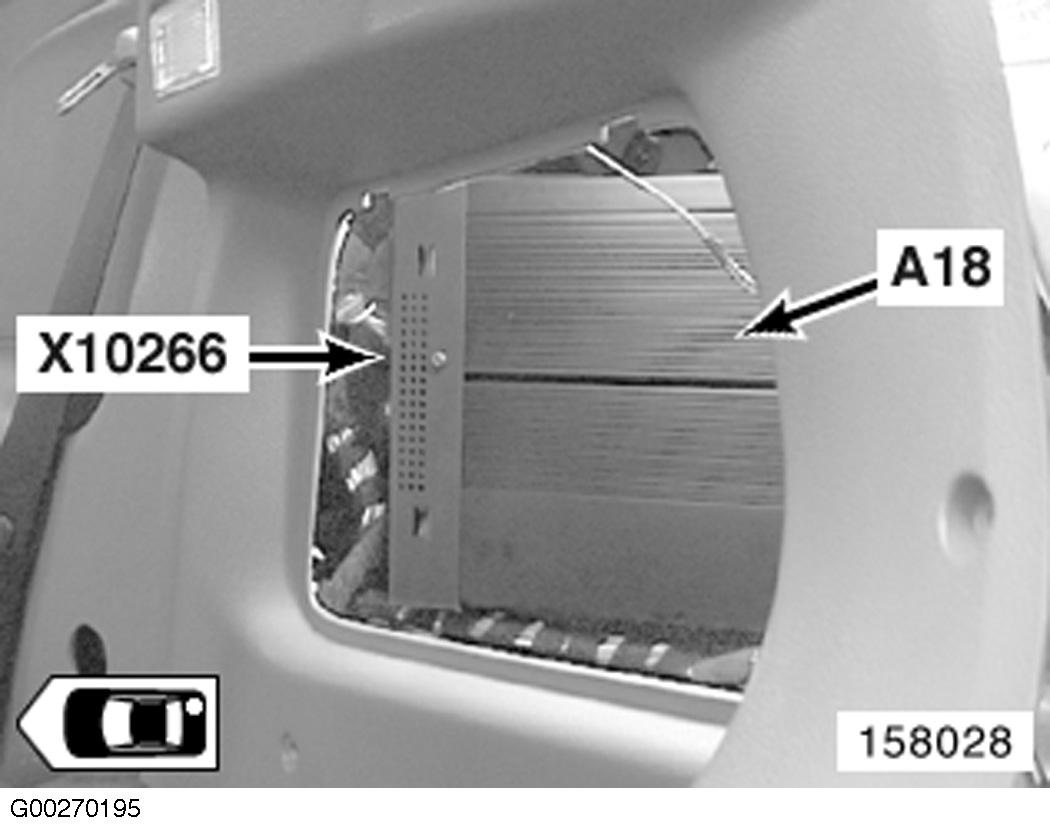

| Amplifier (A18) (Coupe) | Right side of luggage compartment. See Figure . |

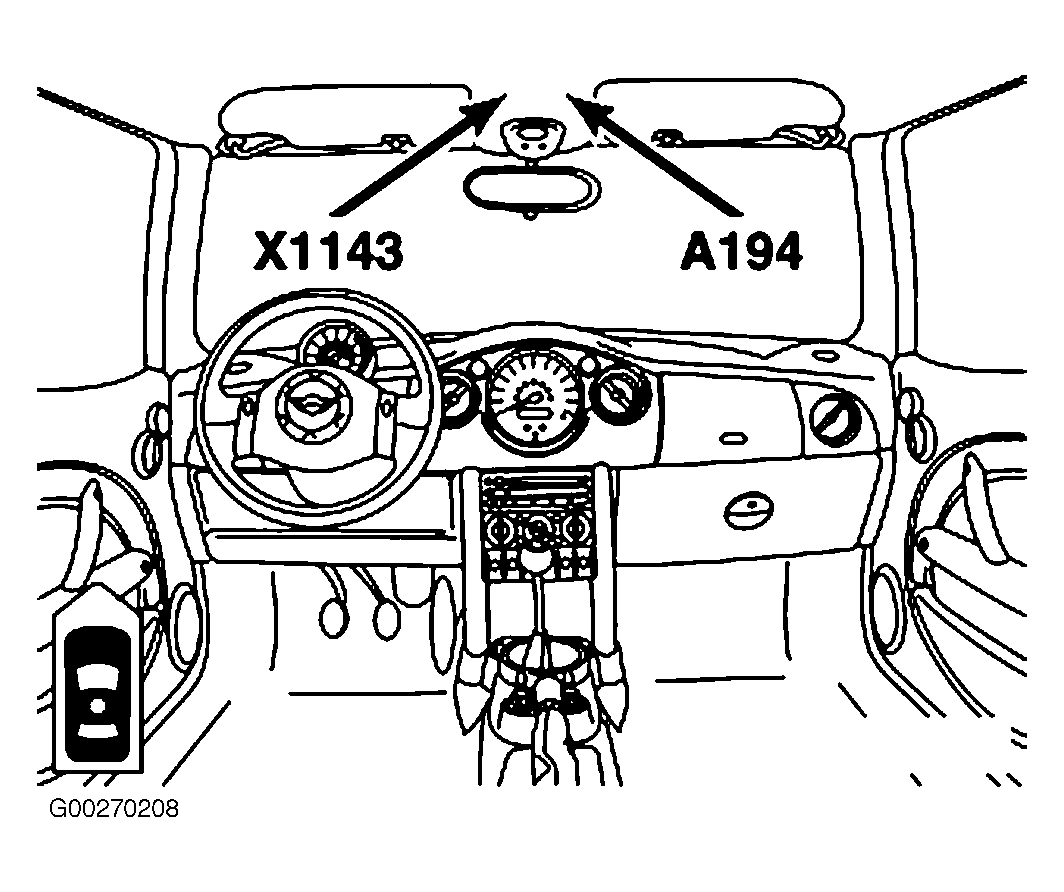

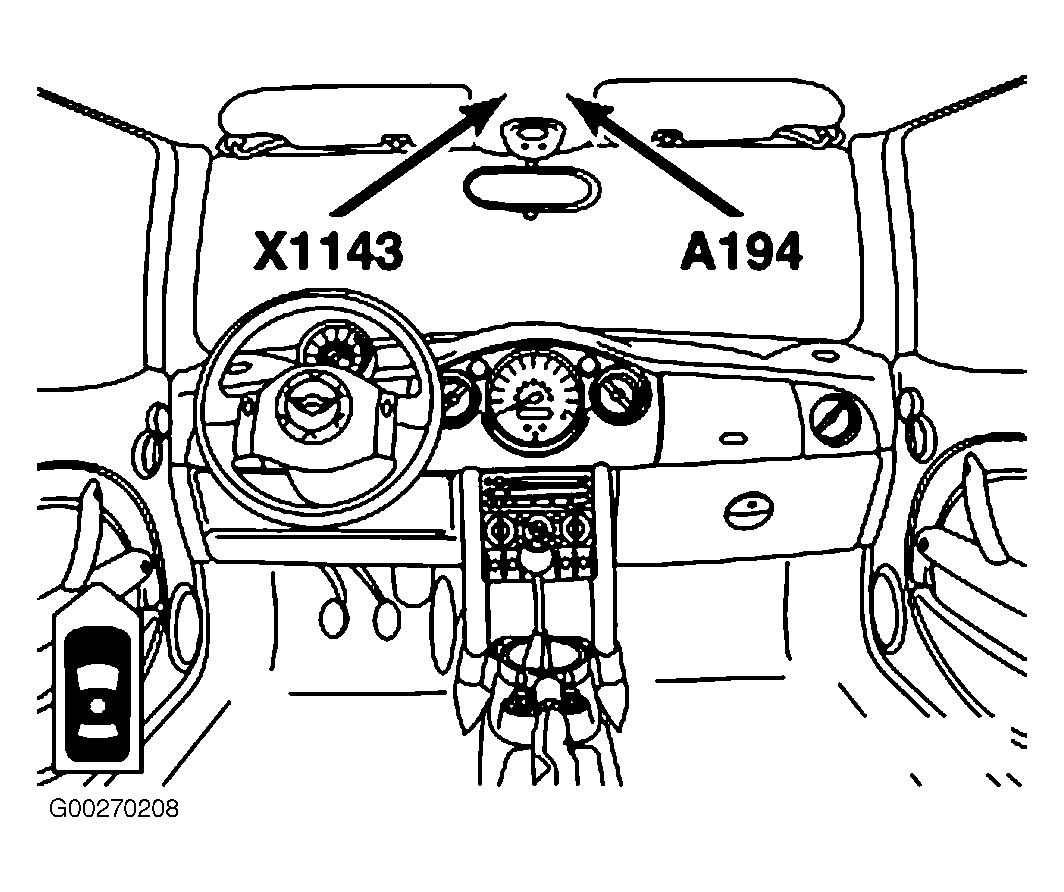

| Central Locking Remote Control (A194) (Coupe) | Under front head liner. See Figure . |

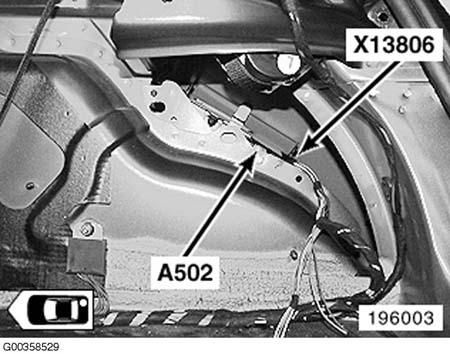

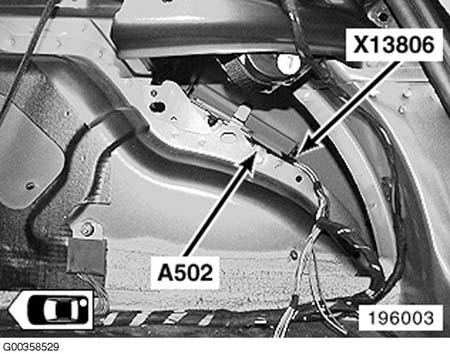

| Control Module, Tire Failure Indicator (RPA) (A502) (2002) | Right rear side of luggage compartment. See Figure . |

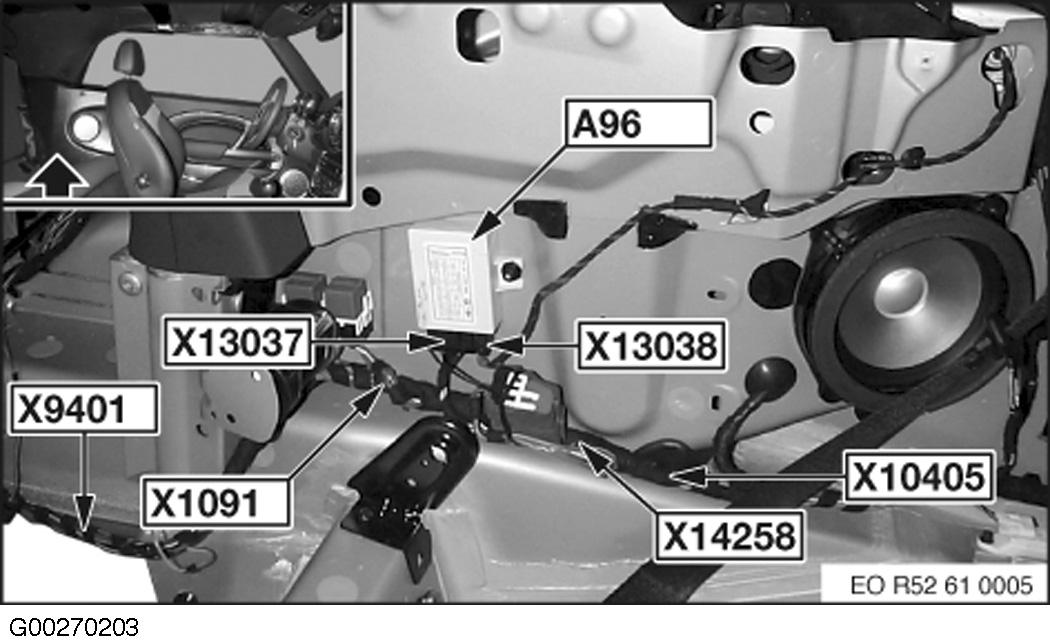

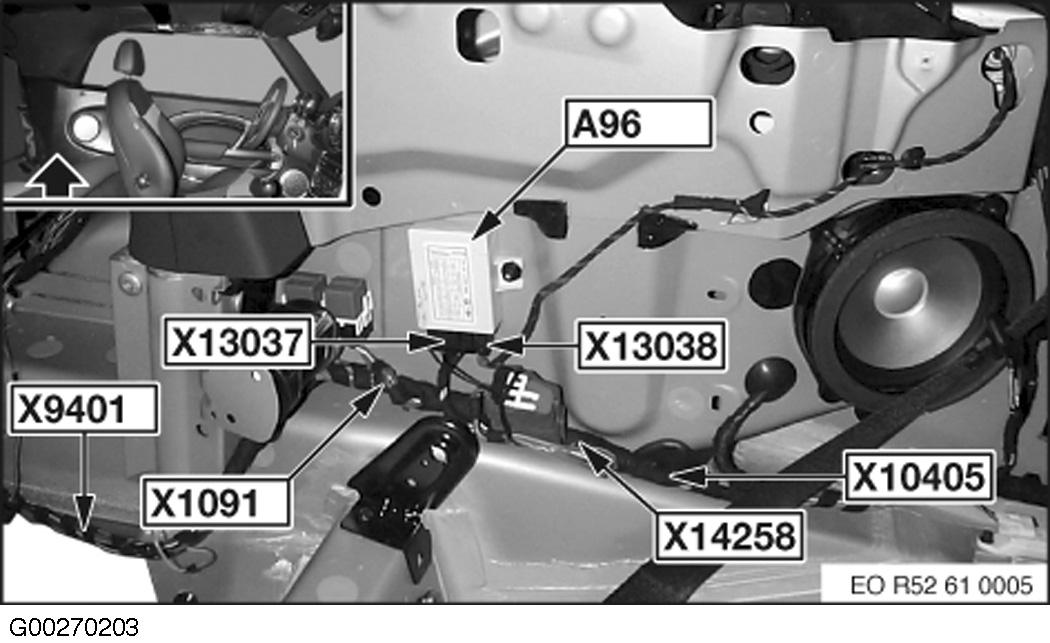

| Convertible Soft Top Control Module (A96) | Left rear passenger compartment. See Figure . |

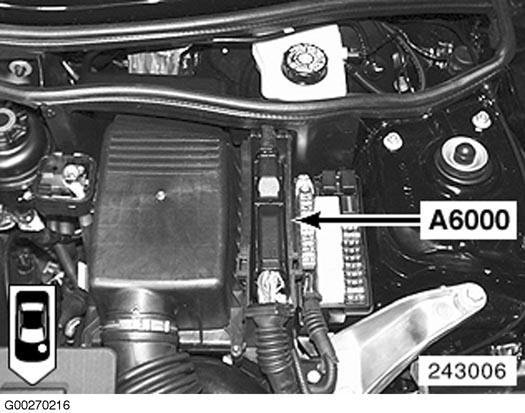

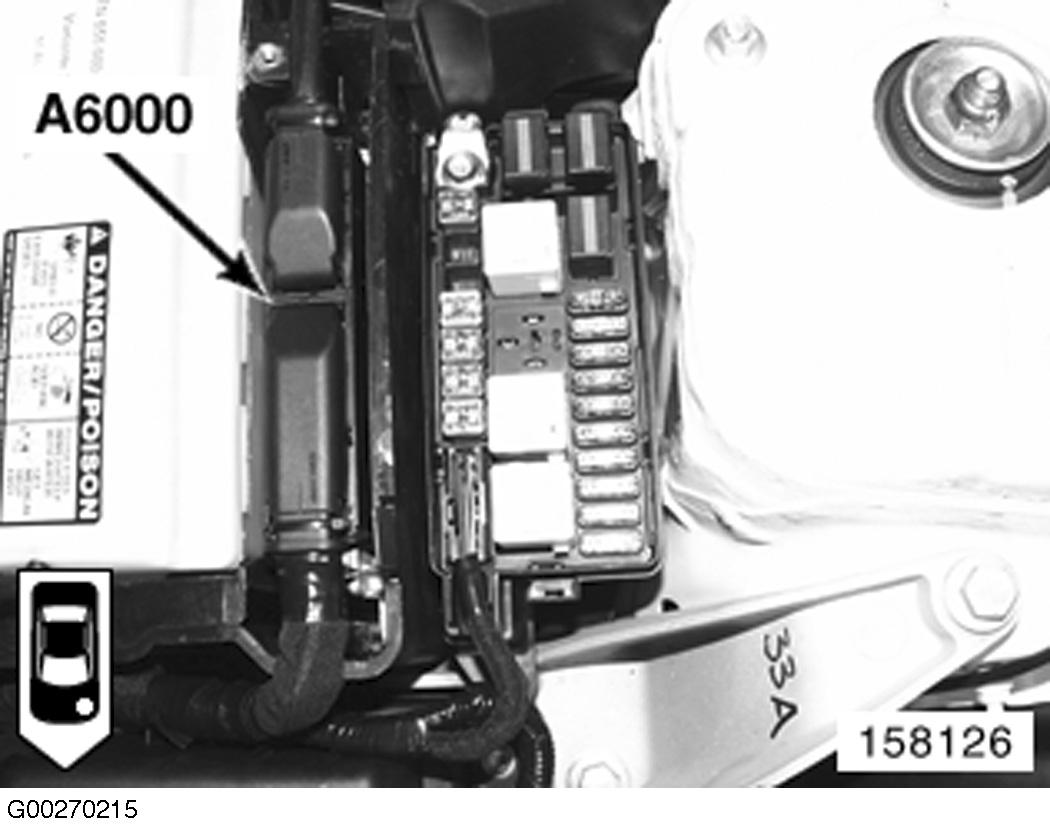

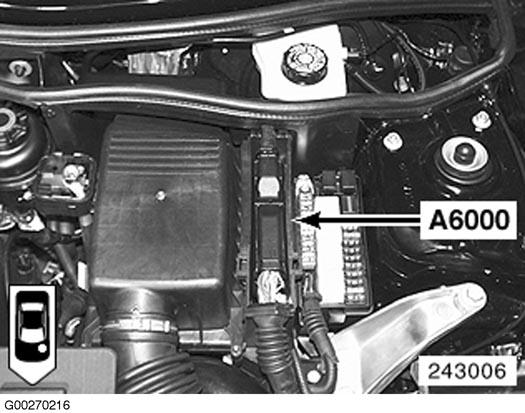

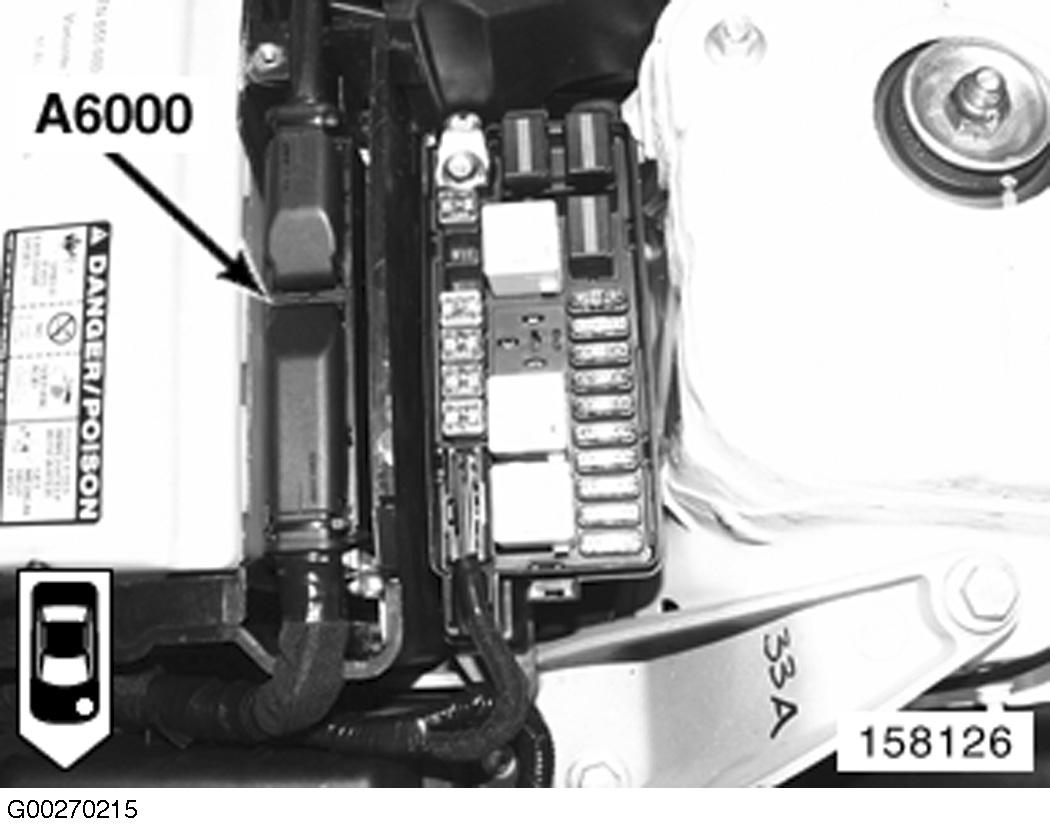

| Digital Motor Electronics Control Unit (A6000) (1.6L) | Left side of engine compartment. See Figure . |
| Digital Motor Electronics Control Unit (A6000) (1.6L Supercharged) | Left side of engine compartment. See Figure . |

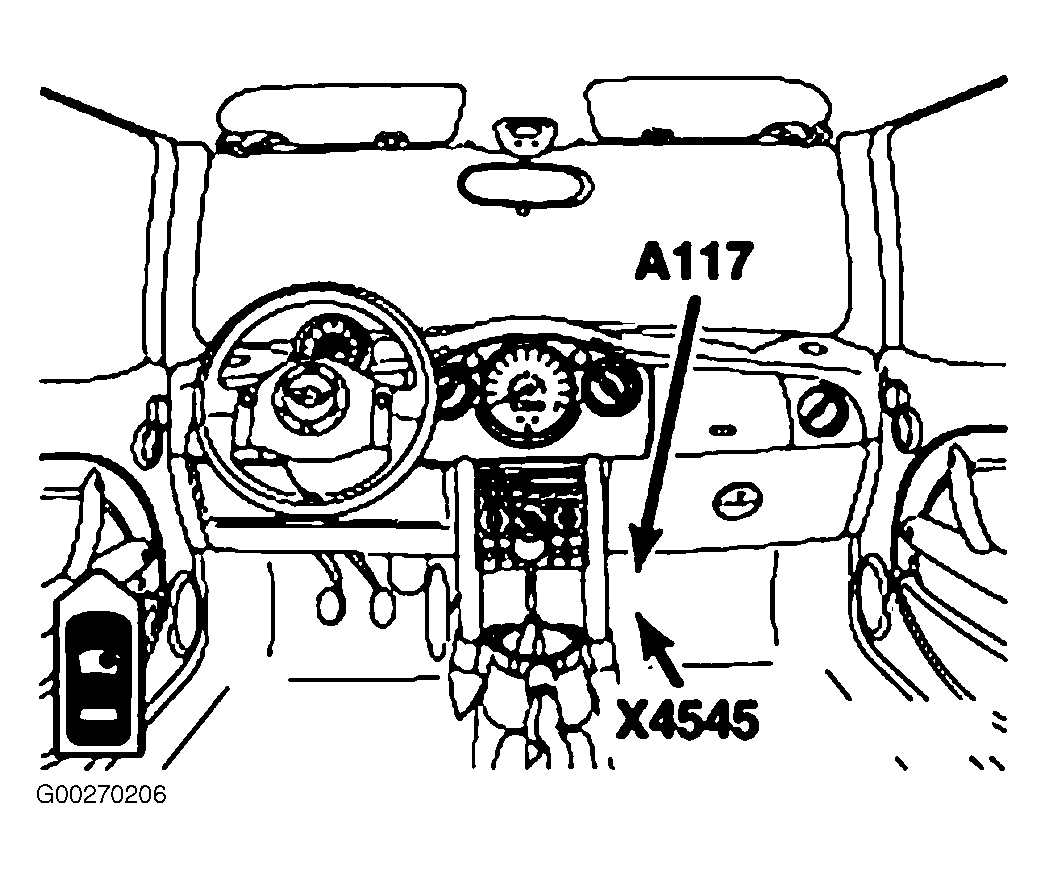

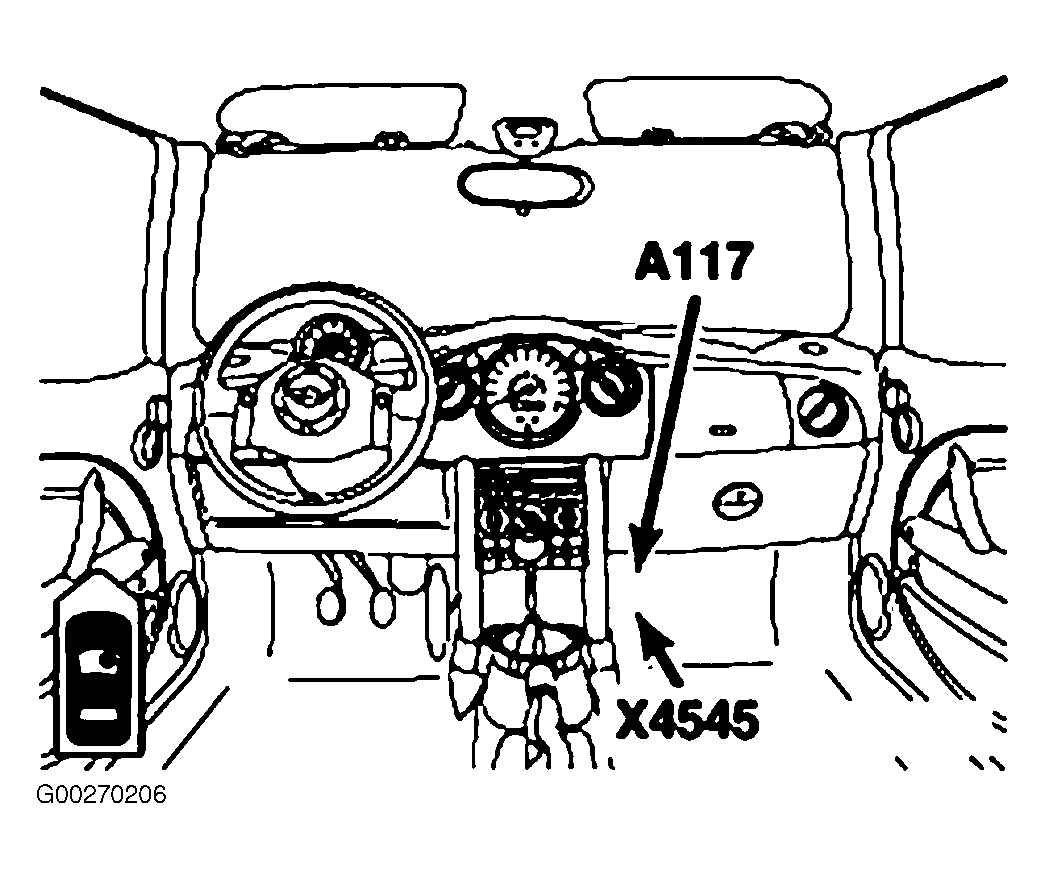

| Eject Box (A117) | Center of dash. See Figure . |

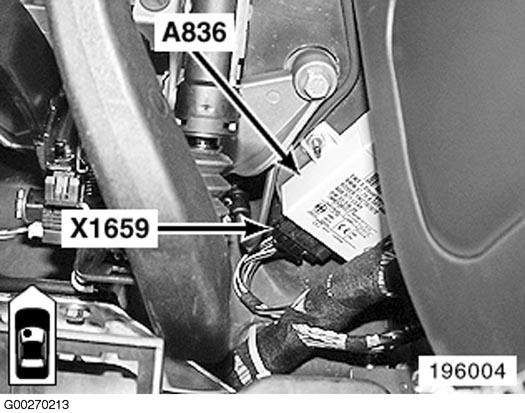

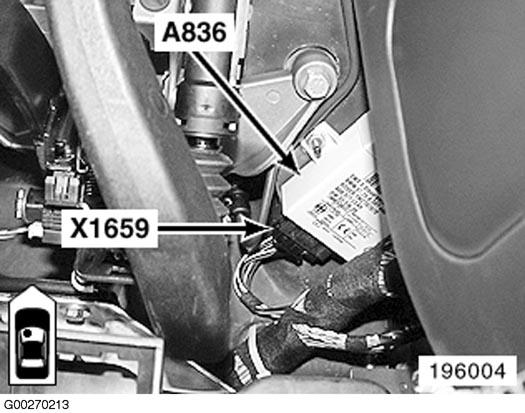

| Electronic Immobilizer Control Unit (A836) | Left side of dash. See Figure . |

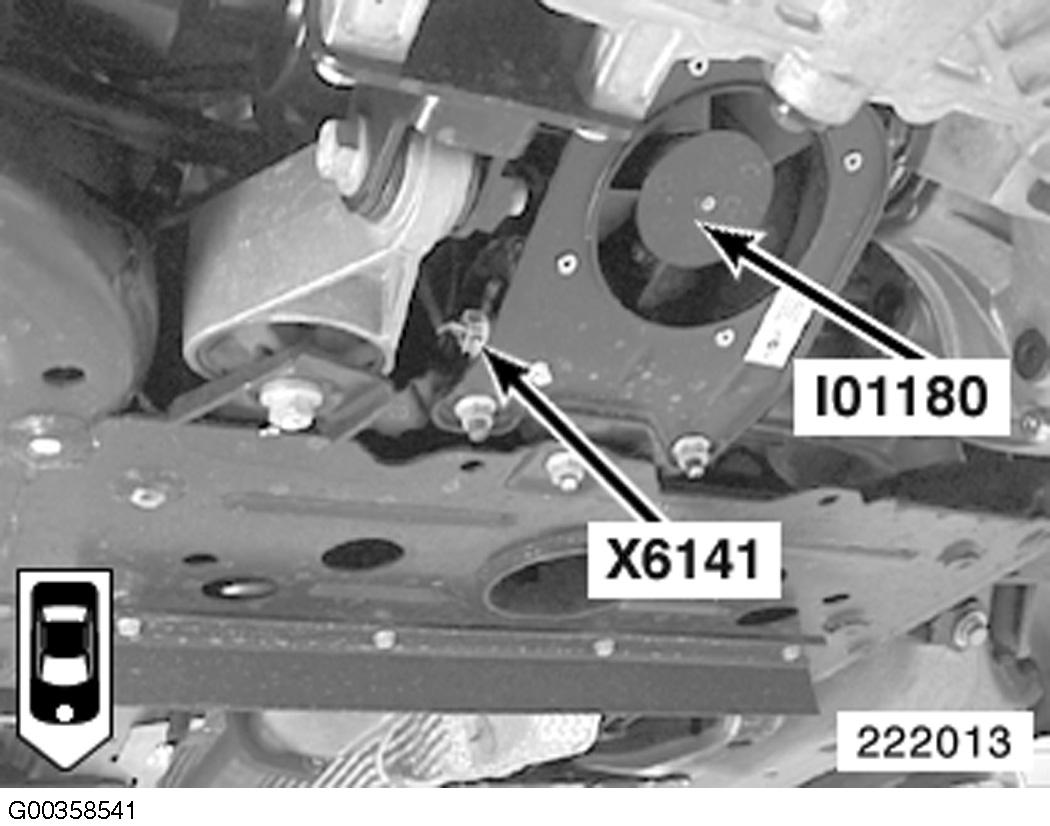

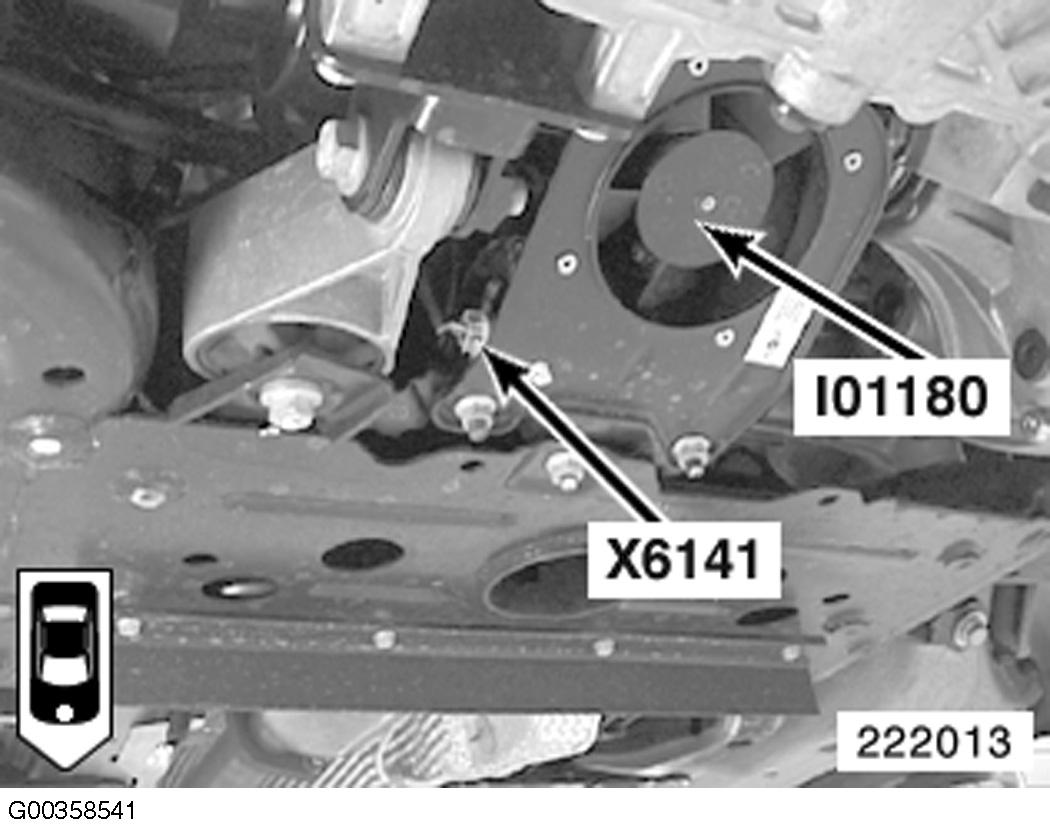

| Fan Control Module, Power Steering (EHPS) (I01180) | Lower engine compartment, near oil pan. See Figure . |

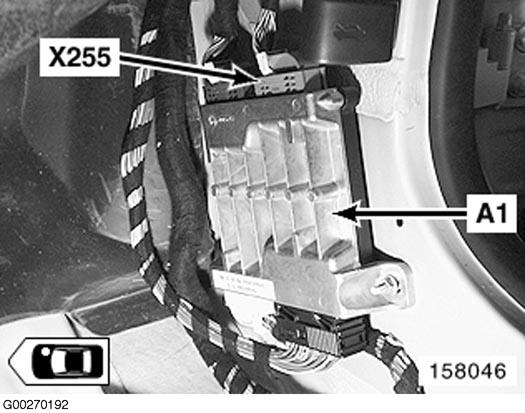

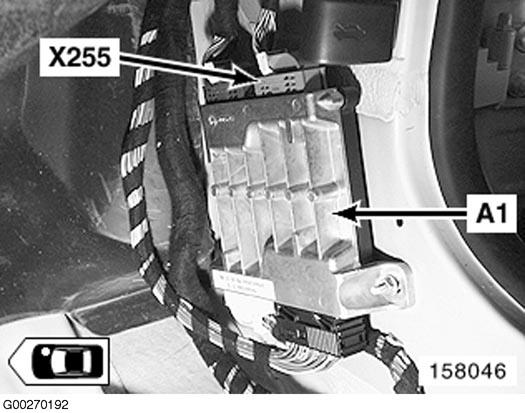

| General Module Control Unit (A1) | Behind right footwell. See Figure . |

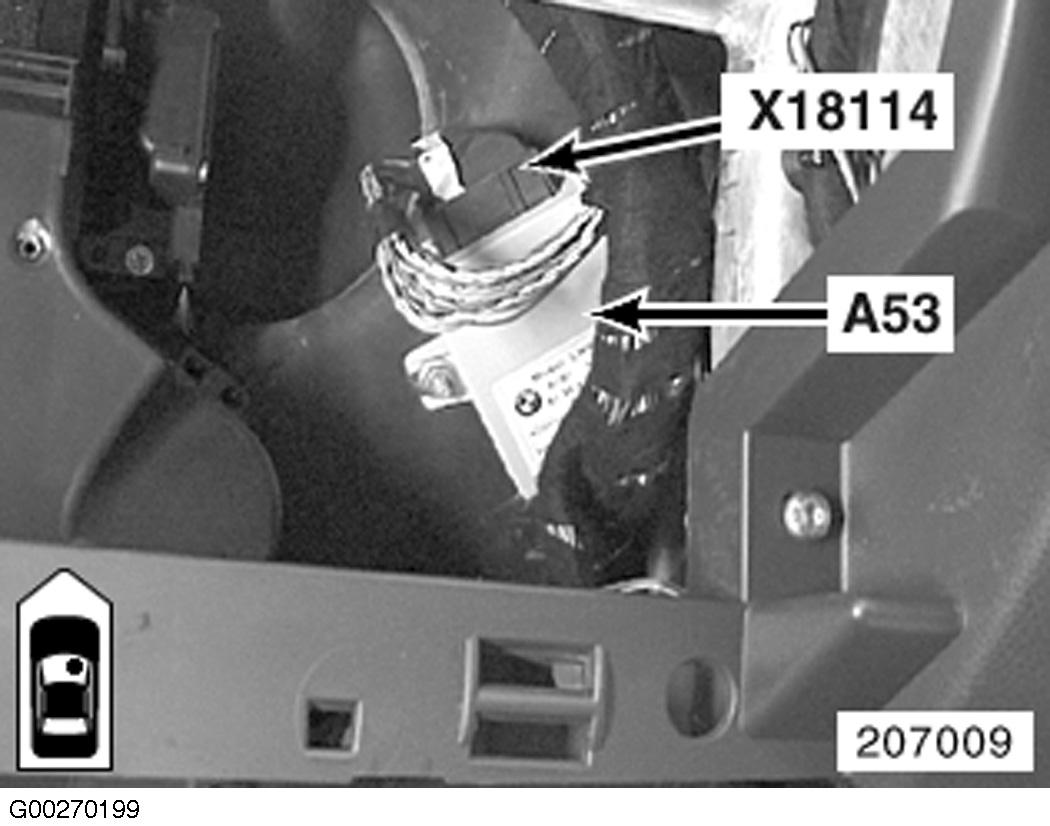

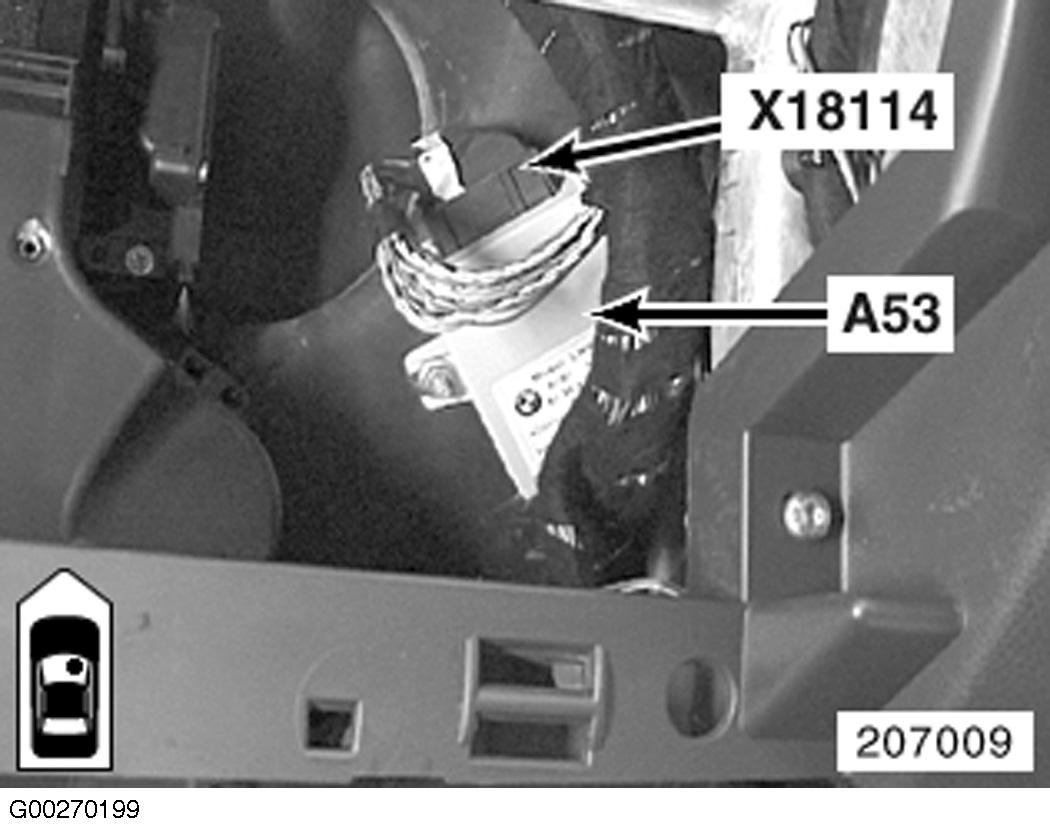

| Headlight Beam Height Control Control Module (A53) | Behind right side of glove box. See Figure . |

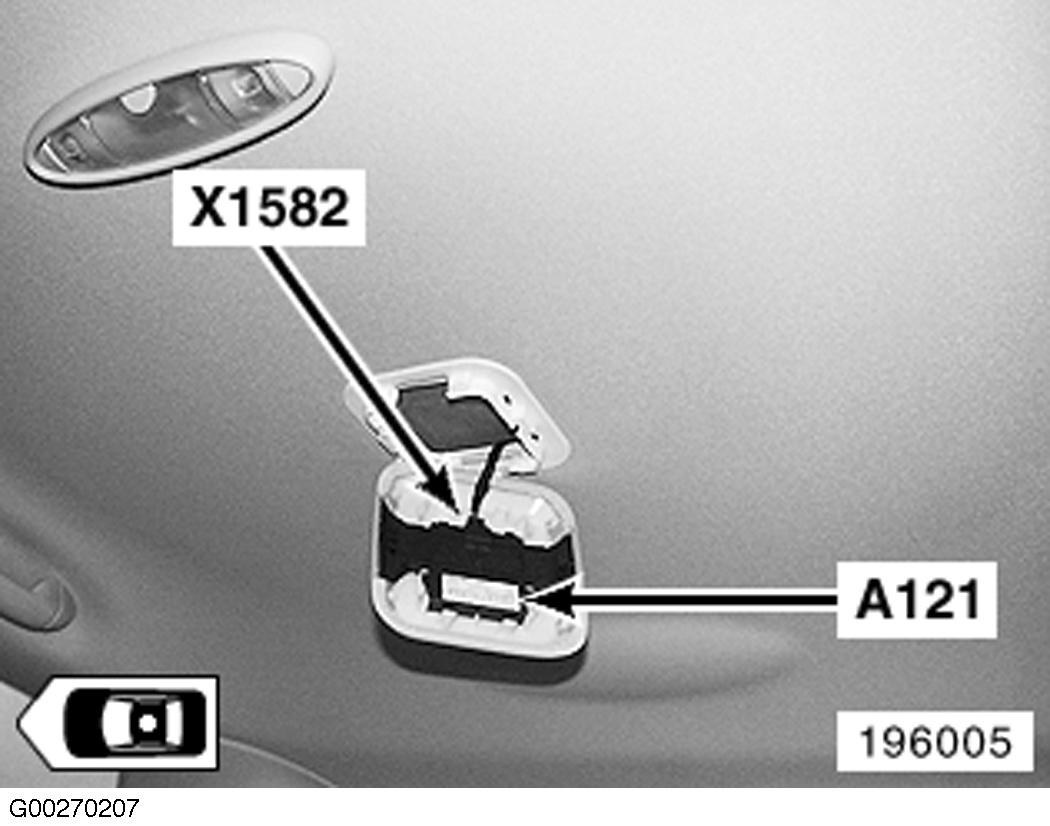

| Interior Protection I Control Module (A121) | In headliner. See Figure . |

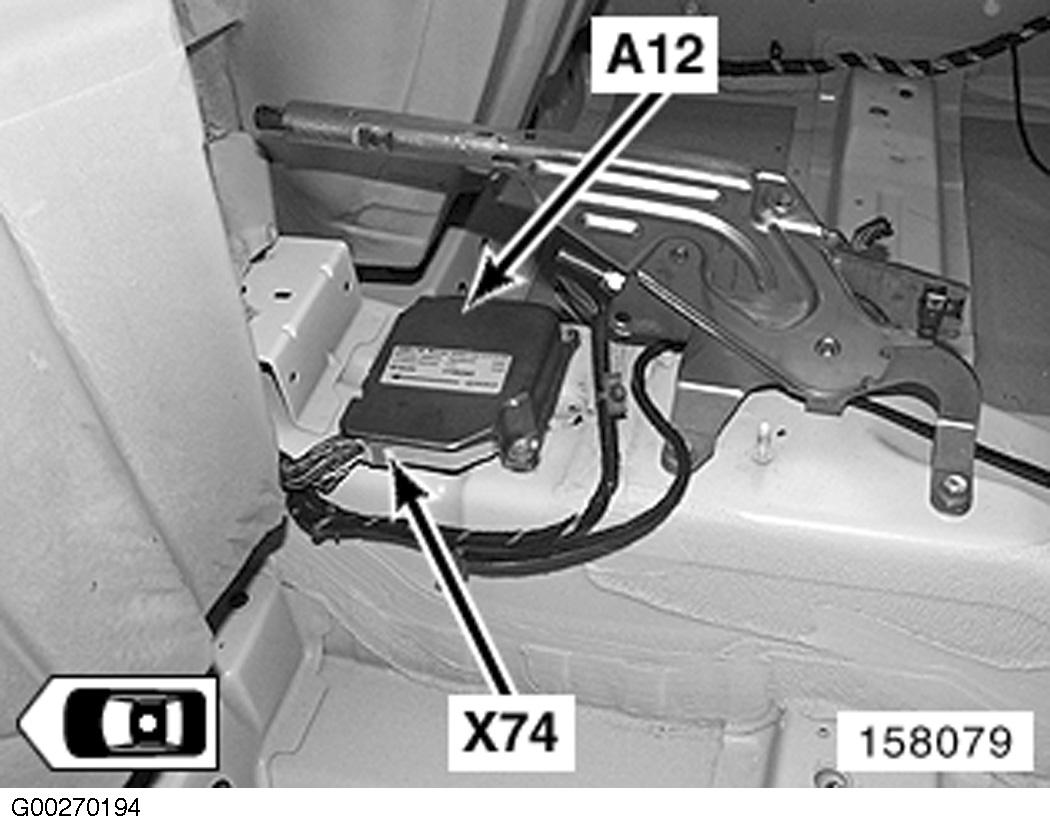

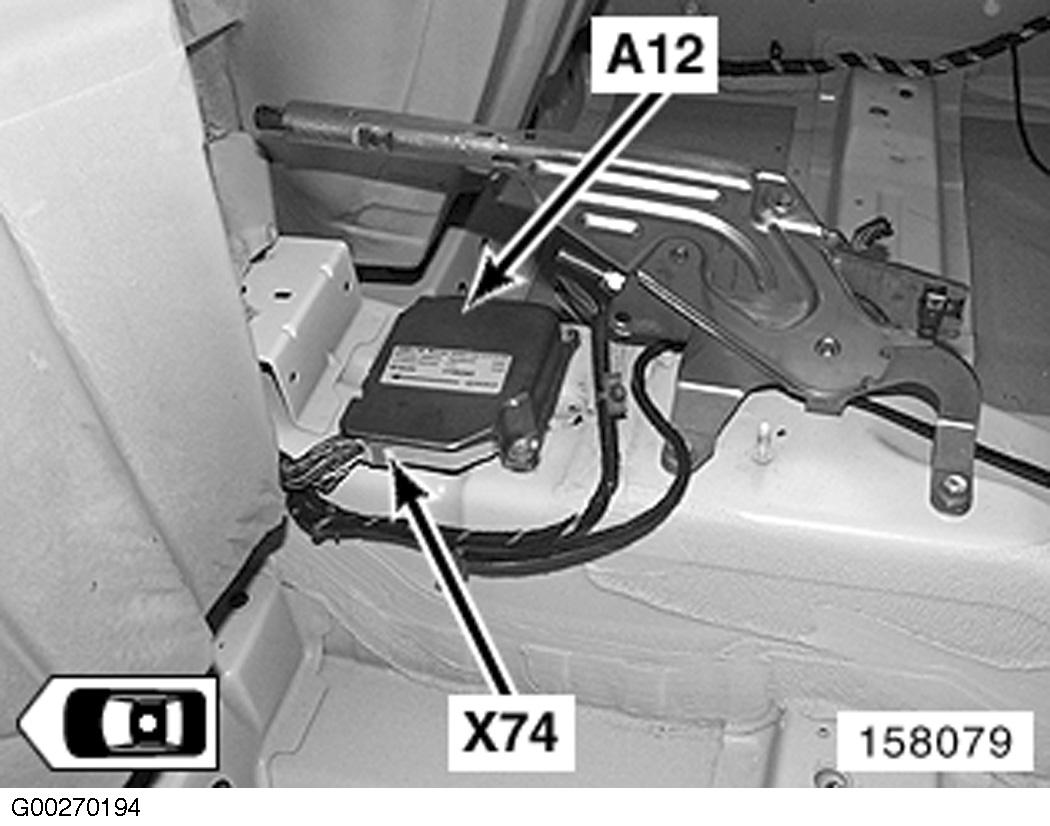

| Multiple Restraint System Control Unit (A12) | Center tunnel under carpet. See Figure . |

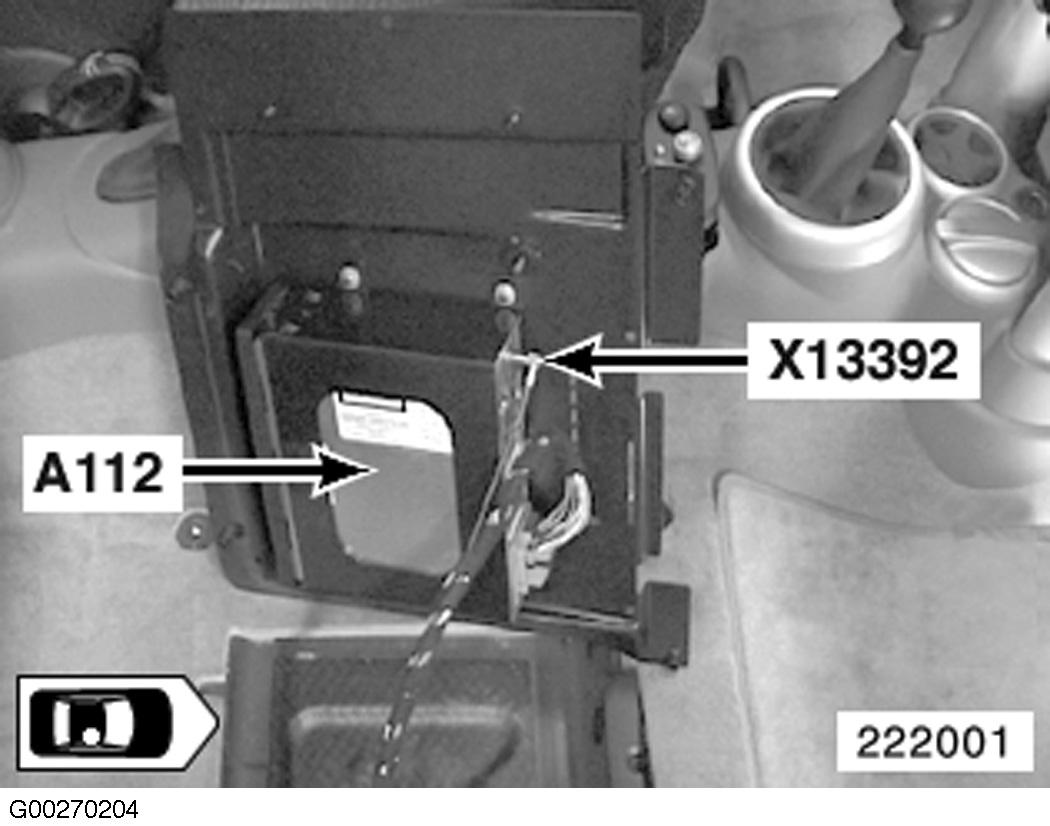

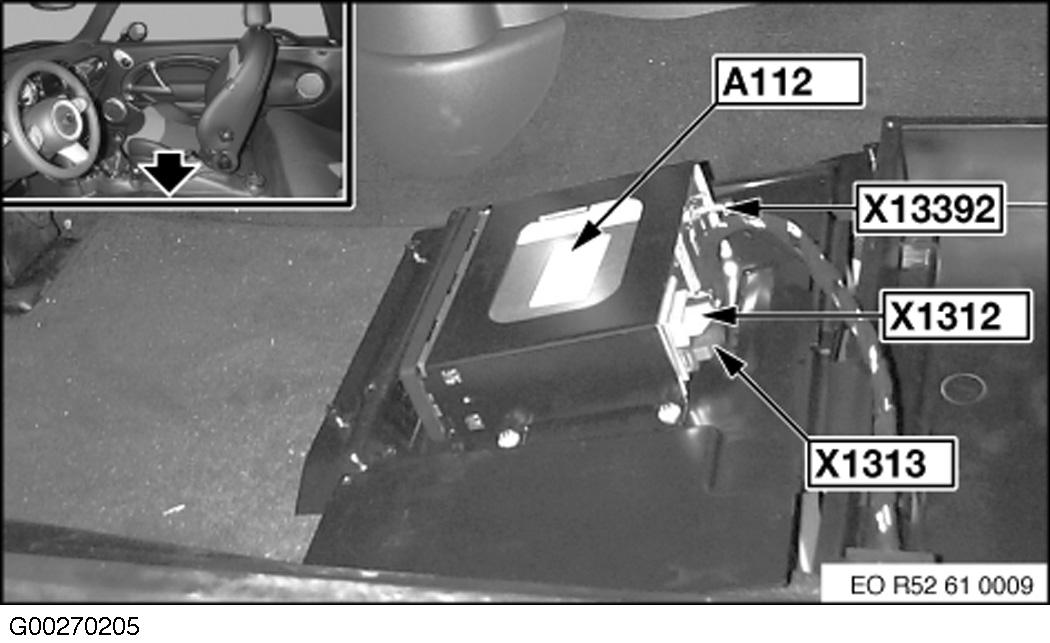

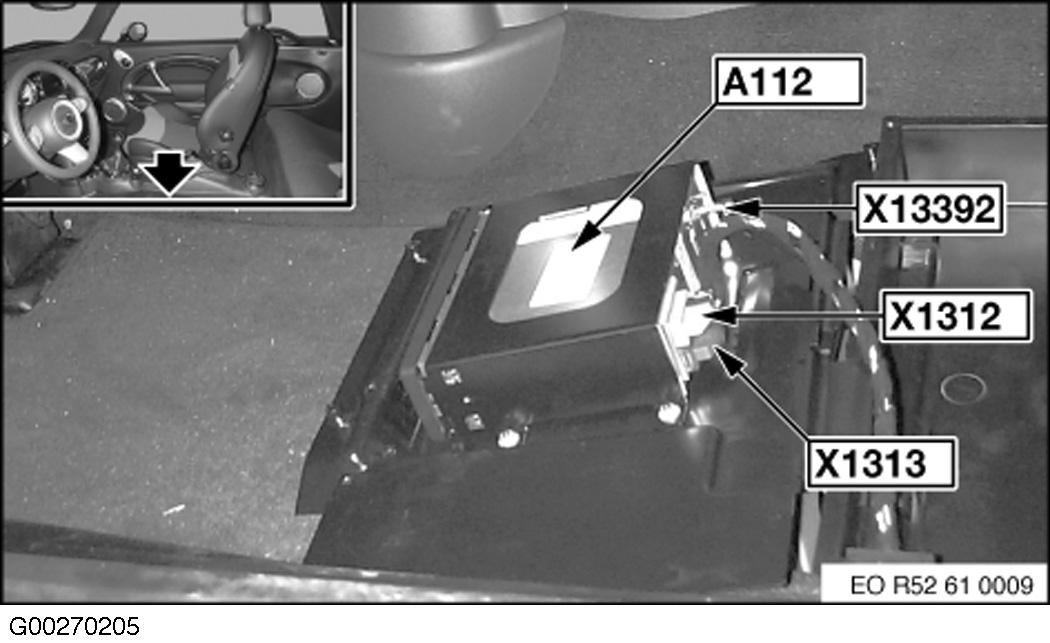

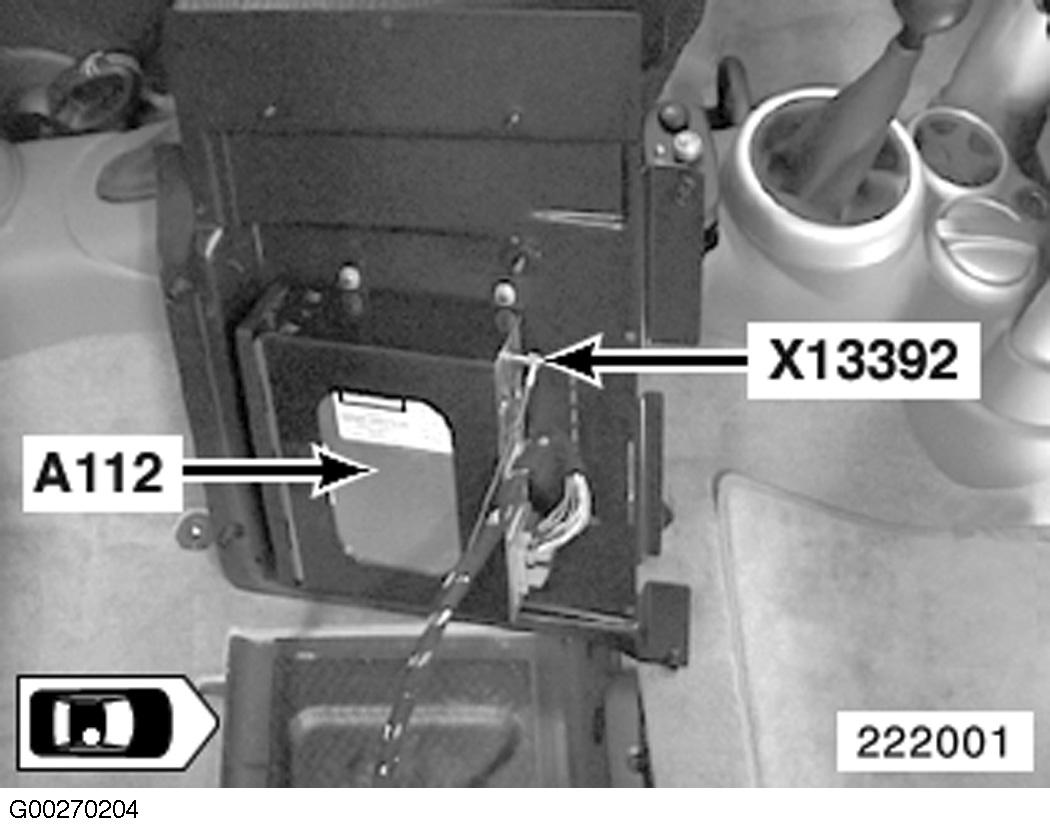

| Navigation Computer (A112) (Convertible) | Under left front seat. See Figure . |
| Navigation Computer (A112) (Coupe) | Under right front seat. See Figure . |

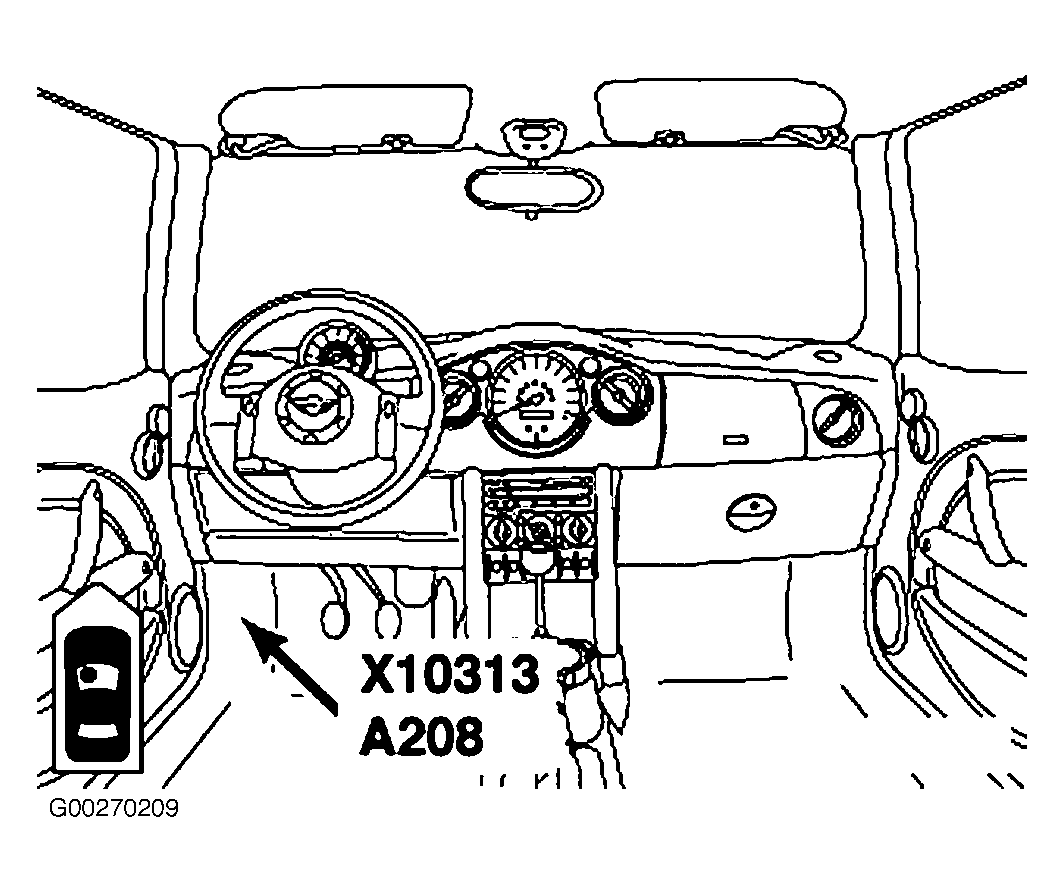

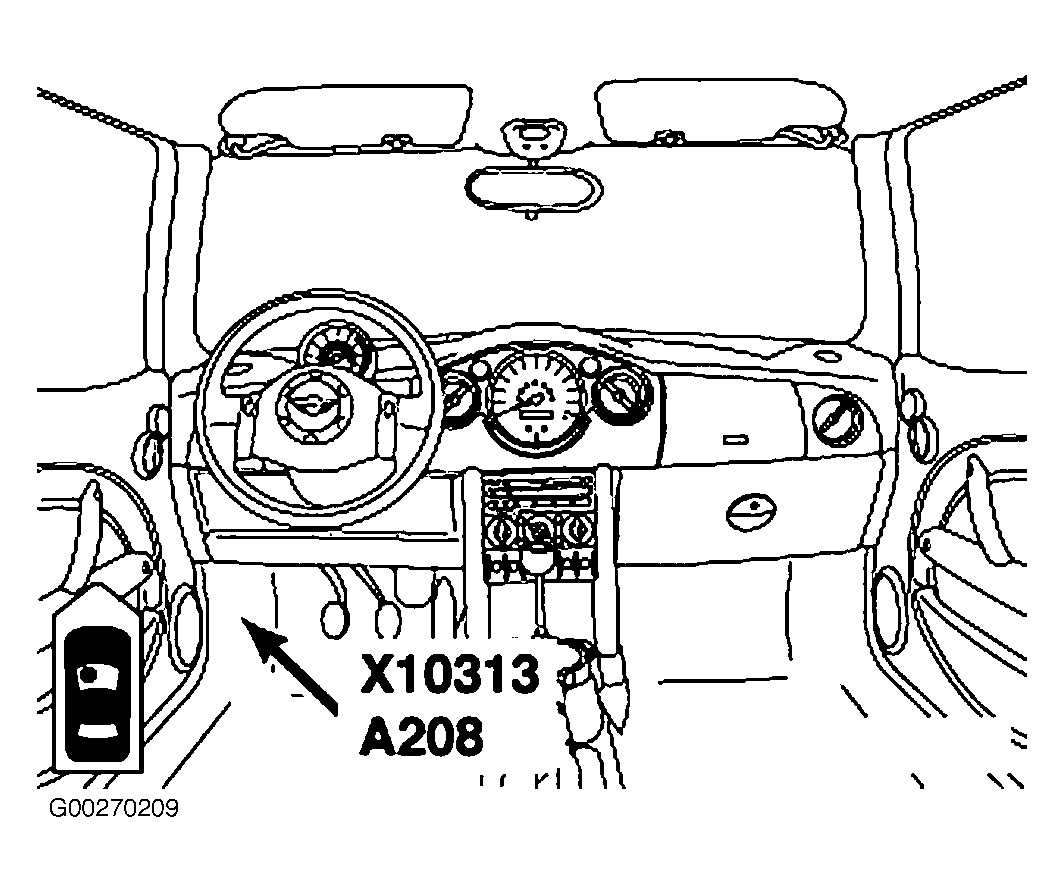

| Outside Mirror Fold-In Control Unit (A208) | Left side of left footwell. See Figure . |

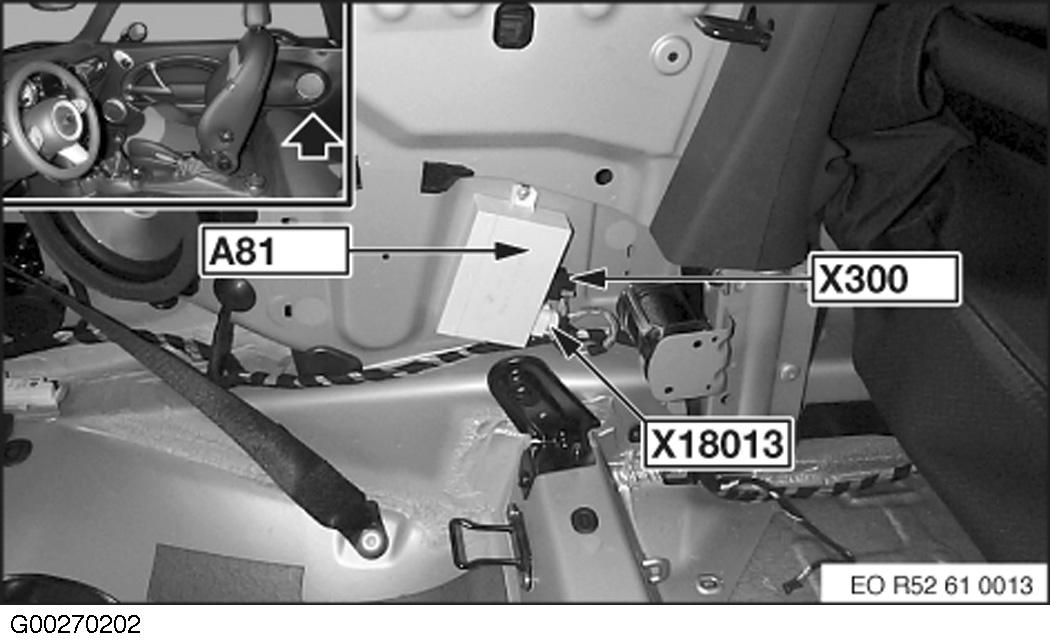

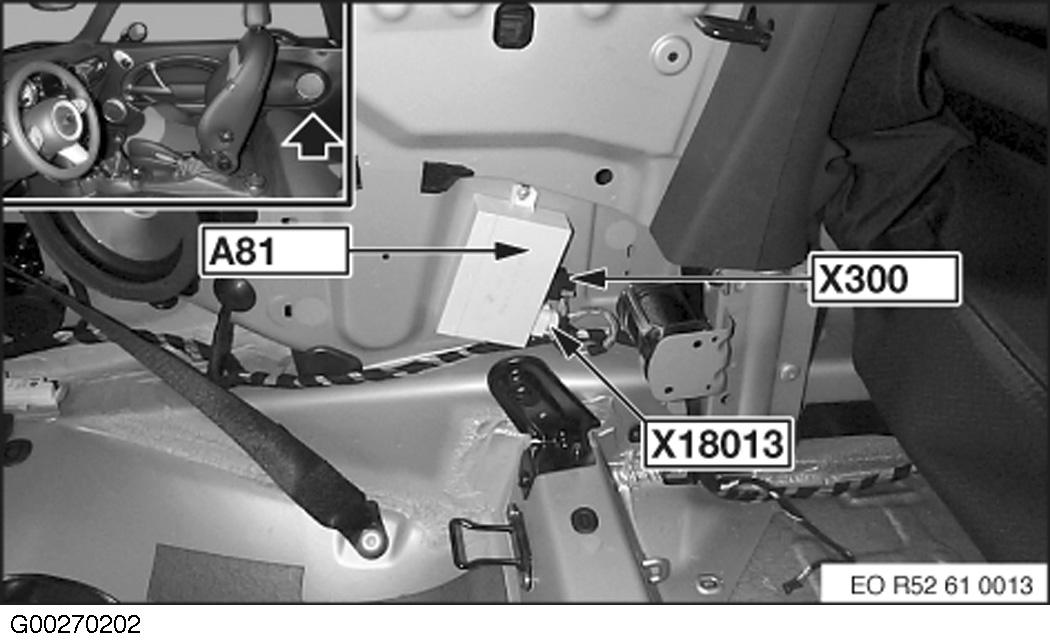

| Park Distance Control Unit (PDC) (A81) (Convertible) | Right rear passenger compartment. See Figure . |

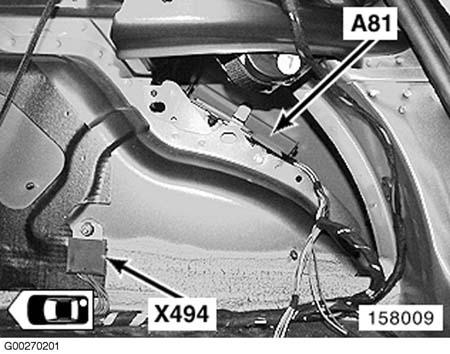

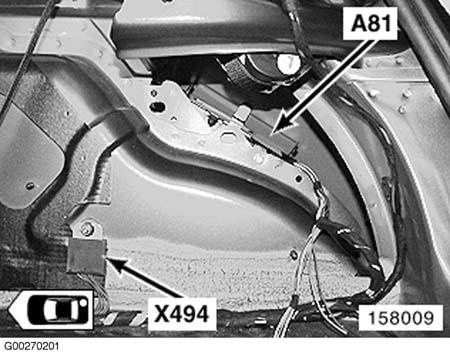

| Park Distance Control Unit (PDC) (A81) (Coupe) | Right rear side of luggage compartment. See Figure . |

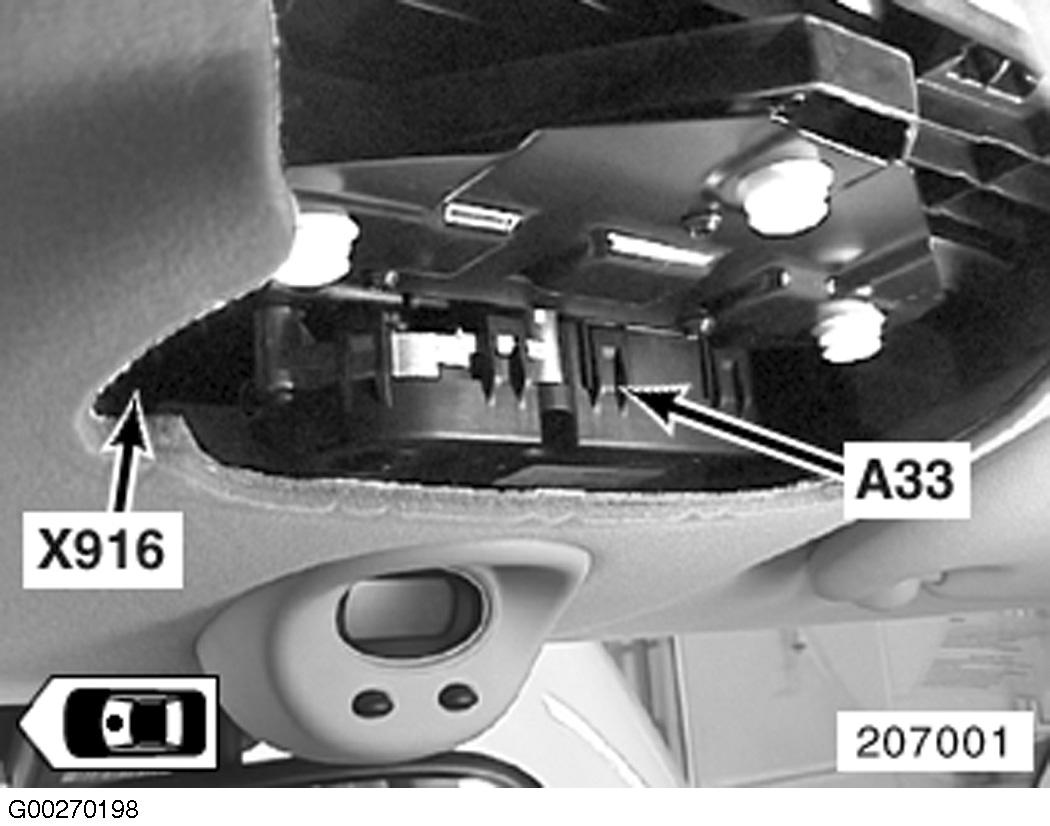

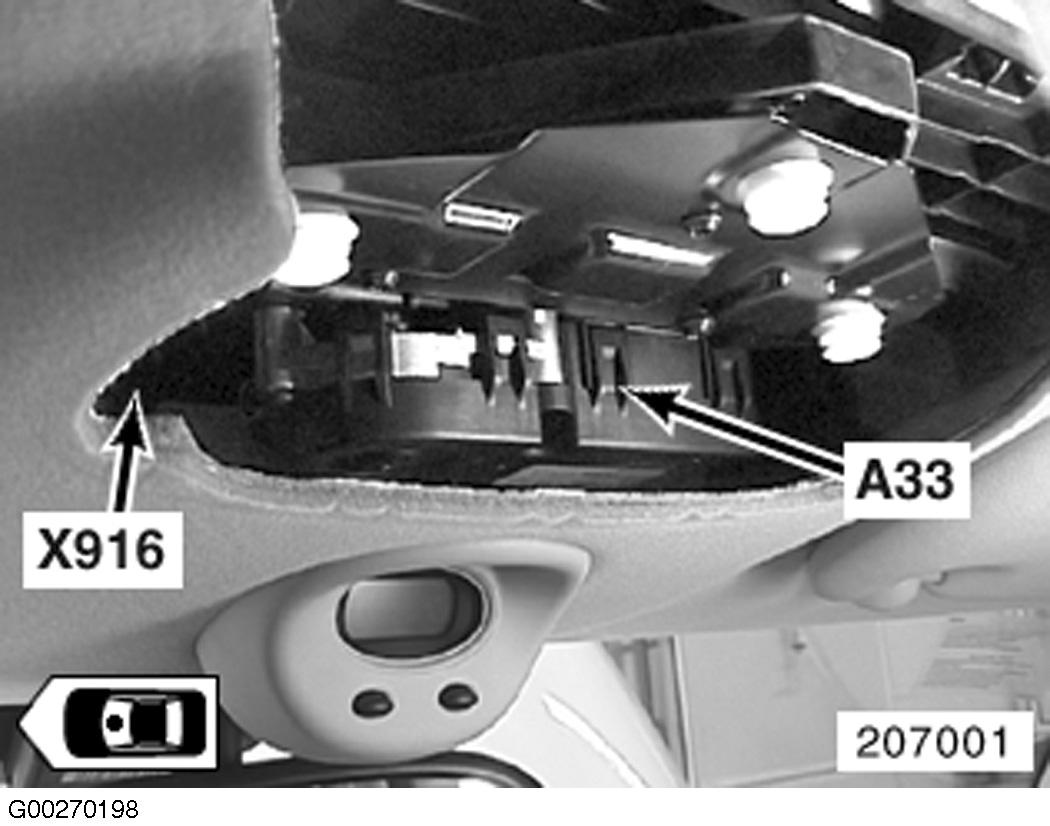

| Sunroof Module Control Unit (A33) | Under front headliner. See Figure . |

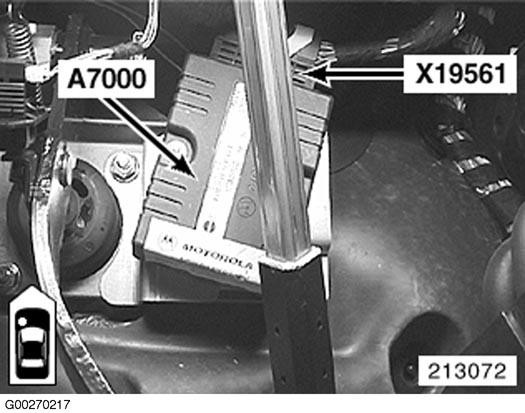

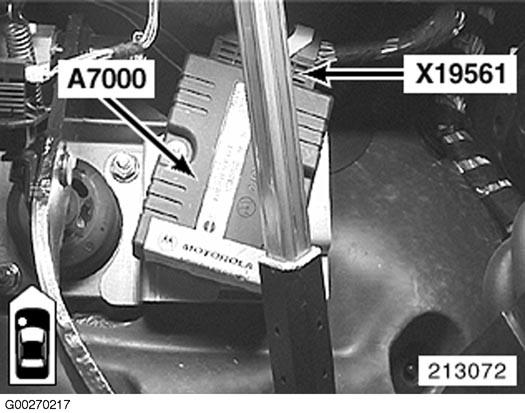

| Transmission Control Unit (A7000) | Left side of left footwell. See Figure . |
