Compressor Control: Notes

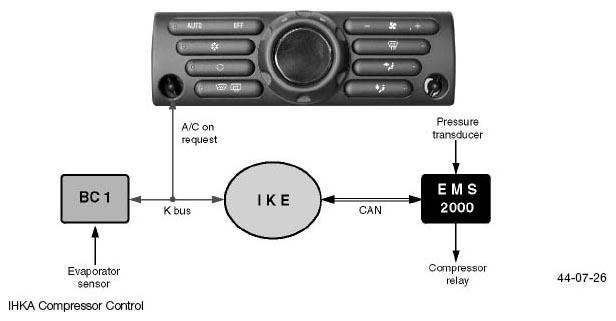

The control of the compressor is the same as that of the IHKS with the exception of the IHKA module signals compressor request to the EMS2000 via the K-bus and not the BC1. The evaporator sensor still signals to the BC1 as on the IHKS.
