Accessing Stored ZCS Information (w/ Progman v. 16 & higher): Notes

From the Progman startup window, select New session .

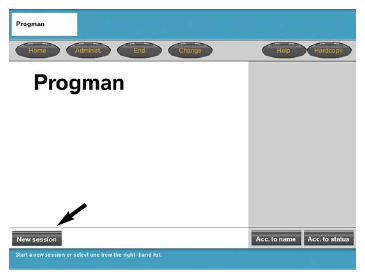

Fig 1: Display Screen - New Session

Courtesy of BMW OF NORTH AMERICA, INC.

Establish a connection to the interface connected to the vehicle and select Continue .

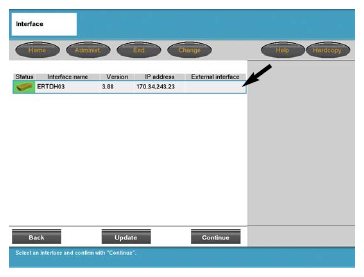

Fig 2: Display Screen - Continue

Courtesy of BMW OF NORTH AMERICA, INC.

To perform the procedure from CIP the Model series must be selected.

Select the MINI .

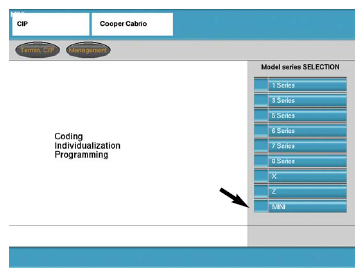

Fig 3: Display Screen - MINI

Courtesy of BMW OF NORTH AMERICA, INC.

From the top menu bar, select Vehicle .

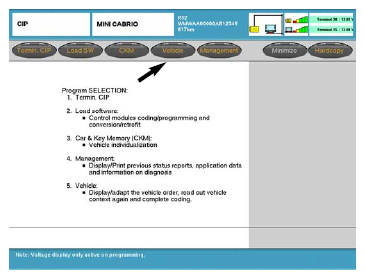

Fig 4: Display Screen - Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

The CIP software now looks at the modules installed in the vehicle for:

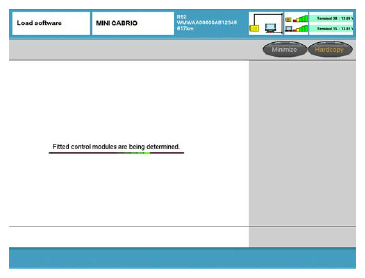

Fig 5: Display Screen - CIP Software

Courtesy of BMW OF NORTH AMERICA, INC.

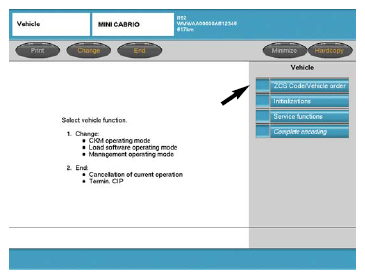

To display the vehicle's ZCS code, select ZCS Coding/Variant Code .

Fig 6: Display Screen - ZCS Coding/Variant Code

Courtesy of BMW OF NORTH AMERICA, INC.
