Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION

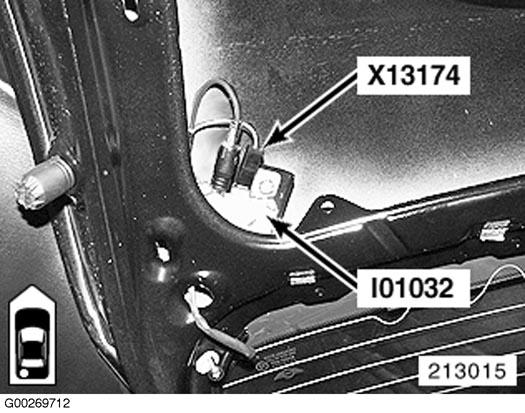

| Component | Location |
|---|---|
| Airbag Inflator Assembly, Driver's Head Area (G17) | Left rear side of luggage compartment. See Figure . |
| Airbag Inflator Assembly, Passenger's Head Area (G18) | Right rear side of luggage compartment. See Figure . |
| AM/FM Antenna Amplifier, Side Window (I01190) | Behind right side trim panel. See Figure . |
| Antenna Amplifier AM/FM Ohne Diversity (N8) | Headliner. See Figure . |
| Antenna Amplifier (I01032) | Left rear lid. See Figure . |

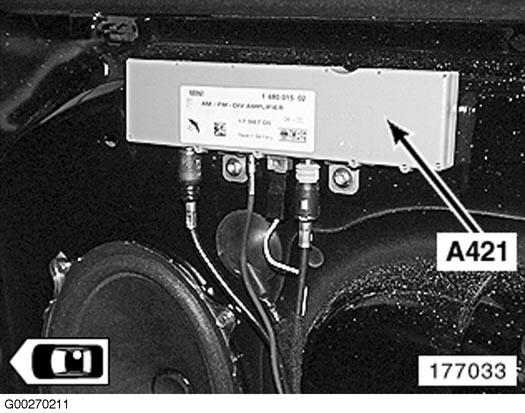

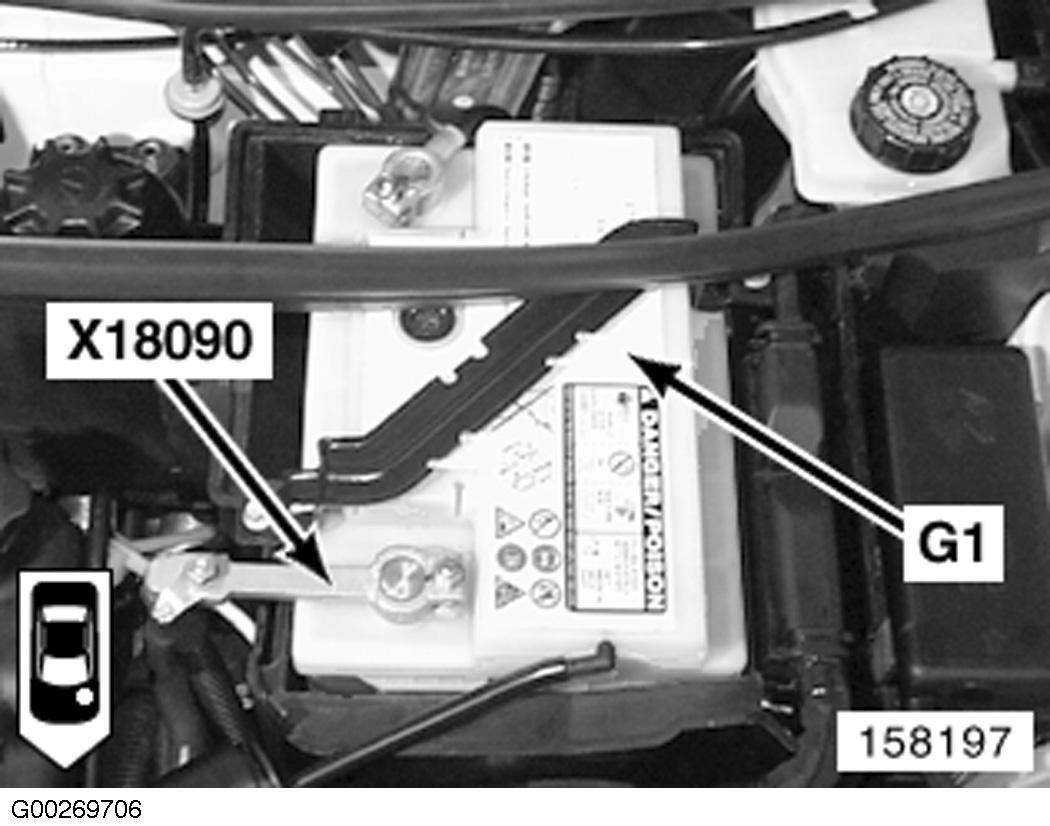

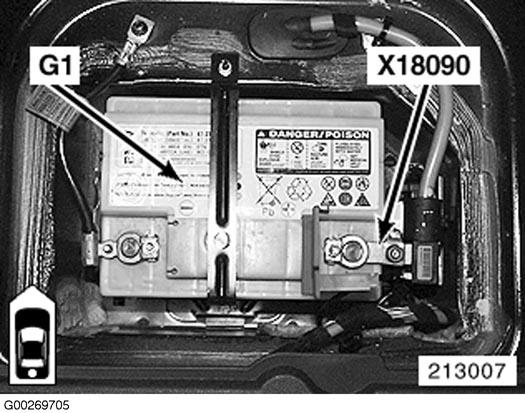

| Antenna Diversity (A421) | Right rear passenger compartment. See Figure . |
| Battery (G1) (1.6L) | Left rear of engine compartment. See Figure . |
| Battery (G1) (1.6L Supercharged) | Bottom of luggage compartment. See Figure . |

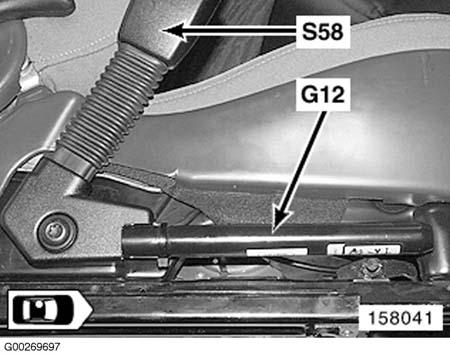

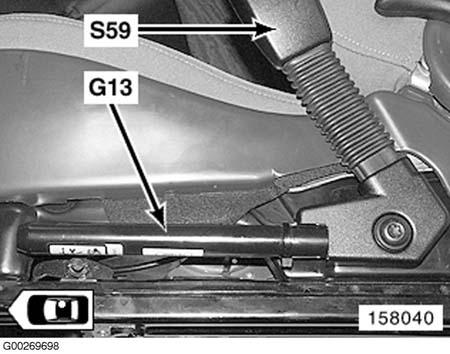

| Belt Tensioner, Driver (G12) | Driver's seat. See Figure . |
| Belt Tensioner, Passenger (G13) | Passenger's seat. See Figure . |

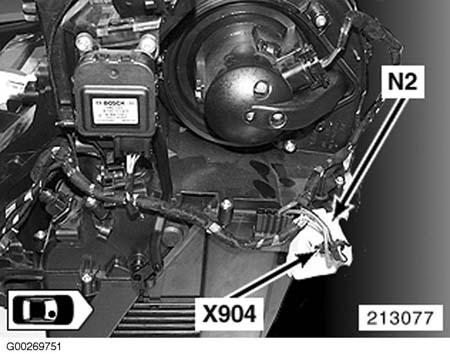

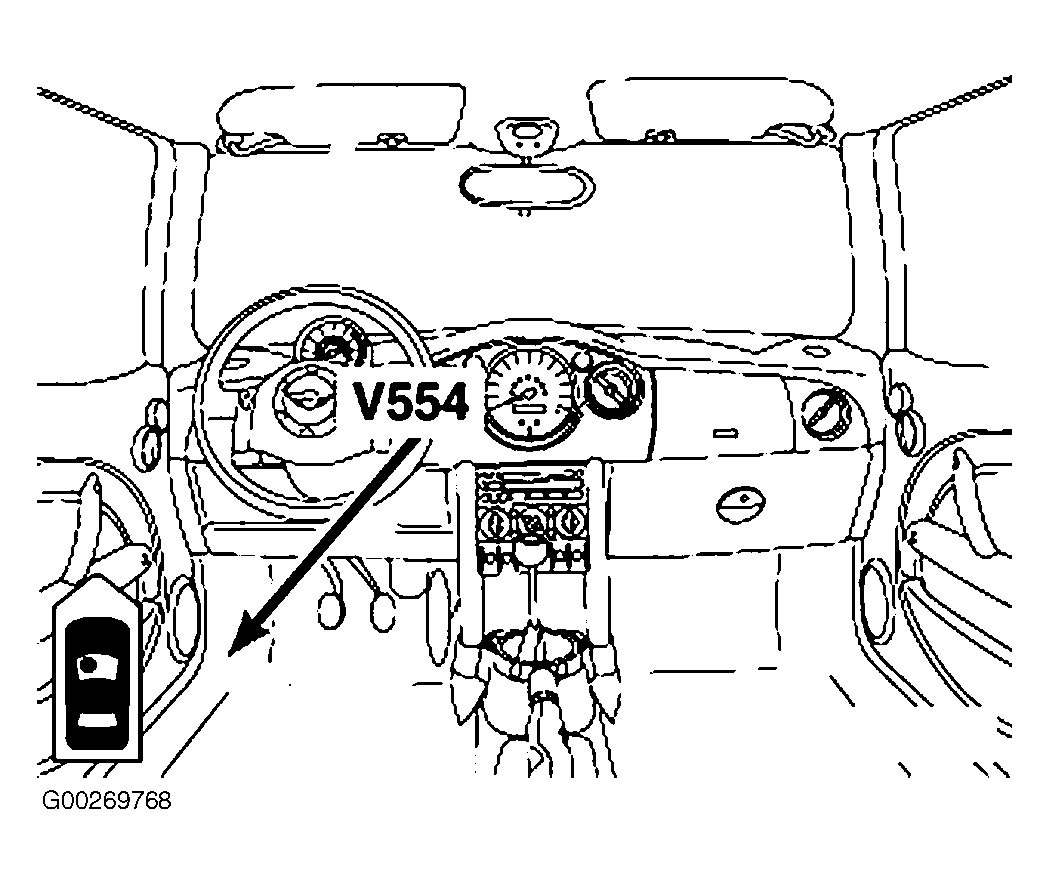

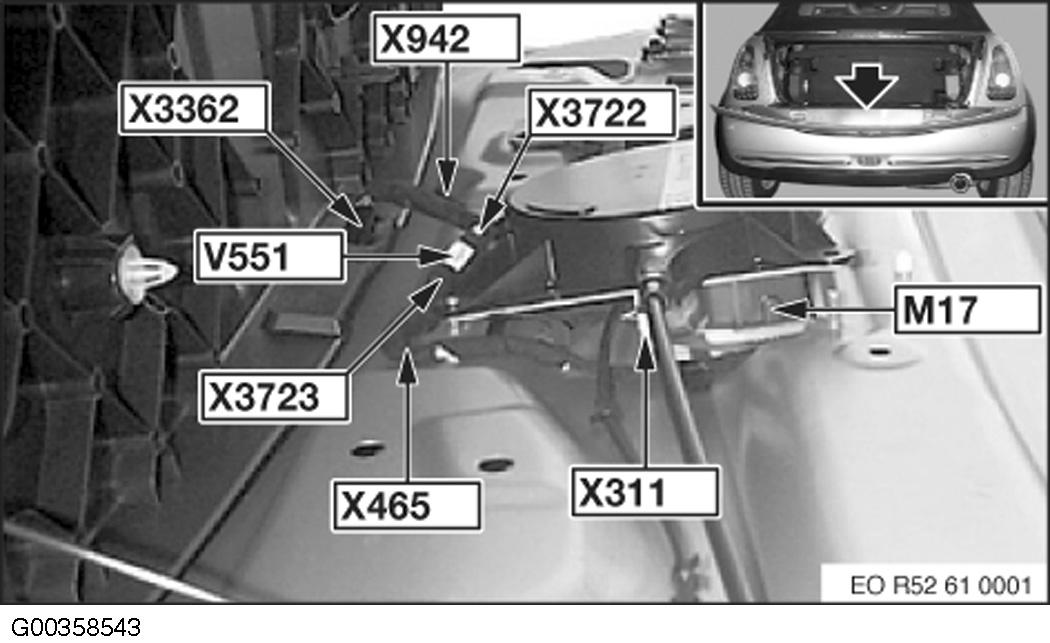

| Blower Output Stage (N2) | Center of dash. See Figure . |
| Blower Series Resistor (R11) | Behind left side of glove box. See Figure . |
| Diode Communication Line (EWS) (V554) | Left side of left footwell. See Figure . |
| Diode (V551) (2002-2004) (Convertible) | Left rear of trunk. See Figure . |
| Diode (V551) (2002-2004) (Coupe) | Right kick panel. See Figure . |

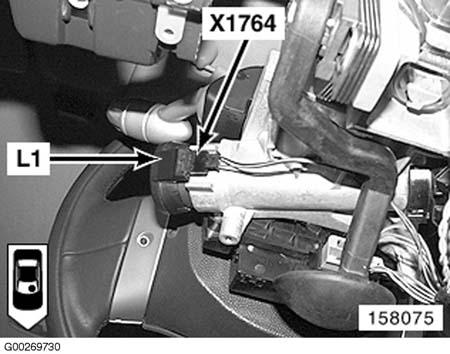

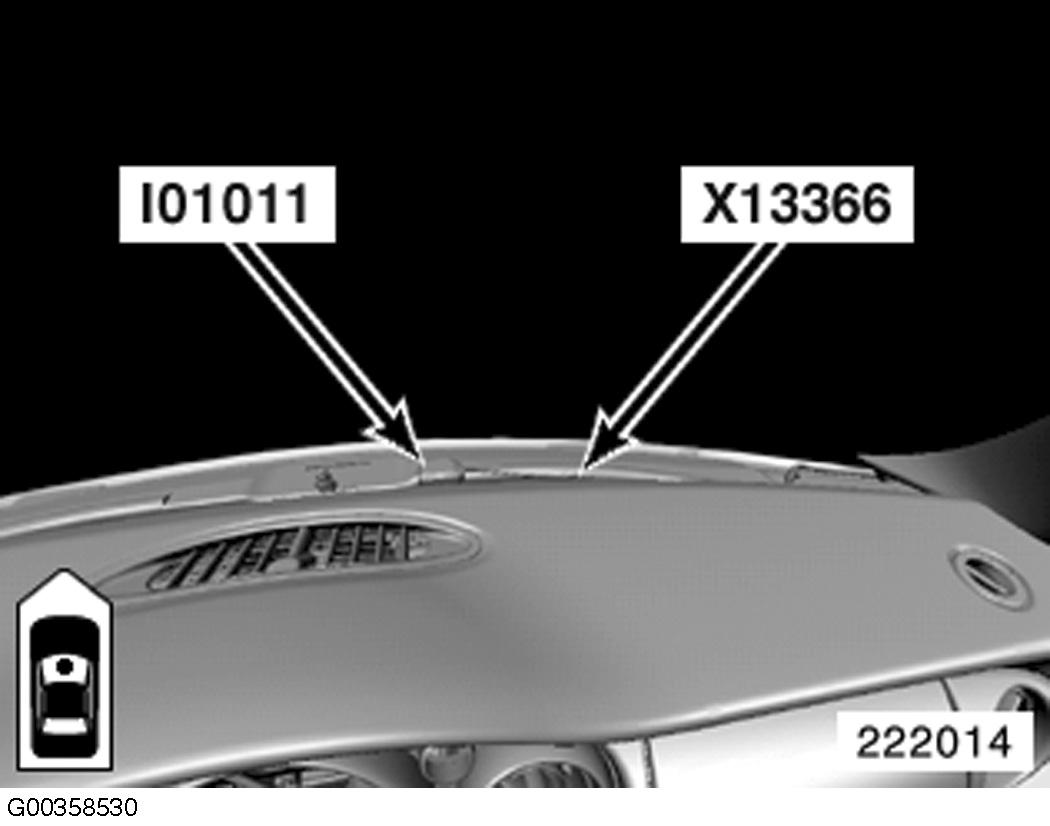

| EWS Toroidal Coil (L1) | Behind steering wheel. See Figure . |
| Generator (G6524) (1.6L) | Left front of engine. See Figure . |
| Generator (G6524) (1.6L Supercharged) | Lower front of engine. See Figure . |
| GPS Antenna (I01011) (2002) | Top center of dash. See Figure . |
| Horn, Anti-Theft Alarm System (H1) | Right rear of engine compartment. See Figure . |

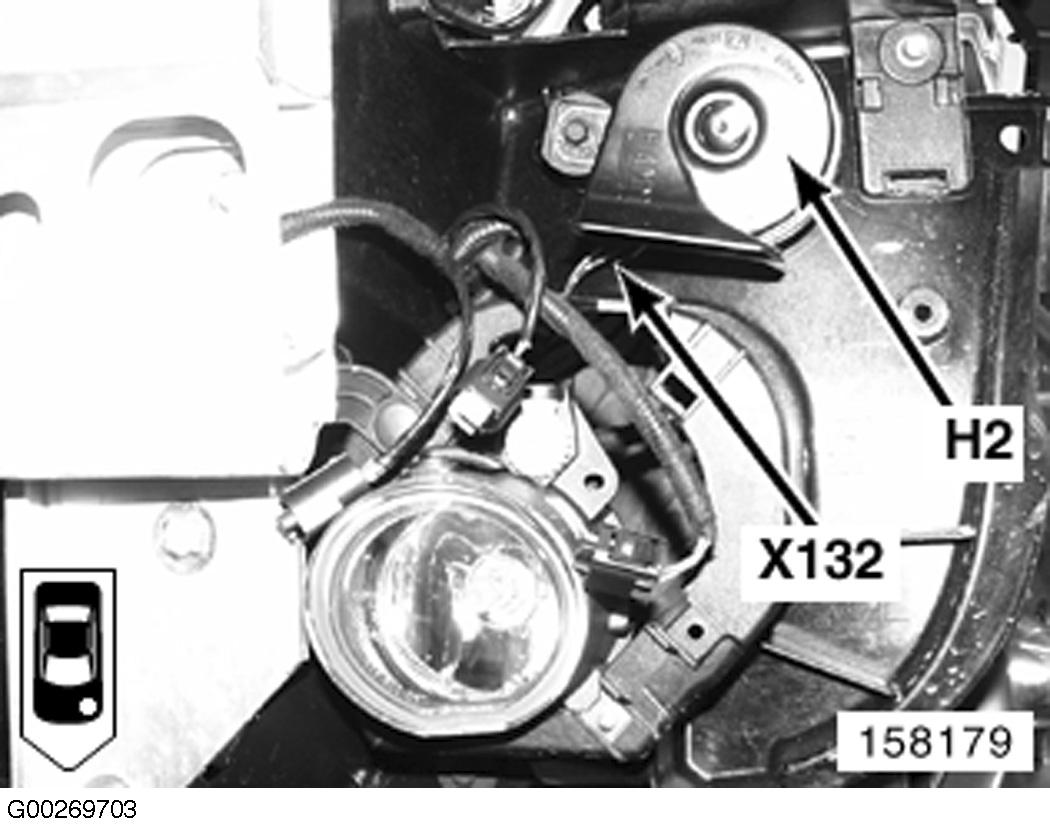

| Horn, Left (H2) | Left front fender. See Figure . |
| Horn, Right (H3) | Right front fender. See Figure . |

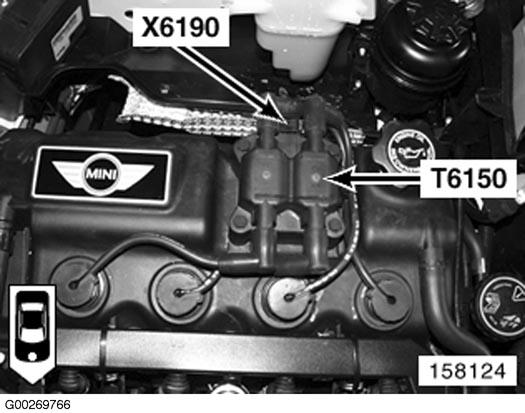

| Ignition Coil (T6150) | Top rear of engine. See Figure . |

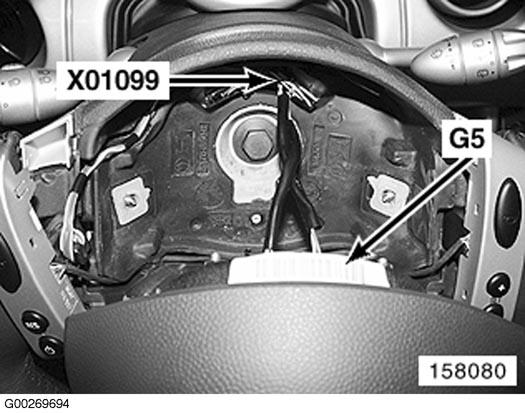

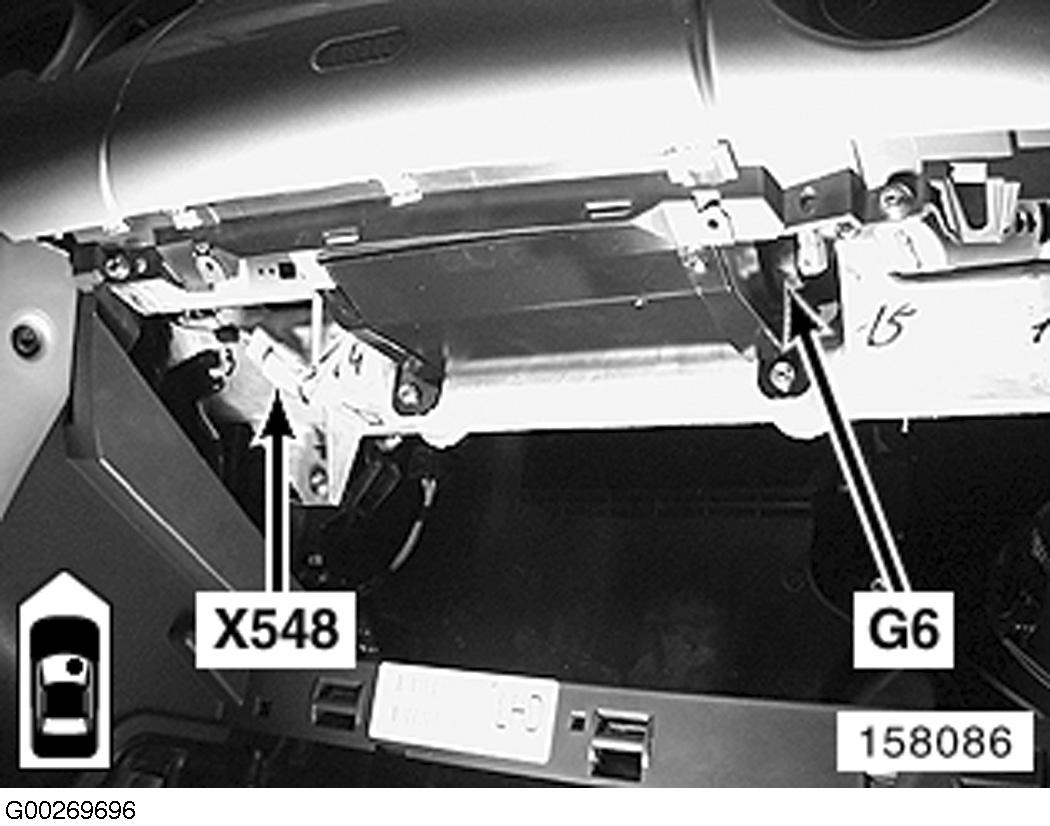

| Inflator Assembly, Driver Airbag (G5) (Multifunction Steering Wheel 1) | Steering wheel. See Figure . |
| Inflator Assembly, Driver Airbag (G5) (Multifunction Steering Wheel 2) | Steering wheel. See Figure . |
| Inflator Assembly For Side Airbag, Driver's Door (G14) | Seat. See Figure . |
| Inflator Assembly For Side Airbag, Passenger's Door (G15) | Seat. See Figure . |
| Inflator Assembly, Passenger Airbag (G6) | Right side of dash. See Figure . |
| Jet Heater (Left Windshield Washer) (E51) | Engine hood. See Figure . |
| Jet Heater (Right Windshield Washer) (E52) | Engine hood. See Figure . |

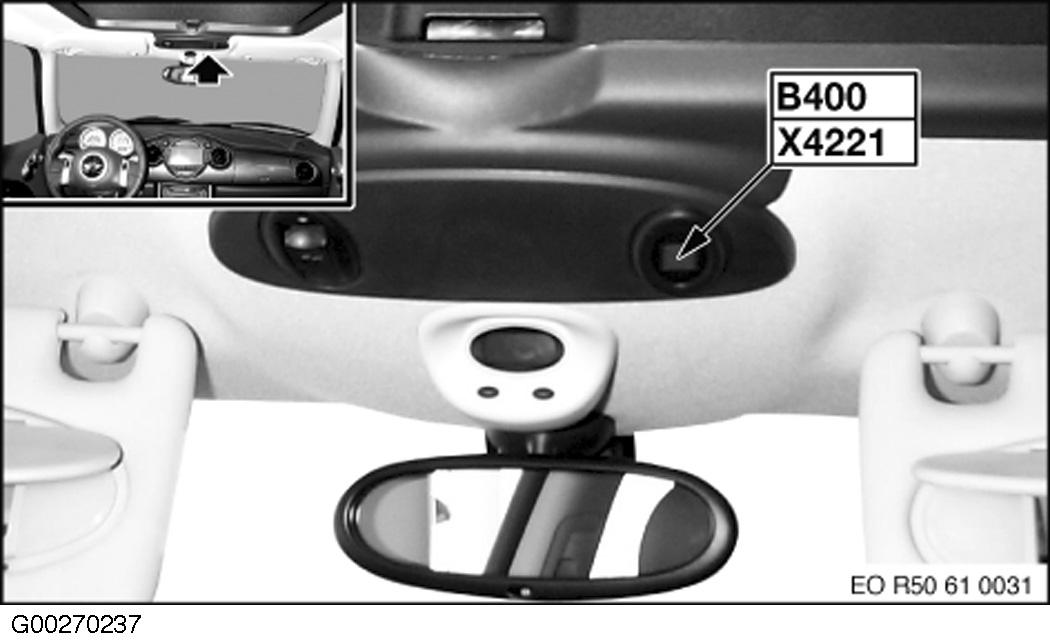

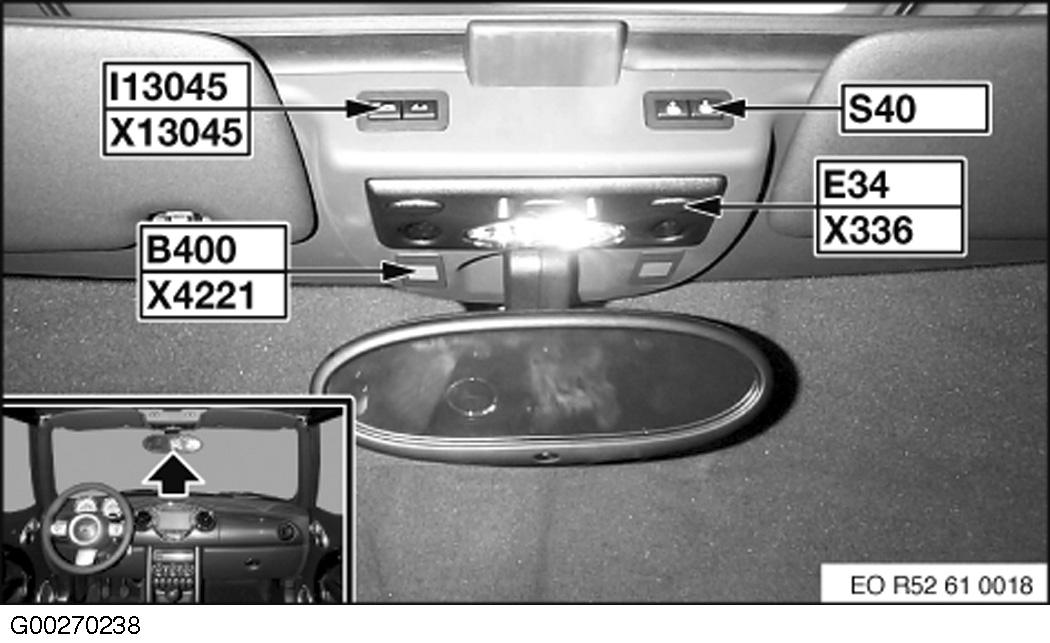

| Microphone (B400) (Convertible) | Roof. See Figure . |
| Microphone (B400) (Coupe) | Roof. See Figure . |
| Seatback Heater (Driver) (E56) | Driver's seat. See Figure . |
| Seatback Heater (Passenger) (E58) | Passenger's seat. See Figure . |

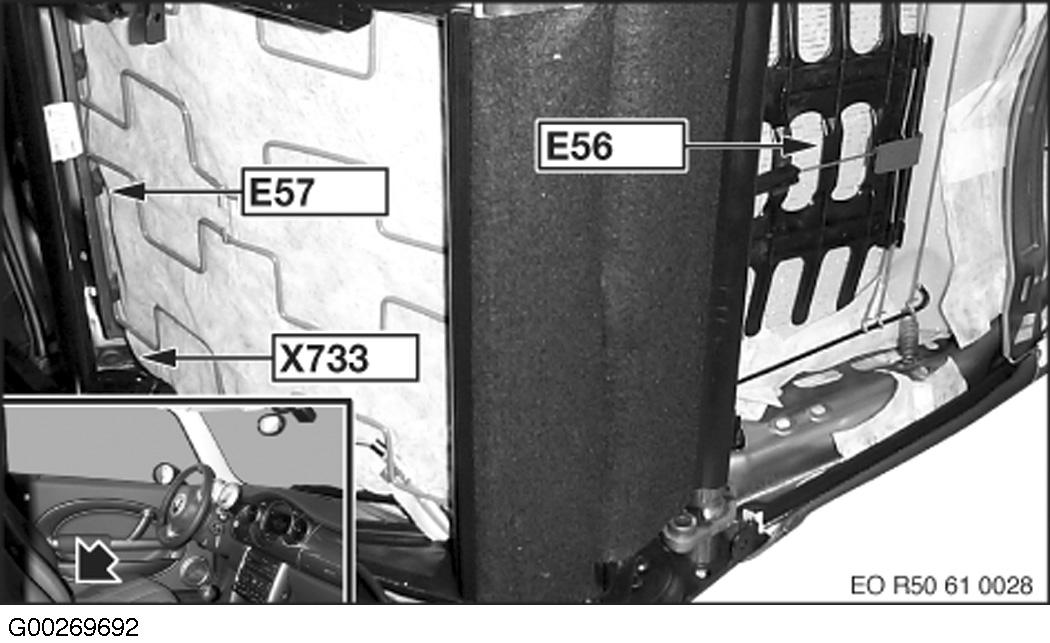

| Seat Heater (Driver) (E57) | Driver's seat. See Figure . |
| Seat Heater (Passenger) (E59) | Passenger's seat. See Figure . |

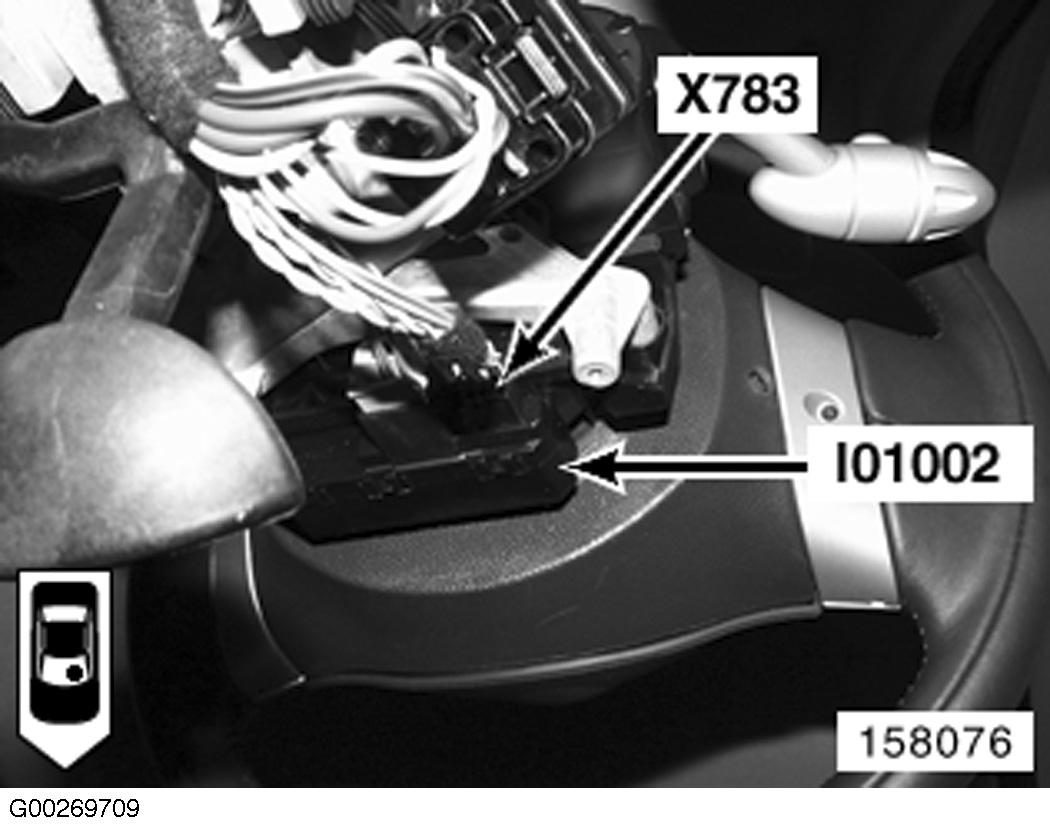

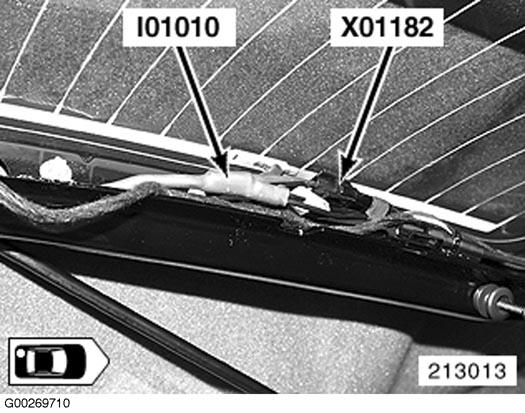

| Volute Spring (I01002) | Behind steering wheel. See Figure . |
| Wave Trap 1 (I01010) | Left rear window. See Figure . |

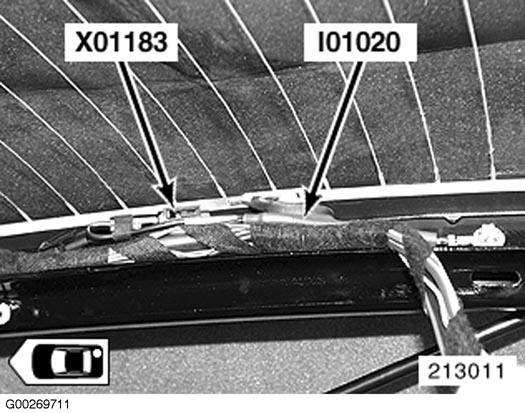

| Wave Trap 2 (I01020) | Right rear window. See Figure . |
