BMWFault Code (DISplus)
- Engine control module codes are stored as soon they occur even before the "Malfunction Indicator Light" comes on.
- Engine control module codes are defined by MINI and Siemens Engineers to provide greater detail to fault specific information.
- Siemens systems - one set of four fault specific environmental conditions are stored with the first fault occurrence. This information can change and is specific to each fault code to aid in diagnosing. A maximum of ten different faults containing four environmental conditions can be stored.
- MINI codes also store and display a "time stamp" when the fault last occurred.
- A fault qualifier gives more specific detailed information about the type of fault (upper limit, lower limit, disconnection, plausibility, etc.).
- MINI Fault Codes will alert the Technician of the current fault status. He/she will be advised if the fault is actually still present, not currently present or intermittent. The fault specific information is stored and accessible through approved diagnostic equipment.

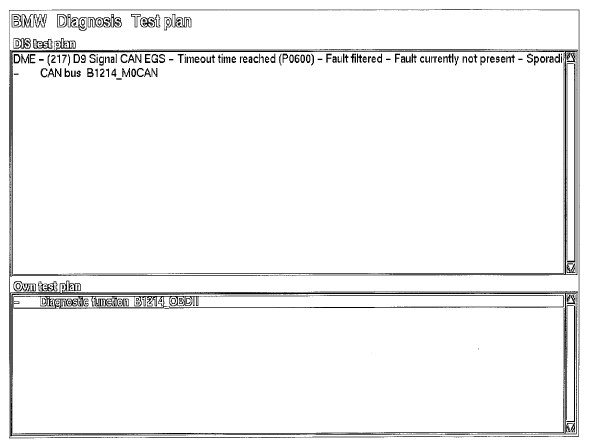

- MINI engine control module fault codes determine the diagnostic procedure or test plan output for BMW DISplus.
Courtesy of BMW OF NORTH AMERICA, INC.
