Principle of Operation: Notes

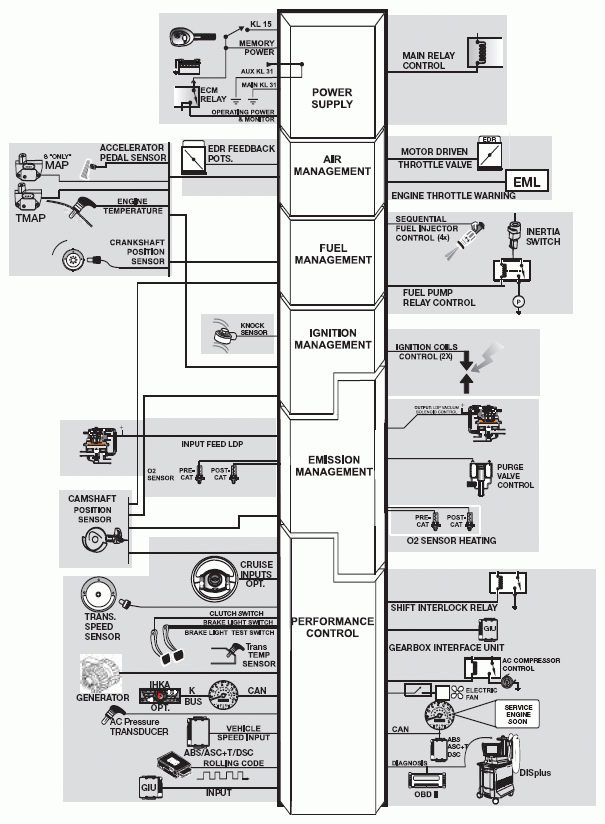

Operation of the Engine Management System is broken into 6 subsystems. These subsystems are:

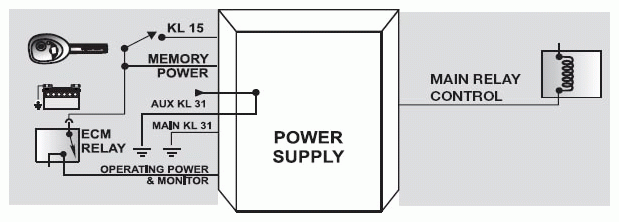

• Power Supply
• Air Management
• Fuel Management
• Ignition Management
• Emission Management
• Performance Management
