Assorted Special Tools (M04 04 02)

Publication date: 2002-04-01
Reference number: M04 04 02

ASSORTED SPECIAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 04 02, Date of Issue: April 2002

MINI:	R50/R53
GROUP:	Tools and Equipment

SUBJECT

Assorted Special Tools

MODEL

R50/R53

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment. All special tools in the MINI repair manual carry the prefix "88 88 0 XXX XXX" or "90 88 0 XXX XXX". Check the prefix in the parts computer before ordering special tools from the repair manual.

TOOL INFORMATION

Tensioner Lever

PN 90 88 0 118 410

Fig 1: Tensioner Lever

Used to release the belt tensioner when removing and installing the generator belt on the W11 engine. Refer to repair manual section 11 28 050.

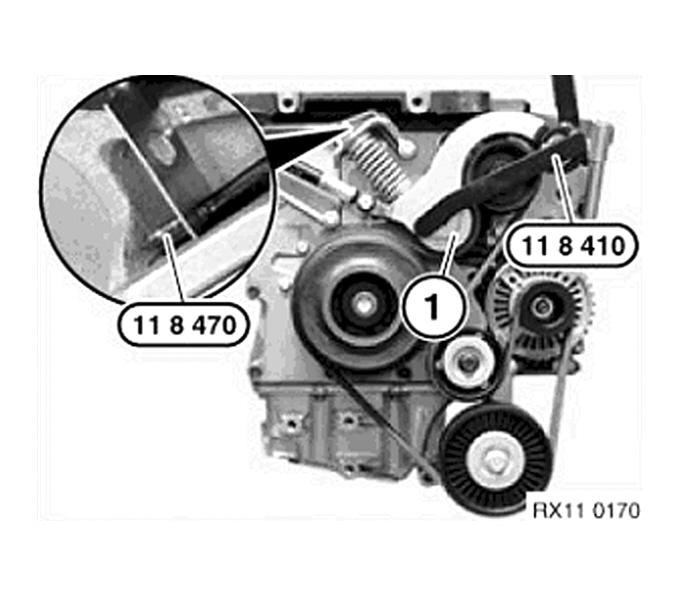

Fig 2: Removing Generator Belt On W11 Engine

Damper Puller

PN 90 88 0 118 450

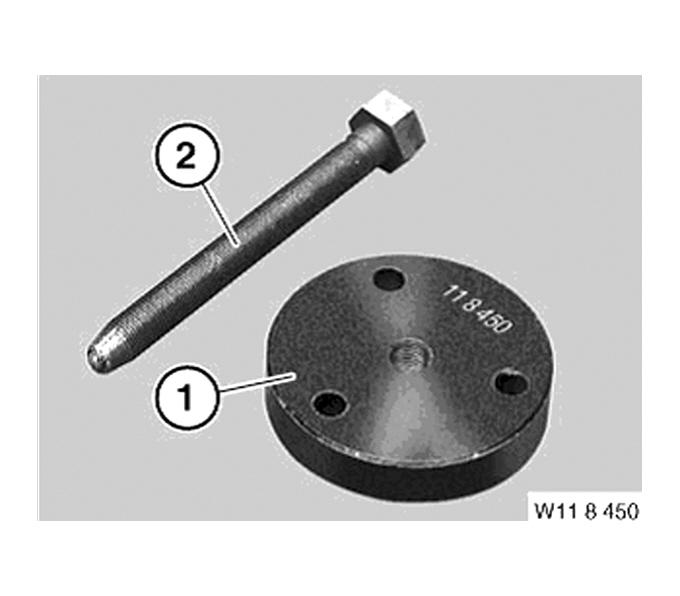

Fig 3: Damper Puller (Special Tools)

Used to remove the vibration dampener on the W11 engine. Refer to repair manual section 11 23 010.

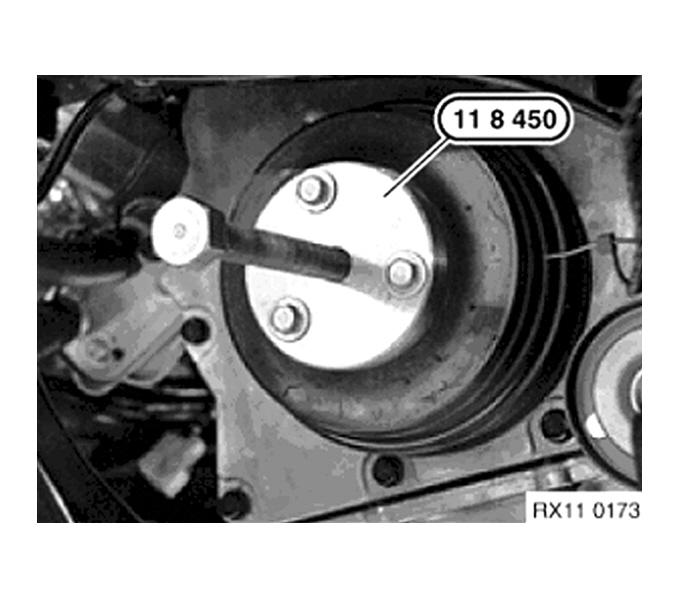

Fig 4: Removing Vibration Dampener On W11 Engine

Brace

PN 90 88 0 118 460

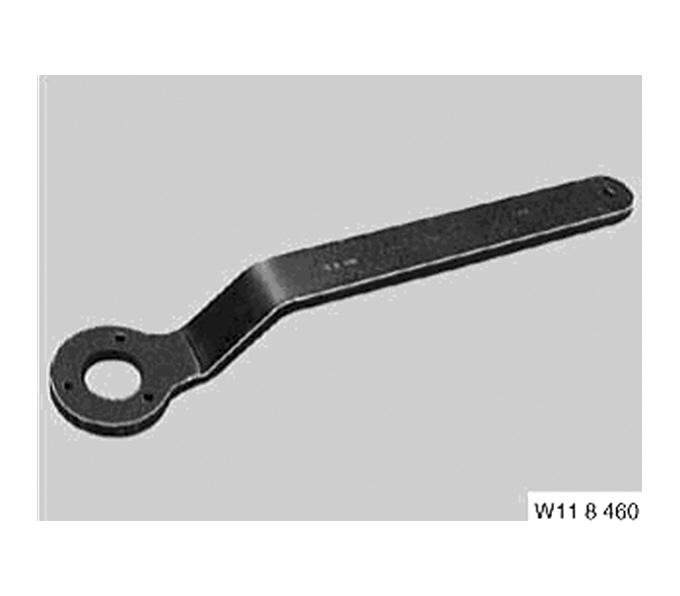

Fig 5: Vibration Dampener Brace

Used to hold the vibration dampener when removing the central bolt on the W11 engine. Refer to repair manual section 11 22 500.

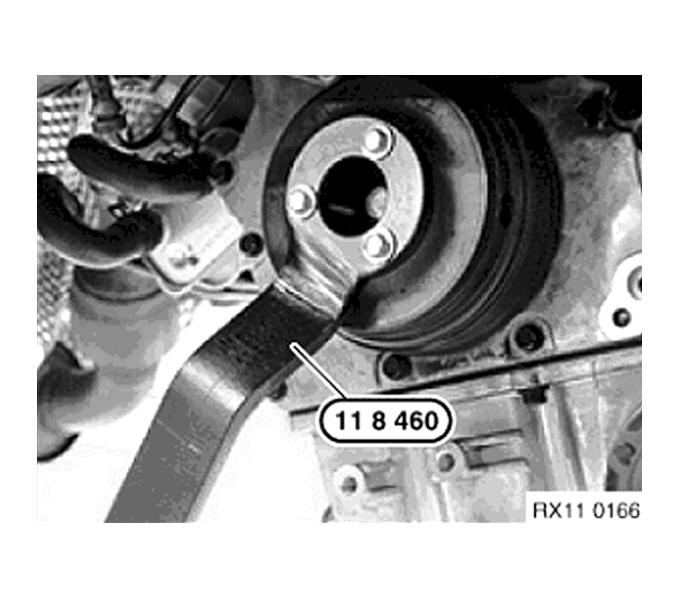

Fig 6: Holding Vibration Dampener Then Removing Central Bolt On W11 Engine

Locking Pin

PN 90 88 0 118 470

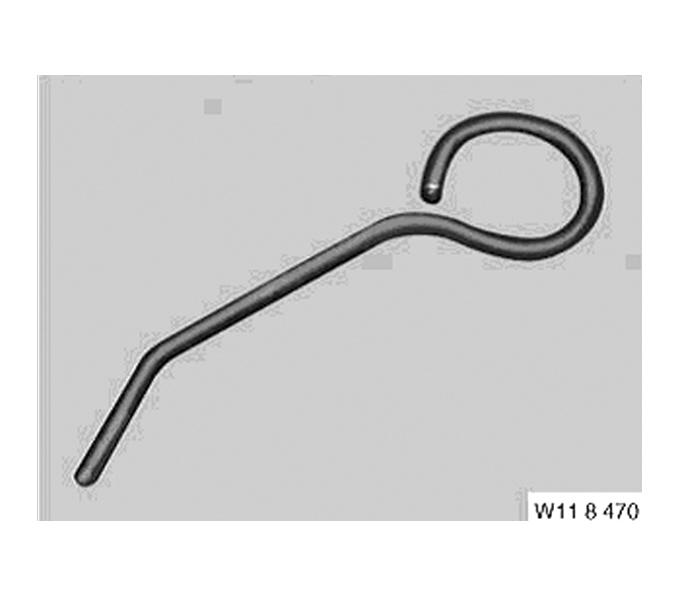

Fig 7: Identifying Locking Pin

Used to lock the chain tensioner to R & R the generator drive belt on the W11 engine. Refer to repair manual section 11 28 050.

Fig 8: Locking Chain Tensioner

Compression adapter

PN 90 88 0 118 490

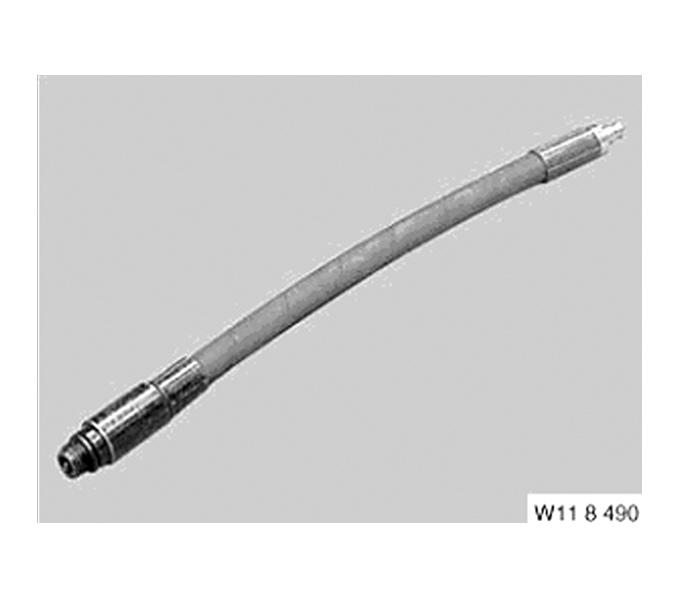

Fig 9: Compression Adapter

Used in conjunction with 110 220 to test engine compression on the W10/W11 engines. Refer to repair manual section 11 00 039.

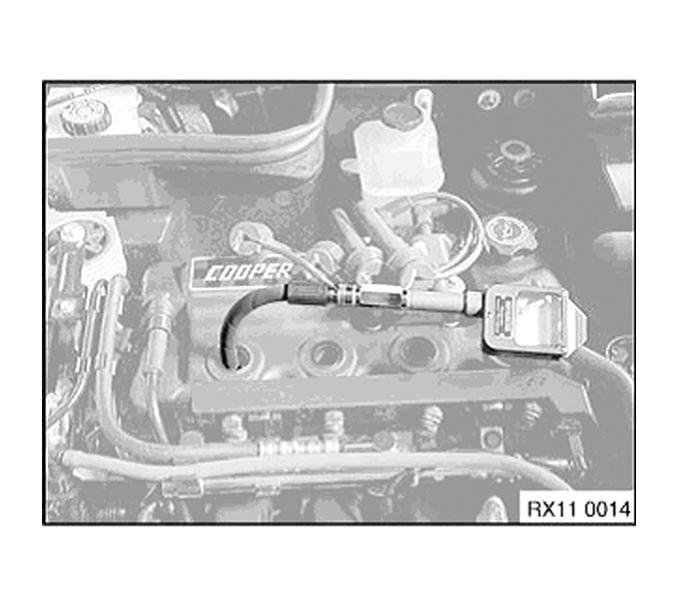

Fig 10: Testing Engine Compression On W10/W11 Engines

Radiator Adapter

PN 90 88 0 170 009

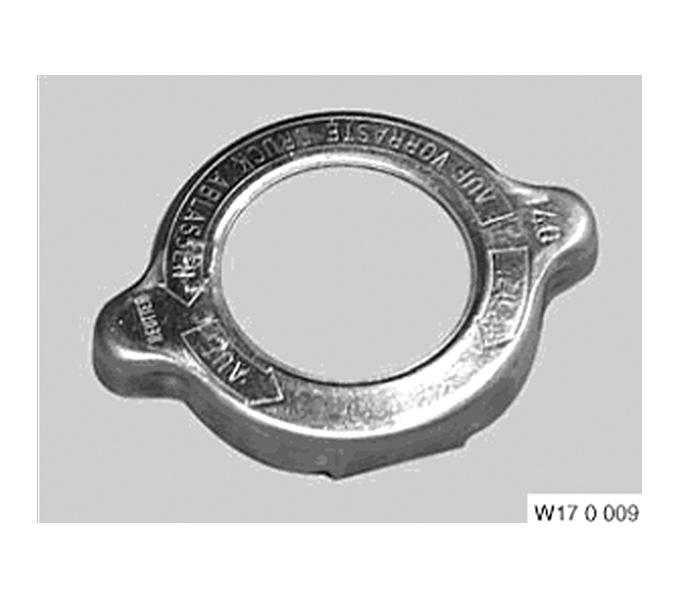

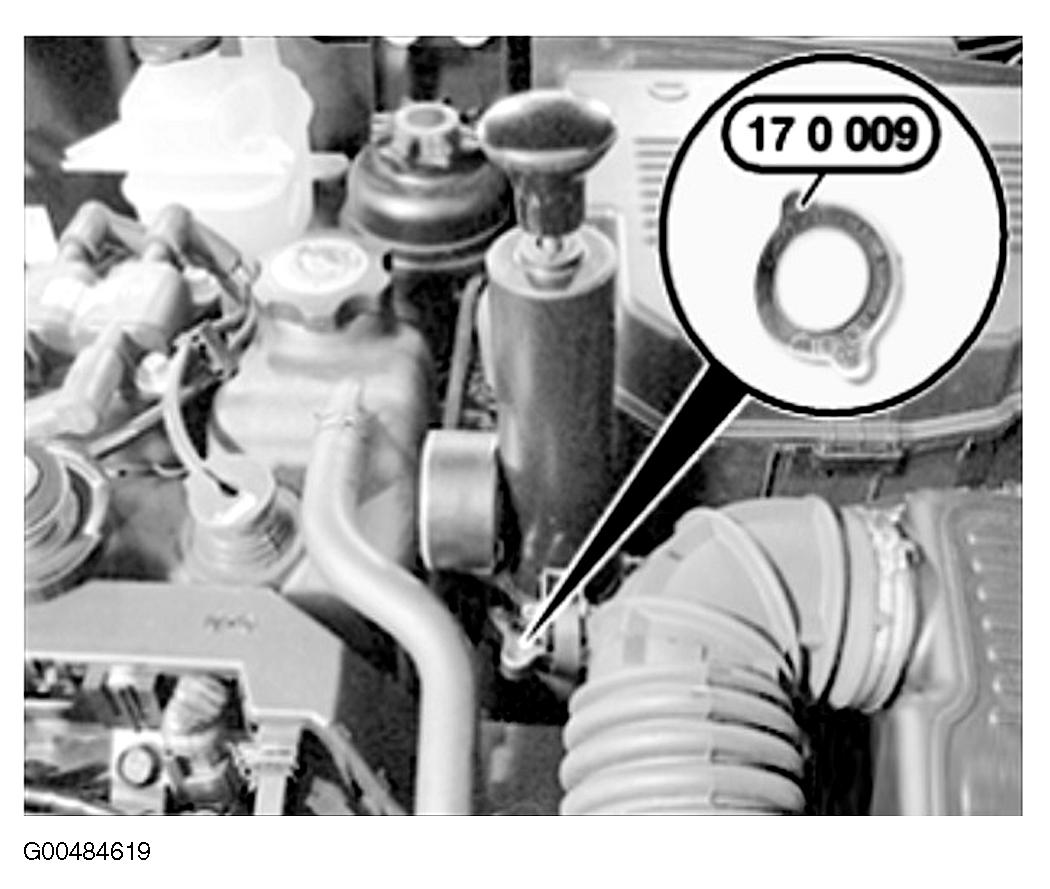

Fig 11: Radiator Adapter

Used in conjunction with 170 009 to test the radiator for leaks on the W10/W11 engines. Refer to repair manual section 17 00 009.

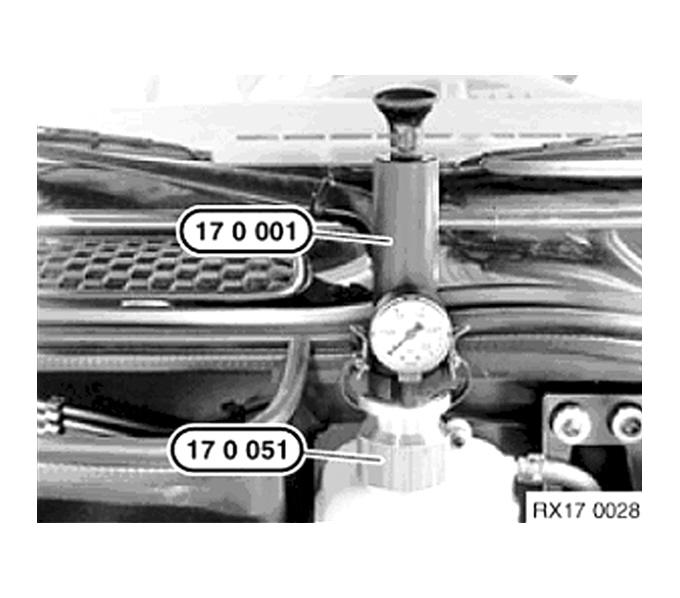

Fig 12: Testing Radiator For Leaks

Radiator Adapter Set

PN 90 88 0 170 050

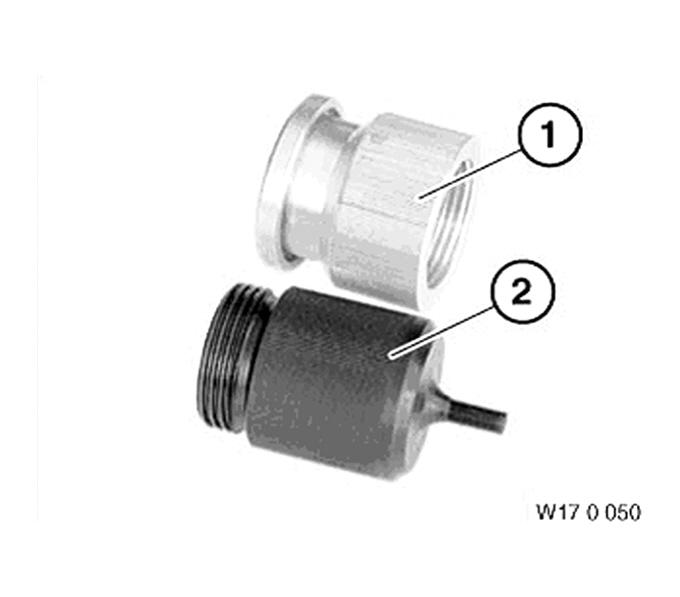

Fig 13: Radiator Adapter Set

Used in conjunction with 170 002 to test the radiator for leaks on W10/W11 engines. Refer to repair manual section 17 00 009.

Fig 14: Testing Radiator For Leaks On W10/W11 Engines

Centering Mandrel

PN 90 88 0 212 210

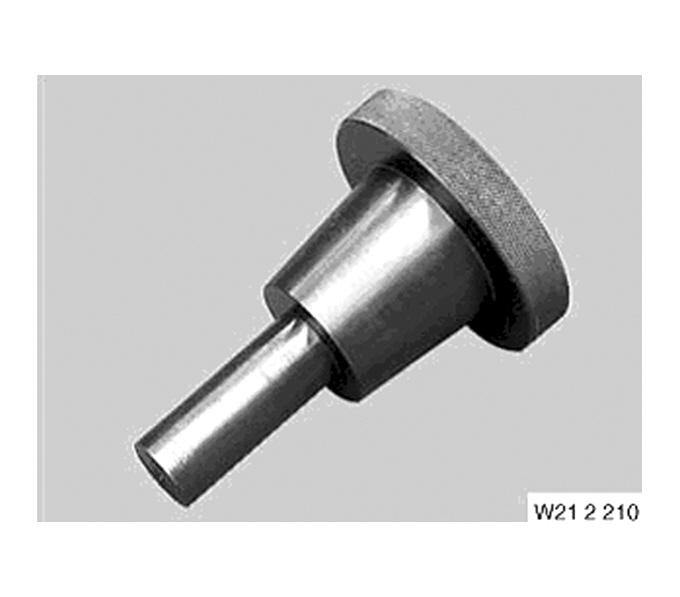

Fig 15: Centering Mandrel

Used to center the clutch for installation on the W11 engine. Refer to repair manual section 23 11 200.

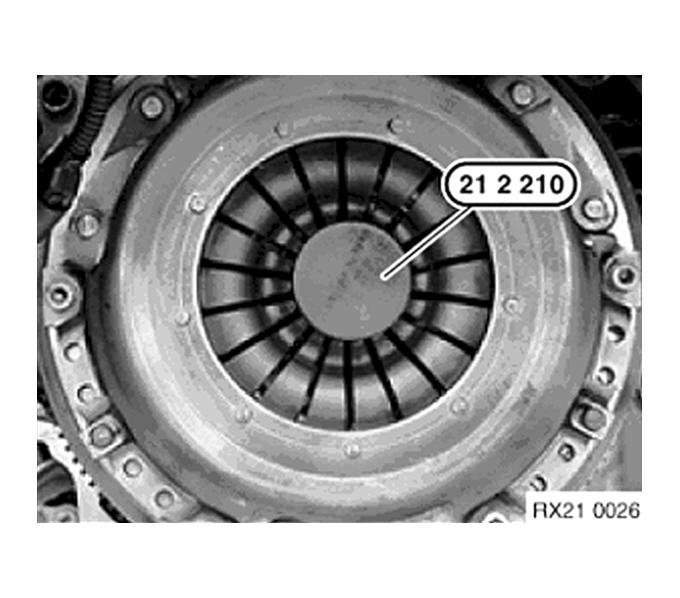

Fig 16: Centering Clutch For Installation

Drift Set

PN 90 88 0 234 000

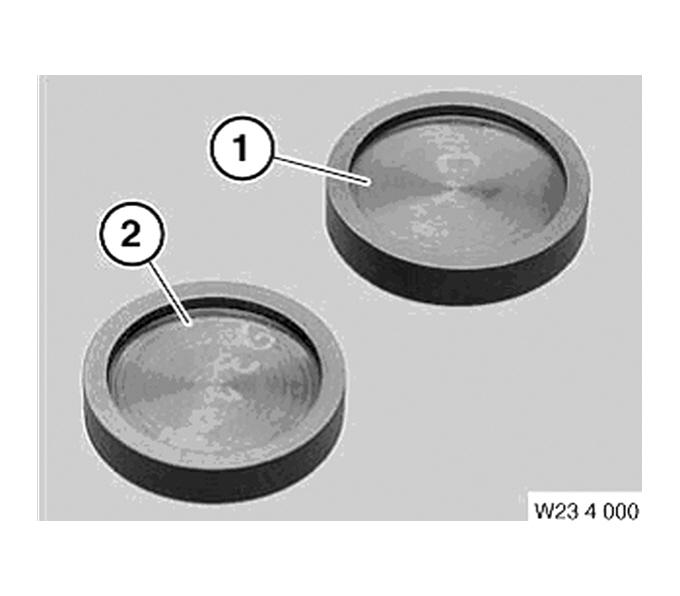

Fig 17: Drift Set

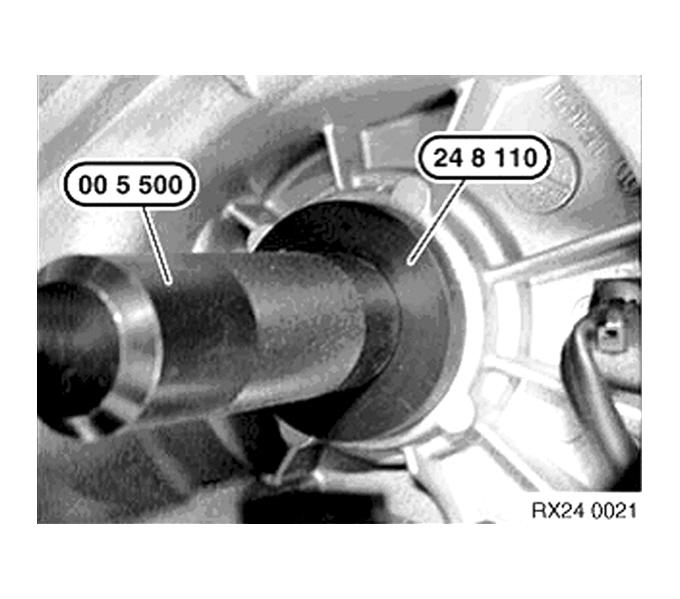

Used in conjunction with 005 500 to properly set the input shaft seal in the 6 speed manual gearbox model 285. Refer to repair manual section 23 11 200.

1.234 001 67 mm

2.234 002 53 mm

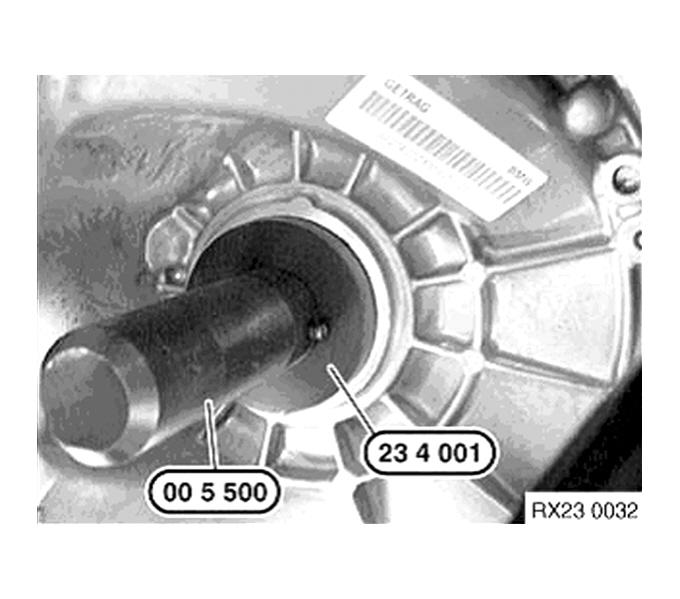

Fig 18: Installing Input Shaft Seal In Manual Gearbox

Shift Cable Remover

PN 90 88 0 234 010

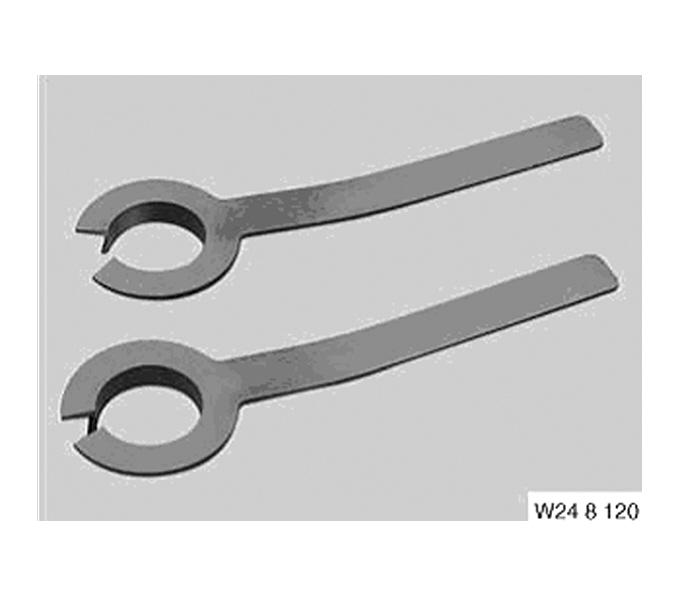

Fig 19: Shift Cable Remover

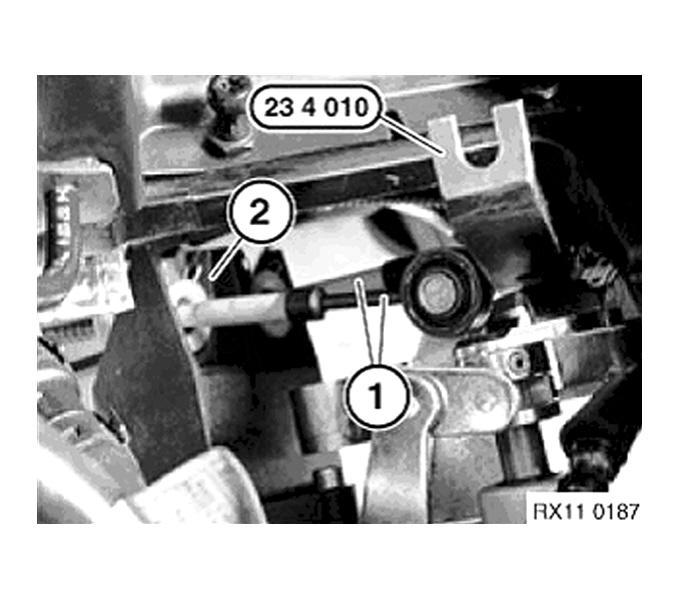

Used to properly remove the gearshift cables from the ball joints during removal of the 6-speed manual gearbox model 285. Refer to repair manual section 23 00 022.

Fig 20: Removing Gearshift Cables From Ball Joints
