Fuel Injection And Induction System Cleaning Tool Hose Replacement (M04 17 07)
Publication date: 2007-12-20Reference number: M04 17 07
FUEL INJECTION AND INDUCTION SYSTEM CLEANING TOOL HOSE REPLACEMENT
TECHNICAL SERVICE BULLETIN
| MINI: | R50 (Cooper) vehicles equipped with W10 engine; R52 (Cooper and Cooper S) vehicles equipped with W10 and W11 engines; R53 (Cooper S) vehicles equipped with W11 engine; R56 (Cooper) vehicles equipped with N12 engine |
| GROUP: | Tools and Equipment |
SUBJECT
Fuel Injection and Induction System Cleaning Tool Hose Replacement
SITUATION
SPX Corporation, the manufacturer of the Fuel Injection and Induction System Cleaning Tool, will be replacing the pressure hose free of charge. In the coming weeks, a replacement steel braided pressure hose with installation instructions will be mailed to your dealer, marked for the attention of the MINI Service Manager. Install the new pressure hose immediately upon receipt and discard the old red-colored pressure hose.

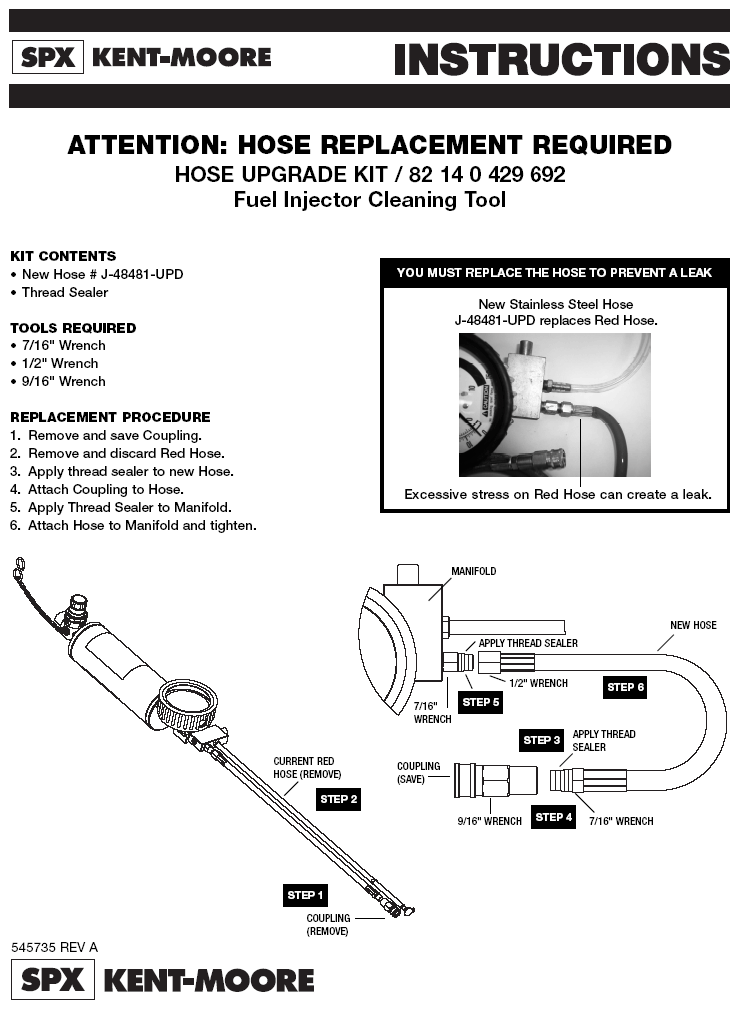

Attached to this Service Information Bulletin are copies of the installation instructions. Only one replacement hose will be shipped to each dealer. If your dealer has more than one Fuel Injection and Induction System Cleaning Tool, then you must use the attached form to order additional pressure hoses free of charge.
TOOL WARRANTY INFORMATION
The use of non-approved materials voids the warranty of the Fuel Injector and Induction System Cleaner Applicator Kit PN 82 14 0 429 692 and its contents. All of these tools are returned for inspection. If materials causing damage to these tools have been identified, then the tool will be returned to your dealer and a replacement credit will not be applied. When the tools described above are returned for warranty reimbursement, the tool must be accompanied by contact information and a reason for return in the shipping carton. Using a non-approved material can lead to deterioration of the tool, resulting in incorrect operation and a possible safety concern.
The Fuel Injector and Induction System Cleaner Applicator is constructed with materials that are compatible with gasoline and the Fuel Injector and Induction System Cleaner Concentrate PN 82 14 0 428 376 only.
