Fuel Line Plugs (M04 04 09)

Publication date: 2009-05-15
Reference number: M04 04 09

FUEL LINE PLUGS

FUEL LINE PLUGS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 04 09, Date of Issue:  May 15, 2009
MINI: All
GROUP: Tools and Equipment

SUBJECT

Fuel Line Plugs

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Fuel Line Plugs

Order P/N 83 30 0 496 565

Cartool P/N 135 160

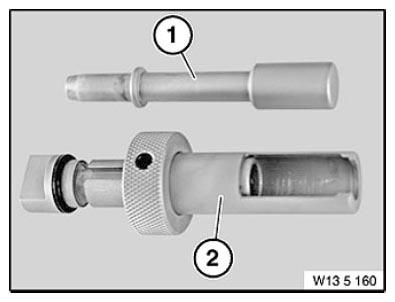

Fig 1: Fuel Line Plugs
G06250577
  1. 135 161 plug for fuel line connector
  2. 135 162 plug for fuel line

The fuel line plugs are used to seal off the vehicle fuel lines during engine removal and replacement. Refer to Repair Manual section 13 53 332 for details.

Fig 2: Fuel Lines Sealed With Plugs
G06250578
