Test Cables (M04 02 02)

Publication date: 2002-03-01
Reference number: M04 02 02

TEST CABLES

TEST CABLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 02 02, Date of Issue:  March 2002
MINI: R50
GROUP: Tools and Equipment

SUBJECT

Test Cables

MODEL

R50

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All special tools in the MINI repair manual carry the prefix "88 88 0 XXX XXX" or "90 88 0 XXX XXX". Check the prefix in the parts computer before ordering special tools from the repair manual.

TOOL INFORMATION

2 pin test cable

PN 90 88 0 649 100

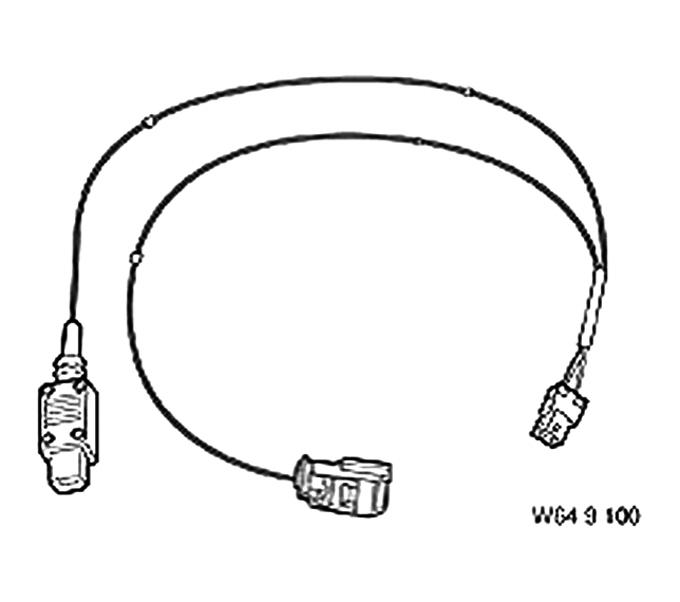

Fig 1: 2 Pin Test Cable
G04171984

Used to test the coolant temperature sensor.

  1. Unplug the coolant temp sensor
  2. Connect the test cable between the sensor & supply wire
  3. Perform measurements as instructed by the diagnosis program

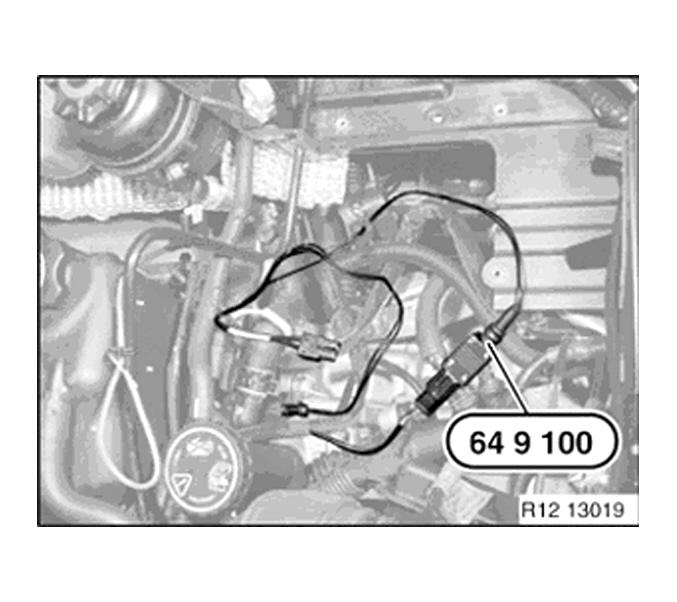

    Fig 2: Connecting Test Cable Between Sensor And Supply Wire
    G04171985

4 pin test cable

PN 90 88 0 127 360

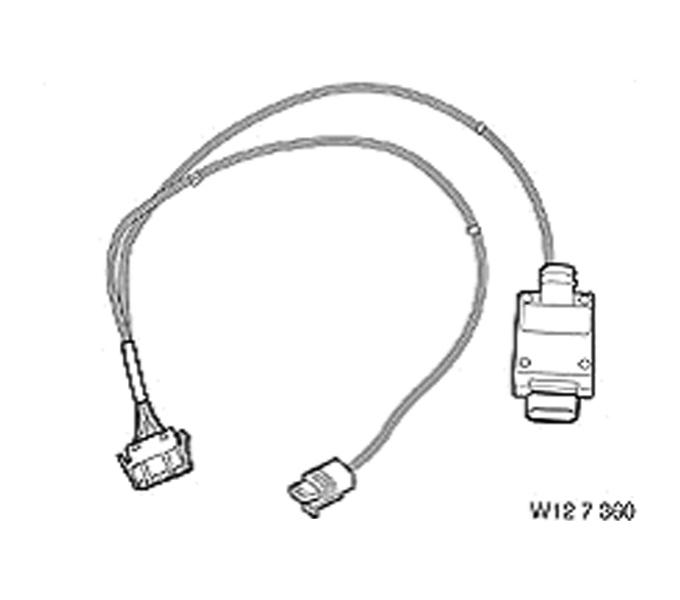

Fig 3: 4 Pin Test Cable
G04171986

Used to test the Intake air temp/pressure sensor.

  1. Unplug the sensor
  2. Connect the test cable between the sensor & supply wire
  3. Perform measurements as instructed by the diagnosis program

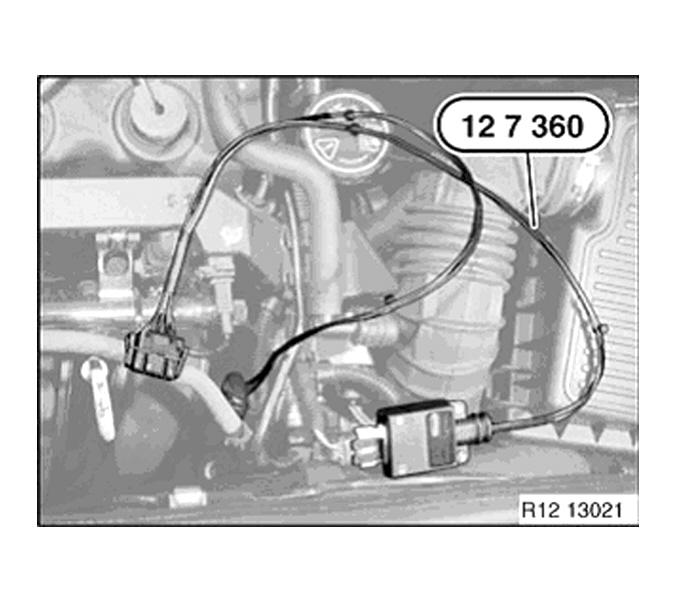

    Fig 4: Connecting Test Cable Between Sensor And Supply Wire
    G04171987

9 pin test cable

PN 90 88 0 631 020

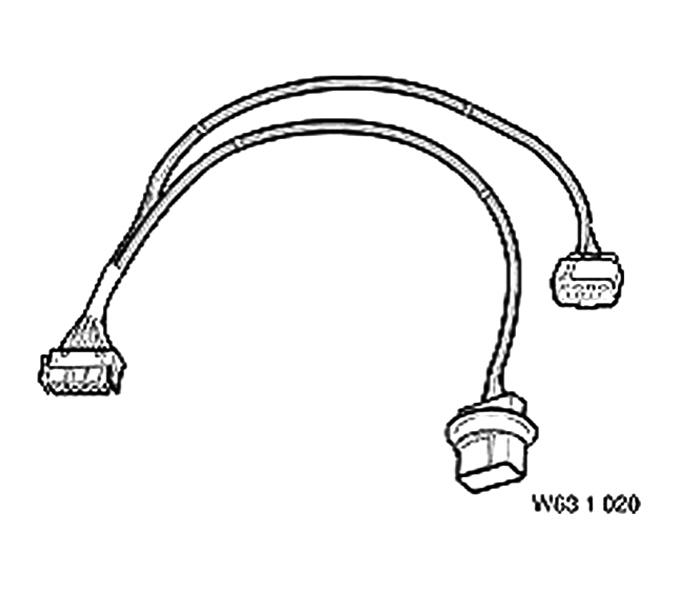

Fig 5: 9 Pin Test Cable
G04171988

Used to test headlight.

  1. Unplug the main headlight
  2. Connect the test cable between the main headlight & supply wire
  3. Perform measurements as instructed by the diagnosis program

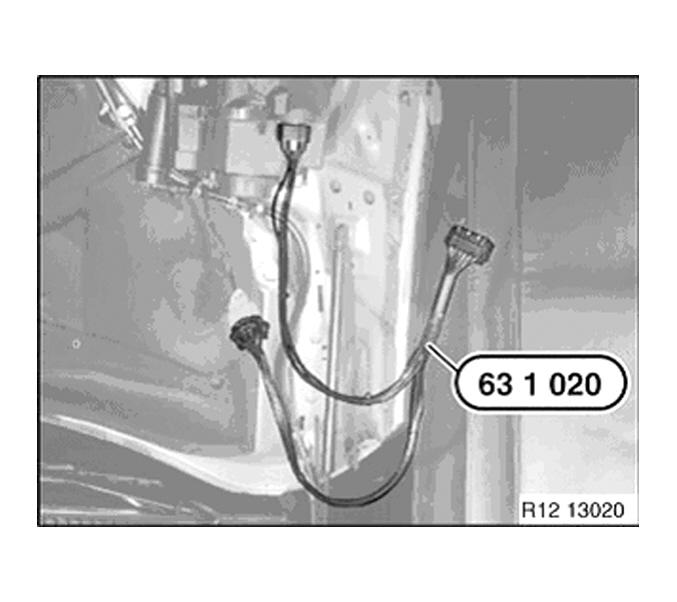

    Fig 6: Connecting Test Cable Between Main Headlight And Supply Wire
    G04171989

40 pin test cable

PN 90 88 0 127 240

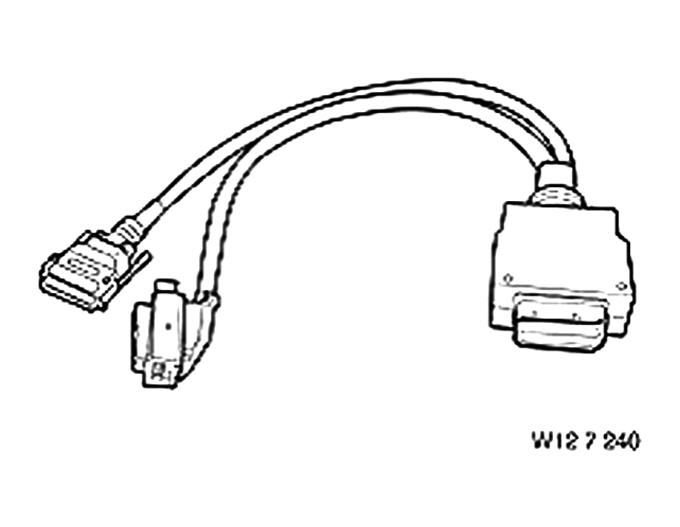

Fig 7: 40 Pin Test Cable
G04171990

Used to test the EMS2000 control module.

  1. Connect the test cable to the 105 pin B.O.B. 614 390
  2. Unplug the 40 pin connector from the CM
  3. Connect the test cable between the CM & the supply wire
  4. Perform measurements as instructed by the diagnosis program
    Fig 8: Connecting Test Cable Between CM And Supply Wire
    G04171991

81 pin test cable

PN 90 88 0 127 250

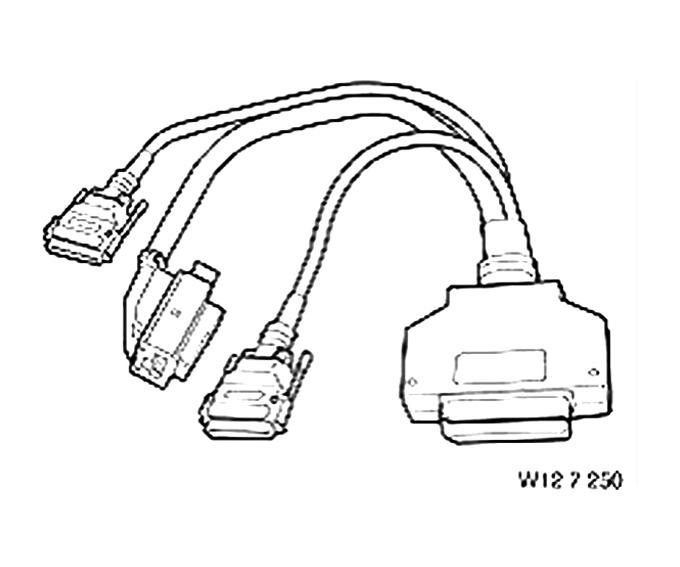

Fig 9: 81Pin Test Cable
G04171992

Used to test the EMS2000 control module.

  1. Connect the test cable to B.O.B. 614 380
  2. Unplug the 81 pin connector from the CM
  3. Connect the test cable between the CM & the supply wire
  4. Perform measurements as instructed by the diagnosis program

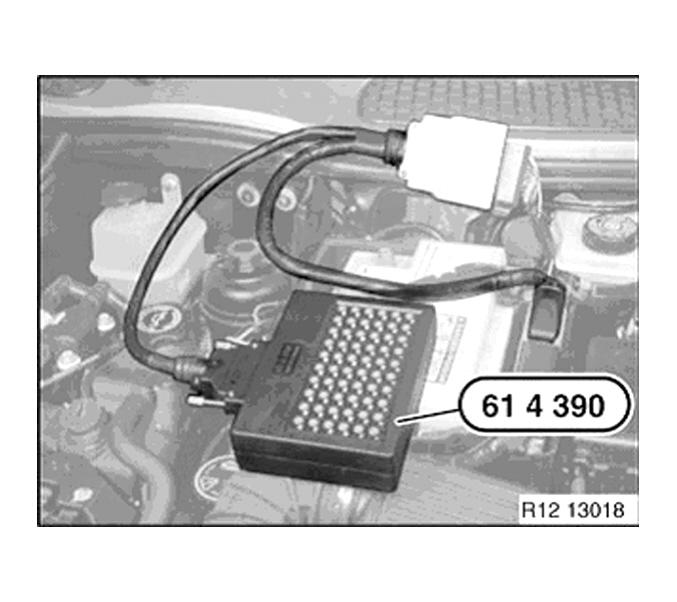

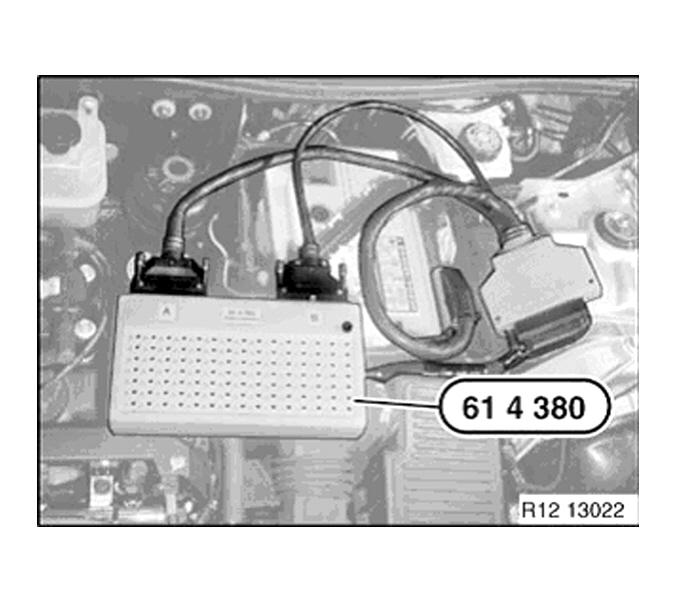

    Fig 10: Connecting Test Cable Between CM And Supply Wire
    G04171993
