Vehicle Memory (M09 01 02)

VEHICLE MEMORY

TECHNICAL SERVICE BULLETIN

SUBJECT

Vehicle Memory

MODEL

R50 (Cooper), R52 (Convertible), R53 (Cooper S)

SITUATION

Various operating features in MINI vehicles may be customized using Vehicle Memory. There are different settings available for MINI vehicles of different model years (see attachment).

All Sales and Service personnel should be aware that Vehicle Memory can be set with either DISPLUS or GT1 because recent customer surveys indicate a customer demand for such adjustments.

PROCEDURE

The customer must be informed about possible choices before delivery by filling out a selection sheet (a printable version is attached). One copy of the questionnaire stays with the customer, one copy goes to sales department, and one copy to service department. According to the customer choices, the vehicle should be customized during the QC 1.

Selection changes during the ownership period are not reimbursable under warranty. The customer should not be charged for the programming  . Individualizing your customer's vehicle is an important contribution to a positive customer experience.

Using DISplus/GT1, select Coding/Vehicle Memory to access the Vehicle Memory program:

1. After a short period of time the menu screen will be displayed with a list of all detected control systems capable of Vehicle Memory configuration.
2. Using the owner's selection list, enter the system selected for customization.
3. From the system submenu select the function to be altered.
4. Make the appropriate selection (activation/deactivation). The following symbols may be displayed next to the selection choice:

   "=" - sign indicates present status

   "*" - sign indicates factory default (when present vehicle selection is different)

   ">" - sign indicates entered change in selection

5. After pressing the "continue" arrow, the system will accept the change in selection and the VEHICLE MEMORY main menu will be displayed. If additional changes are required, enter the appropriate system and repeat steps from above.
6. When all of the required VEHICLE MEMORY configuration changes are entered, scroll down to the bottom of the main menu.
7. Select "SET VEHICLE" and follow the on-screen instructions to complete the coding process.

Select "Car Memory", then "Print List" to record the new settings. Place the print list in the vehicle service file for future reference.

Vehicle Memory using CIP V20.0 or later:

1. If SSS is used to control the Programming Session directly, continue with step 4.
2. If remote functionality of GT1 is used to control the Programming Session, select "Coding/Programming"
3. Select an available SSS in the network.
4. Press "New Session"  on the Progman Homepage screen to start CIP.
5. Select the appropriate vehicle model.
6. Press the "CKM"  button at the screen with the text "Program SELECTION: Load software, Car & Key Memory (CKM)".
7. The CKM screen displays all available CKM functions, their current settings, and the factory default setting.
   NOTE: When selecting the text of each functionality, a popup screen will show further information about the selection.
8. Make CKM selections according to the customer request.
9. Press "Encode Car"
10. Press "Save", and a screen is displayed with green check marks to confirm that the VKM selections have programmed correctly.
11. Press "Finish" to return to the selection screen, with the new selections marked accordingly.

WARRANTY INFORMATION

For information only.

ATTACHMENTS

MINI Vehicle Memory

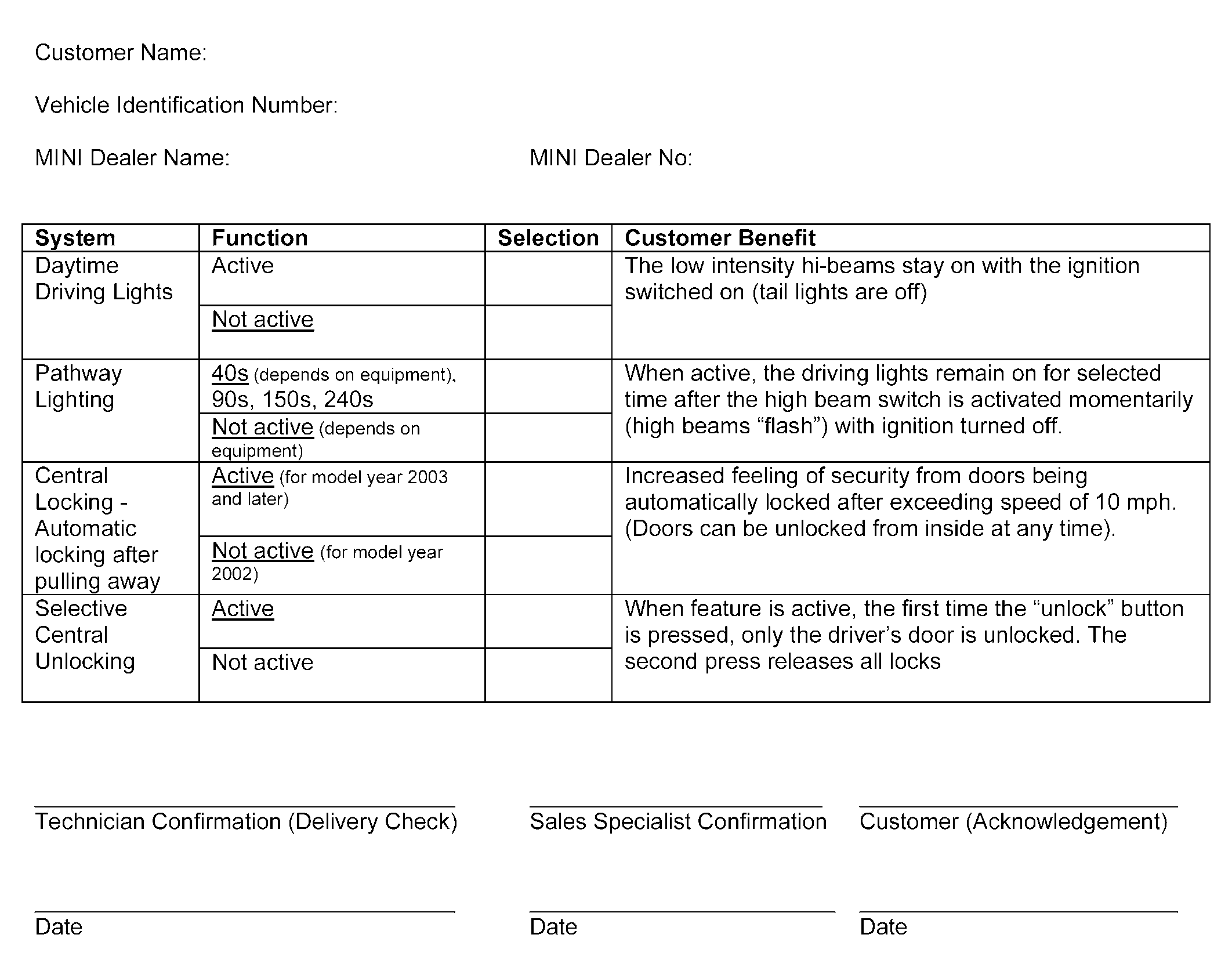

Customer Selection Form

The following Vehicle Memory custom configuration choices are available on the vehicle you have purchased (scope of the selection depends on equipment options of your vehicle).

"Vehicle Memory" includes programmed functions activated regardless of the vehicle key being used.

Please read the following selections and check the appropriate box. The factory default settings (factory selections) are underlined  . If you choose not to make any new selections, your vehicle will be delivered with the default values.

Vehicle Memory settings for MINI

"=" factory setting

Function	Setting	Model Year
Anti-Theft System
Acknowledge - Disarm acoustically	Active	=05,04
	Not active
Acknowledge - Arm acoustically	Active	=05,04
	Not active
Acknowledge - Arm acoustically, lids closed	Active	=05,04
	Not active
Central locking
Remote Control Panic Mode	Active
	Not active	=05,04
Lock again 2 min after unlocking	Active	=05,04
	Not active
Automatic lock after starting (after 10 mph)	Active	=05,04,03
	Not active	=02
Automatic unlock after engine off	Active
	Not active	=05,04,03,02
Automatic unlock after removing key	Active	=06
	Not active
Selective central locking, key	Active	=05,04,03
	Not active	=02
Selective central locking, remote control	Active	=05,04,03,02
	Not active
Entrance aid/selective central locking (1)	Selective CL	=05,04
	Not Active
Holding remote control open button	Luggage compartment unlocking	=02
	Comfort opening	=04,03
	No function	=05 (since 03/22/05)
Window regulator / Slide / Tilt sunroof  (2)
Power sunroof - 1 touch open	Active	=04,03,02
	Not active
Convenient opening, key	Active	=03 (up to 01/22/03)
	Not active	=03 (since 01/23/03)
Power sunroof - 1 touch close	Active	=02
	Not active
Power sunroof - 1 touch raise	Active	=04,03,02
	Not active
Lighting
Daytime driving lights	Active
	Not active	=05,04,03,02
External lights, home lights (pathway lighting)	Not active	=03,02
	40s	=05,04
	90s
	150s
	240s
Windscreen wipers
Switch back when stationary	Active	=05,04,03,02
	Not active
Acoustic Warnings
Fuel Warning	Active	=05,04
	Not active
Displays / language
Units - consumption	l/100km
	mpg (uk)
	mpg (us)	=05,04,03,02
	km/l
Units - distance	km
	mls	=05,04
Units - time	12h	=05,04
	24h
Units - temperature	degrees c
	degrees f	=05,04,03,02
Park Distance Control
Volume, rear (small differences in volume levels)	Level 1 (quiet)
	Level 2
	Level 3
	Level 4
	Level 5	=05,04,03,02
	Level 6 (loud)
Switch - on message, rear	Active
	Not active	=05,04,03,02
Rain sensor
Threshold settings (3)	Sensitive	=05,04,03
	Less sensitive
(1) selectable on tester, but no functional effect (2) not applicable for R52 (MINI convertible) (3) not for vehicles produced prior to 12/2002
