Tamper Flash

If the alarm has been triggered, the Tamper Flash pattern will be given during disarming. The tamper flash pattern is a slow 200ms on 200ms off pattern.

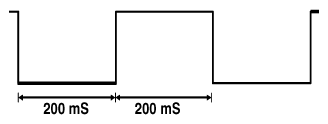

Fig 1: Tamper Flash Patterns
G04730211Courtesy of BMW OF NORTH AMERICA, INC.
