ASC Switch

The ASC Switch provides an ON/OFF request to the ASC control unit for ASC operation.

Fig 1: ASC Switch
G04725171Courtesy of BMW OF NORTH AMERICA, INC.

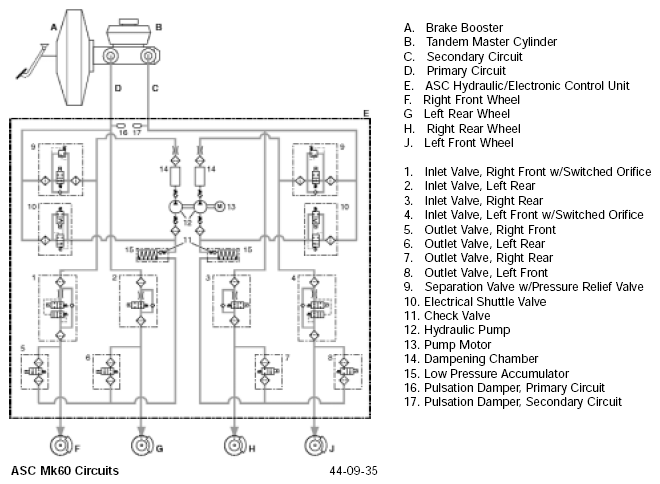

Fig 2: Identifying ASC Mk60 Circuit Diagram
G04725172Courtesy of BMW OF NORTH AMERICA, INC.
