Front Side Panel

The Front Side panel is secured to the body by two nuts to the A post and three bolts (two to the A post and one to the front apron panel.

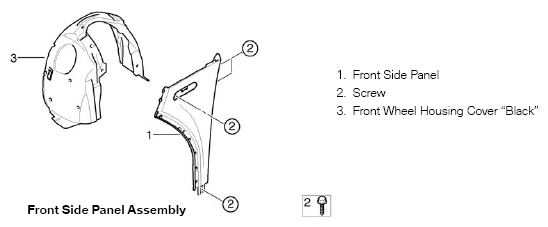

Fig 1: Front Side Panel Assembly
G04730259Courtesy of BMW OF NORTH AMERICA, INC.
