The Body Shell: Hood: Notes

The Hood on MINI COOPER is of a conventional hinged type, supported at both sides by a gas strut. The hood is mounted on two adjustable hinges, which are secured to the main body A post panel (two Torx screws, per hinge) and the hood (two Torx screws, per hinge). The two gas struts limit hood open travel.

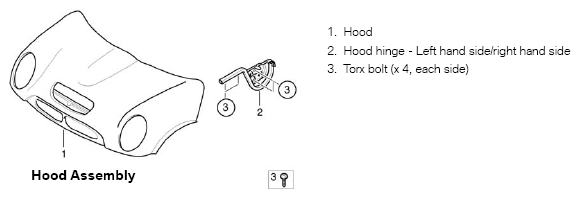

Fig 1: Hood Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Hood Hinge Mounting Bolts (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Hood Hinge Mounting Bolts (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
