Window Regulators

The Window Regulators are of a cable drive type. The window motor is fitted to the window regulator device in the door. The motor and regulator are available as separate parts for service.

Fig 1: Window Regulator/Motor Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

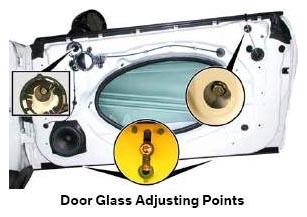

Fig 2: Door Glass Adjusting Points

Courtesy of BMW OF NORTH AMERICA, INC.
